Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

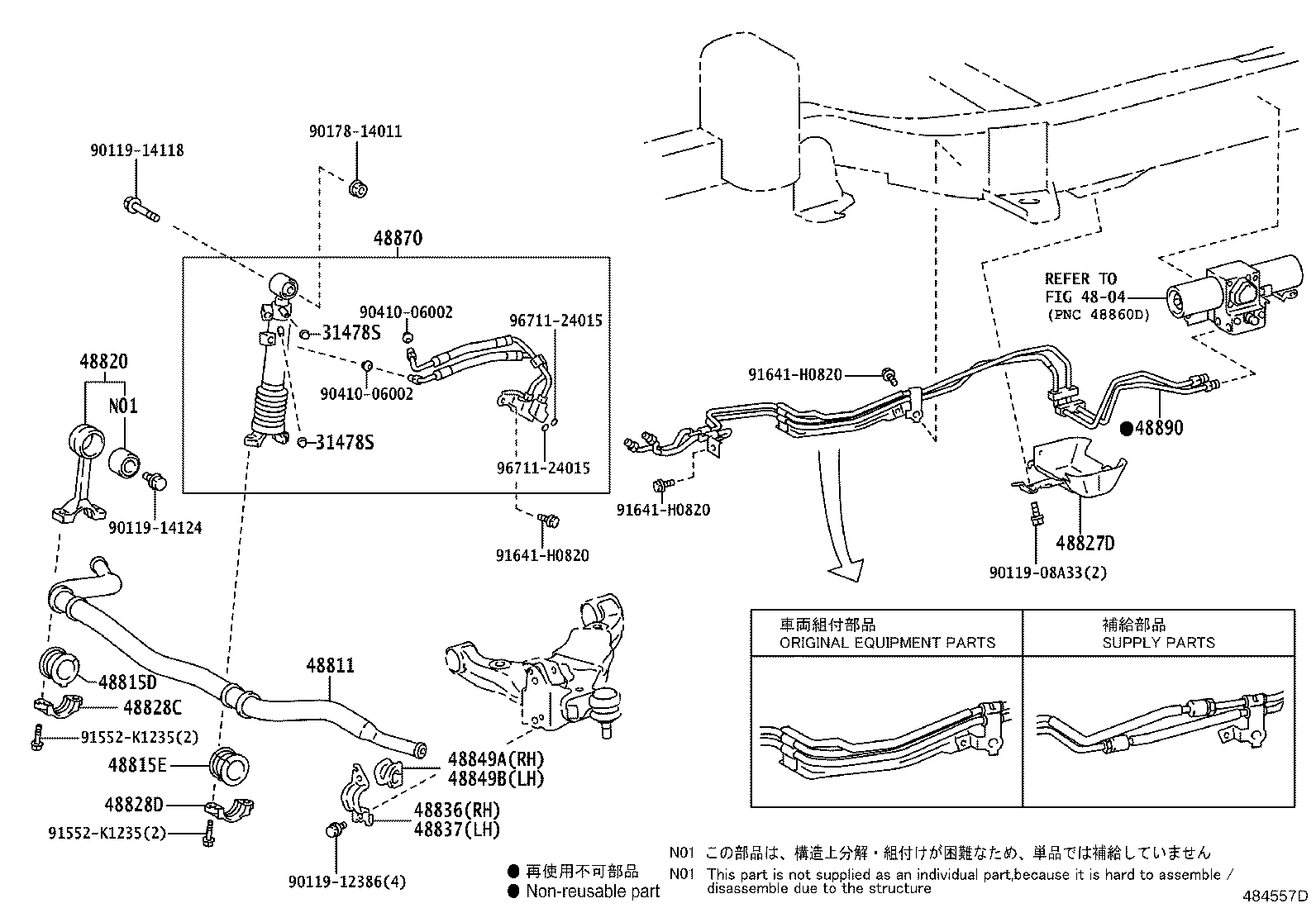

Exploded illustration 484557D 48811 — BAR, STABILIZER, FRONT (10 parts) 48815D — BUSH, FRONT STABILIZER BAR, RH (11 parts) 48815E — BUSH, FRONT STABILIZER BAR, LH (11 parts) 48820 — LINK ASSY, FRONT STABILIZER (8 parts) 48828C — BRACKET, FRONT STABILIZER, LOWER RH (8 parts) 48828D — BRACKET, FRONT STABILIZER, LOWER LH (8 parts) 48836 — BRACKET, FRONT STABILIZER END, RH (8 parts) 48837 — BRACKET, FRONT STABILIZER END, LH (8 parts) 48849A — BUSH, FRONT STABILIZER LINK, RH (12 parts) 48849B — BUSH, FRONT STABILIZER LINK, LH (12 parts) 48870 — CYLINDER ASSY, FRONT STABILIZER W/TUBE (3 parts) 31478S — CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL) (8 parts) 31478S — CAP, BLEEDER PLUG(FOR FRONT SUSPENSION CONTROL) (8 parts) 48890 — TUBE ASSY, FRONT STABILIZER CONTROL, NO.1 (4 parts) 4804 — not listed in this catalogue 9011912386 — not listed in this catalogue 9011914118 — not listed in this catalogue 9011914124 — not listed in this catalogue 9017814011 — not listed in this catalogue 9041006002 — not listed in this catalogue 91552K1235 — not listed in this catalogue 91552K1235 — not listed in this catalogue 91641H0820 — not listed in this catalogue 91641H0820 — not listed in this catalogue 9671124015 — not listed in this catalogue 9671124015 — not listed in this catalogue 91641H0820 — not listed in this catalogue 48827D — PROTECTOR, FRONT STABILIZER TUBE (5 parts) 9011908A33 — not listed in this catalogue 9041006002 — not listed in this catalogue
484557D · 15 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
116 parts on this figure
Part number Description Fitment Price
31478S — Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
31478-60020 Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2017-08 → 2019-06 ended
KDJ150 RHD —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2017-08 → 2018-06 ended
GDJ150 RUS —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2020-08 → 2021-06 ended
GDJ150 RUS —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2017-08 → 2021-06 ended
GDJ150 6F —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2018-06 → 2020-08 ended
GDJ150 RUS —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
31478-60020 note Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48811 — Bar, Stabilizer, Front
48811-60310 Bar, Stabilizer, Front
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ15#,TRJ150 —
48811-60320 Bar, Stabilizer, Front
2017-08 → 2023-12 ended
GRJ150 —
48811-60390 note Bar, Stabilizer, Front
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48811-60390 note Bar, Stabilizer, Front
2020-08 → 2021-06 ended
GDJ150 RUS —
48811-60390 note Bar, Stabilizer, Front
2017-08 → 2021-06 ended
GDJ150 6F —
48811-60390 note Bar, Stabilizer, Front
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48811-60390 note Bar, Stabilizer, Front
2018-06 → 2020-08 ended
GDJ150 RUS —
48811-60390 note Bar, Stabilizer, Front
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48811-60390 Bar, Stabilizer, Front
2017-08 → 2019-06 ended
KDJ150 RHD —
48811-60390 note Bar, Stabilizer, Front
2017-08 → 2018-06 ended
GDJ150 RUS —
48815D — Bush, Front Stabilizer Bar, RH
48815-60360 note Bush, Front Stabilizer Bar, RH
2017-08 → 2018-06 ended
GDJ150 RUS —
48815-60360 Bush, Front Stabilizer Bar, RH
2017-08 → 2019-06 ended
KDJ150 RHD —
48815-60360 note Bush, Front Stabilizer Bar, RH
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48815-60360 note Bush, Front Stabilizer Bar, RH
2018-06 → 2020-08 ended
GDJ150 RUS —
48815-60360 note Bush, Front Stabilizer Bar, RH
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48815-60360 note Bush, Front Stabilizer Bar, RH
2017-08 → 2021-06 ended
GDJ150 6F —
48815-60360 note Bush, Front Stabilizer Bar, RH
2020-08 → 2021-06 ended
GDJ150 RUS —
48815-60360 note Bush, Front Stabilizer Bar, RH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48815-60380 Bush, Front Stabilizer Bar, RH
2017-08 → 2021-02 ended
GDJ150,GRJ150,TRJ150 RUS —
48815-60380 Bush, Front Stabilizer Bar, RH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ15#,GRJ150 EUR —
48815-60470 Bush, Front Stabilizer Bar, RH
2021-02 → 2023-12 ended
GDJ150,GRJ150,TRJ150 RUS —
48815E — Bush, Front Stabilizer Bar, LH
48815-60360 Bush, Front Stabilizer Bar, LH
2017-08 → 2019-06 ended
KDJ150 RHD —
48815-60360 note Bush, Front Stabilizer Bar, LH
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48815-60360 note Bush, Front Stabilizer Bar, LH
2018-06 → 2020-08 ended
GDJ150 RUS —
48815-60360 note Bush, Front Stabilizer Bar, LH
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48815-60360 note Bush, Front Stabilizer Bar, LH
2017-08 → 2021-06 ended
GDJ150 6F —
48815-60360 note Bush, Front Stabilizer Bar, LH
2020-08 → 2021-06 ended
GDJ150 RUS —
48815-60360 note Bush, Front Stabilizer Bar, LH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48815-60360 note Bush, Front Stabilizer Bar, LH
2017-08 → 2018-06 ended
GDJ150 RUS —
48815-60380 Bush, Front Stabilizer Bar, LH
2017-08 → 2021-02 ended
GDJ150,GRJ150,TRJ150 RUS —
48815-60380 Bush, Front Stabilizer Bar, LH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ15#,GRJ150 EUR —
48815-60470 Bush, Front Stabilizer Bar, LH
2021-02 → 2023-12 ended
GDJ150,GRJ150,TRJ150 RUS —
48820 — Link Assy, Front Stabilizer
48820-60090 note Link Assy, Front Stabilizer
2018-06 → 2020-08 ended
GDJ150 RUS —
48820-60090 note Link Assy, Front Stabilizer
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48820-60090 note Link Assy, Front Stabilizer
2020-08 → 2021-06 ended
GDJ150 RUS —
48820-60090 note Link Assy, Front Stabilizer
2017-08 → 2021-06 ended
GDJ150 6F —
48820-60090 note Link Assy, Front Stabilizer
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48820-60090 note Link Assy, Front Stabilizer
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48820-60090 Link Assy, Front Stabilizer
2017-08 → 2019-06 ended
KDJ150 RHD —
48820-60090 note Link Assy, Front Stabilizer
2017-08 → 2018-06 ended
GDJ150 RUS —
48827D — Protector, Front Stabilizer Tube
48827-60060 Protector, Front Stabilizer Tube
2017-08 → 2019-06 ended
KDJ150 RHD —
48827-60060 note Protector, Front Stabilizer Tube
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48827-60060 note Protector, Front Stabilizer Tube
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48827-60060 note Protector, Front Stabilizer Tube
2017-08 → 2023-12 ended
GDJ150 RUS;KDJ150 LHD —
48827-60070 note Protector, Front Stabilizer Tube
2017-08 → 2023-12 ended
GRJ150 —
48828C — Bracket, Front Stabilizer, Lower RH
48828-60090 note Bracket, Front Stabilizer, Lower RH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48828-60090 note Bracket, Front Stabilizer, Lower RH
2020-08 → 2021-06 ended
GDJ150 RUS —
48828-60090 note Bracket, Front Stabilizer, Lower RH
2017-08 → 2021-06 ended
GDJ150 6F —
48828-60090 note Bracket, Front Stabilizer, Lower RH
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48828-60090 note Bracket, Front Stabilizer, Lower RH
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48828-60090 note Bracket, Front Stabilizer, Lower RH
2018-06 → 2020-08 ended
GDJ150 RUS —
48828-60090 note Bracket, Front Stabilizer, Lower RH
2017-08 → 2018-06 ended
GDJ150 RUS —
48828-60090 Bracket, Front Stabilizer, Lower RH
2017-08 → 2019-06 ended
KDJ150 RHD —
48828D — Bracket, Front Stabilizer, Lower LH
48828-60090 note Bracket, Front Stabilizer, Lower LH
2017-08 → 2018-06 ended
GDJ150 RUS —
48828-60090 Bracket, Front Stabilizer, Lower LH
2017-08 → 2019-06 ended
KDJ150 RHD —
48828-60090 note Bracket, Front Stabilizer, Lower LH
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48828-60090 note Bracket, Front Stabilizer, Lower LH
2018-06 → 2020-08 ended
GDJ150 RUS —
48828-60090 note Bracket, Front Stabilizer, Lower LH
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48828-60090 note Bracket, Front Stabilizer, Lower LH
2017-08 → 2021-06 ended
GDJ150 6F —
48828-60090 note Bracket, Front Stabilizer, Lower LH
2020-08 → 2021-06 ended
GDJ150 RUS —
48828-60090 note Bracket, Front Stabilizer, Lower LH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48836 — Bracket, Front Stabilizer End, RH
48836-60130 note Bracket, Front Stabilizer End, RH
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48836-60130 note Bracket, Front Stabilizer End, RH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48836-60130 note Bracket, Front Stabilizer End, RH
2020-08 → 2021-06 ended
GDJ150 RUS —
48836-60130 note Bracket, Front Stabilizer End, RH
2017-08 → 2021-06 ended
GDJ150 6F —
48836-60130 note Bracket, Front Stabilizer End, RH
2018-06 → 2020-08 ended
GDJ150 RUS —
48836-60130 note Bracket, Front Stabilizer End, RH
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48836-60130 Bracket, Front Stabilizer End, RH
2017-08 → 2019-06 ended
KDJ150 RHD —
48836-60130 note Bracket, Front Stabilizer End, RH
2017-08 → 2018-06 ended
GDJ150 RUS —
48837 — Bracket, Front Stabilizer End, LH
48837-60080 note Bracket, Front Stabilizer End, LH
2017-08 → 2018-06 ended
GDJ150 RUS —
48837-60080 Bracket, Front Stabilizer End, LH
2017-08 → 2019-06 ended
KDJ150 RHD —
48837-60080 note Bracket, Front Stabilizer End, LH
2017-08 → 2020-08 ended
GDJ150 LHD 6F —
48837-60080 note Bracket, Front Stabilizer End, LH
2018-06 → 2020-08 ended
GDJ150 RUS —
48837-60080 note Bracket, Front Stabilizer End, LH
2017-08 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48837-60080 note Bracket, Front Stabilizer End, LH
2017-08 → 2021-06 ended
GDJ150 6F —
48837-60080 note Bracket, Front Stabilizer End, LH
2020-08 → 2021-06 ended
GDJ150 RUS —
48837-60080 note Bracket, Front Stabilizer End, LH
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48849A — Bush, Front Stabilizer Link, RH
48849-60040 note Bush, Front Stabilizer Link, RH
2017-08 → 2018-01 ended
KDJ150 LHD;GDJ150,GRJ150 —
48849-60040 note Bush, Front Stabilizer Link, RH
2017-08 → 2018-01 ended
GDJ150 RUS —
48849-60040 Bush, Front Stabilizer Link, RH
2017-08 → 2018-01 ended
KDJ150 RHD —
48849-60040 note Bush, Front Stabilizer Link, RH
2017-08 → 2018-01 ended
GDJ150 LHD EUR —
48849-60041 note Bush, Front Stabilizer Link, RH
2018-02 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48849-60041 note Bush, Front Stabilizer Link, RH
2020-08 → 2021-06 ended
GDJ150 RUS —
48849-60041 note Bush, Front Stabilizer Link, RH
2018-02 → 2021-06 ended
GDJ150 6F —
48849-60041 note Bush, Front Stabilizer Link, RH
2018-02 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48849-60041 note Bush, Front Stabilizer Link, RH
2018-06 → 2020-08 ended
GDJ150 RUS —
48849-60041 note Bush, Front Stabilizer Link, RH
2018-02 → 2020-08 ended
GDJ150 LHD 6F —
48849-60041 Bush, Front Stabilizer Link, RH
2018-02 → 2019-06 ended
KDJ150 RHD —
48849-60041 note Bush, Front Stabilizer Link, RH
2018-02 → 2018-06 ended
GDJ150 RUS —
48849B — Bush, Front Stabilizer Link, LH
48849-60040 Bush, Front Stabilizer Link, LH
2017-08 → 2018-01 ended
KDJ150 RHD —
48849-60040 note Bush, Front Stabilizer Link, LH
2017-08 → 2018-01 ended
GDJ150 RUS —
48849-60040 note Bush, Front Stabilizer Link, LH
2017-08 → 2018-01 ended
GDJ150 LHD EUR —
48849-60040 note Bush, Front Stabilizer Link, LH
2017-08 → 2018-01 ended
KDJ150 LHD;GDJ150,GRJ150 —
48849-60041 note Bush, Front Stabilizer Link, LH
2018-02 → 2018-06 ended
GDJ150 RUS —
48849-60041 note Bush, Front Stabilizer Link, LH
2018-02 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48849-60041 note Bush, Front Stabilizer Link, LH
2020-08 → 2021-06 ended
GDJ150 RUS —
48849-60041 note Bush, Front Stabilizer Link, LH
2018-02 → 2021-06 ended
GDJ150 6F —
48849-60041 note Bush, Front Stabilizer Link, LH
2018-02 → 2021-06 ended
GDJ150 LHD 6FC EUR —
48849-60041 note Bush, Front Stabilizer Link, LH
2018-06 → 2020-08 ended
GDJ150 RUS —
48849-60041 note Bush, Front Stabilizer Link, LH
2018-02 → 2020-08 ended
GDJ150 LHD 6F —
48849-60041 Bush, Front Stabilizer Link, LH
2018-02 → 2019-06 ended
KDJ150 RHD —
48870 — Cylinder Assy, Front Stabilizer W/Tube
48007-60023 Cylinder Assy, Front Stabilizer W/Tube
2017-08 → 2019-06 ended
KDJ150 RHD —
48007-60023 note Cylinder Assy, Front Stabilizer W/Tube
2017-08 → 2021-06 ended
GDJ150 6F —
48007-60023 note Cylinder Assy, Front Stabilizer W/Tube
2017-08 → 2023-12 ended
KDJ150 LHD;GDJ150,GRJ150 6FC —
48890 — Tube Assy, Front Stabilizer Control, NO.1
48890-60070 note Tube Assy, Front Stabilizer Control, NO.1
2017-08 → 2023-12 ended
GRJ150 —
48890-60100 Tube Assy, Front Stabilizer Control, NO.1
2017-08 → 2019-06 ended
KDJ150 RHD —
48890-60100 note Tube Assy, Front Stabilizer Control, NO.1
2017-08 → 2021-06 ended
GDJ150 6F —
48890-60100 note Tube Assy, Front Stabilizer Control, NO.1
2017-08 → 2023-12 ended
GDJ150 6FC;KDJ150 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
