Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

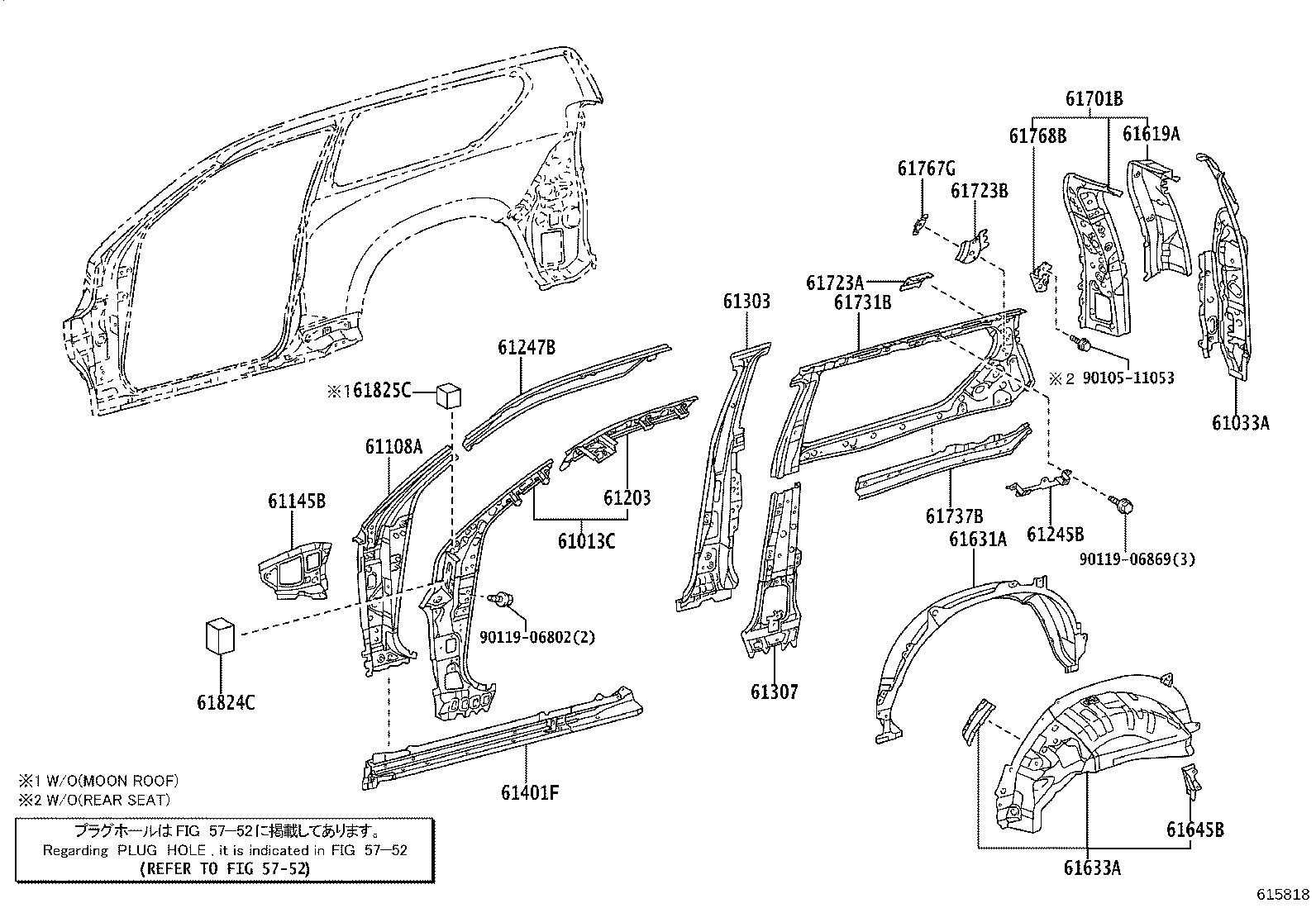

Exploded illustration 615818 5752 — not listed in this catalogue 61013C — PANEL SUB-ASSY, SIDE, INNER RH (2 parts) 61033A — REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE (2 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (2 parts) 61145B — GUSSET, FRONT BODY PILLAR, LOWER RH (2 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (2 parts) 61245B — BRACKET, ASSIST GRIP, NO.3 RH (1 parts) 61247B — REINFORCEMENT, ROOF SIDE RAIL, INNER RH (1 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (2 parts) 61307 — PILLAR SUB-ASSY, CENTER BODY, INNER RH (2 parts) 61401F — REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH (2 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (3 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (103 parts) 61645B — GUSSET, QUARTER WHEEL HOUSE, REAR RH (2 parts) 61701B — PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH (2 parts) 61723A — REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1 (2 parts) 61723B — REINFORCEMENT, QUARTER WINDOW OPENING, NO.2 RH (1 parts) 61731B — PANEL, ROOF SIDE, INNER RH (2 parts) 61737B — PANEL, ROOF SIDE, INNER LOWER RH (2 parts) 61767G — RETAINER, SEAT BELT ANCHOR, NO.2 (1 parts) 61824C — PAD, NOISE SHUTTER, NO.1 (1 parts) 61825C — PAD, NOISE SHUTTER, NO.2 (1 parts) 9011906869 — not listed in this catalogue 9011906802 — not listed in this catalogue 61619A — REINFORCEMENT, QUARTER PANEL (2 parts) 61768B — REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH (2 parts) 9010511053 — not listed in this catalogue
615818 · 23 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
142 parts on this figure
Part number Description Fitment Price
61013C — Panel Sub-assy, Side, Inner RH
61013-60041 Panel Sub-assy, Side, Inner RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61013-60051 Panel Sub-assy, Side, Inner RH
2017-08 → —
GDJ155 —
61033A — Reinforce Sub-assy, Back Door Opening Side
61033-60180 Reinforce Sub-assy, Back Door Opening Side
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61033-60180 Reinforce Sub-assy, Back Door Opening Side
2017-08 → —
GDJ155,KDJ150 —
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-60900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61108-60900 Reinforce Sub-assy, Front Body Pillar, Lower RH
2017-08 → —
GDJ155,KDJ150 —
61145B — Gusset, Front Body Pillar, Lower RH
61015-60010 Gusset, Front Body Pillar, Lower RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61015-60010 Gusset, Front Body Pillar, Lower RH
2017-08 → —
GDJ155,KDJ150 —
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-60030 Rail Sub-assy, Roof Side, Inner RH
2017-08 → —
GDJ155 —
61203-60040 Rail Sub-assy, Roof Side, Inner RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61245B — Bracket, Assist Grip, NO.3 RH
61245-60060 Bracket, Assist Grip, NO.3 RH
2017-08 → —
GDJ155 —
61247B — Reinforcement, Roof Side Rail, Inner RH
61247-60100 Reinforcement, Roof Side Rail, Inner RH
2017-08 → —
GDJ155 —
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-60100 Reinforce Sub-assy, Center Body Pillar, Upper RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61303-60110 Reinforce Sub-assy, Center Body Pillar, Upper RH
2017-08 → —
GDJ155 —
61307 — Pillar Sub-assy, Center Body, Inner RH
61307-60310 Pillar Sub-assy, Center Body, Inner RH
2017-08 → —
GDJ155 —
61307-60900 Pillar Sub-assy, Center Body, Inner RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61401F — Reinforcement Sub-assy, Rocker Panel, RH
61401-60900 Reinforcement Sub-assy, Rocker Panel, RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61401-60901 Reinforcement Sub-assy, Rocker Panel, RH
2017-08 → —
GDJ155 —
61619A — Reinforcement, Quarter Panel
61619-60100 Reinforcement, Quarter Panel
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61619-60100 Reinforcement, Quarter Panel
2017-08 → —
GDJ155,KDJ150 —
61631A — Panel, Quarter Wheel House, Outer RH
61631-60140 Panel, Quarter Wheel House, Outer RH
2017-08 → —
GDJ155 —
61631-60919 Panel, Quarter Wheel House, Outer RH
2017-08 → 2021-10 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61631-60921 Panel, Quarter Wheel House, Outer RH
2021-10 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61633A — Panel, Quarter Wheel House, Inner RH
61633-60911 Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ155 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RHD 6F —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RHD 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RHD —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 LHD 6F;GDJ150 RHD +1 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
TRJ150 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GRJ150;GDJ150 RHD;GDJ150 LHD 6F —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RHD;GDJ150 LHD 6F —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GRJ150;GDJ150,KDJ150 6F —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 LHD 6F;GRJ150,KDJ150 6F,6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
KDJ150 LHD;GDJ150,GRJ150 —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2019-06 ended
KDJ150 RHD —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
TRJ150 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2021-06 ended
TRJ150 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2019-08 → 2020-08 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2019-08 → 2020-08 ended
TRJ150 6FC —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2019-08 → 2020-08 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2019-08 → 2020-08 ended
GDJ150 RUS —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60912 note Panel, Quarter Wheel House, Inner RH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61633-60913 Panel, Quarter Wheel House, Inner RH
2017-08 → 2022-01 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61633-60915 Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150,GRJ150 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GRJ150;GDJ150 LHD 6F —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GRJ150;GDJ150 6F —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 LHD 6F;GDJ150 RHD +1 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GRJ150;GDJ150 EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-08 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-08 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-08 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2022-08 ended
GDJ150 LHD 6FC EUR —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 6FC —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 6FC —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 6FC —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
TRJ150 —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60916 note Panel, Quarter Wheel House, Inner RH
2022-01 → 2023-12 ended
GDJ150 RUS —
61633-60918 Panel, Quarter Wheel House, Inner RH
2022-01 → —
GDJ155 —
61645B — Gusset, Quarter Wheel House, Rear RH
61645-60070 Gusset, Quarter Wheel House, Rear RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61645-60070 Gusset, Quarter Wheel House, Rear RH
2017-08 → —
GDJ155,KDJ150 —
61701B — Panel Sub-assy, Roof Side, Inner Upper RH
61077-60050 Panel Sub-assy, Roof Side, Inner Upper RH
2017-08 → —
GDJ155 —
61701-60200 Panel Sub-assy, Roof Side, Inner Upper RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61723A — Reinforcement, Quarter Window Opening, RH NO.1
61723-60020 Reinforcement, Quarter Window Opening, RH NO.1
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61723-60030 Reinforcement, Quarter Window Opening, RH NO.1
2017-08 → —
GDJ155 —
61723B — Reinforcement, Quarter Window Opening, NO.2 RH
61728-60030 Reinforcement, Quarter Window Opening, NO.2 RH
2017-08 → —
GDJ155 —
61731B — Panel, Roof Side, Inner RH
61731-60331 Panel, Roof Side, Inner RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61731-60340 Panel, Roof Side, Inner RH
2017-08 → —
GDJ155 —
61737B — Panel, Roof Side, Inner Lower RH
61737-60060 Panel, Roof Side, Inner Lower RH
2017-08 → —
GDJ155 —
61737-60090 Panel, Roof Side, Inner Lower RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61767G — Retainer, Seat Belt Anchor, NO.2
61767-44010 Retainer, Seat Belt Anchor, NO.2
2017-08 → —
GDJ155 —
61768B — Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
61768-60100 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61768-60110 Reinforce, Belt Anchor TO Roof Side, Inner Rear RH
2017-08 → —
GDJ155 —
61824C — Pad, Noise Shutter, NO.1
61824-35020 Pad, Noise Shutter, NO.1
2017-08 → 2023-12 ended
GDJ15#,GRJ150,KDJ150,TRJ150 —
61825C — Pad, Noise Shutter, NO.2
61825-35010 Pad, Noise Shutter, NO.2
2017-08 → 2023-12 ended
GDJ15#,GRJ150,KDJ150,TRJ150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
