Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

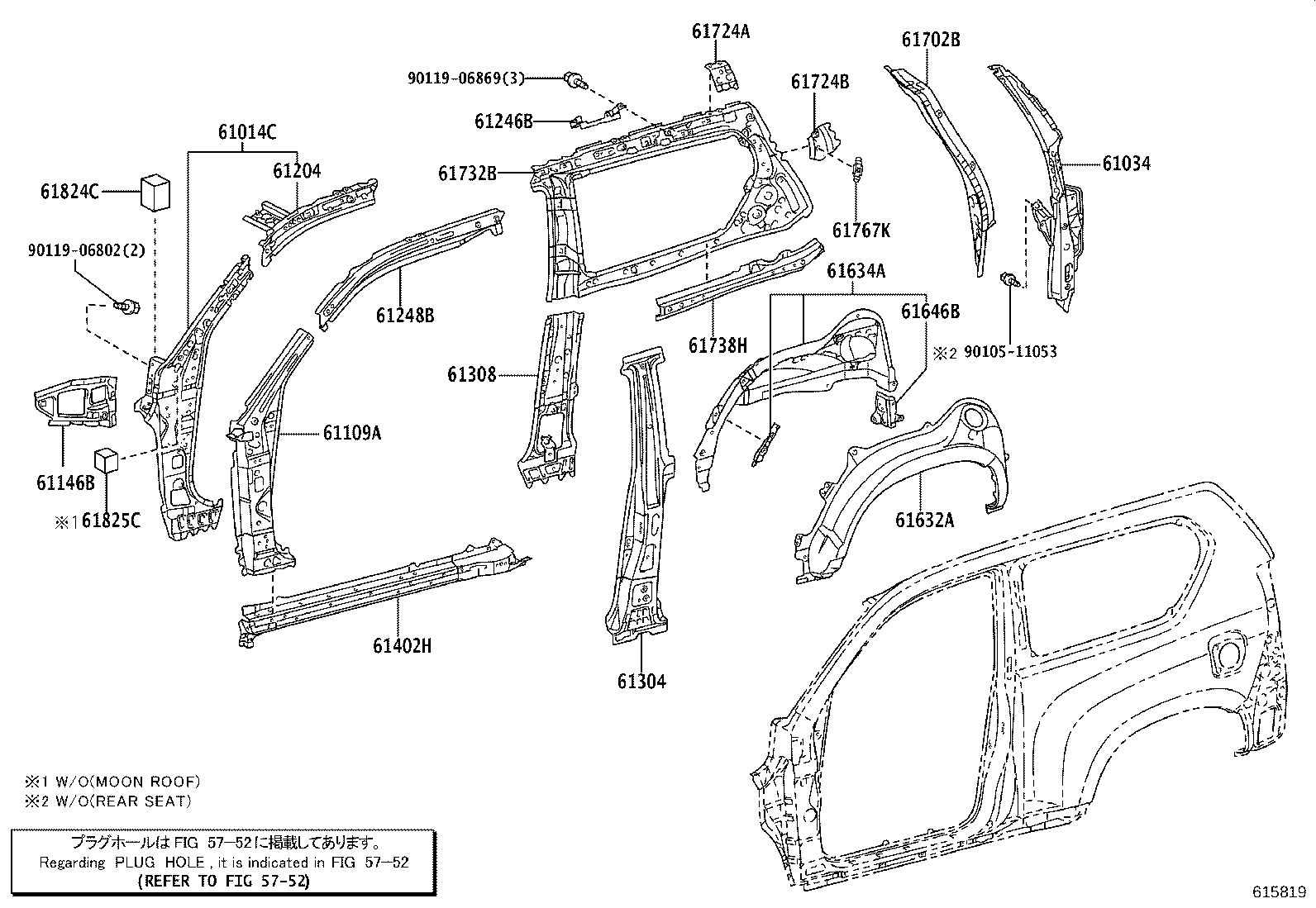

Exploded illustration 615819 5752 — not listed in this catalogue 61014C — PANEL SUB-ASSY, SIDE, INNER LH (2 parts) 61034 — REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH (2 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (2 parts) 61146B — GUSSET, FRONT BODY PILLAR, LOWER LH (2 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61246B — BRACKET, ASSIST GRIP, NO.3 LH (1 parts) 61248B — REINFORCEMENT, ROOF SIDE RAIL, INNER LH (1 parts) 61304 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH (2 parts) 61308 — PILLAR SUB-ASSY, CENTER BODY, INNER LH (2 parts) 61402H — REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH (2 parts) 61632A — PANEL, QUARTER WHEEL HOUSE, OUTER LH (3 parts) 61634A — PANEL, QUARTER WHEEL HOUSE, INNER LH (103 parts) 61646B — GUSSET, QUARTER WHEEL HOUSE, REAR LH (2 parts) 61702B — PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH (2 parts) 61724A — REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1 (2 parts) 61724B — REINFORCEMENT, QUARTER WINDOW OPENING, NO.2 LH (1 parts) 61732B — PANEL, ROOF SIDE, INNER LH (2 parts) 61738H — REINFORCEMENT, ROOF SIDE, INNER LH (1 parts) 61767K — RETAINER, SEAT BELT ANCHOR, NO.2 LH (1 parts) 61824C — PAD, NOISE SHUTTER, NO.1 (1 parts) 61825C — PAD, NOISE SHUTTER, NO.2 (1 parts) 9011906869 — not listed in this catalogue 9011906802 — not listed in this catalogue 9010511053 — not listed in this catalogue
615819 · 21 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
137 parts on this figure
Part number Description Fitment Price
61014C — Panel Sub-assy, Side, Inner LH
61014-60041 Panel Sub-assy, Side, Inner LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61014-60051 Panel Sub-assy, Side, Inner LH
2017-08 → —
GDJ155 —
61034 — Reinforce Sub-assy, Back Door Opening Side, LH
61034-60110 Reinforce Sub-assy, Back Door Opening Side, LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61034-60120 Reinforce Sub-assy, Back Door Opening Side, LH
2017-08 → —
GDJ155 —
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-60900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61109-60900 Reinforce Sub-assy, Front Body Pillar, Lower LH
2017-08 → —
GDJ155,KDJ150 —
61146B — Gusset, Front Body Pillar, Lower LH
61016-60010 Gusset, Front Body Pillar, Lower LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61016-60010 Gusset, Front Body Pillar, Lower LH
2017-08 → —
GDJ155,KDJ150 —
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-60030 Rail Sub-assy, Roof Side, Inner LH
2017-08 → —
GDJ155 —
61204-60040 Rail Sub-assy, Roof Side, Inner LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61246B — Bracket, Assist Grip, NO.3 LH
61246-60010 Bracket, Assist Grip, NO.3 LH
2017-08 → —
GDJ155 —
61248B — Reinforcement, Roof Side Rail, Inner LH
61248-60070 Reinforcement, Roof Side Rail, Inner LH
2017-08 → —
GDJ155 —
61304 — Reinforce Sub-assy, Center Body Pillar, Upper LH
61304-60090 Reinforce Sub-assy, Center Body Pillar, Upper LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61304-60100 Reinforce Sub-assy, Center Body Pillar, Upper LH
2017-08 → —
GDJ155 —
61308 — Pillar Sub-assy, Center Body, Inner LH
61308-60320 Pillar Sub-assy, Center Body, Inner LH
2017-08 → —
GDJ155 —
61308-60900 Pillar Sub-assy, Center Body, Inner LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61402H — Reinforcement Sub-assy, Rocker Panel, LH
61402-60900 Reinforcement Sub-assy, Rocker Panel, LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61402-60901 Reinforcement Sub-assy, Rocker Panel, LH
2017-08 → —
GDJ155 —
61632A — Panel, Quarter Wheel House, Outer LH
61632-60913 Panel, Quarter Wheel House, Outer LH
2017-08 → 2021-10 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61632-60914 Panel, Quarter Wheel House, Outer LH
2017-08 → —
GDJ155 —
61632-60915 Panel, Quarter Wheel House, Outer LH
2021-10 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61634A — Panel, Quarter Wheel House, Inner LH
61634-60915 Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 6FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2019-08 → 2020-08 ended
GDJ150 RUS —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RHD 6F —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RHD 6FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RHD —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
TRJ150 6FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2019-08 → 2020-08 ended
TRJ150 6FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS;KDJ150 LHD 5FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
KDJ150 LHD;GDJ150,GRJ150 —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 LHD 6F;GRJ150,KDJ150 6F,6FC —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GRJ150;GDJ150,KDJ150 6F —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 LHD 6F;GDJ150 RHD +1 —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RHD;GDJ150 LHD 6F —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2019-08 → 2020-08 ended
GDJ150 RUS —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60916 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2019-06 ended
KDJ150 RHD —
61634-60918 Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ155 —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2020-08 → 2022-01 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GRJ150;GDJ150 RHD;GDJ150 LHD 6F —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 6FC —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2019-08 → 2020-08 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
TRJ150 6FC —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2021-06 ended
GDJ150 RUS —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 6FC —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2022-01 ended
TRJ150 —
61634-60919 note Panel, Quarter Wheel House, Inner LH
2017-08 → 2020-08 ended
GDJ150 LHD 6FC EUR —
61634-60920 Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GRJ150;GDJ150 6F —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 LHD 6F;GDJ150 RHD +1 —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-08 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-08 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-08 → 2023-12 ended
GDJ150 LHD 6FC EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2022-08 ended
GDJ150 LHD 6FC EUR —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150,GRJ150 —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 6FC —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GRJ150;GDJ150 LHD 6F —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60921 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 6FC —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GRJ150;GDJ150 EUR —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
TRJ150 6FC —
61634-60923 note Panel, Quarter Wheel House, Inner LH
2022-01 → 2023-12 ended
GDJ150 RUS —
61634-60924 Panel, Quarter Wheel House, Inner LH
2022-01 → —
GDJ155 —
61646B — Gusset, Quarter Wheel House, Rear LH
61646-60090 Gusset, Quarter Wheel House, Rear LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,TRJ150 —
61646-60090 Gusset, Quarter Wheel House, Rear LH
2017-08 → —
GDJ155,KDJ150 —
61702B — Panel Sub-assy, Roof Side, Inner Upper LH
61078-60050 Panel Sub-assy, Roof Side, Inner Upper LH
2017-08 → —
GDJ155 —
61702-60190 Panel Sub-assy, Roof Side, Inner Upper LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61724A — Reinforcement, Quarter Window Opening, LH NO.1
61724-60020 Reinforcement, Quarter Window Opening, LH NO.1
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61724-60030 Reinforcement, Quarter Window Opening, LH NO.1
2017-08 → —
GDJ155 —
61724B — Reinforcement, Quarter Window Opening, NO.2 LH
61729-60080 Reinforcement, Quarter Window Opening, NO.2 LH
2017-08 → —
GDJ155 —
61732B — Panel, Roof Side, Inner LH
61732-60320 Panel, Roof Side, Inner LH
2017-08 → 2023-12 ended
GDJ150,GRJ150,KDJ150,TRJ150 —
61732-60330 Panel, Roof Side, Inner LH
2017-08 → —
GDJ155 —
61738H — Reinforcement, Roof Side, Inner LH
61738-60020 Reinforcement, Roof Side, Inner LH
2017-08 → —
GDJ155 —
61767K — Retainer, Seat Belt Anchor, NO.2 LH
61767-44010 Retainer, Seat Belt Anchor, NO.2 LH
2017-08 → —
GDJ155 —
61824C — Pad, Noise Shutter, NO.1
61824-35020 Pad, Noise Shutter, NO.1
2017-08 → 2023-12 ended
GDJ15#,GRJ150,KDJ150,TRJ150 —
61825C — Pad, Noise Shutter, NO.2
61825-35010 Pad, Noise Shutter, NO.2
2017-08 → 2023-12 ended
GDJ15#,GRJ150,KDJ150,TRJ150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
