Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

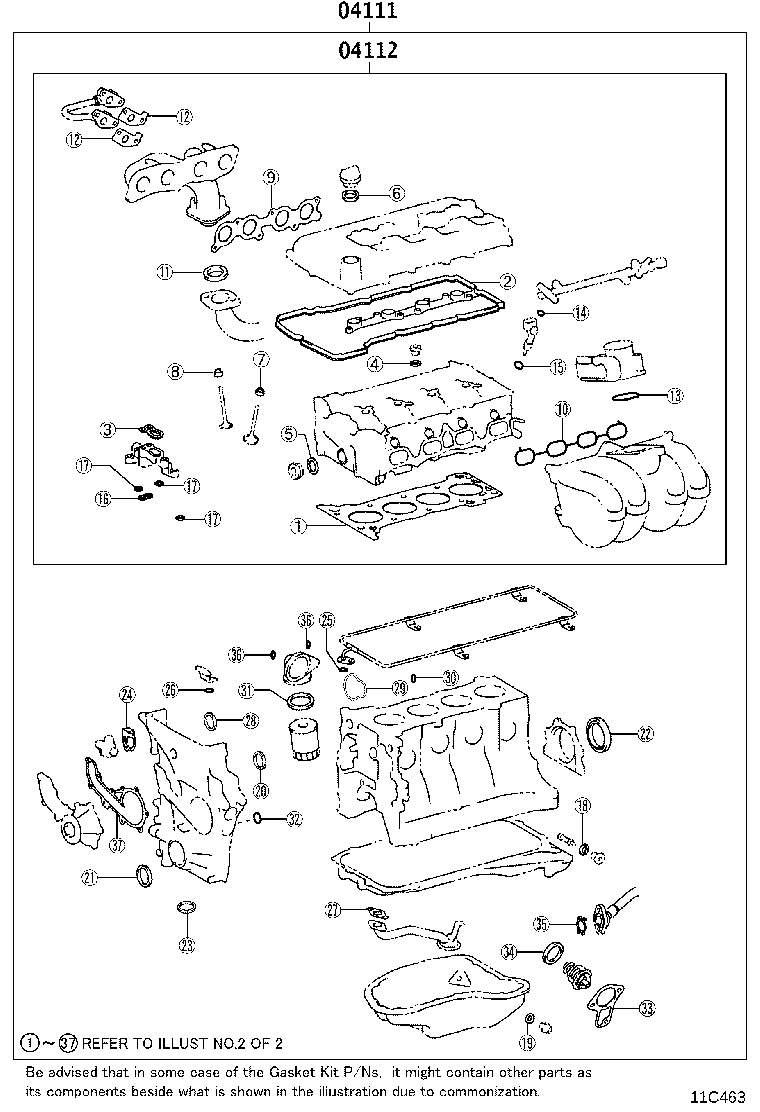

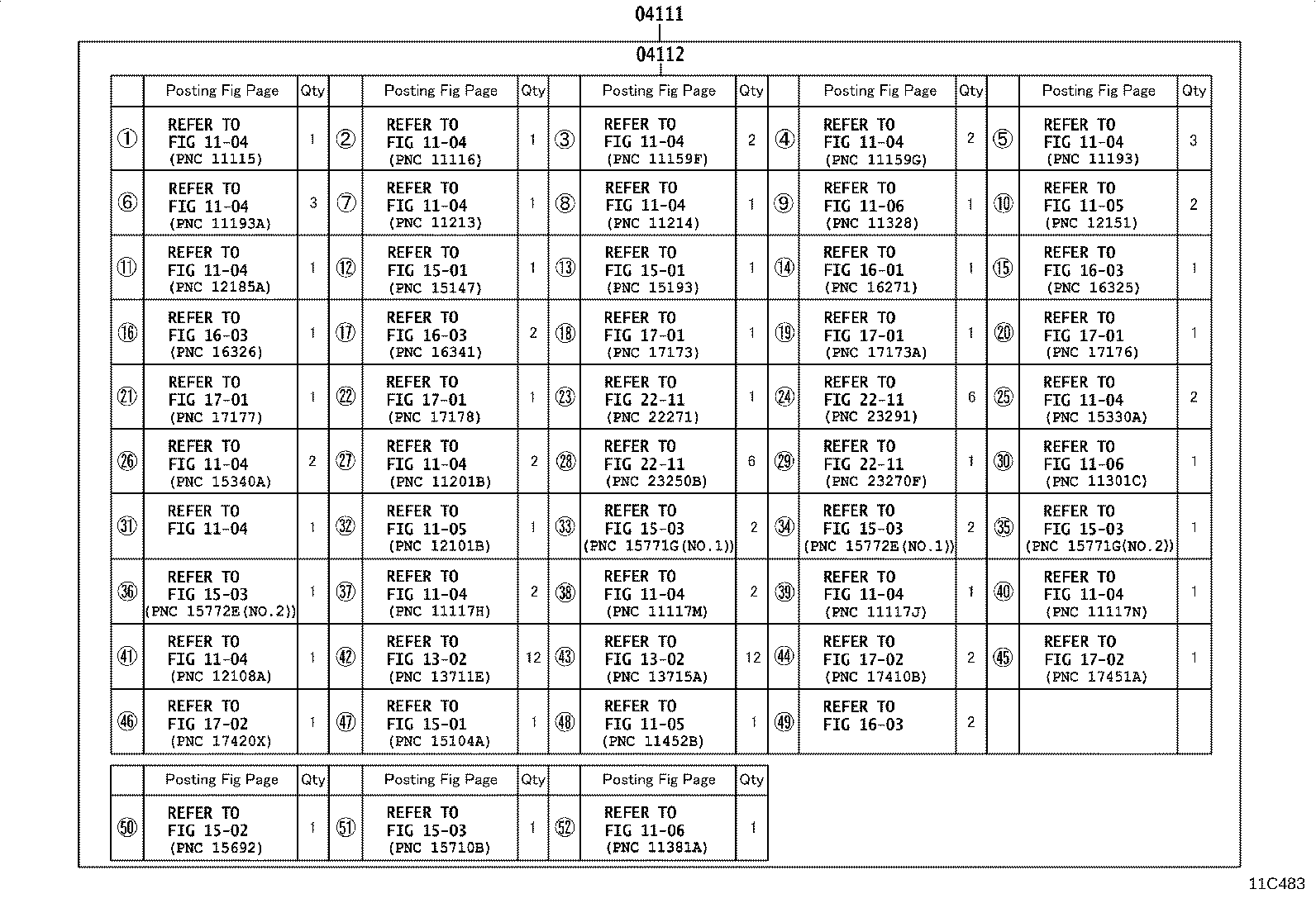

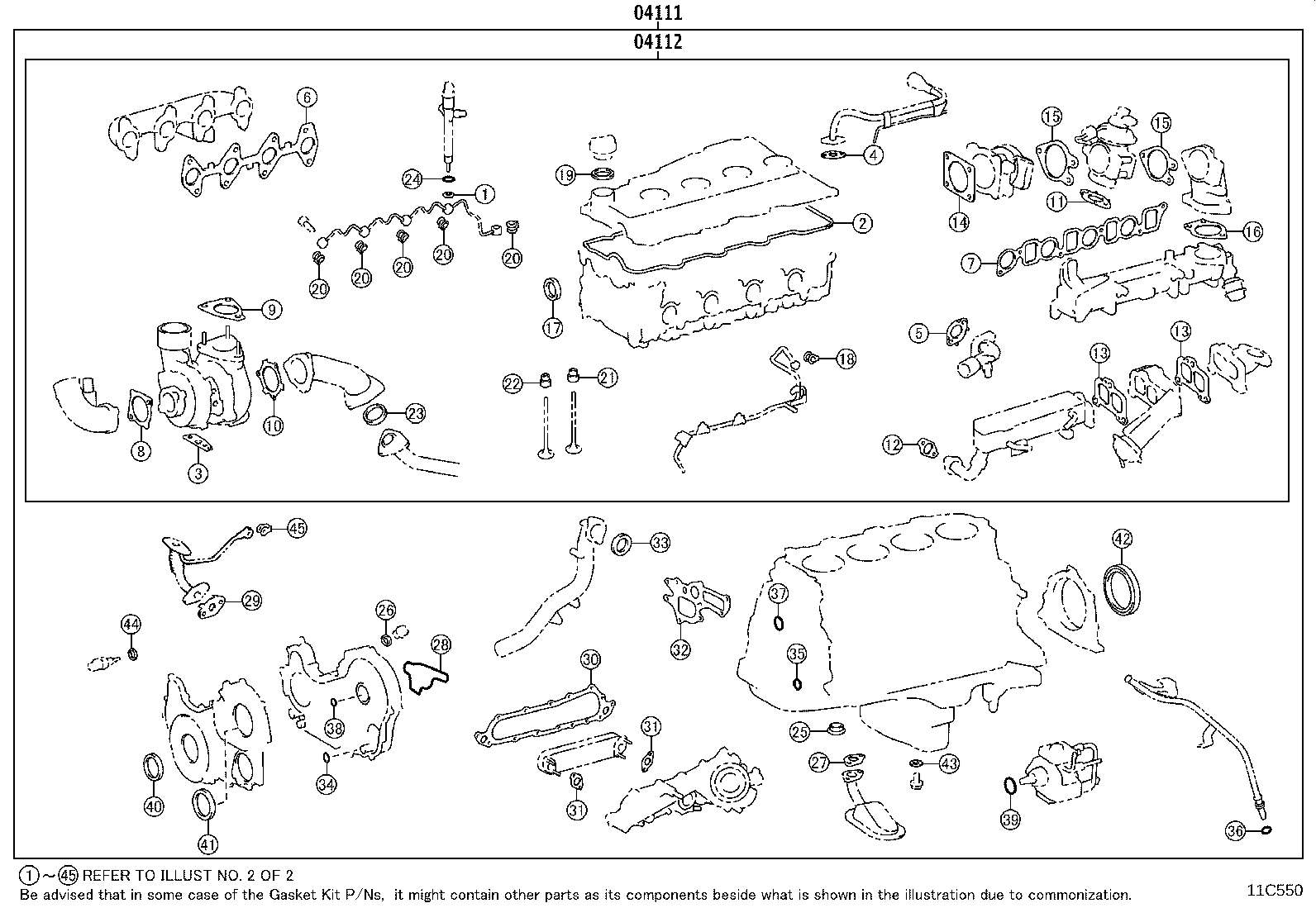

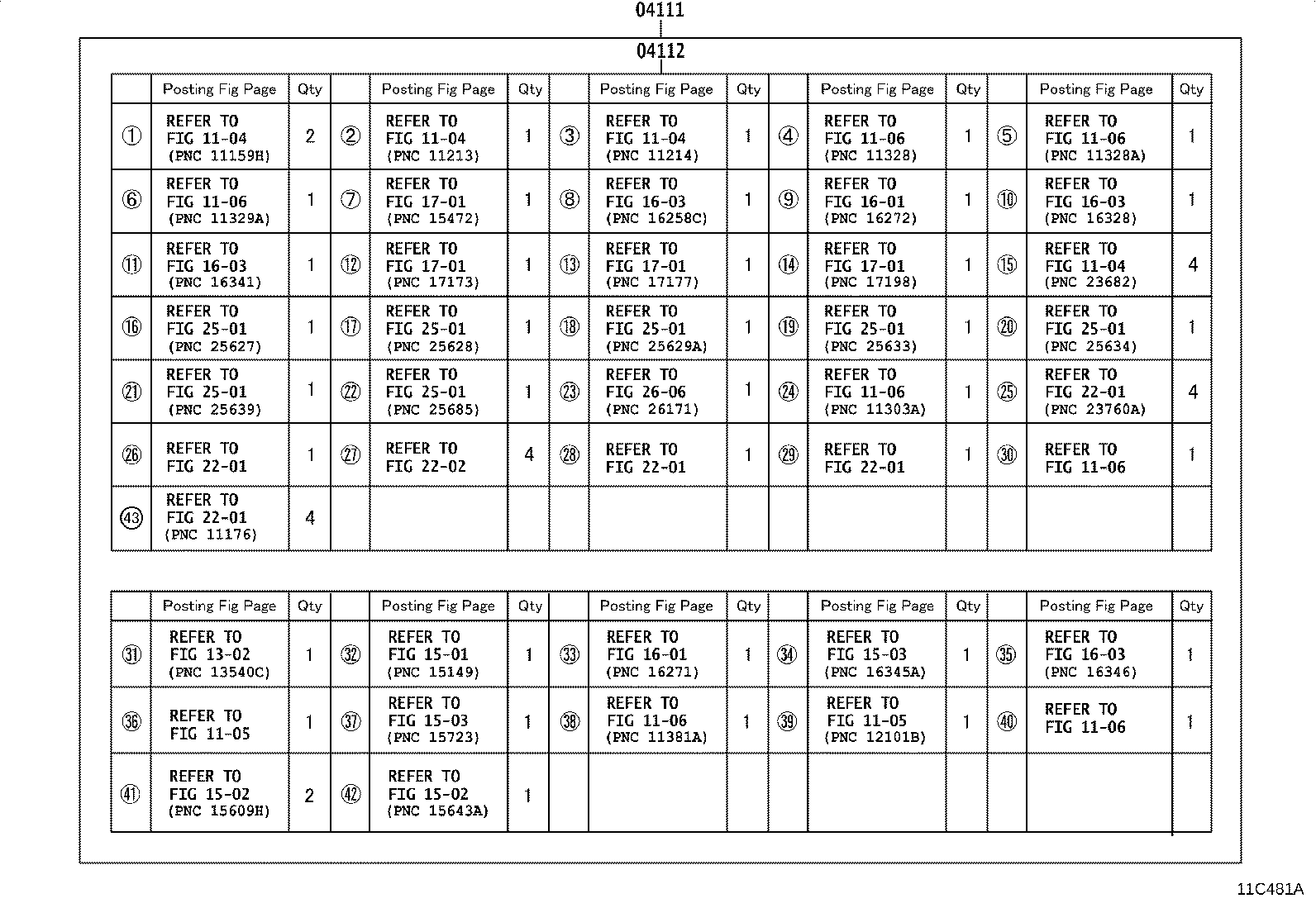

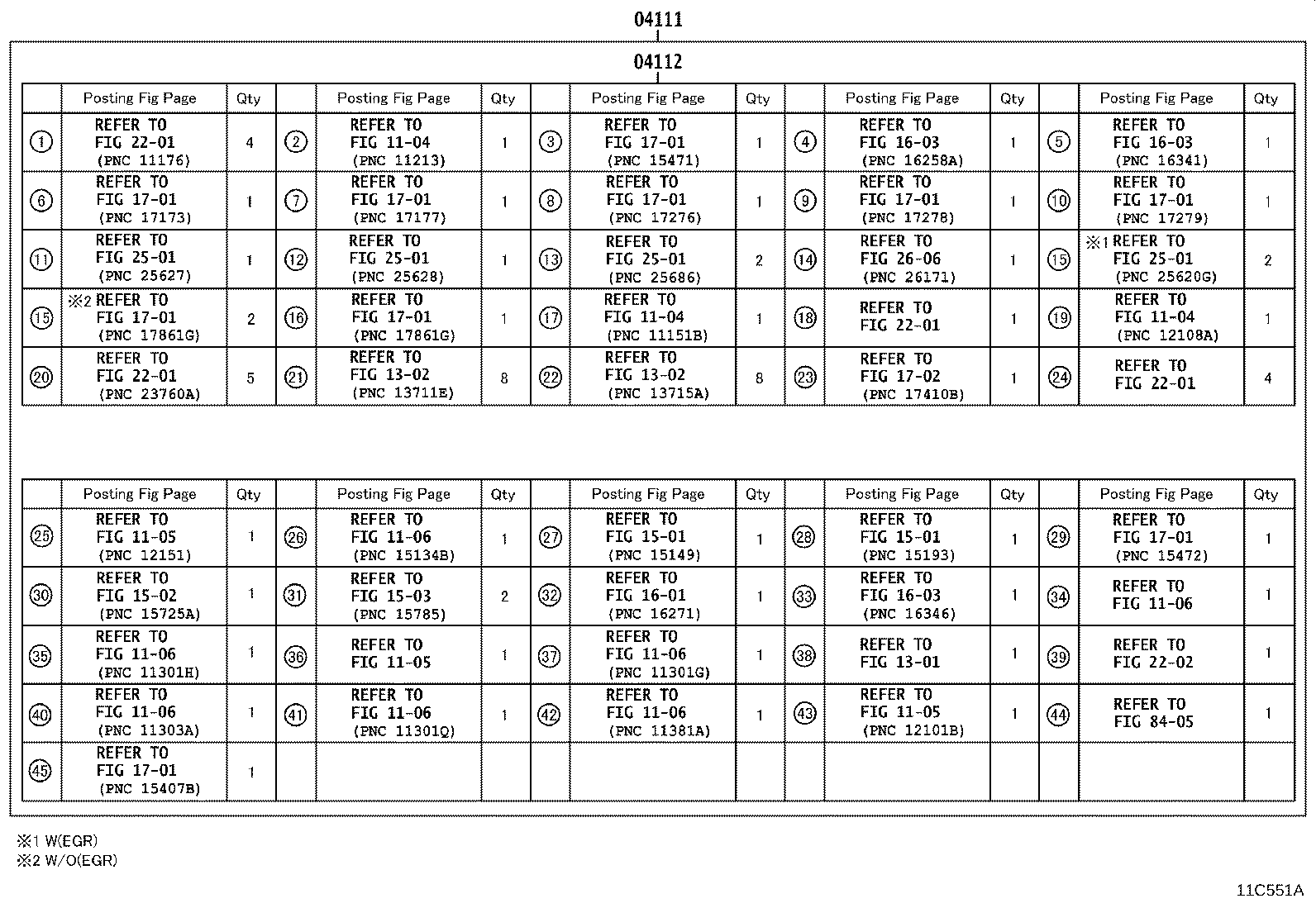

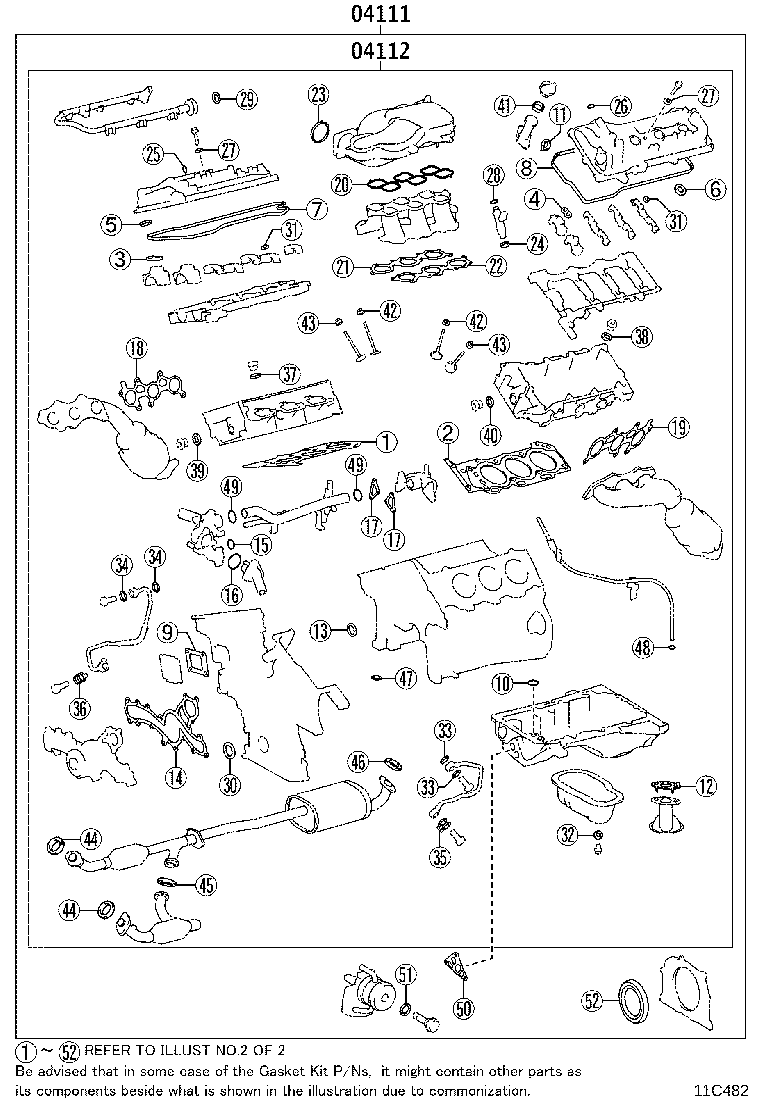

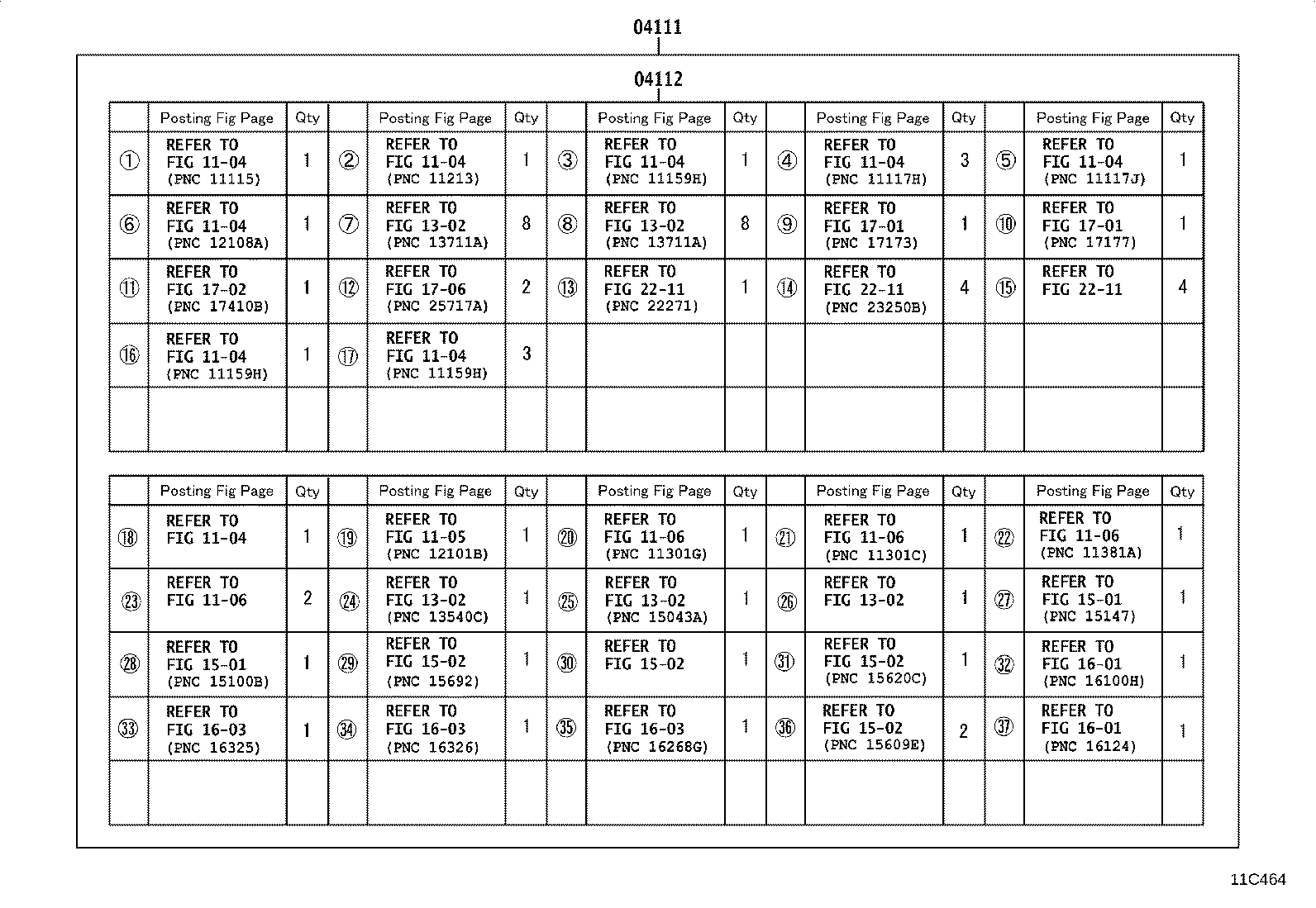

Figure 11C479A 11C479A 2017-08 → — Figure 11C481A 11C481A 2017-08 → — Figure 11C482 11C482 2017-08 → — Figure 11C483 11C483 2017-08 → — Figure 11C550 11C550 2017-08 → — Figure 11C551A 11C551A 2017-08 → — Figure 11C463 11C463 2017-08 → — Figure 11C464 11C464 2017-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
