Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 5 illustrations

Illustrations

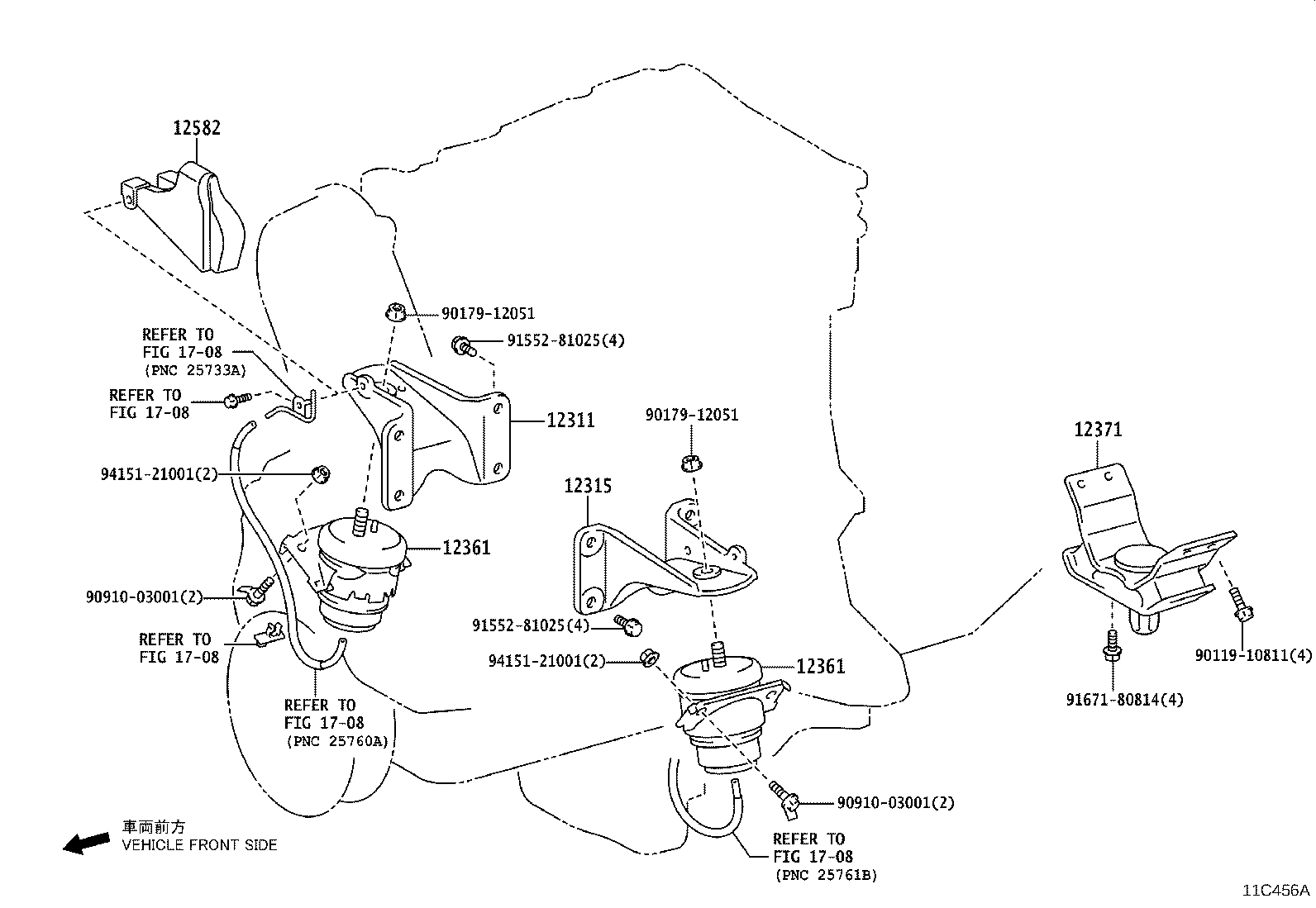

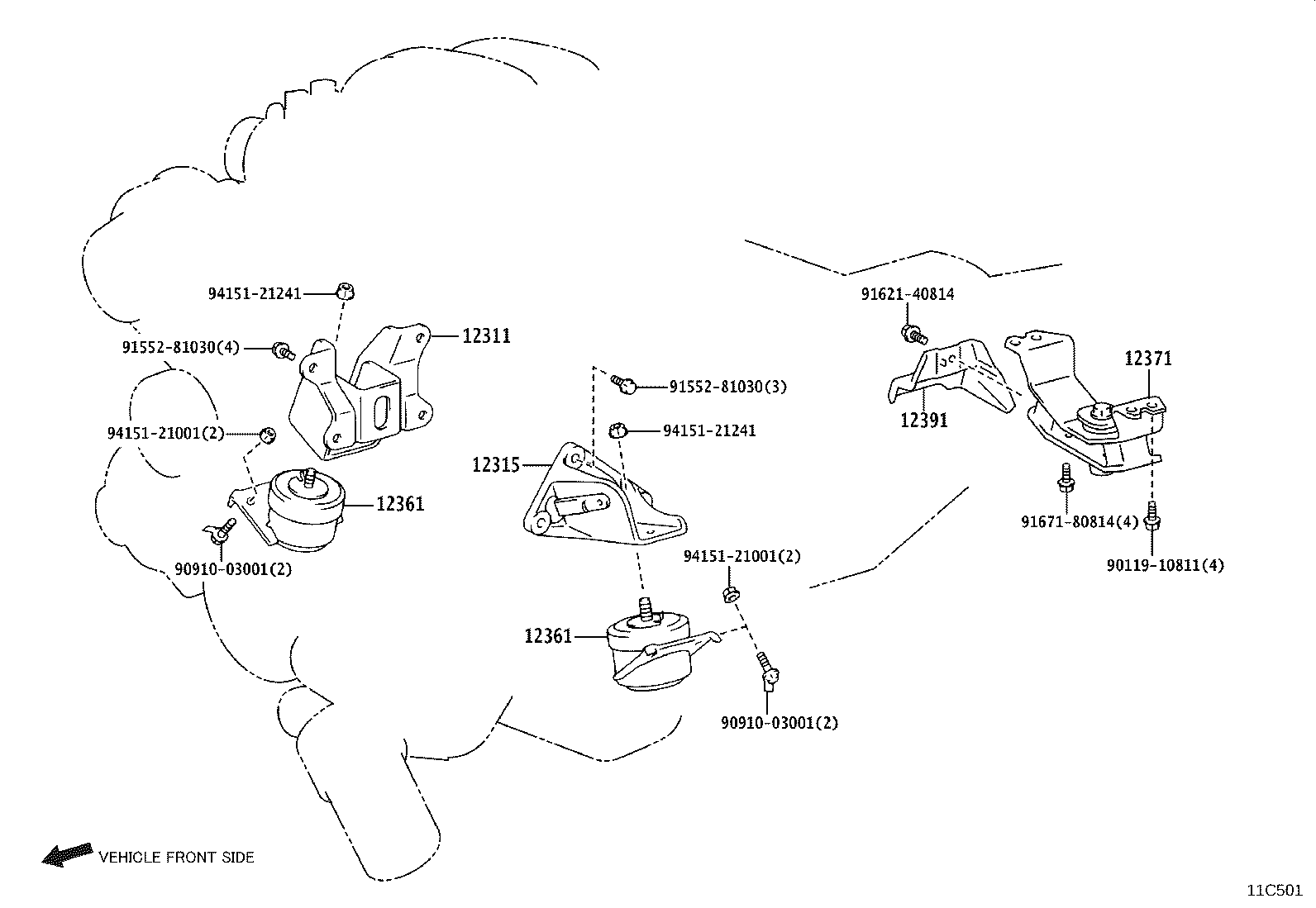

Figure 11C499 11C499 2017-08 → — Figure 11C501 11C501 2017-08 → — Figure 11C456A 11C456A 2017-08 → — Figure 11C528 11C528 2017-08 → — Figure 11C529 11C529 2017-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
