Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06

Crankshaft & Piston

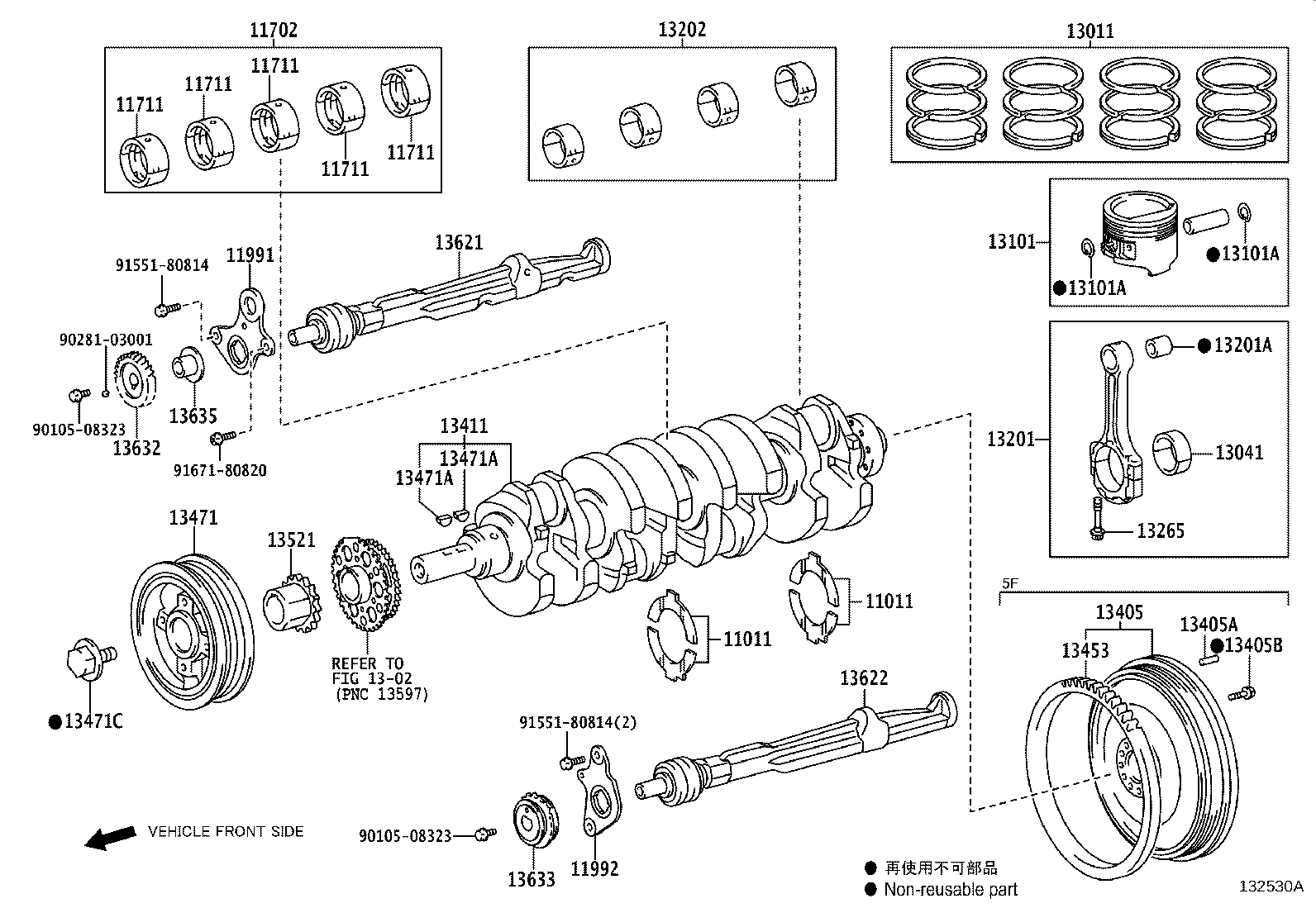

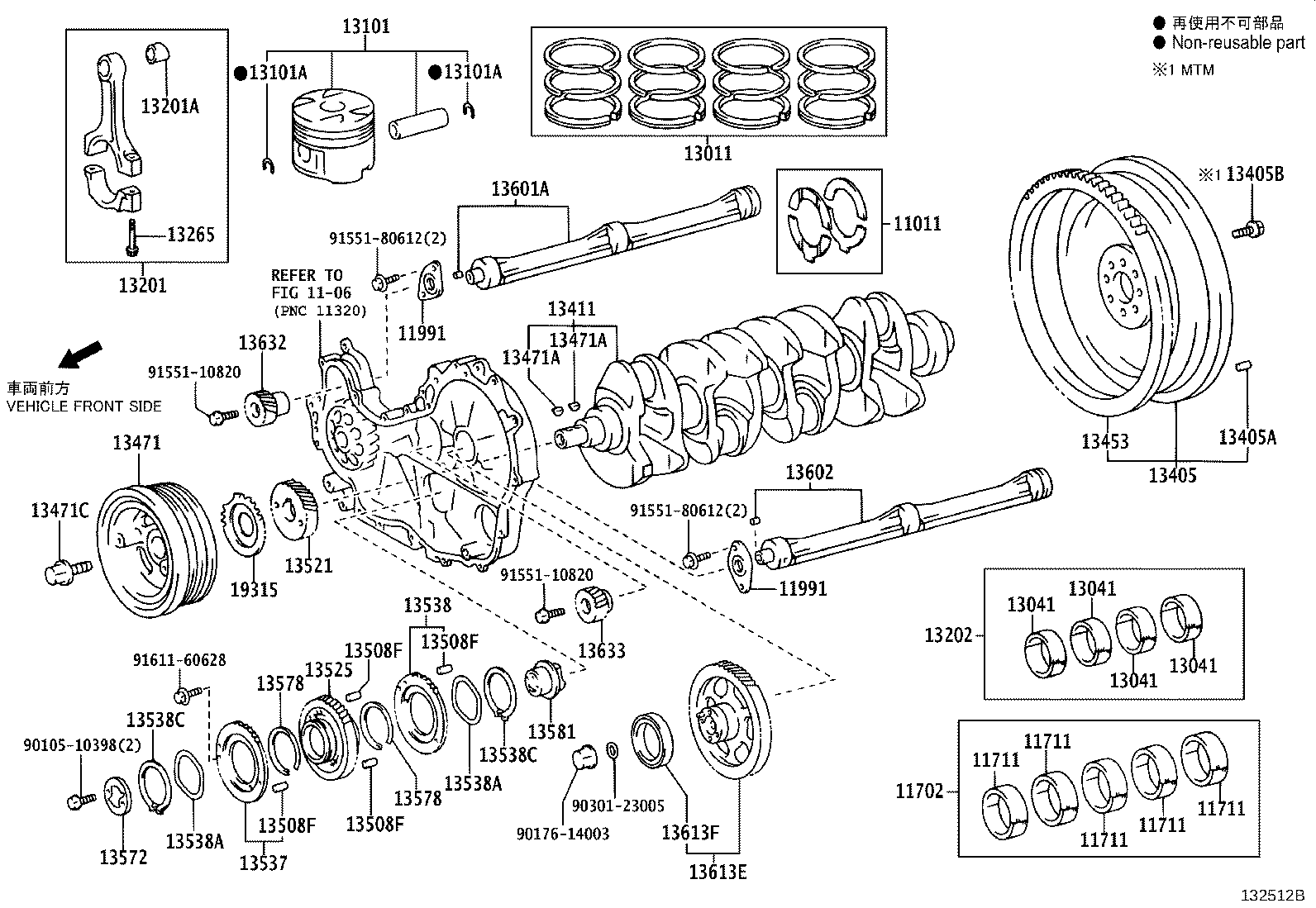

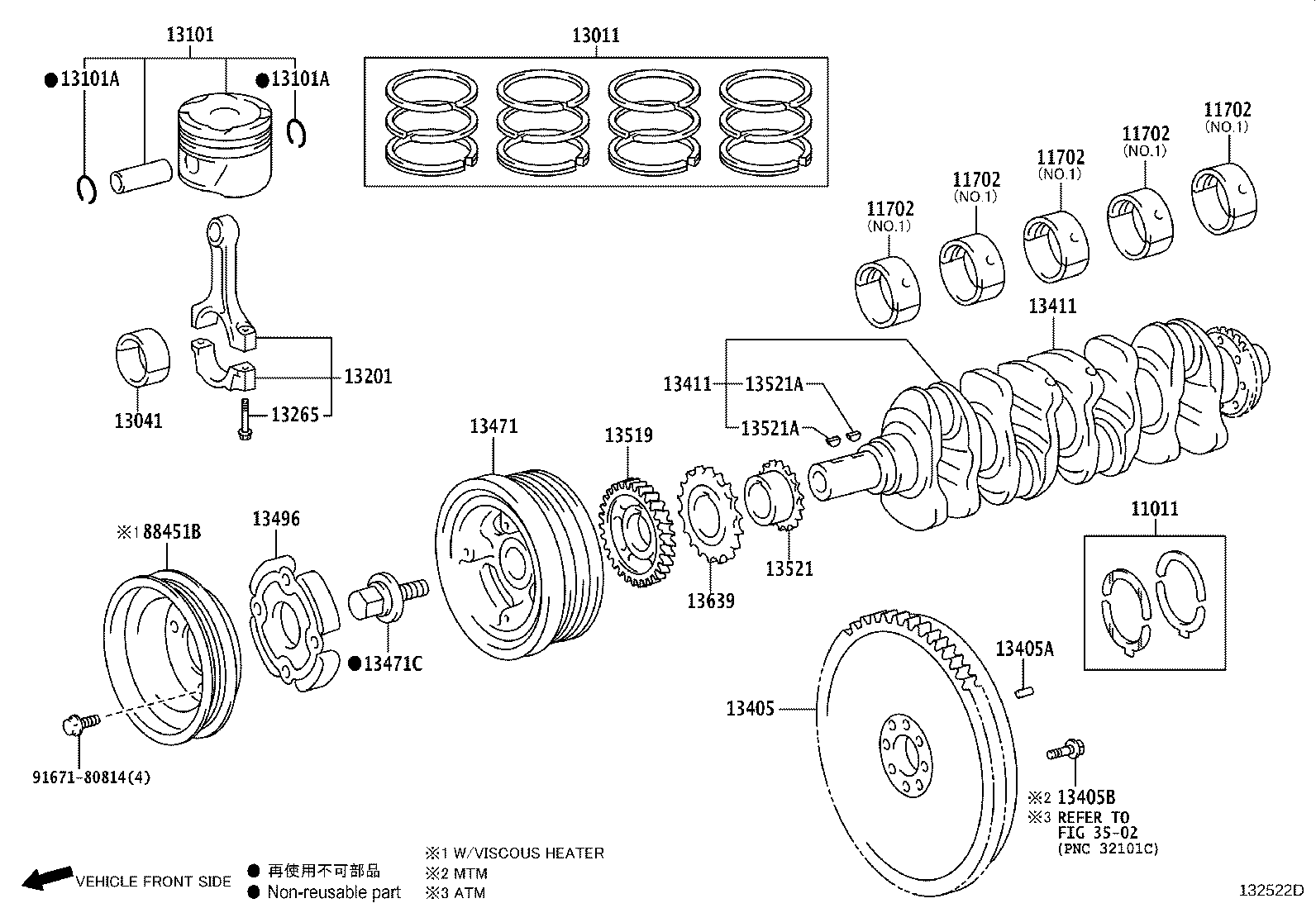

47 part groups · 4 illustrations

PNC	Description
11011	Washer Set, Crankshaft Thrust
11702	Bearing Set, Crankshaft
11711	Bearing, Crankshaft
11991	Washer, Balanceshaft Thrust
11992	Washer, Balanceshaft Thrust, NO.2
13011	Ring Set, Piston
13041	Bearing, Connecting Rod
13101	Piston Sub-assy, W/Pin
13101A	Ring, Hole Snap(FOR PISTON PIN)
13201	Rod Sub-assy, Connecting
13201A	Bush(FOR CONNECTING ROD SMALL END)
13202	Bearing Set, Connecting Rod
13265	Bolt, Connecting Rod
13405	Flywheel Sub-assy
13405A	Pin, Straight(FOR FLYWHEEL)
13405B	Bolt, Flywheel Setting
13411	Crankshaft
13453	Gear, Flywheel Ring
13471	Pulley, Crankshaft
13471A	Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C	Bolt(FOR CRANKSHAFT PULLEY SET)
13496	Cover, Crankshaft Pully
13508F	Pin, Straight(FOR IDLE GEAR)
13519	Gear, Oil Pump Drive
13521	Gear OR Sprocket, Crankshaft Timing
13521A	Key(FOR CRANKSHAFT TIMING GEAR)
13525	Gear, Idle, NO.1
13537	Gear, Idle Sub, NO.1
13538	Gear, Idle Sub, NO.2
13538A	Washer, Wave
13538C	Ring, Shaft Snap
13572	Plate, Idle Gear Thrust
13578	Spring, Idle Gear
13581	Shaft, Idle Gear, NO.1
13582	Shaft, Idle Gear, NO.2
13601A	Balanceshaft Sub-assy, NO.1
13602	Balanceshaft Sub-assy, NO.2
13613E	Gear, Injection
13613F	Bearing, Radial Ball
13621	Balanceshaft, NO.1
13622	Balanceshaft, NO.2
13632	Gear, Balanceshaft Driven, NO.1
13633	Gear, Balanceshaft Driven, NO.2
13635	Spacer, Balanceshaft Thrust
13639	Sprocket, Balanceshaft Timing
19315	Plate, Crank Angle Sensor, NO.1
88451B	Pulley, Crankshaft(FOR VISCOUS HEATER)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
