Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

14 part groups · 4 illustrations

Illustrations

Figure 152667A

152667A 2017-08 → —

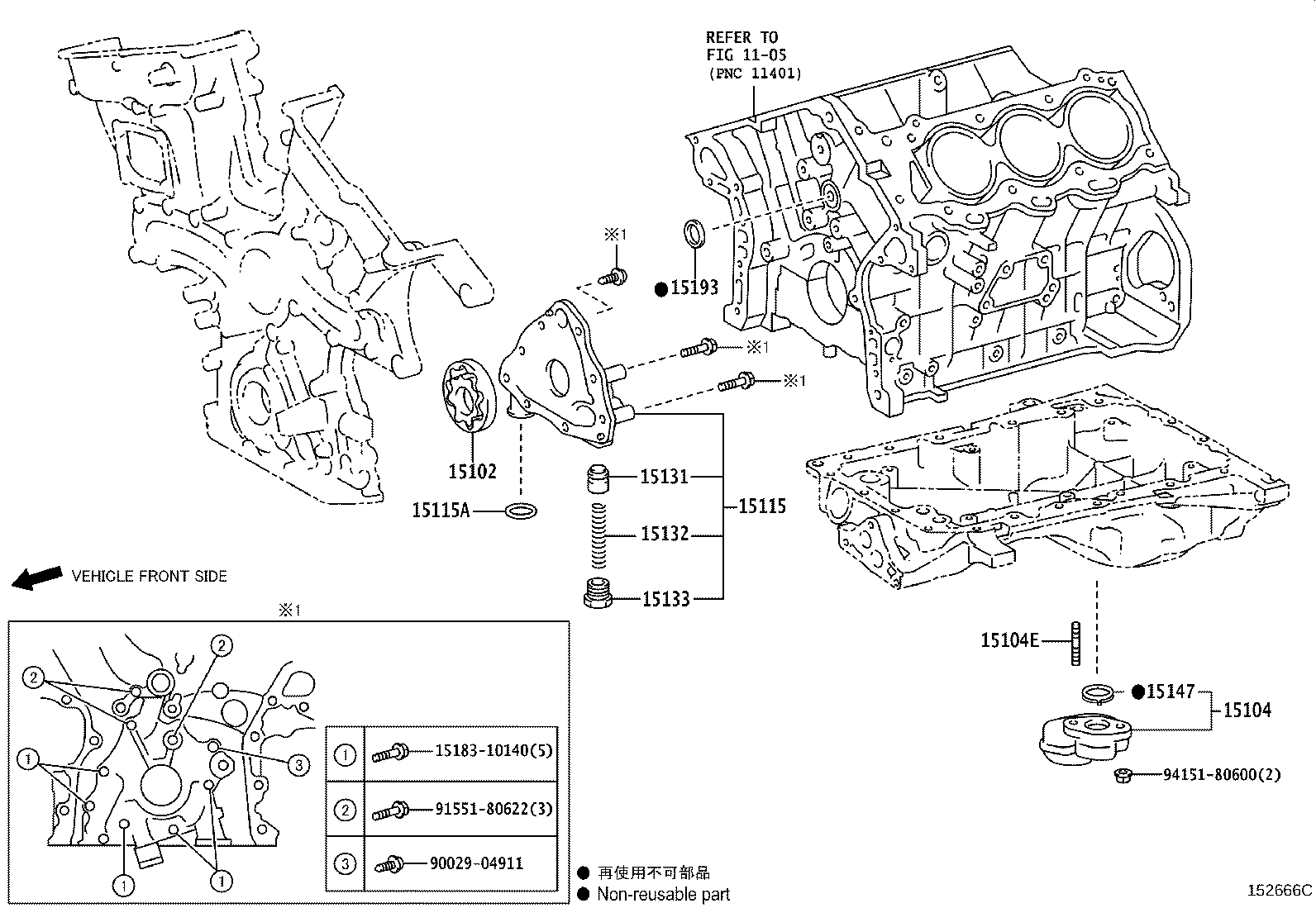

Figure 152666C

152666C 2017-08 → —

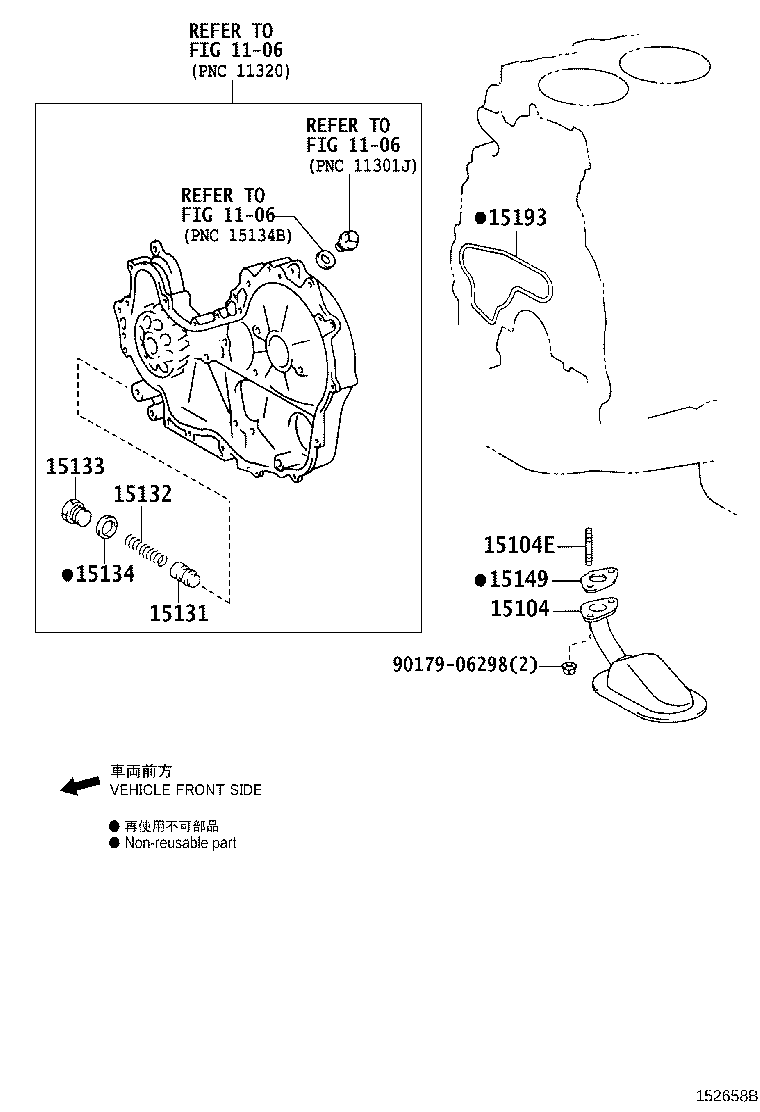

Figure 152658B

152658B 2017-08 → —

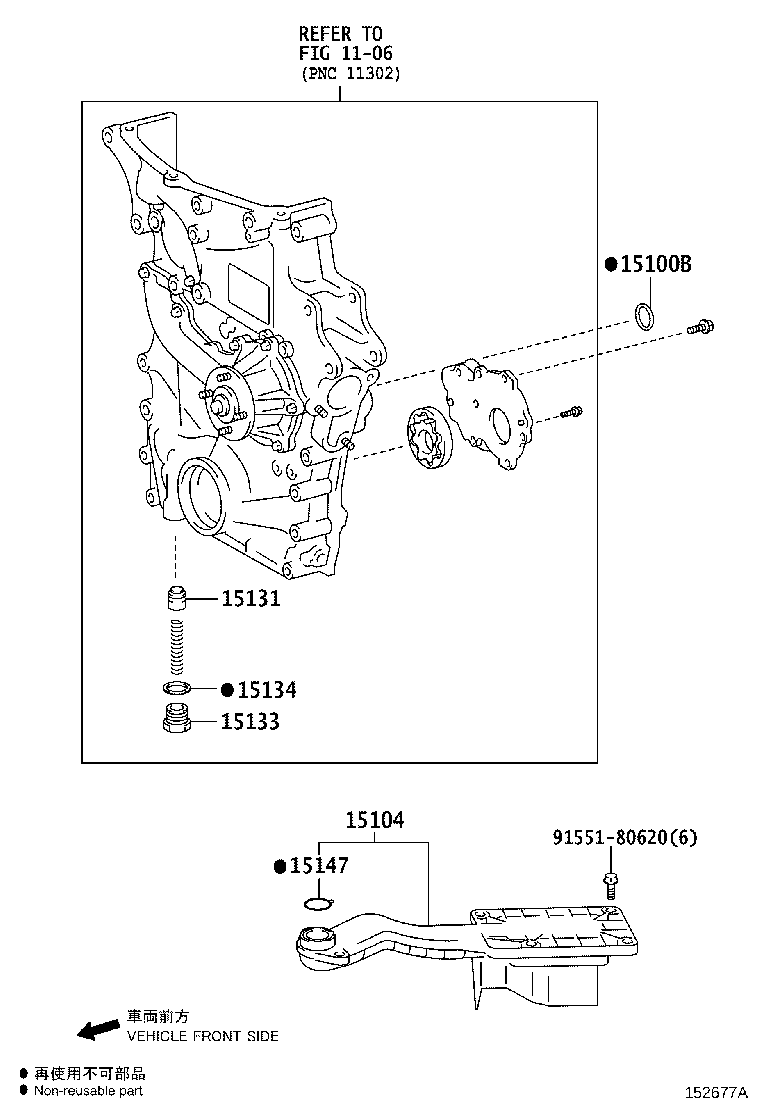

Figure 152677A

152677A 2017-08 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15100B	Ring, O(FOR OIL PUMP)
15102	Rotor Set, Oil Pump
15104	Strainer Sub-assy, Oil
15104E	Bolt, Stud(FOR OIL STRAINER)
15115	Cover, Oil Pump
15115A	Ring, O(FOR OIL PUMP COVER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15134	Gasket, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15149	Gasket, Oil Strainer Flange
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
