Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

5 part groups · 5 illustrations

Illustrations

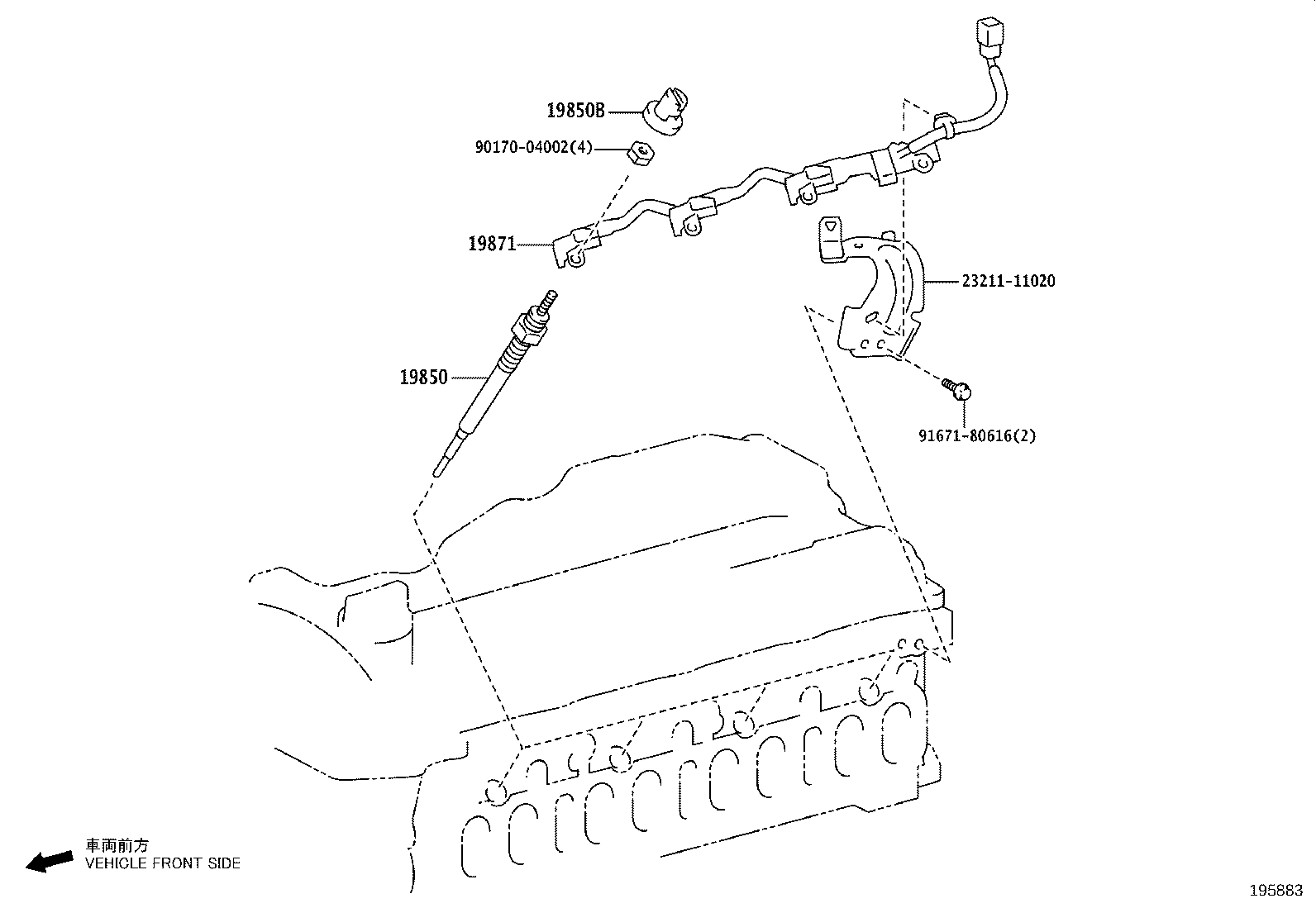

Figure 195044 195044 2017-08 → 2020-08 Figure 195883 195883 2020-08 → — Figure 195043 195043 2017-08 → — Figure 195045 195045 2017-08 → — Figure 195049 195049 2017-08 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
