Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

22 part groups · 2 illustrations

Illustrations

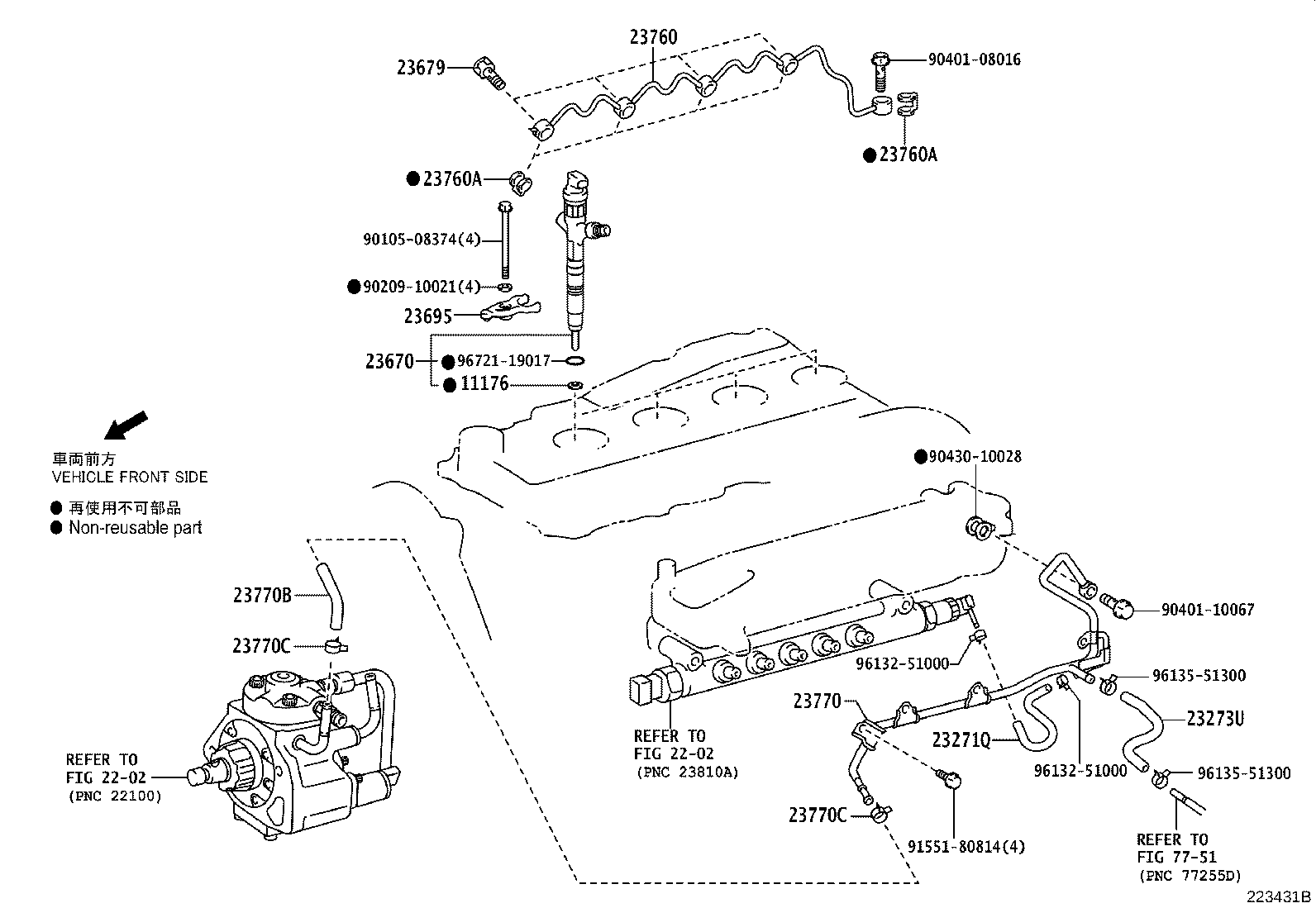

Figure 223892B 223892B 2017-08 → — Figure 223431B 223431B 2017-08 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
23256B Ring, Fuel Injector Back-up, NO.1
23257B Ring, Fuel Injector Back-up, NO.2
23258B Ring, Fuel Injector Back-up, NO.3
23271Q Hose, Fuel, NO.1
23273U Hose, Fuel, NO.2
23282H Hose, Fuel, NO.4
23284C Hose, Fuel, NO.5
23286C Hose, Fuel, NO.6
23295C Holder, Injector
23670 Injector Assy
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
23811H Pipe, Fuel, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
