Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

32 part groups · 3 illustrations

Illustrations

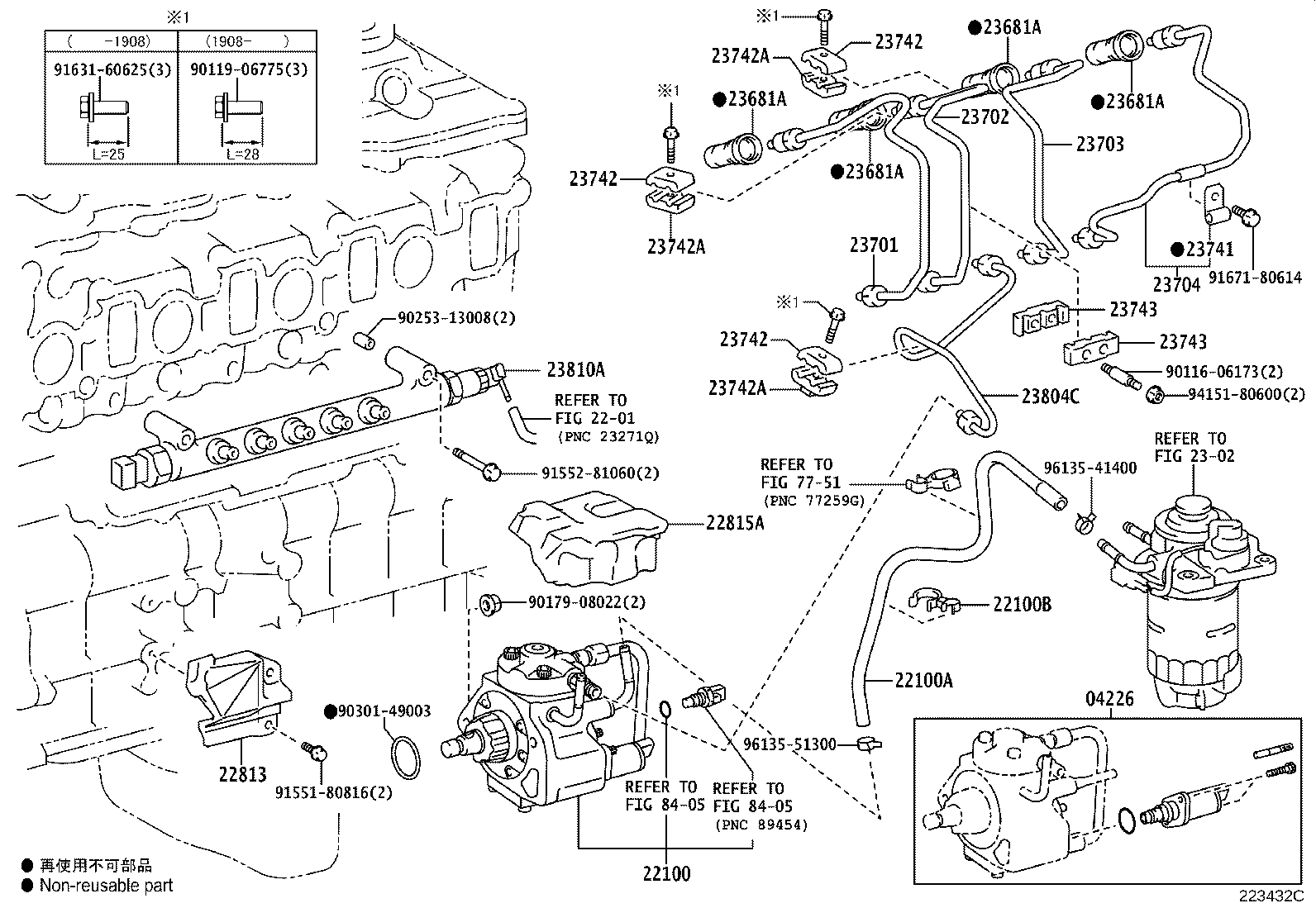

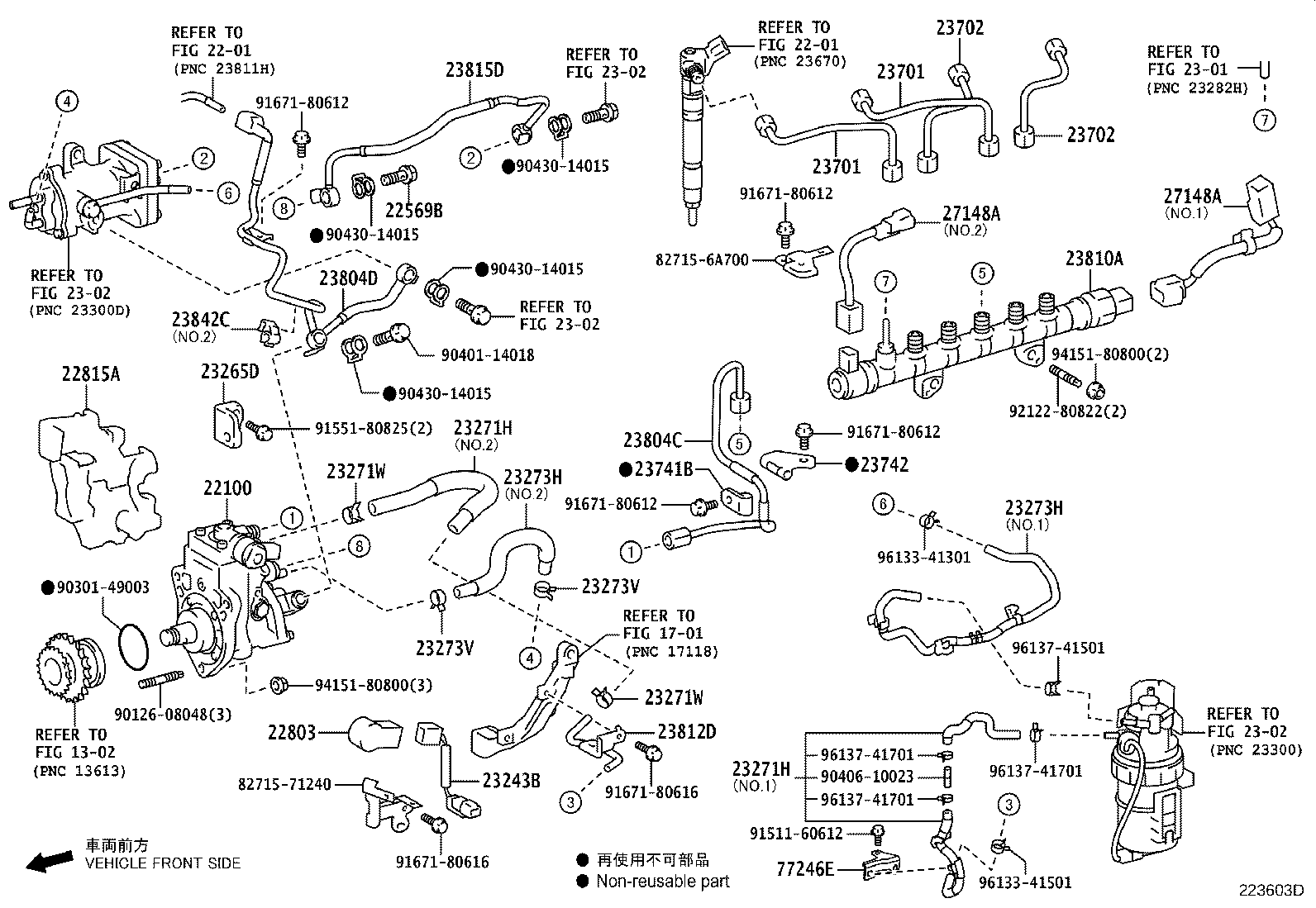

Figure 223429E 223429E 2017-08 → — Figure 223603D 223603D 2018-06 → — Figure 223432C 223432C 2017-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100B Clamp, Fuel Hose, NO.1
22569B Screw, Supply Pump Hollow
22803 Cover Sub-assy, Fuel Injection Pump
22813 Protector, Injection Pump, NO.1
22815A Insulator, Injection Pump
23243B Wire, Fuel Pump Motor
23265D Bracket, Fuel Pump, NO.1
23271H Hose, Fuel, NO.1
23271W Clip(FOR FUEL HOSE NO.1)
23273H Hose, Fuel, NO.2
23273V Clip(FOR FUEL HOSE NO.2)
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23804C Pipe Sub-assy, Fuel Inlet
23804D Pipe Sub-assy, Fuel, NO.4
23810A Rail Assy, Common
23812D Pipe, Fuel, NO.2
23815D Pipe, Fuel, NO.3
23842C Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
27148A Wire, Connecting
77246E Support, Fuel Main Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
