Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Urea Tank & Tube

16 part groups · 2 illustrations

Illustrations

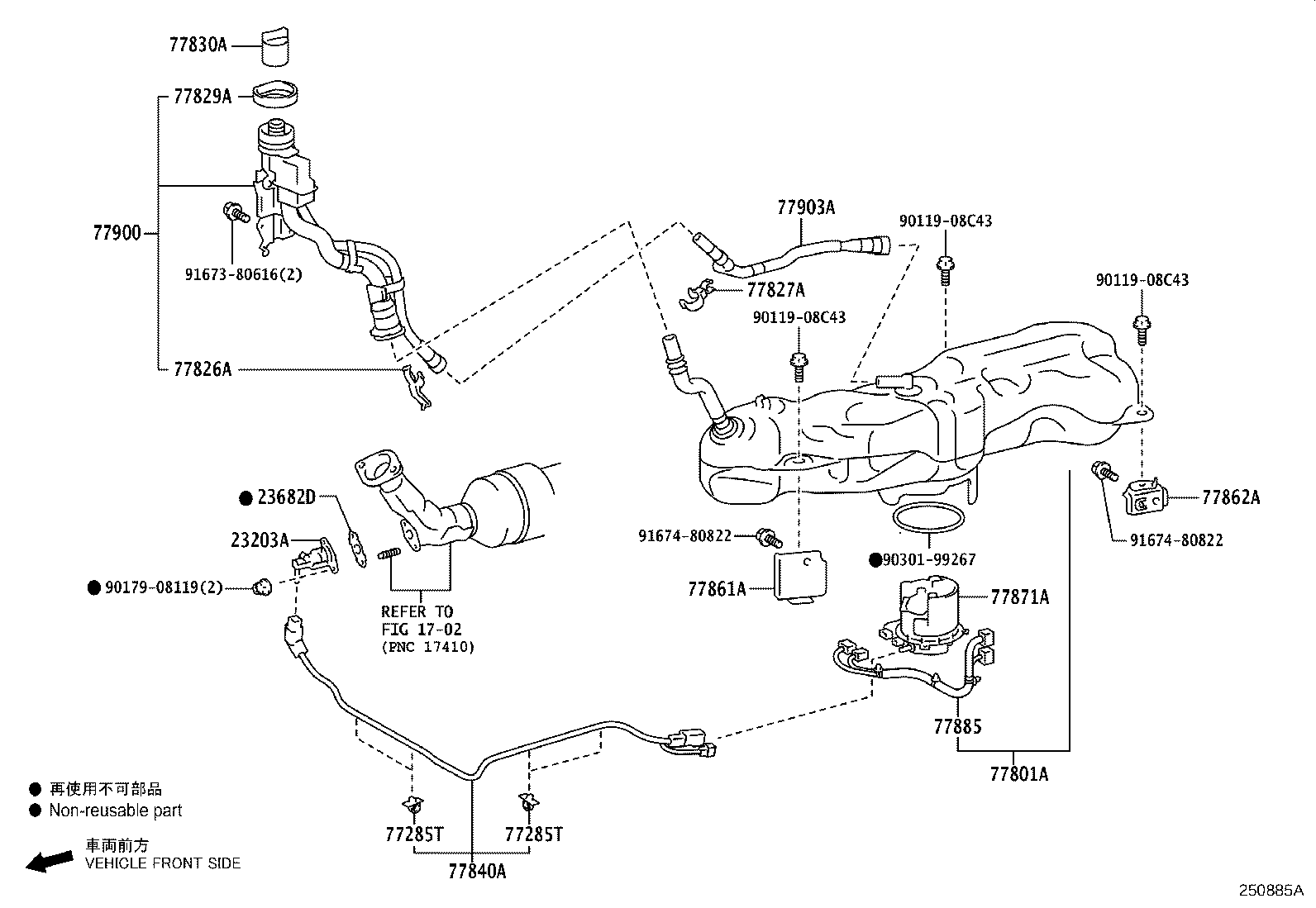

Figure 250618D 250618D 2017-08 → 2021-06 Figure 250885A 250885A 2021-06 → —

Part groups

PNCDescription
23203A Injector Set, Urea
23682D Gasket, Nozzle Holder
77285T Clamp, Urea Tube, NO.1
77801A Tank Sub-assy, Urea
77826A Support, Urea Tank Filler Pipe, NO.1
77827A Support, Urea Tank Filler Pipe, NO.2
77829A Cover, Urea Tank Cap
77830A Cap Assy, Urea Tank
77840A Tube Assy, Urea W/Heater
77844A Retainer, Urea Pump Gage
77861A Bracket, Urea Tank, NO.1
77862A Bracket, Urea Tank, NO.2
77871A Pump, Urea
77885 Harness, Urea Tank
77900 Pipe Assy, Urea Tank Filler W/Support
77903A Tube Sub-assy, Urea Tank Breather
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
