Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

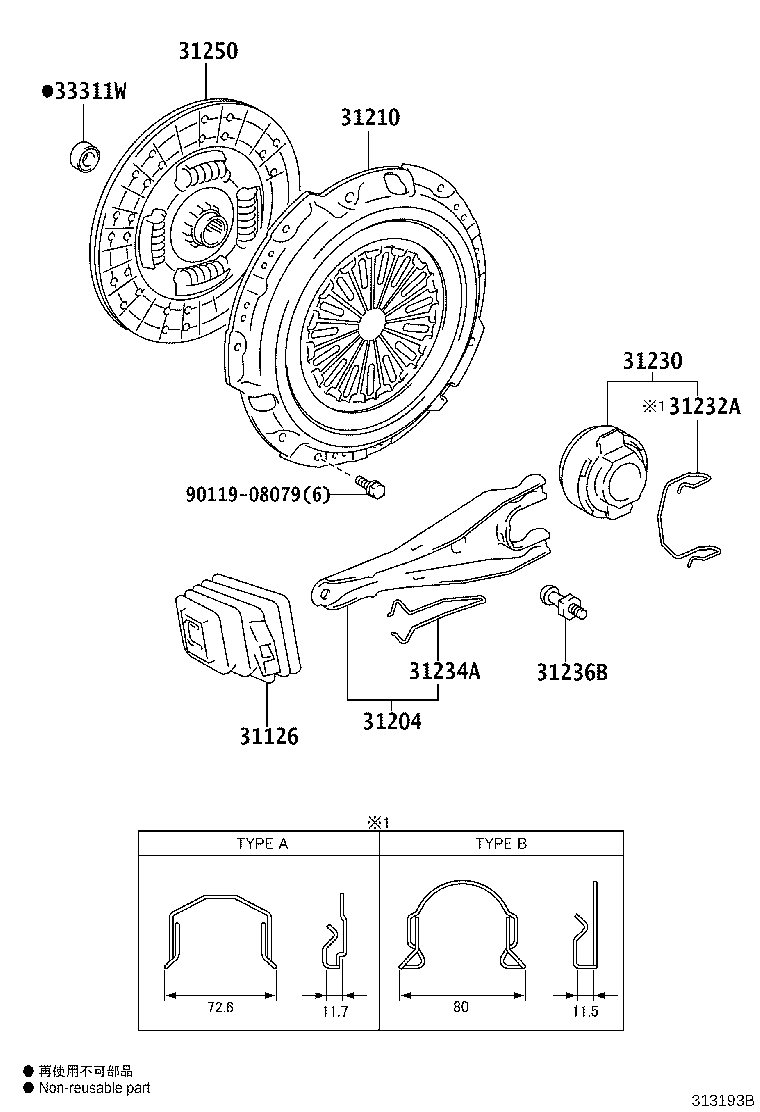

Clutch & Release Fork
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31232A | Clip, Release Bearing Hub |
| 31234A | Spring, Release Fork Support |
| 31236B | Support, Release Fork |
| 31237 | Boot, Clutch Release Fork Support |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
