Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

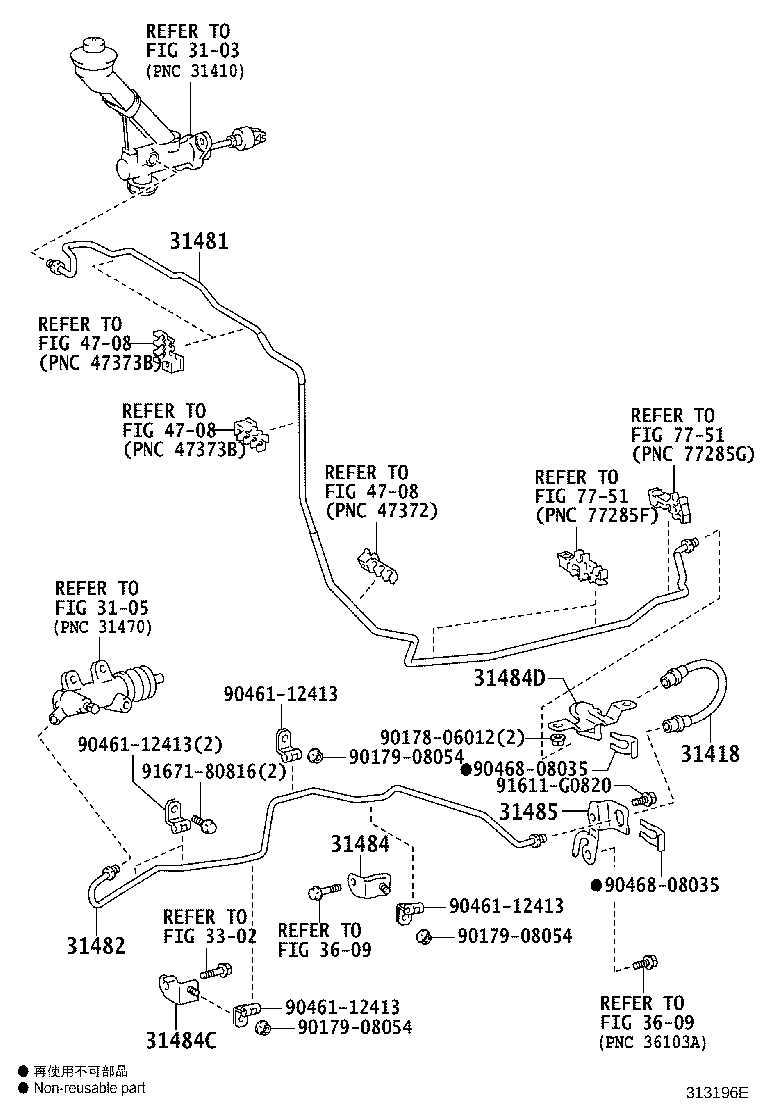

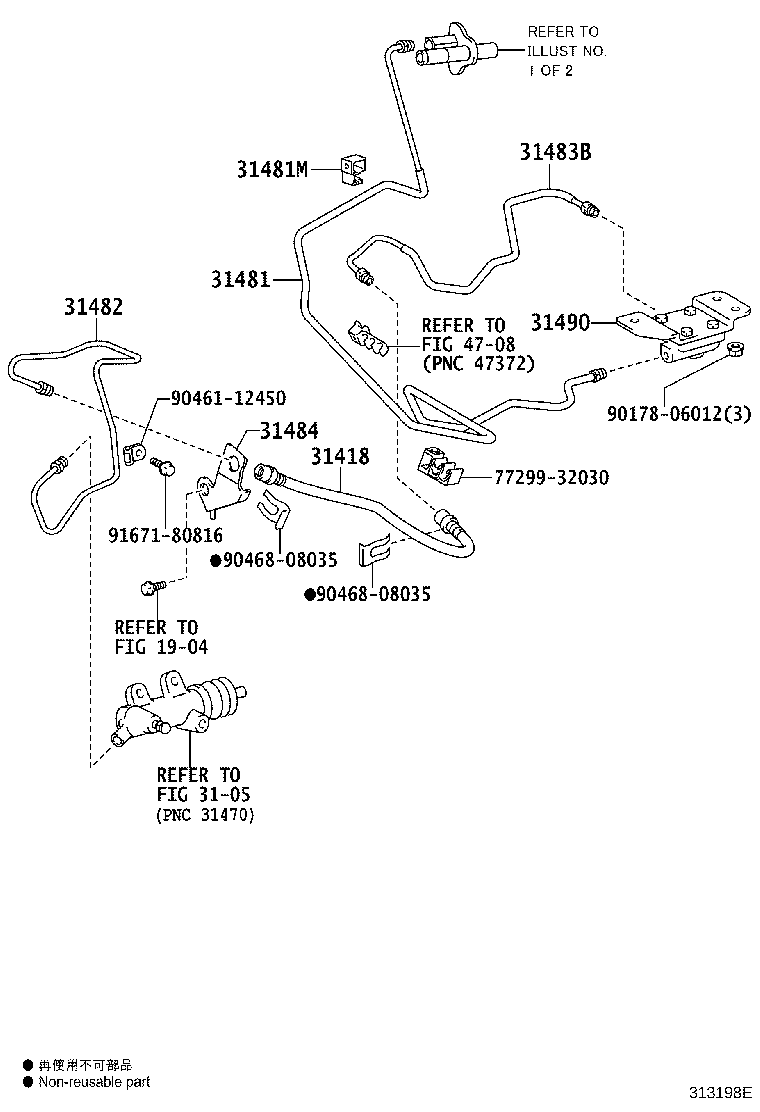

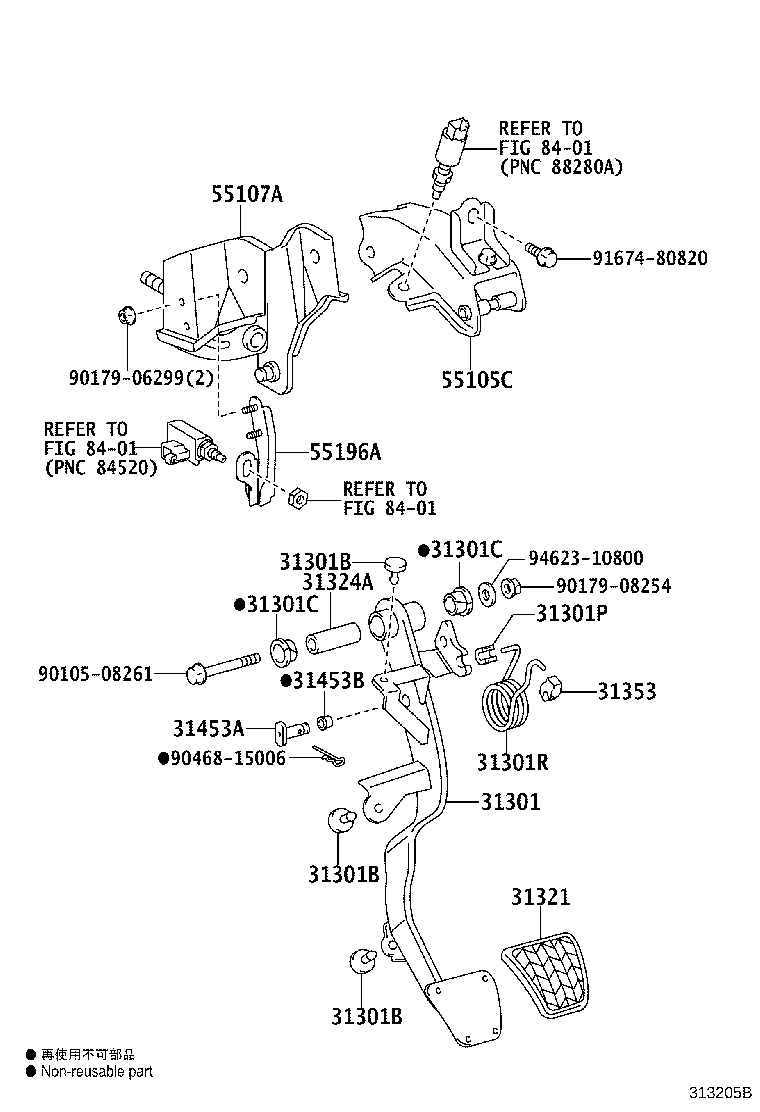

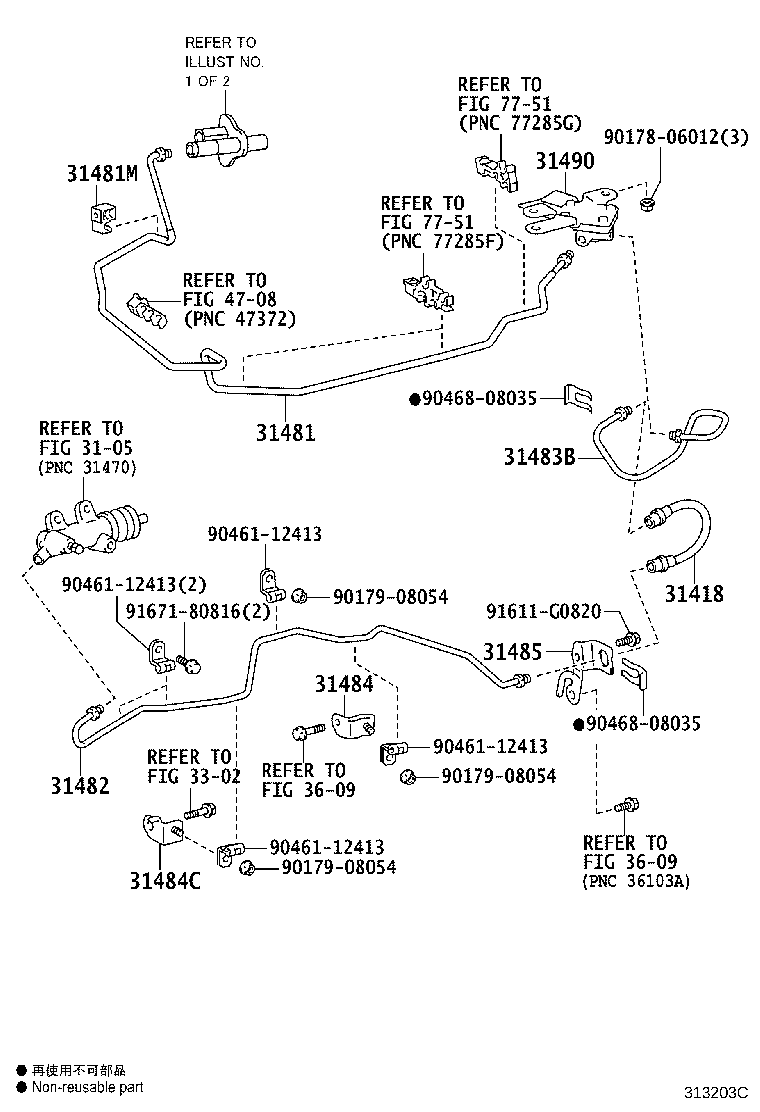

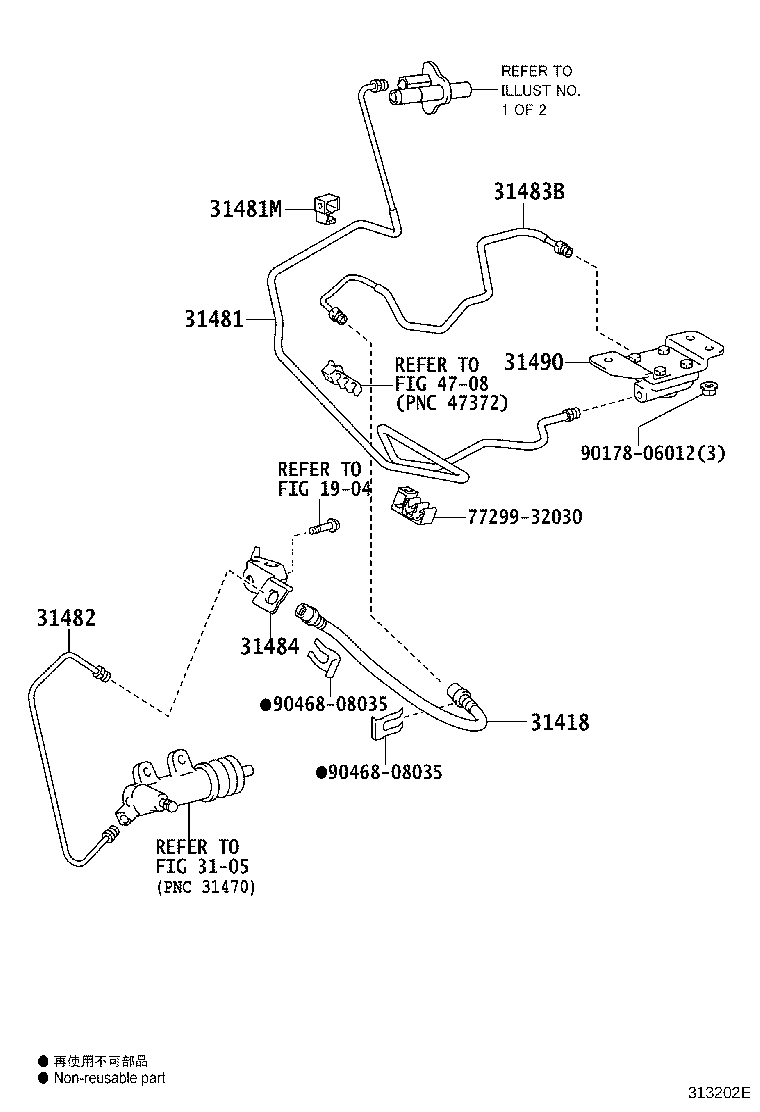

Clutch Pedal & Flexible Hose
26 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31301R | Spring, Compression(FOR TURNOVER SPRING SEAT) |
| 31321 | Pad, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31331B | Way, Clutch Pedal Support |
| 31332 | Grommet, Clutch Pedal Support |
| 31353 | Holder, Clutch Pedal Spring |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481J | Tube, Clutch Master Cylinder TO 2 Way |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31484D | Bracket, Clutch Tube, NO.2 |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31490 | Accumulator Assy, Clutch |
| 55105C | Support, Pedal Bracket Clutch Wire |
| 55107A | Support Sub-assy, Clutch Pedal |
| 55196A | Bracket, Clutch Start Switch Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
