Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

12 part groups · 4 illustrations

Illustrations

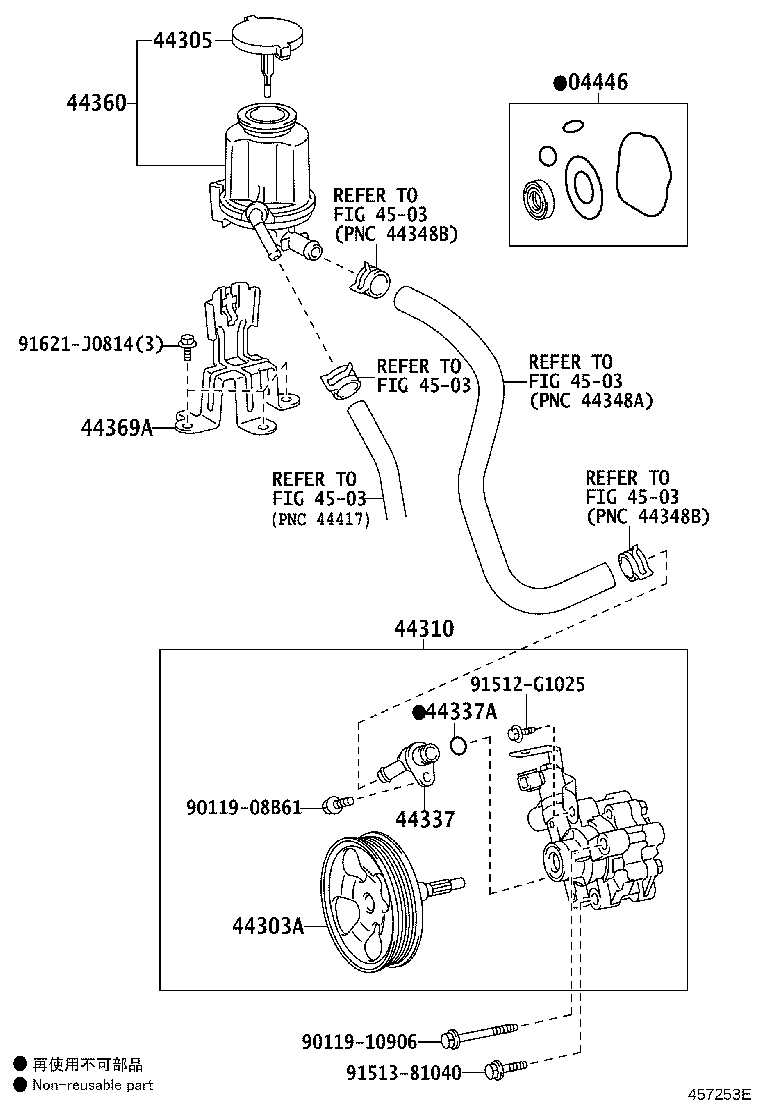

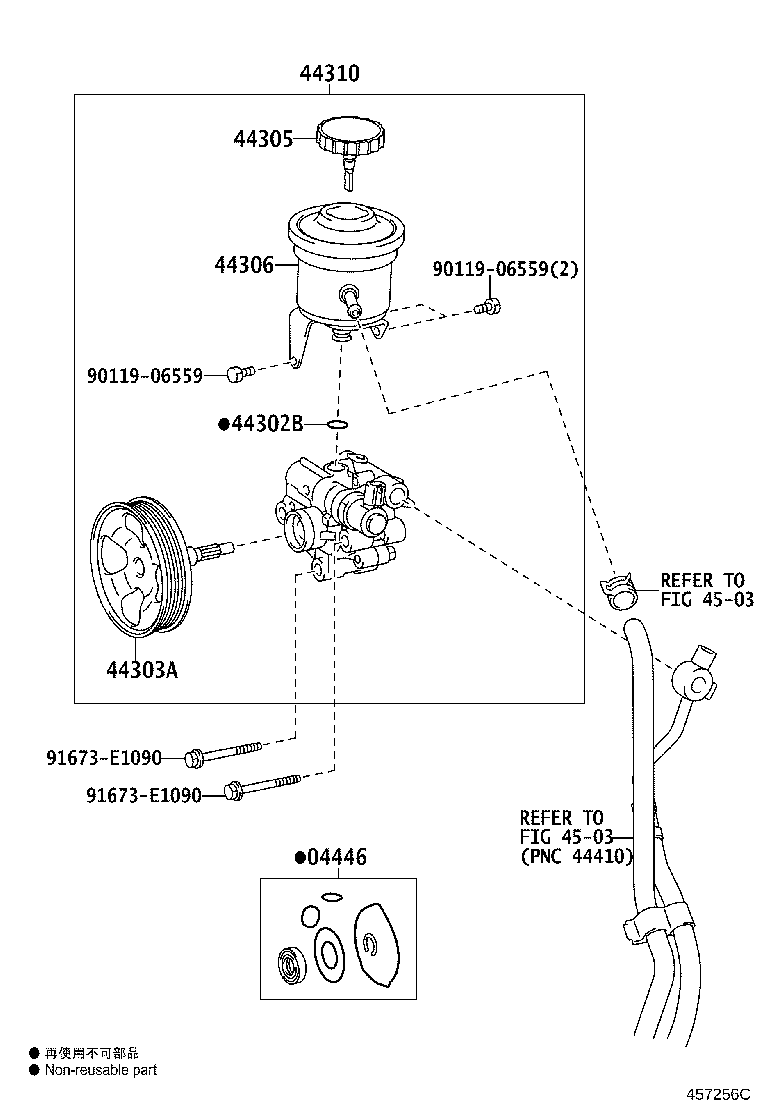

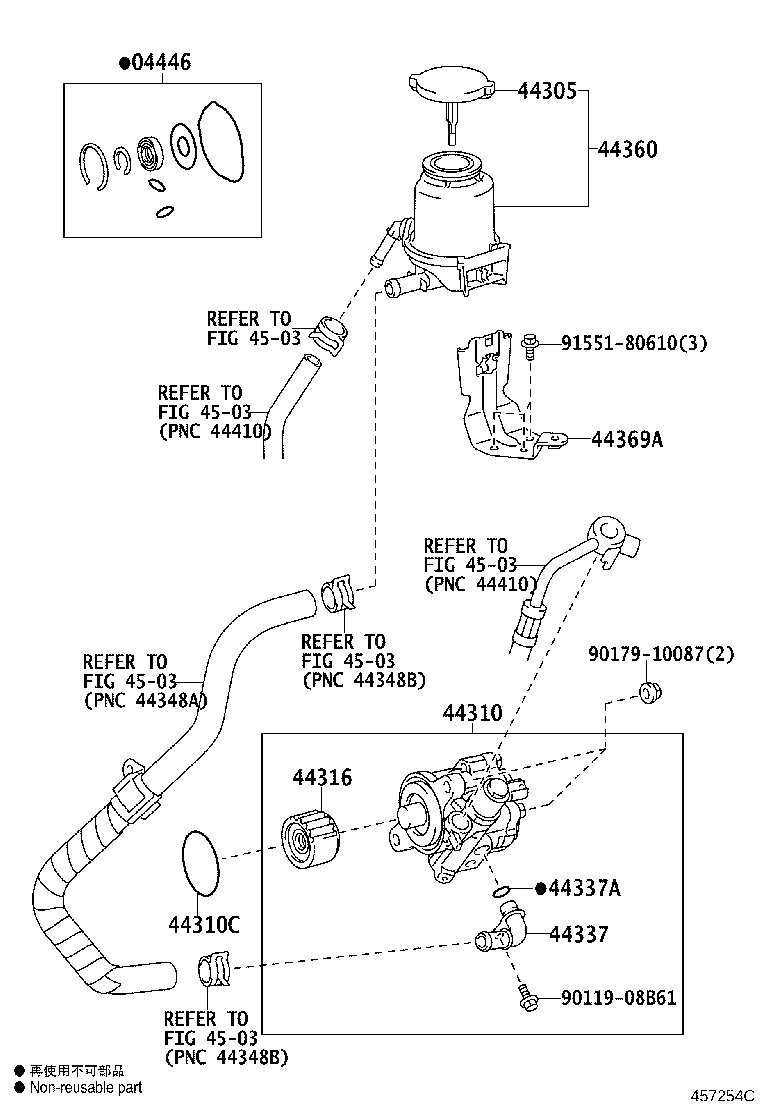

Figure 457257D 457257D 2017-08 → — Figure 457253E 457253E 2017-08 → — Figure 457254C 457254C 2017-08 → — Figure 457256C 457256C 2017-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44302B Ring, O, NO.1(FOR VANE PUMP HOUSING)
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44306 Reservoir Sub-assy, Vane Pump Oil
44310 Pump Assy, Vane
44310C Ring, O(FOR VANE PUMP)
44316 Gear, Vane Pump
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
