Power Steering Tube

11 part groups · 9 illustrations

Illustrations

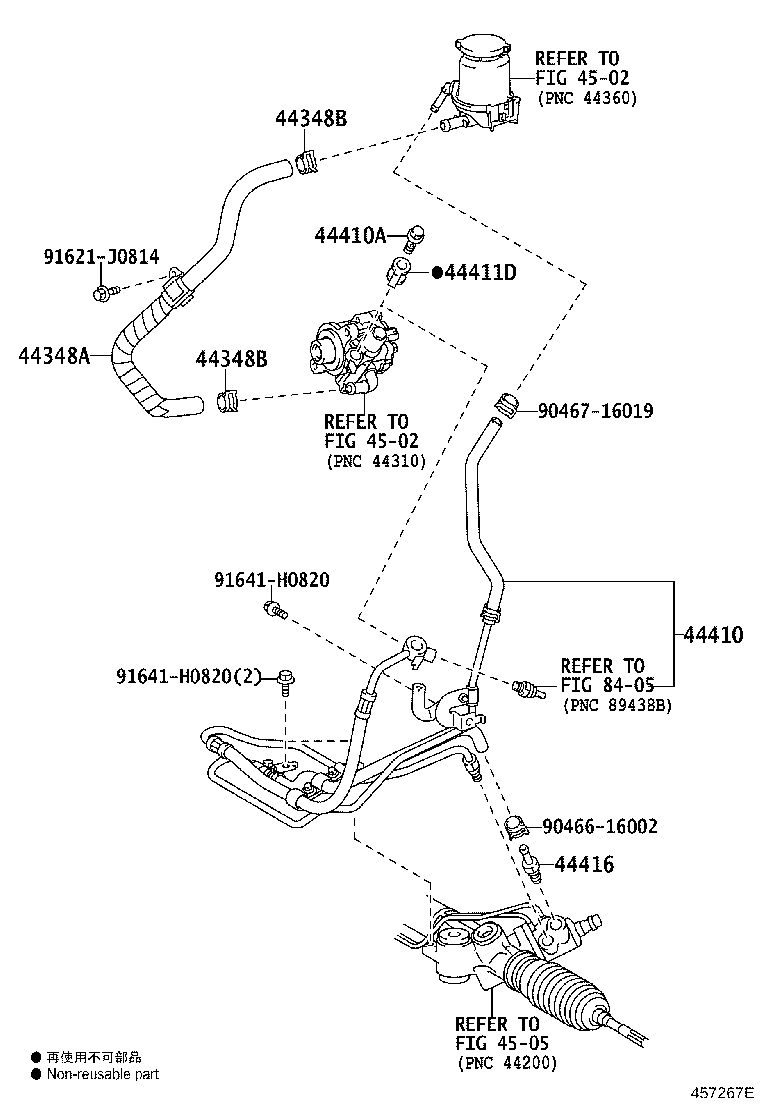

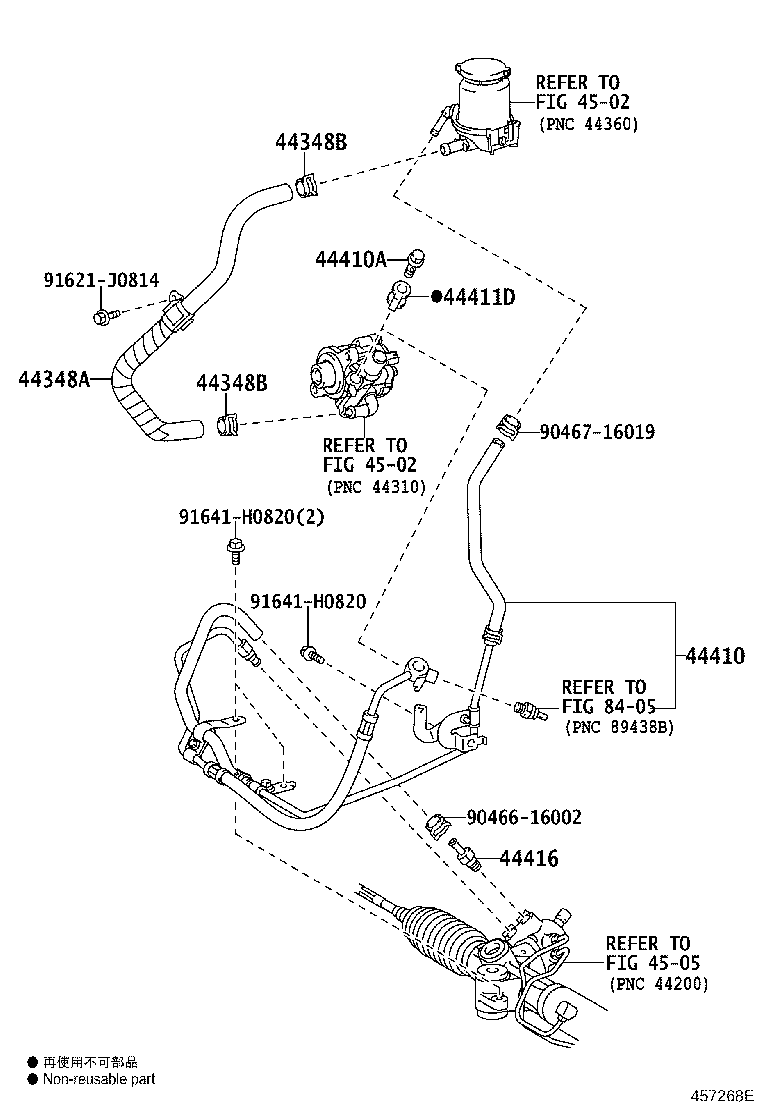

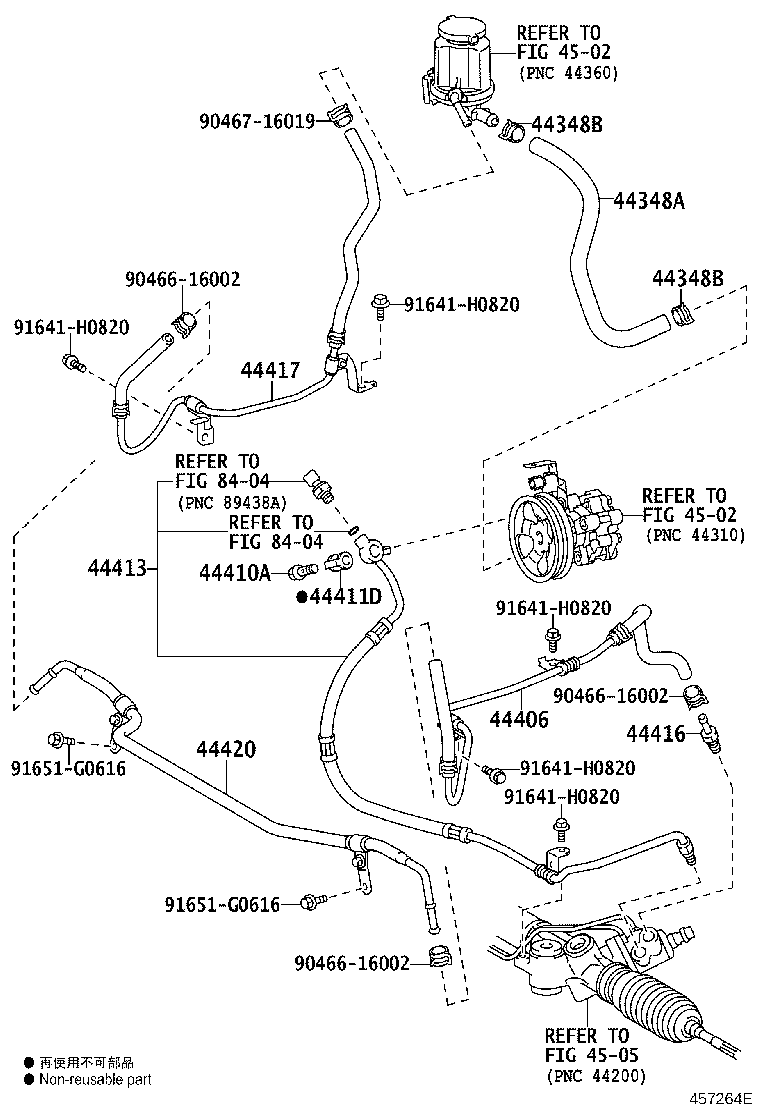

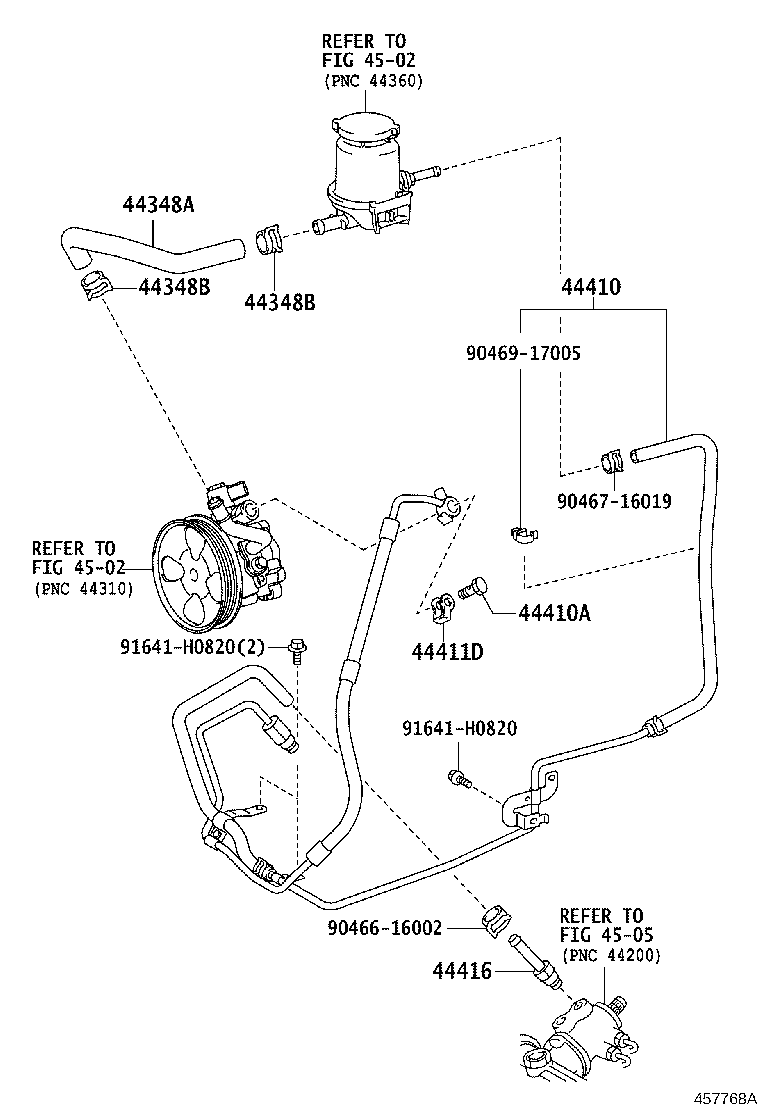

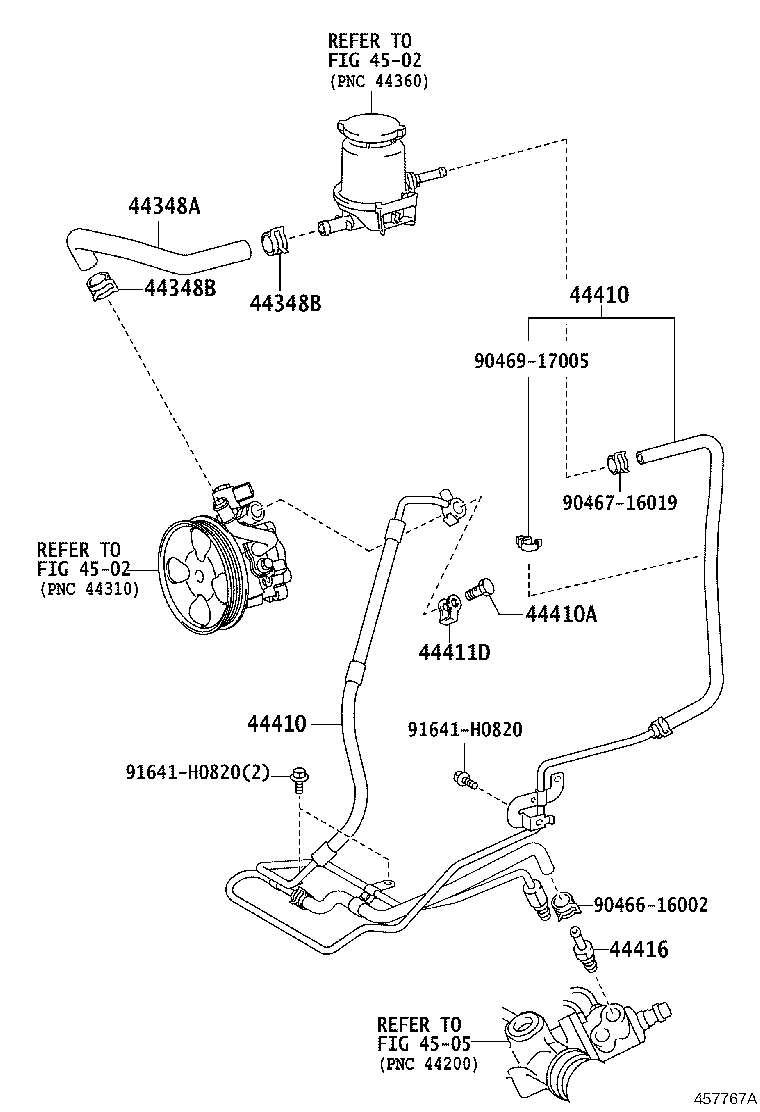

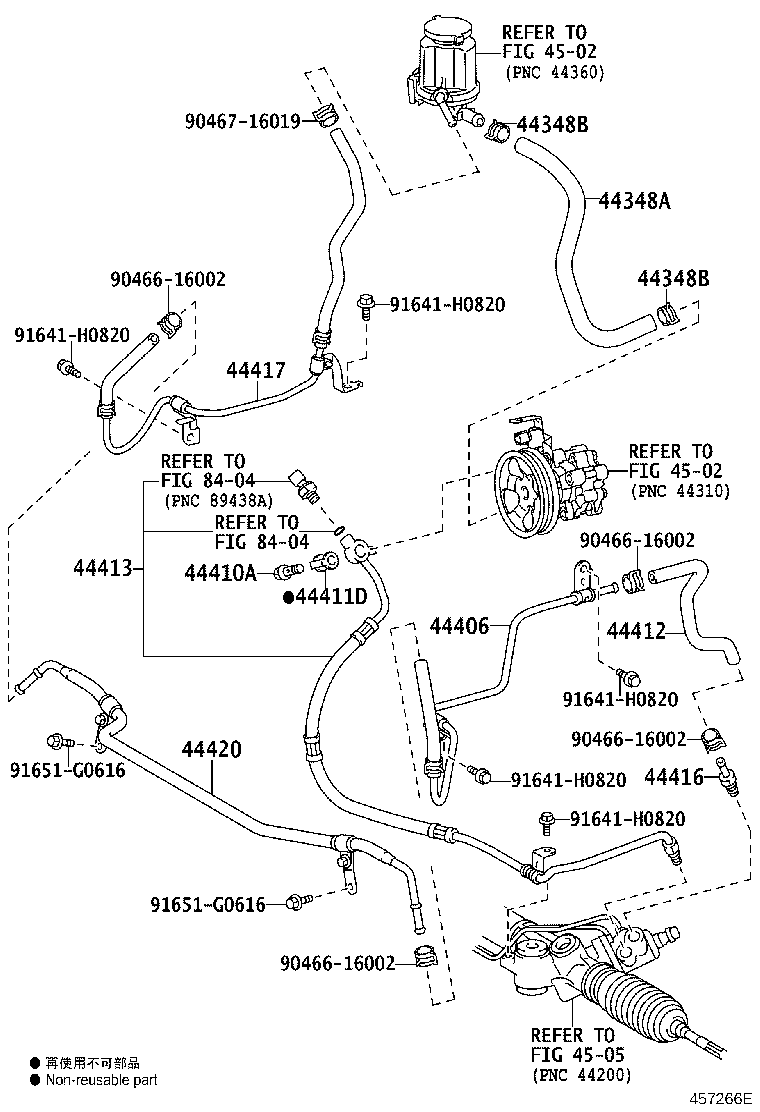

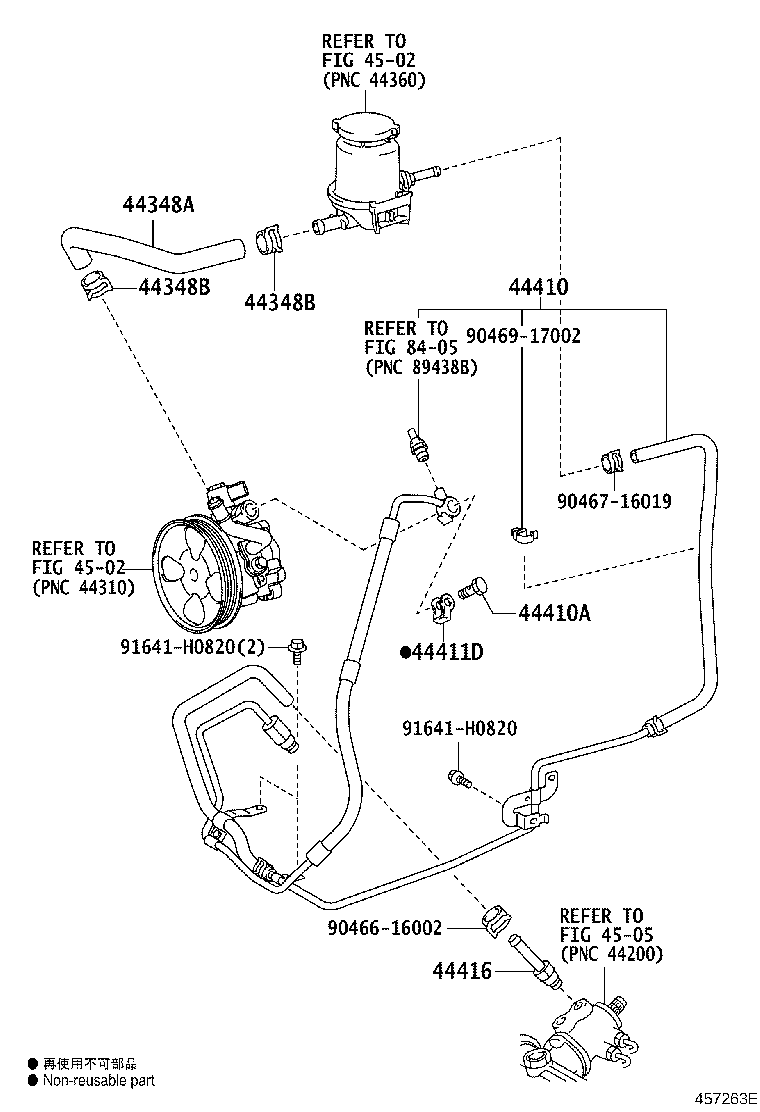

Figure 457272C 457272C 2017-08 → 2020-08 Figure 457263E 457263E 2017-08 → 2020-08 Figure 457264E 457264E 2017-08 → — Figure 457266E 457266E 2017-08 → — Figure 457267E 457267E 2017-08 → — Figure 457268E 457268E 2017-08 → — Figure 457271E 457271E 2017-08 → — Figure 457767A 457767A 2020-08 → — Figure 457768A 457768A 2020-08 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44420 Cooler Assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
