Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

5 part groups · 3 illustrations

Illustrations

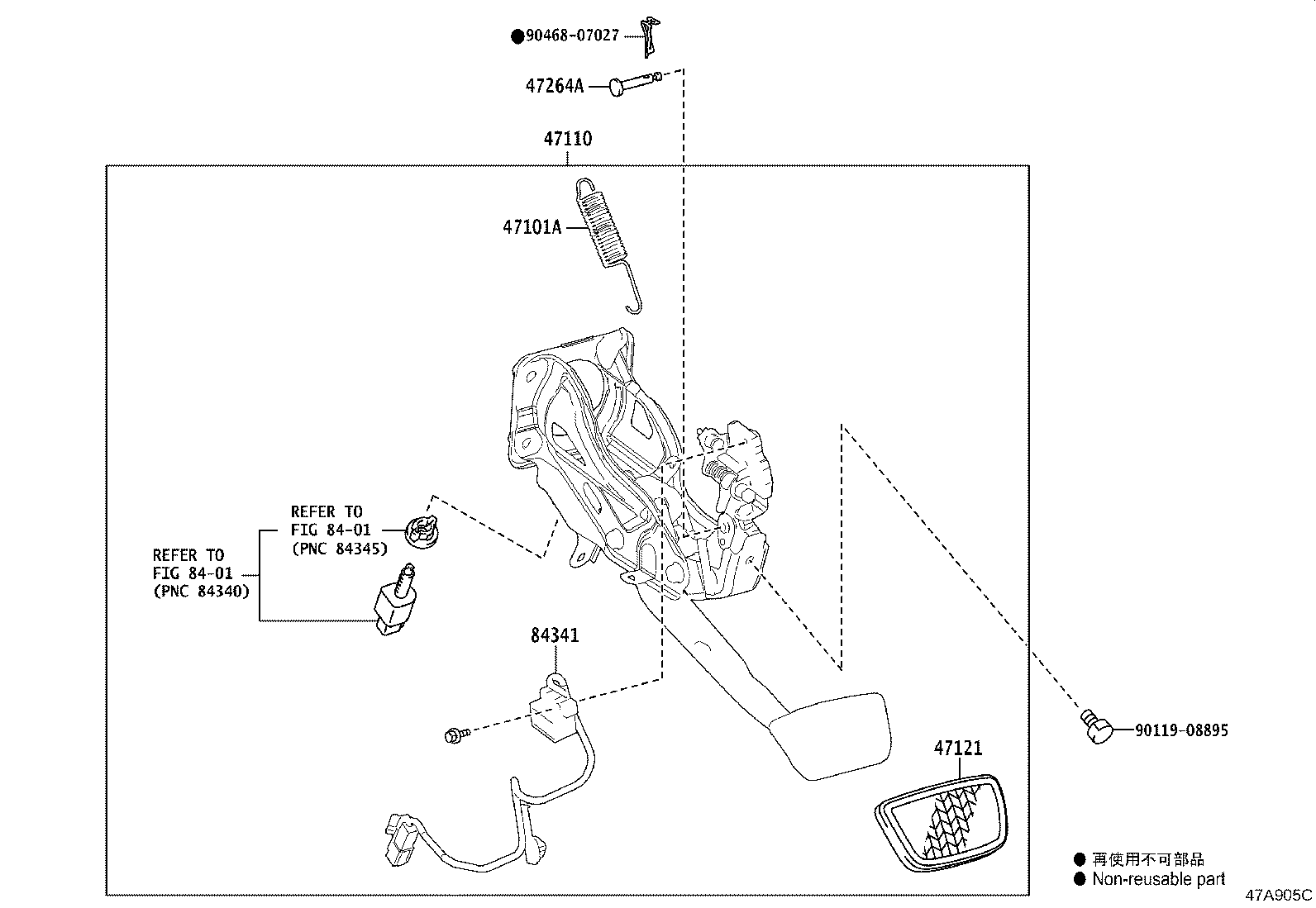

Figure 47A867E 47A867E 2017-08 → — Figure 47A905C 47A905C 2017-08 → — Figure 47C528 47C528 2020-08 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
84341 Switch, Brake Pedal Road Sensing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
