Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

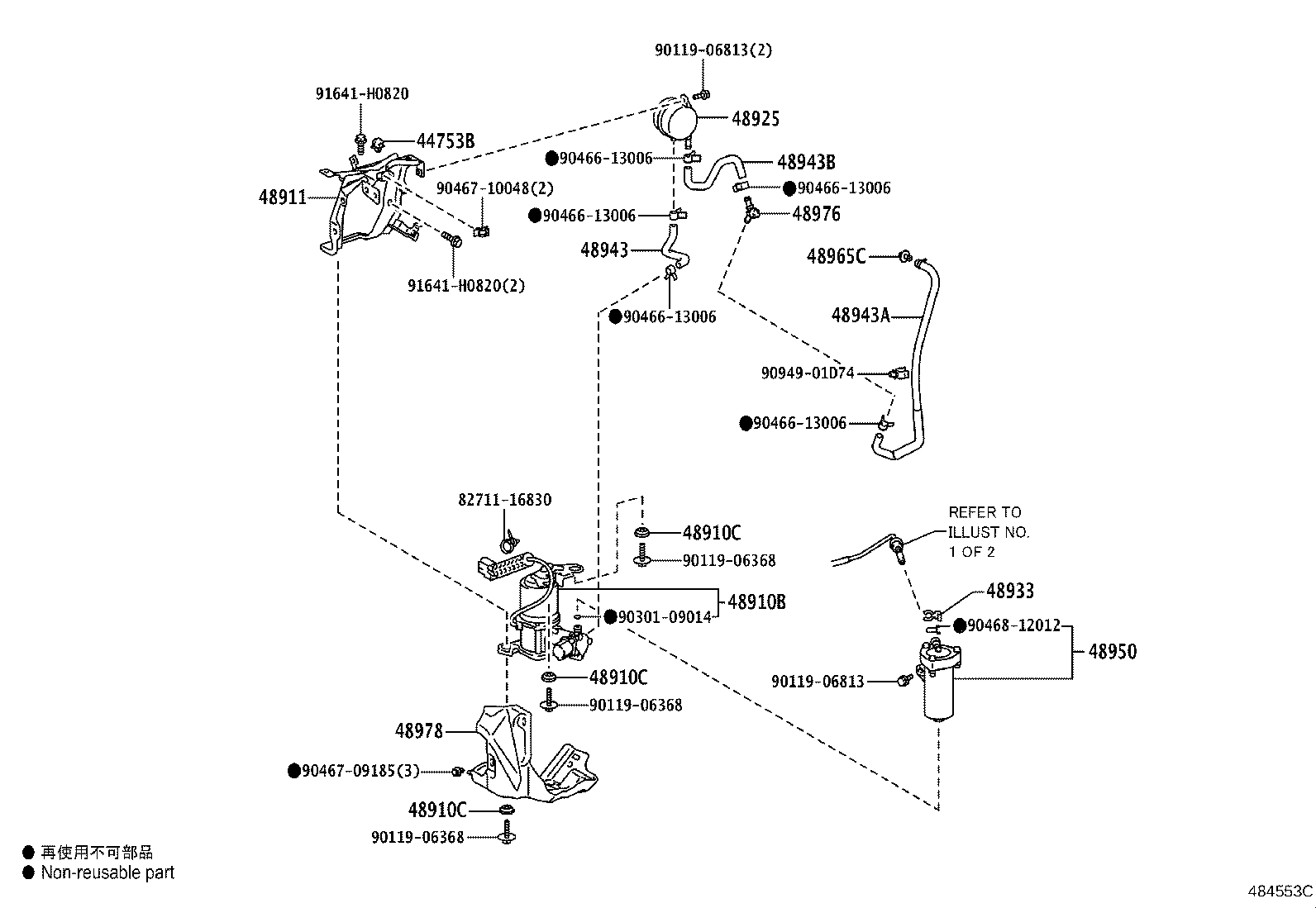

Height Control (AUTO-LEVELER)
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44753B | Clamp, Height Control Tube, NO.1 |
| 48910B | Compressor Assy, Height Control |
| 48910C | Bush, NO.1(FOR HEIGHT CONTROL COMPRESSOR) |
| 48911 | Bracket, Height Control Compressor |
| 48925 | Filter, Height Control |
| 48932A | Plate, Height Control Tube |
| 48933 | Holder, Air Connector Clip |
| 48933B | Holder, Rear Height Control Air Connector Clip |
| 48934B | Connector, Height Control Tube |
| 48934E | Ring, O(FOR HEIGHT CONTROL TUBE CONNECTOR) |
| 48943 | Hose, Height Control, NO.1 |
| 48943A | Hose, Height Control, NO.3 |
| 48943B | Hose, Height Control, NO.2 |
| 48950 | Dryer Assy, Height Control |
| 48960 | Valve Assy, Height Control, NO.2 |
| 48965C | Clamp, Height Control Tube, NO.1 |
| 48965D | Clamp, Height Control Tube, NO.2 |
| 48976 | Way, Height Control |
| 48978 | Cover, Height Control Compressor |
| 48982 | Tube, Height Control, NO.2 |
| 48982A | Ring, O(FOR HEIGHT CONTROL TUBE NO.2) |
| 48986 | Tube, Height Control, NO.6 |
| 48987 | Tube, Height Control, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
