Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

7 part groups · 2 illustrations

Illustrations

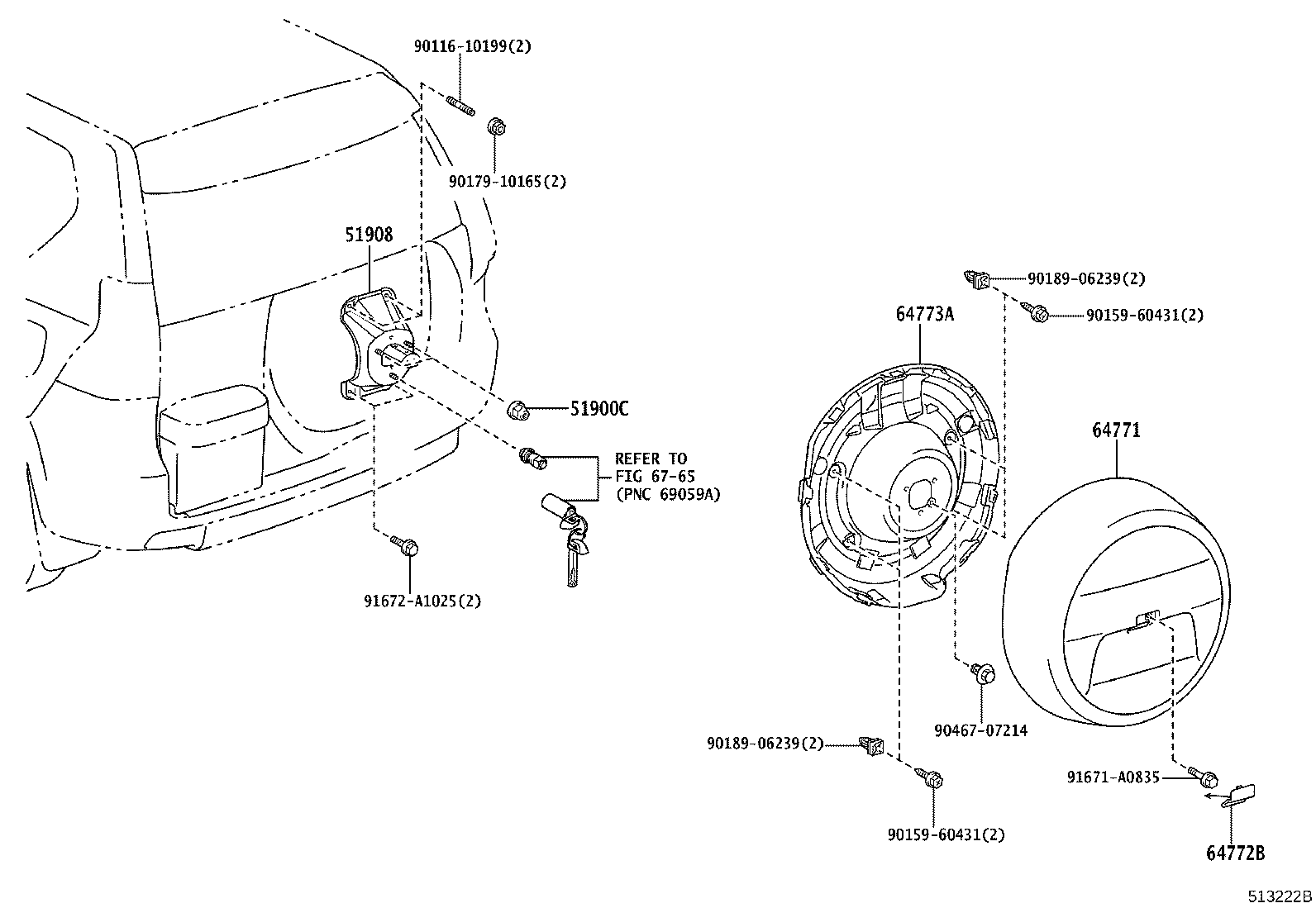

Figure 513220B 513220B 2017-08 → — Figure 513222B 513222B 2017-08 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51900C Nut, Spare Wheel, Hub
51908 Bracket Sub-assy, Spare Wheel Carrier
51920C Bracket Assy, Spare Wheel Carrier
64771 Cover, Spare Wheel
64772B Pad, Spare Wheel Cover
64773A Cover, Spare Wheel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
