Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 2 illustrations

Illustrations

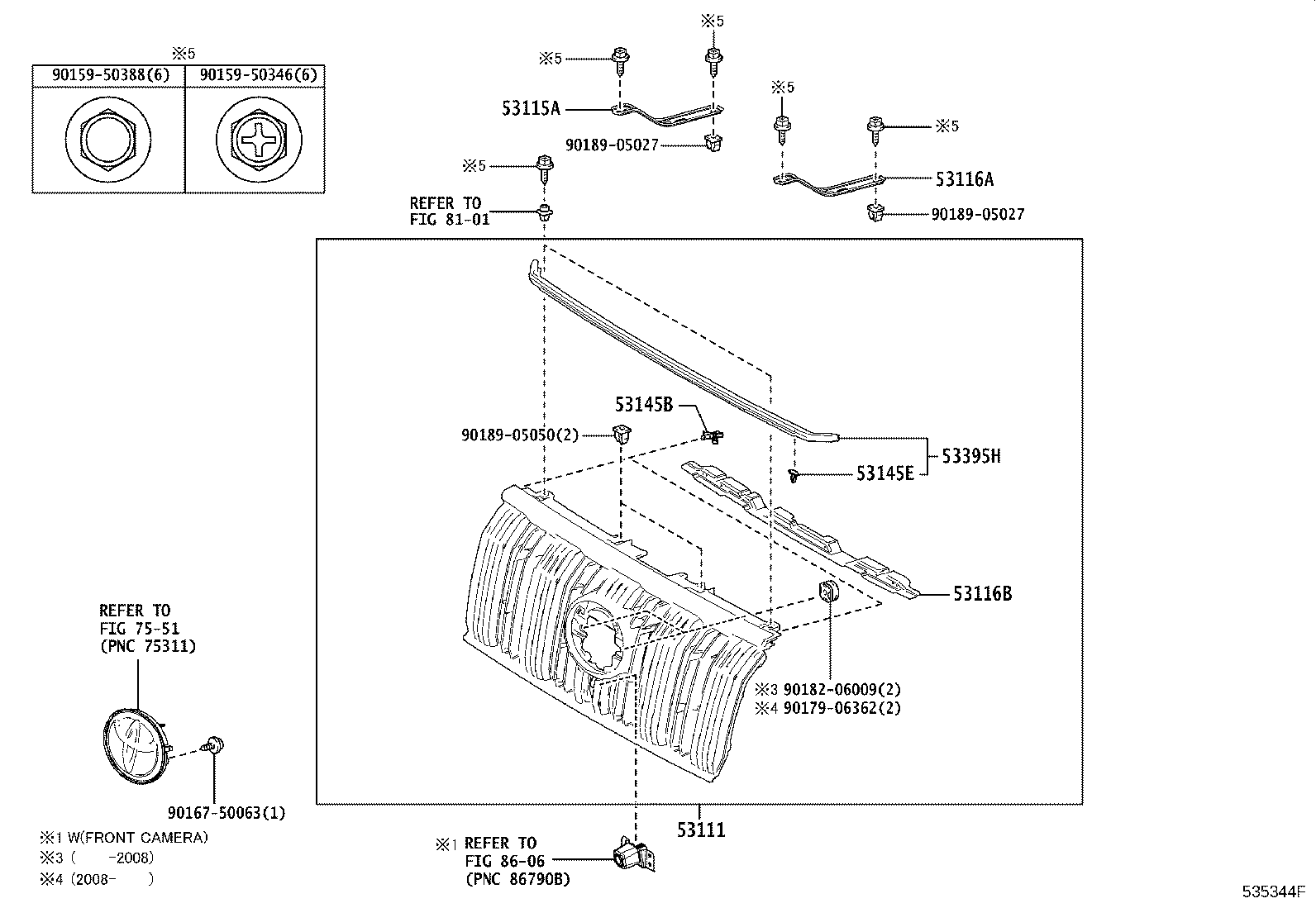

Figure 535334G 535334G 2017-08 → — Figure 535344F 535344F 2017-08 → —

Part groups

PNCDescription
53111 Grille, Radiator
53115A Bracket, Radiator Grille, RH
53116A Bracket, Radiator Grille, LH
53116B Bracket, Radiator Grille, NO.2
53145B Clip, Radiator Grille Garnish
53145E Clip, Radiator Grille Garnish
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
