Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

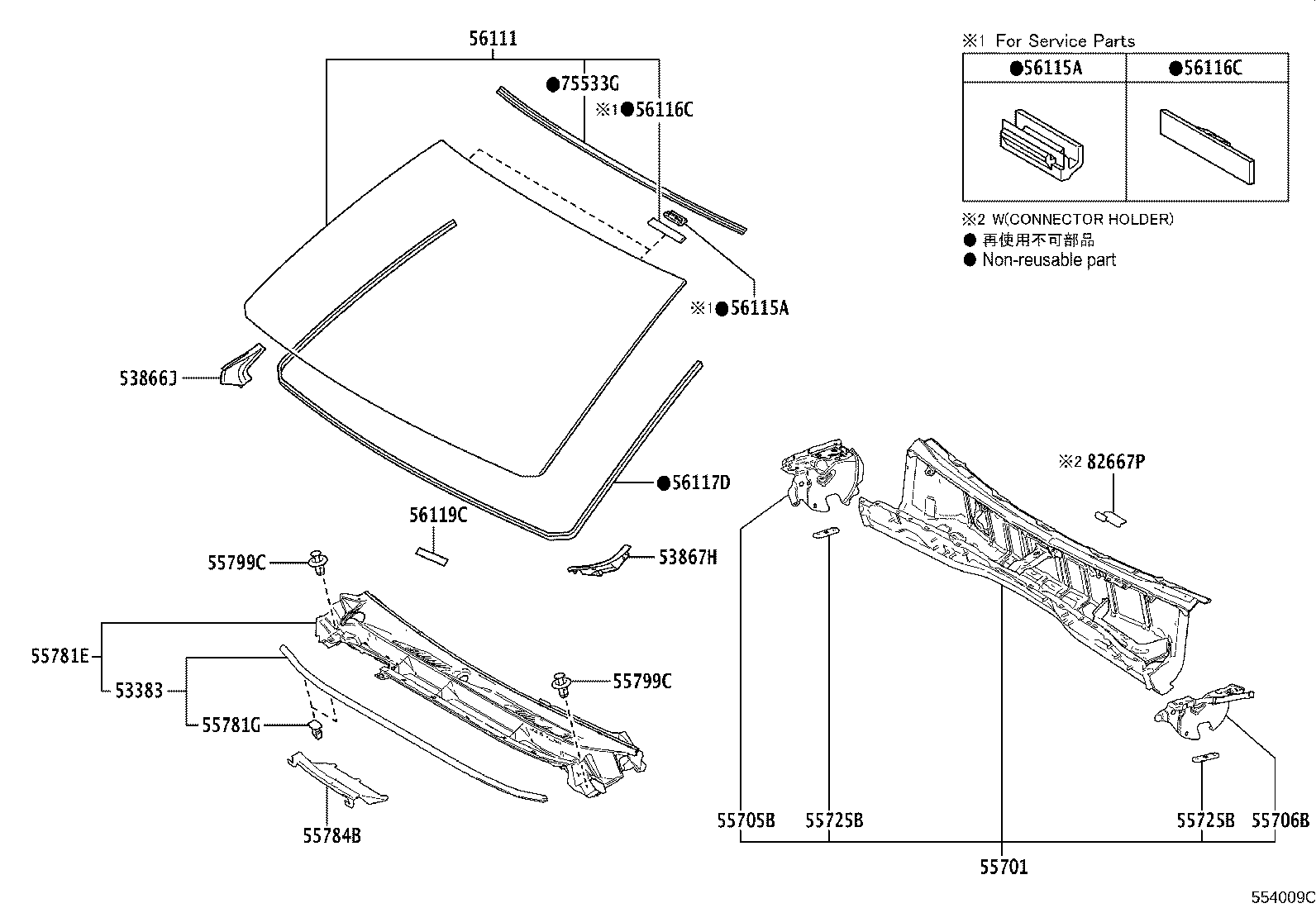

Cowl Panel & Windshield Glass
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383 | Seal, Hood TO Cowl Top |
| 53866J | Seal, Front Fender TO Cowl Side, RH |
| 53867H | Seal, Front Fender TO Cowl Side, LH |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55725B | Reinforcement, Hood Hinge Mounting |
| 55738F | Cover, Front Panel, LH |
| 55781E | Louver Sub-assy, Cowl Top Ventilator |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55784B | Louver, Cowl Top Ventilator, Center NO.2 |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117D | Dam, Windshield Glass Adhesive |
| 56119C | Seal, Windshield Glass |
| 75533G | Moulding, Windshield, Outside |
| 82667P | Holder, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
