Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

31 part groups · 3 illustrations

Illustrations

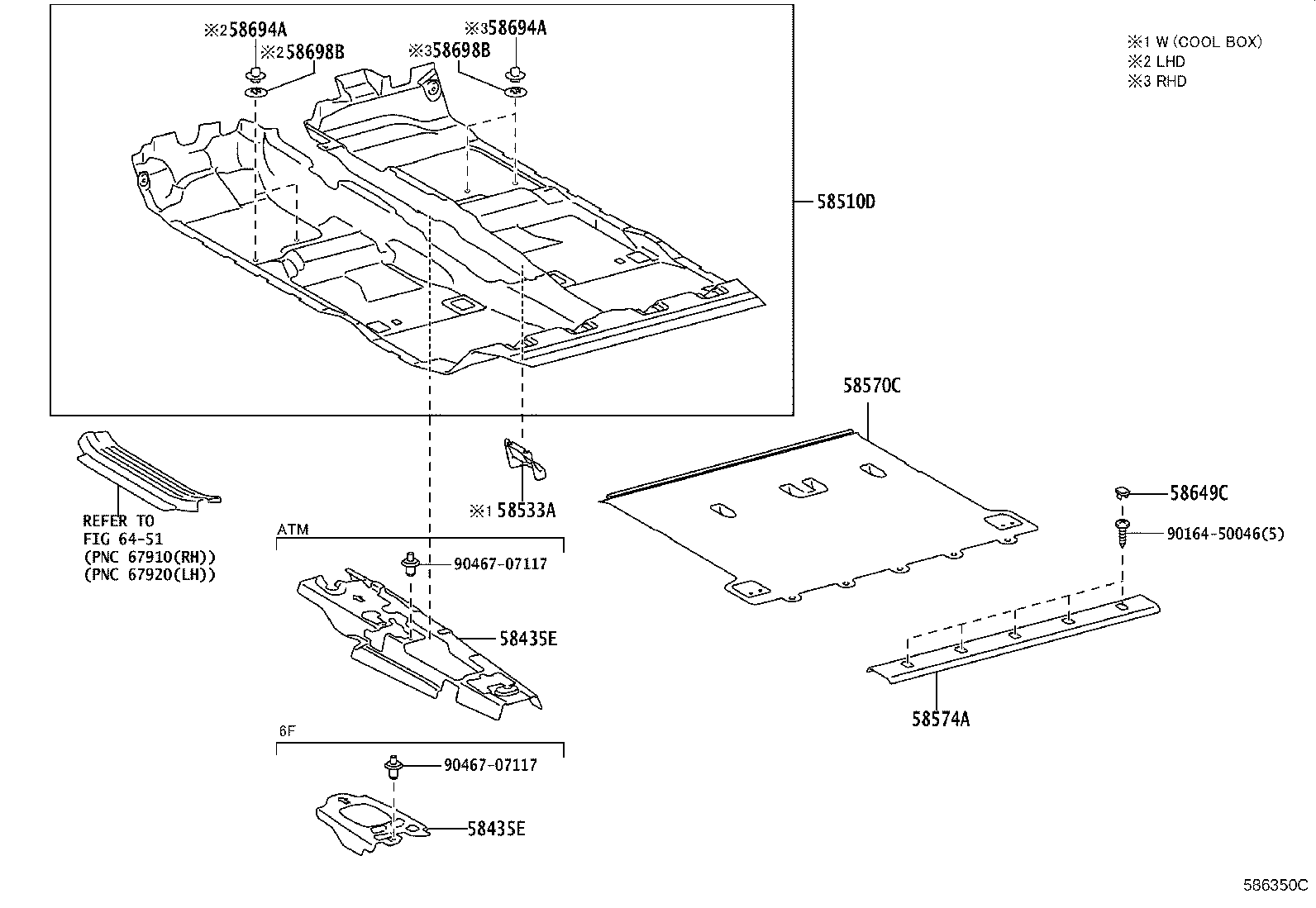

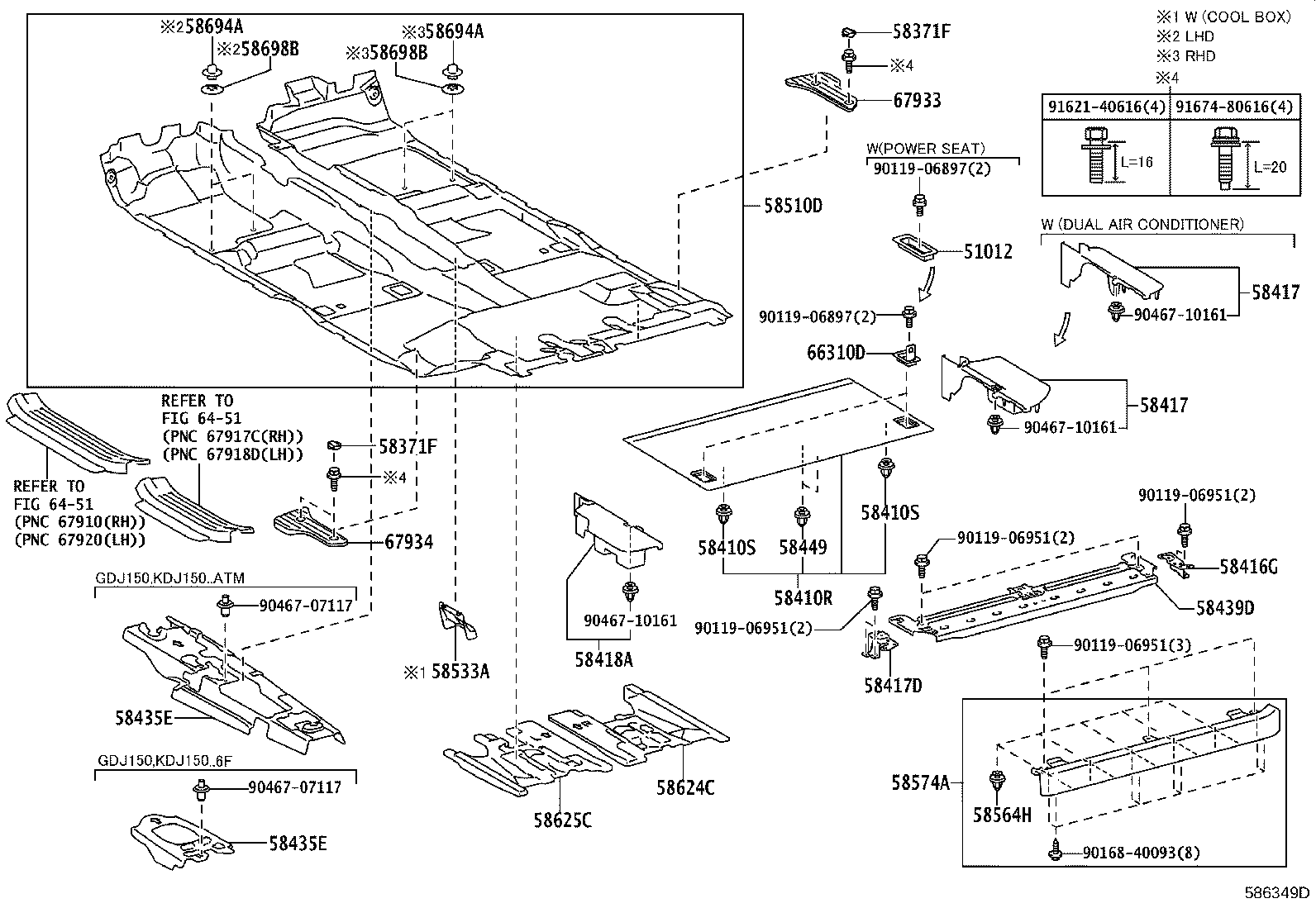

Figure 586348G 586348G 2017-08 → — Figure 586349D 586349D 2017-08 → — Figure 586350C 586350C 2017-08 → —

Part groups

PNCDescription
51012 Rail Sub-assy, Rear Frame
58371F Cover, Rear Floor Step, NO.1
58401A Board Sub-assy, Deck, NO.1
58401J Clip(FOR DECK BOAD)
58410R Board Assy, Deck
58410S Clip, Deck Board
58416G Bracket, Deck Board, NO.1 RH
58417 Board, Rear Floor, NO.3
58417D Bracket, Deck Board, NO.1 LH
58418A Board, Rear Floor, NO.4
58435E Silencer, Front Floor, Center
58439D Reinforcement, Deck Board Bracket
58443D Cushion, Deck Board, NO.1
58449 Clip, Deck Board
58460G Striker Assy, Luggage Hold Belt
58510D Carpet Assy, Floor, Front
58533A Cover, Floor Carpet, Center RH
58564H Clip(FOR REAR FLOOR CARPET)
58570C Carpet Assy, Rear Floor
58574A Plate, Rear Floor Mat Support, Rear
58579B Pad, Rear Floor
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58649C Cover, Mat Set Plate
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
64717A Cover, Luggage Compartment Trim, Front
64721B Cover, Luggage Compartment Trim, NO.1
66310D Hook Assy, Rope
67933 Plate, Quarter Scuff, Inner RH
67934 Plate, Quarter Scuff, Inside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
