Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

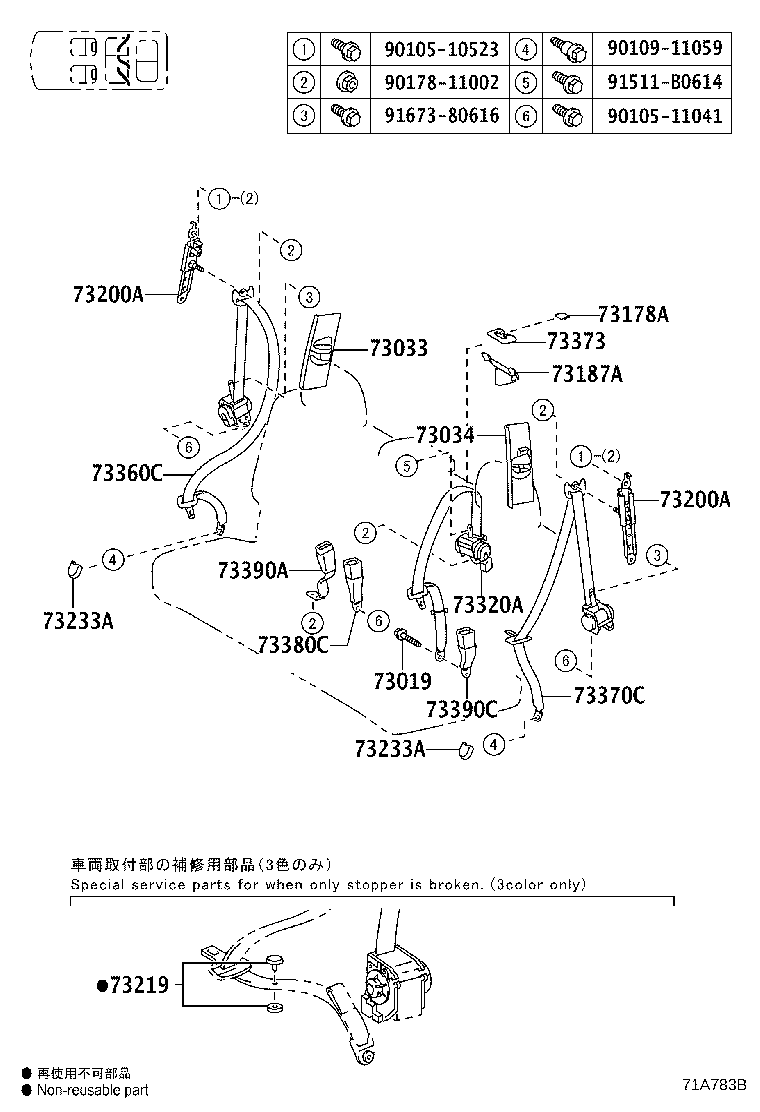

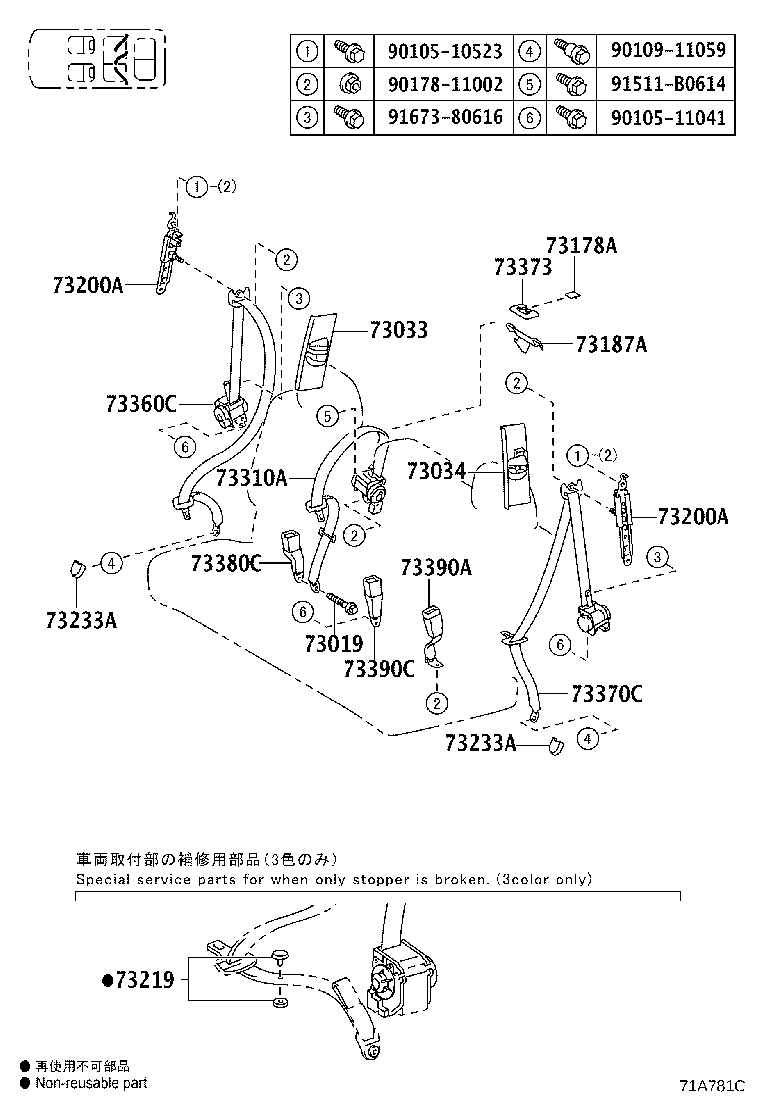

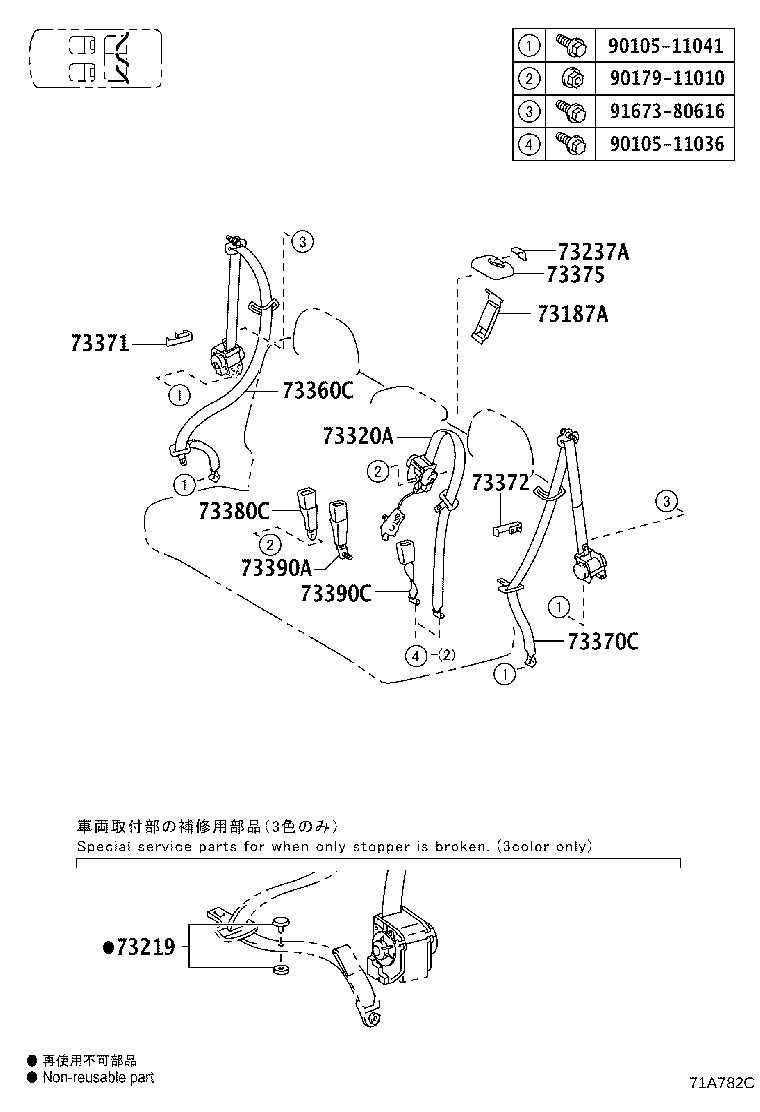

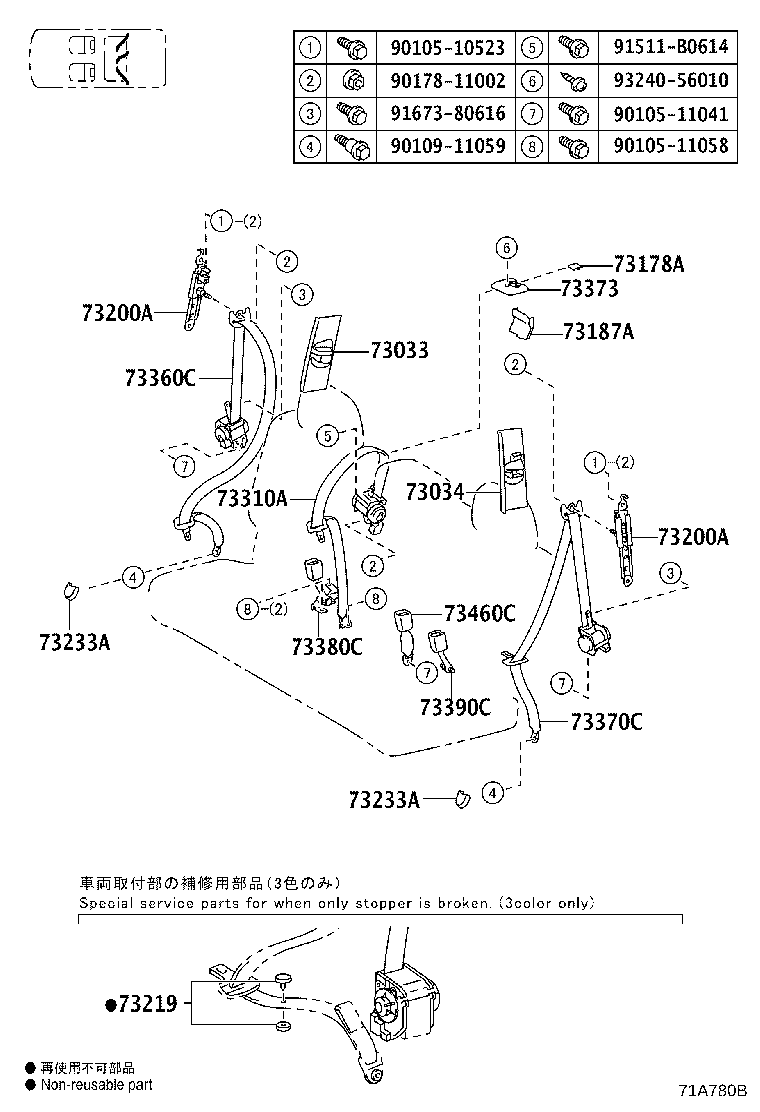

Seat Belt
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 73019 | Shaft Sub-assy, Seat Belt |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73033 | Plate Sub-assy, Rear Shoulder Belt Anchor, RH |
| 73034 | Plate Sub-assy, Rear Shoulder Belt Anchor, LH |
| 73090A | Plate Assy, Seat Belt Anchor |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73187A | Guide, Rear Seat Shoulder Belt |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233A | Cover, Lap Belt Outer Anchor, Rear NO.1 Seat |
| 73237A | Cover, Shoulder Belt Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73310A | Belt Assy, NO.1 Seat 3 Point Type, RH |
| 73320A | Belt Assy, NO.1 Seat 3 Point Type, LH |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73371 | Hanger, Rear Seat Shoulder Belt, RH |
| 73372 | Hanger, Rear Seat Shoulder Belt, LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73380C | Belt Assy, Rear NO.1 Seat, Inner RH |
| 73390A | Belt Assy, Rear Seat, Inner |
| 73390C | Belt Assy, Rear NO.1 Seat, Inner LH |
| 73460C | Belt Assy, Rear Seat Center, Inner |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
| 73608 | Plate Sub-assy, RR Seat Belt Out Anc, LH |
| 73675 | Plate, Rear Outer Anchor, RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
