Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06
Moulding
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

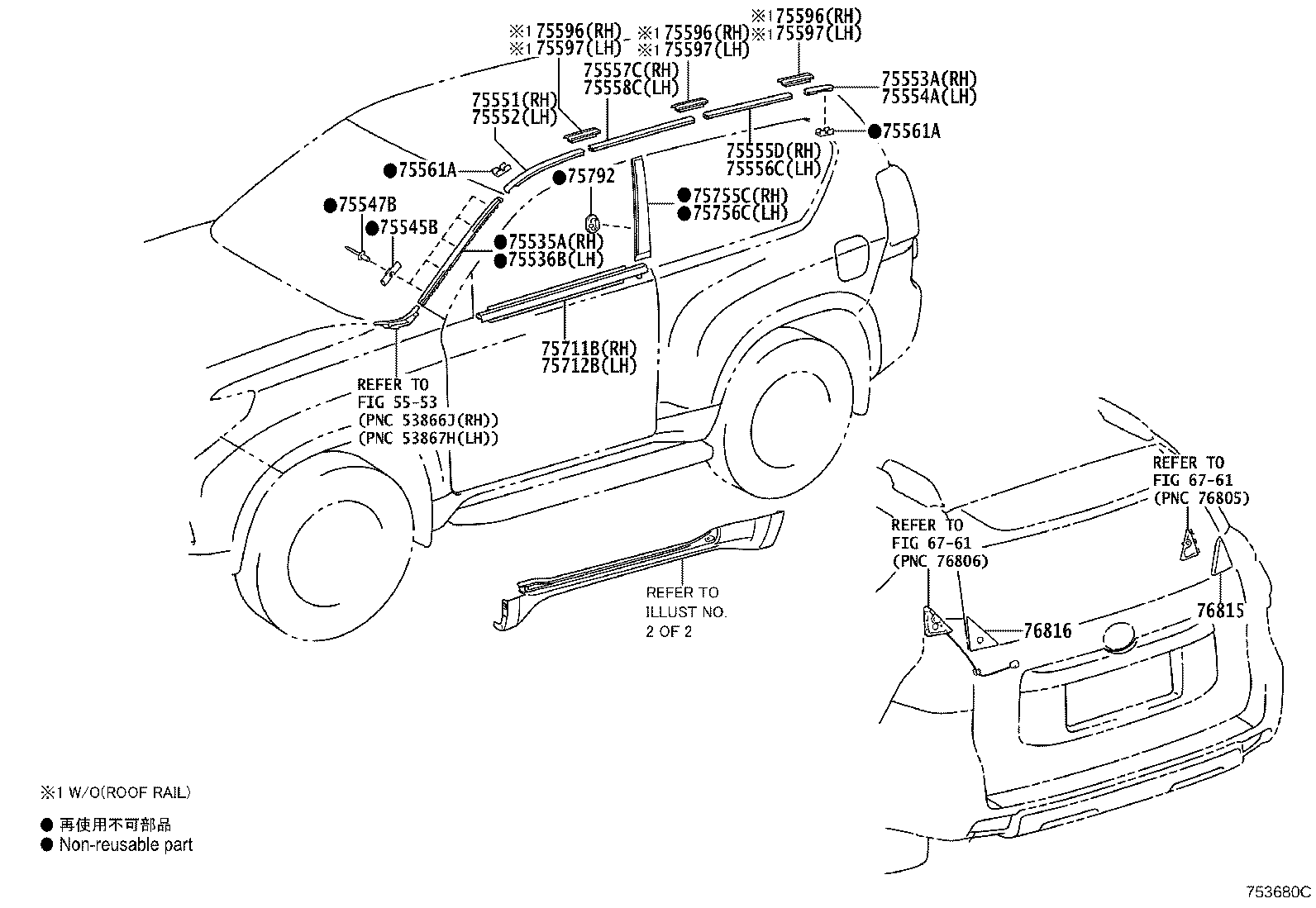

| 75075A | Clip(FOR REAR DOOR OUTSIDE MOULDING) |
| 75535A | Moulding, Windshield, Outside Lower |
| 75536B | Moulding, Windshield, Outside Lower LH |
| 75545B | Clip, Windshield Outside Moulding, NO.1 |
| 75547B | Clip, Windshield Outside Moulding, NO.3 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75557C | Moulding, Roof Drip Side Finish, Center NO.2 RH |
| 75558C | Moulding, Roof Drip Side Finish, Center NO.2 LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75596 | Cover, Roof Drip Side Finish Moulding Joint, RH |
| 75597 | Cover, Roof Drip Side Finish Moulding Joint, LH |
| 75711B | Moulding, Front Door Belt, RH |
| 75712B | Moulding, Front Door Belt, LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75792 | Clip, Door Window Frame Moulding |

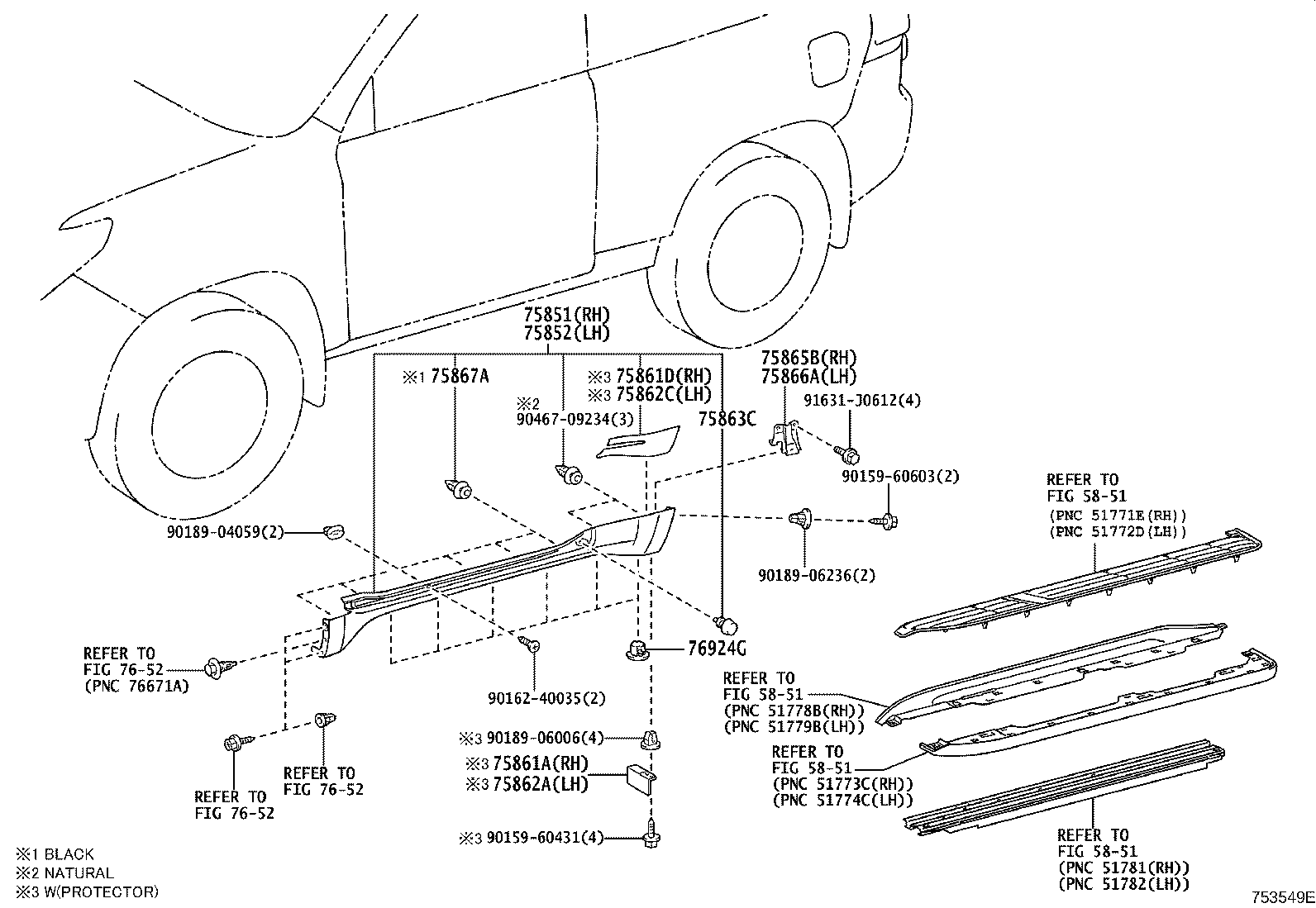

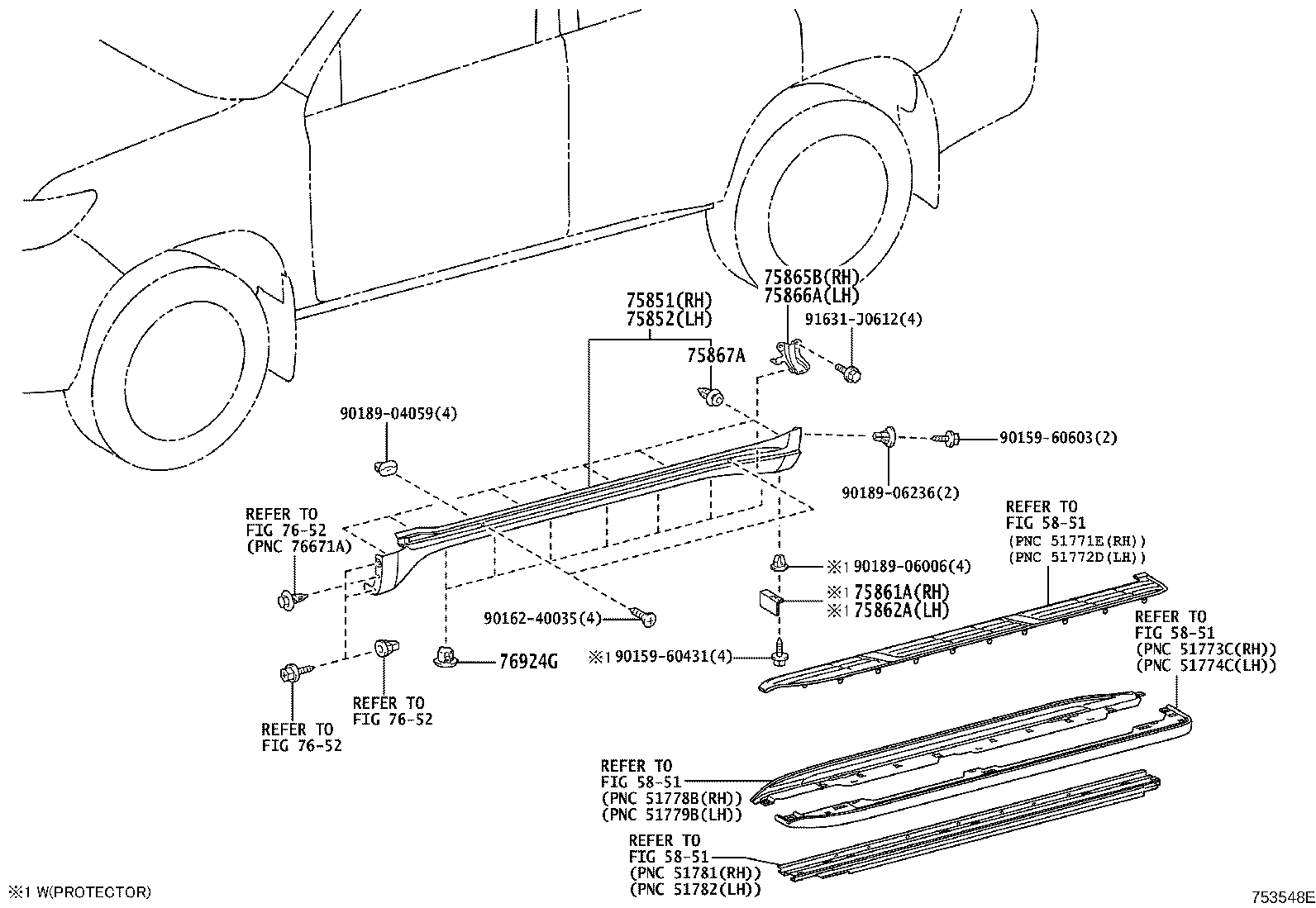

| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75861A | Protector, Rocker Panel Moulding, NO.1 |
| 75861D | Protector, Rocker Panel Moulding, NO.1 |
| 75862A | Protector, Rocker Panel Moulding, NO.2 |
| 75862C | Protector, Rocker Panel Moulding, NO.2 |
| 75863C | Protector, Rocker Panel Moulding, NO.3 |
| 75865B | Retainer, Rocker Panel Moulding, NO.2 |
| 75866A | Retainer, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 76815 | Moulding, Back Door Outside Garnish, Lower RH |
| 76816 | Moulding, Back Door Outside Garnish, Lower LH |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
