Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

12 part groups · 2 illustrations

Illustrations

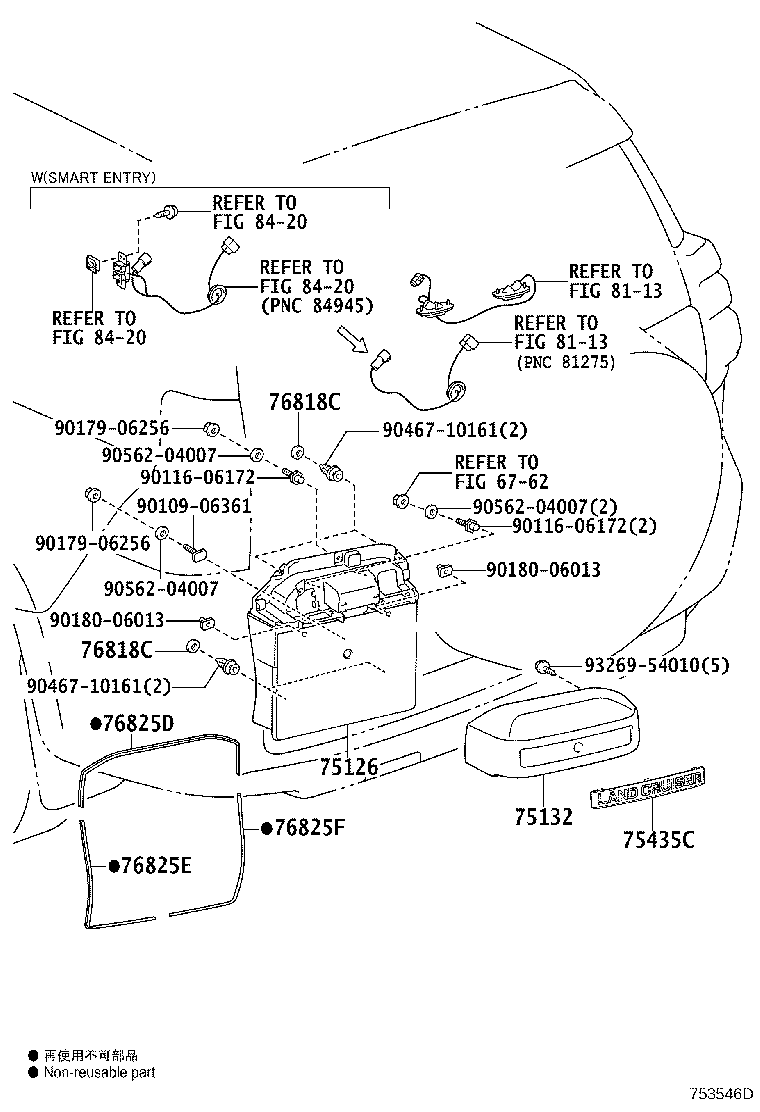

Figure 753545 753545 2017-08 → — Figure 753546D 753546D 2017-08 → —

Part groups

PNCDescription
42690 Bracket Assy, Tire Repair Kit
58709A Carrier Sub-assy, Jack
58780 Band Assy, Tool Box
58798B Cushion, Jack Carrier
75126 Stay, Rear License Plate Bracket, Lower
75132 Cover, License Rear Lamp
75296 Protector, Jack Handle
75435C Ornament, Back Door
76818C Pad, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76825E Protector, Back Door Outside Garnish, NO.2
76825F Protector, Back Door Outside Garnish, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
