Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

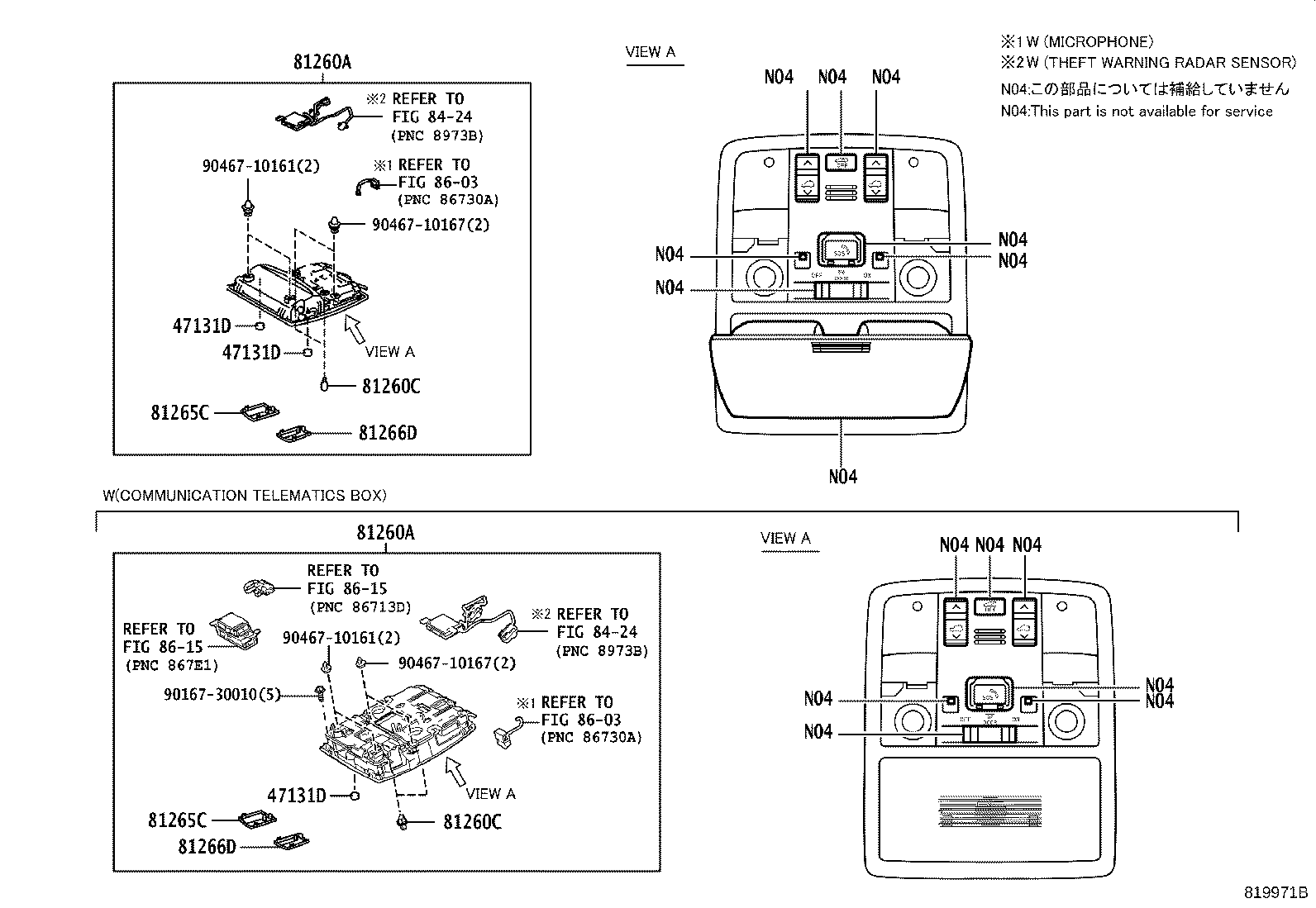

Interior Lamp
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47131D | Cushion |
| 81080D | Lamp Assy, Front Door Inside Handle Illumination, RH |
| 81080E | Lamp Assy, Front Door Inside Handle Illumination, LH |
| 81080F | Lamp Assy, Rear Door Inside Handle Illumination, RH |
| 81080G | Lamp Assy, Rear Door Inside Handle Illumination, LH |
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080T | Lamp Assy, Interior Illumination, NO.2 RH |
| 81080U | Lamp Assy, Interior Illumination, NO.2 LH |
| 81081B | Lamp Sub-assy, Interior Illumination, NO.3 |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81240D | Lamp Assy, Room, NO.2 |
| 81240E | Bulb, Room Lamp, NO.2 |
| 81249 | Switch, Room Lamp |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81319 | Switch, Rear Room Lamp |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81340H | Lamp Assy, Vanity, RH |
| 81340J | Lamp Assy, Vanity, LH |
| 81362B | Lens, Interior Illumination Lamp |
| 81362C | Lens, Interior Illumination Lamp, RH |
| 81362D | Lens, Interior Illumination Lamp, LH |
| 81380A | Socket, Plug |
| 81380D | Lamp Assy, Step |
| 81380E | Bulb (FOR STEP LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
