Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

110 part groups · 19 illustrations

Illustrations

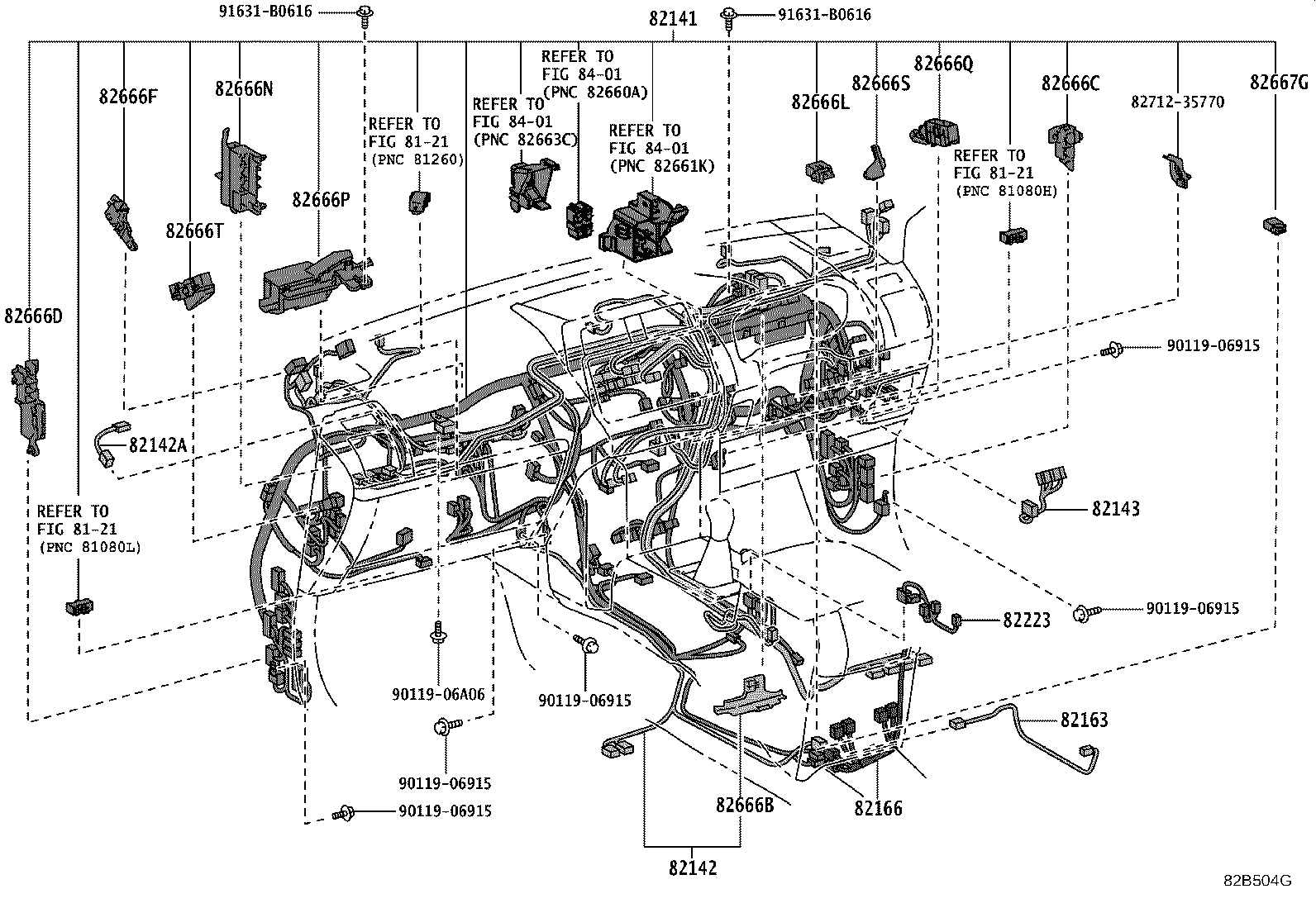

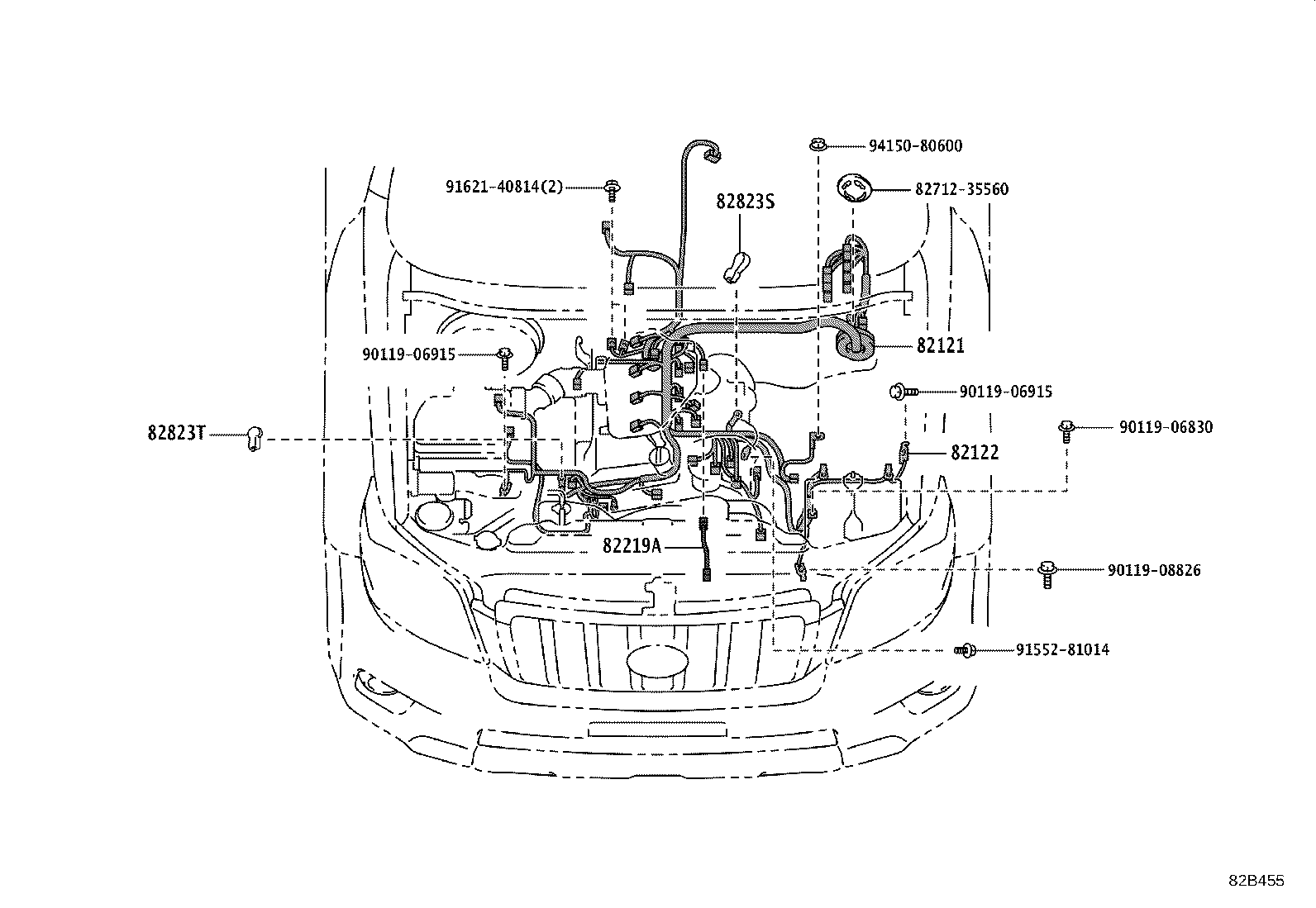

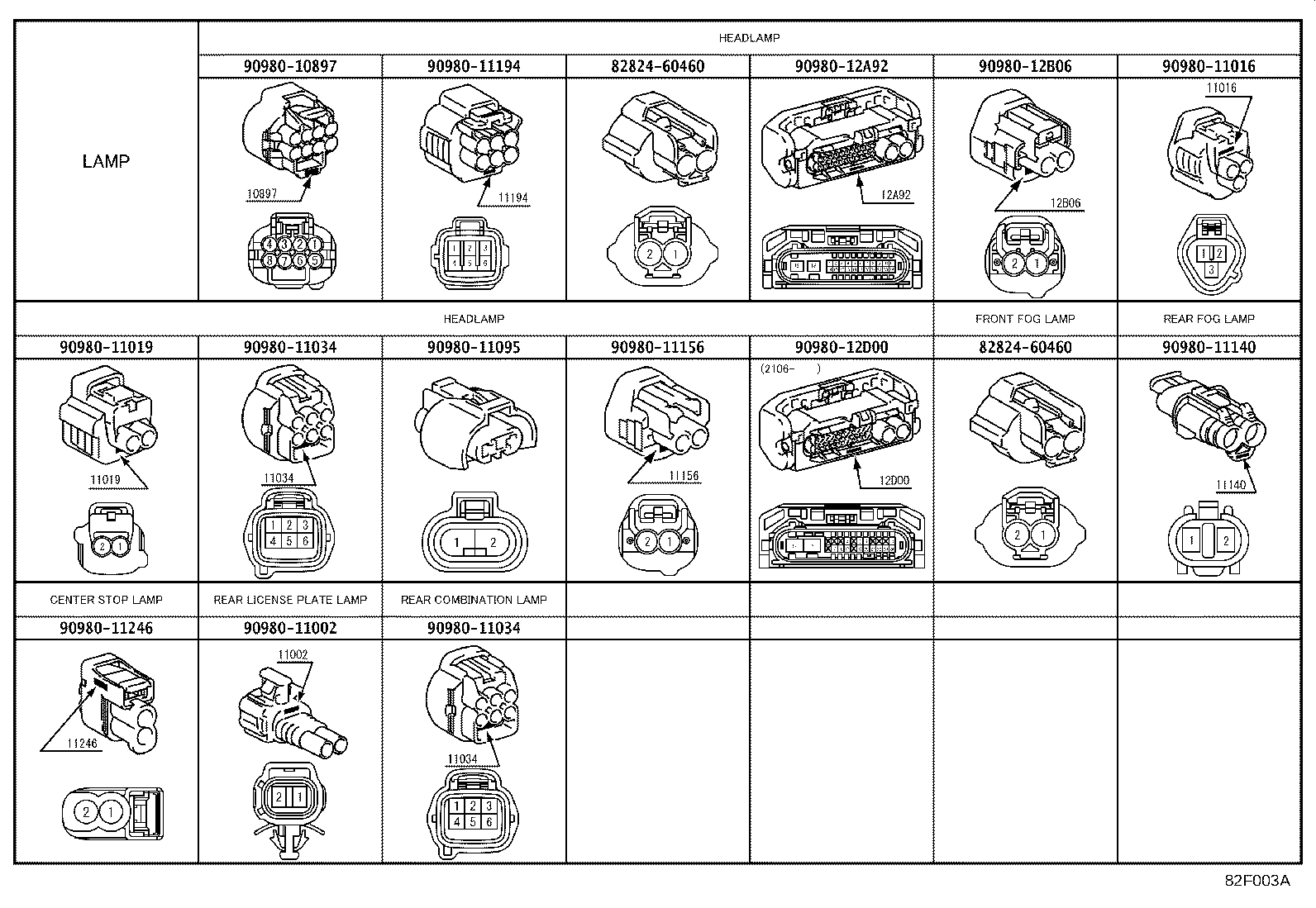

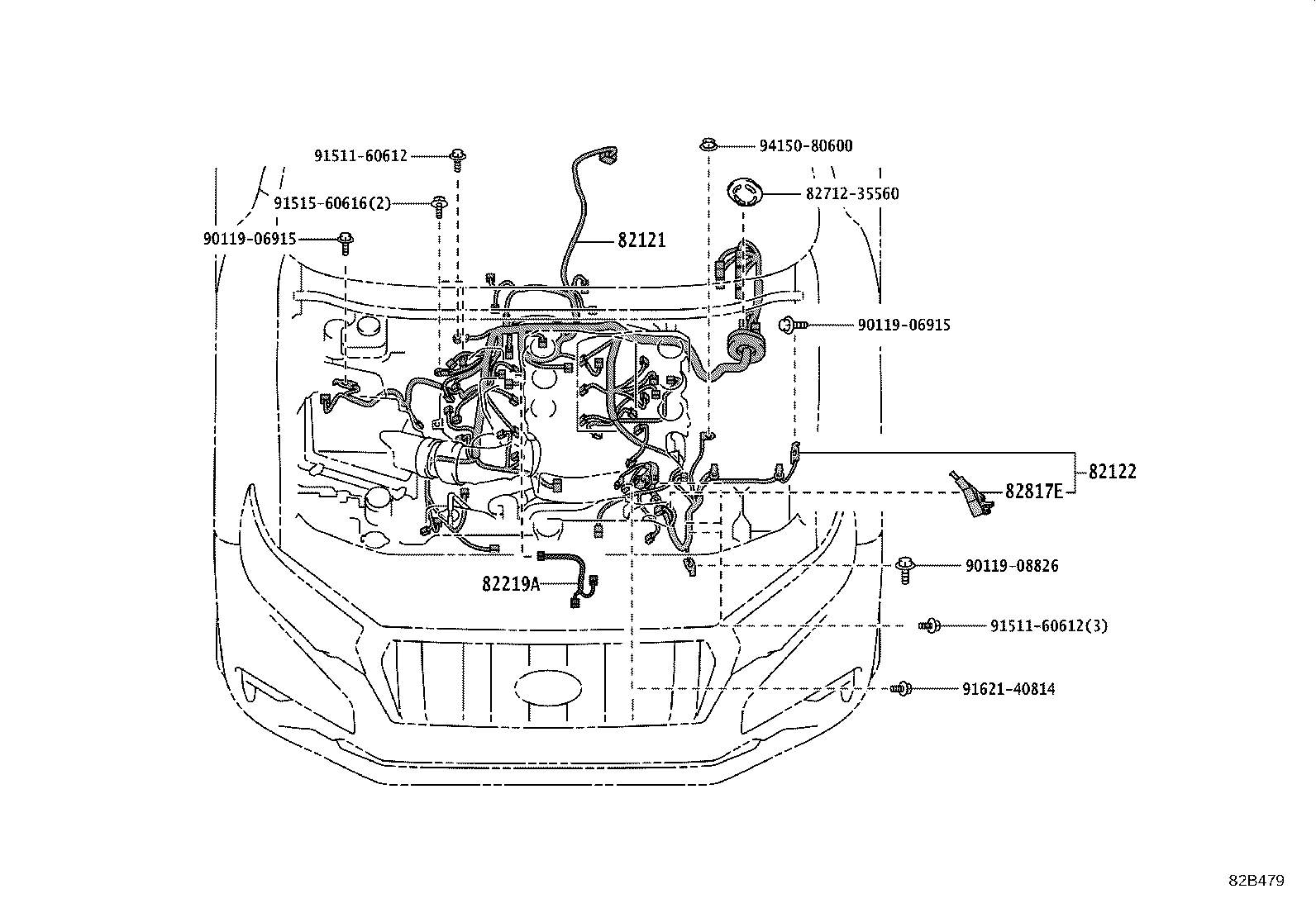

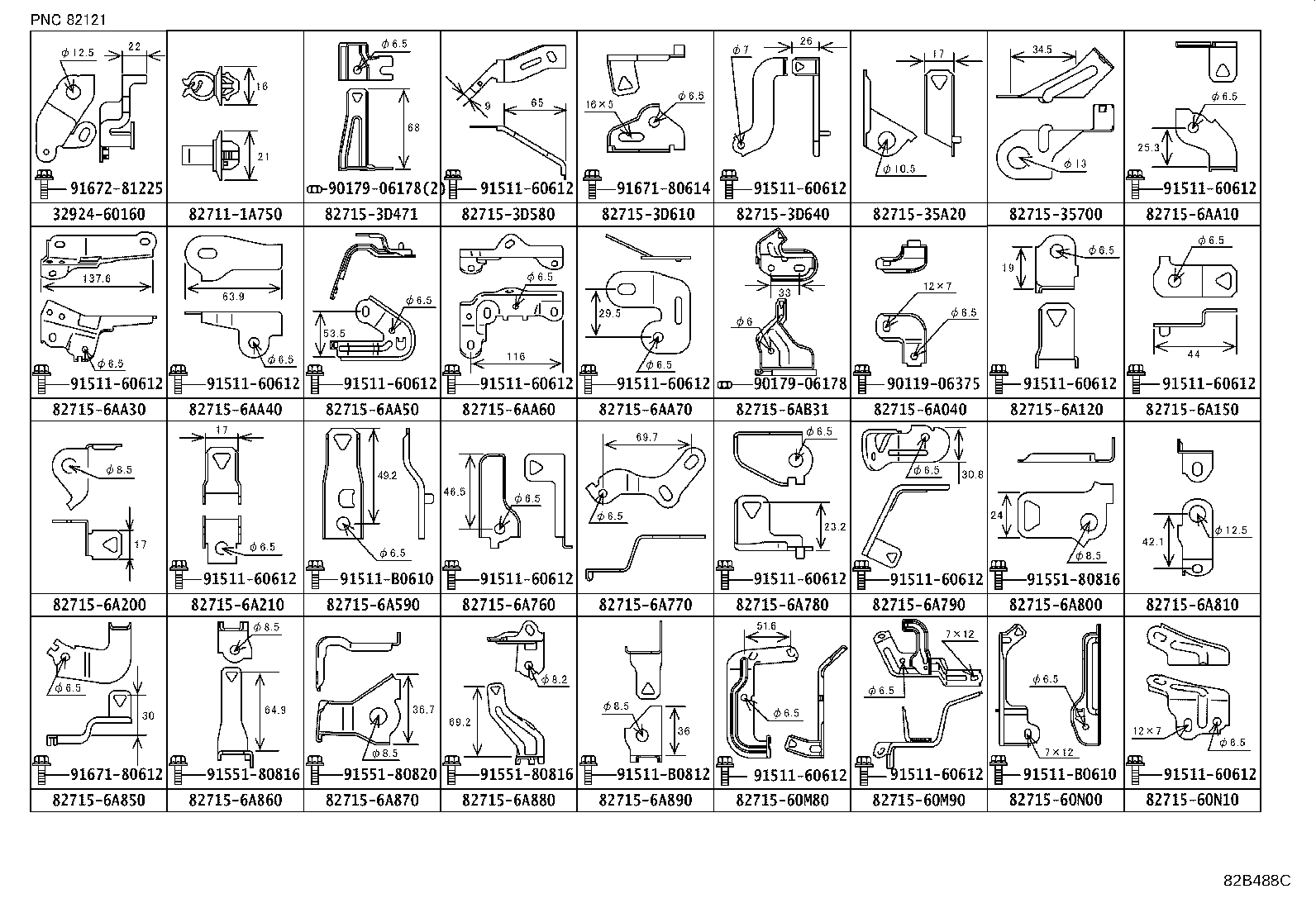

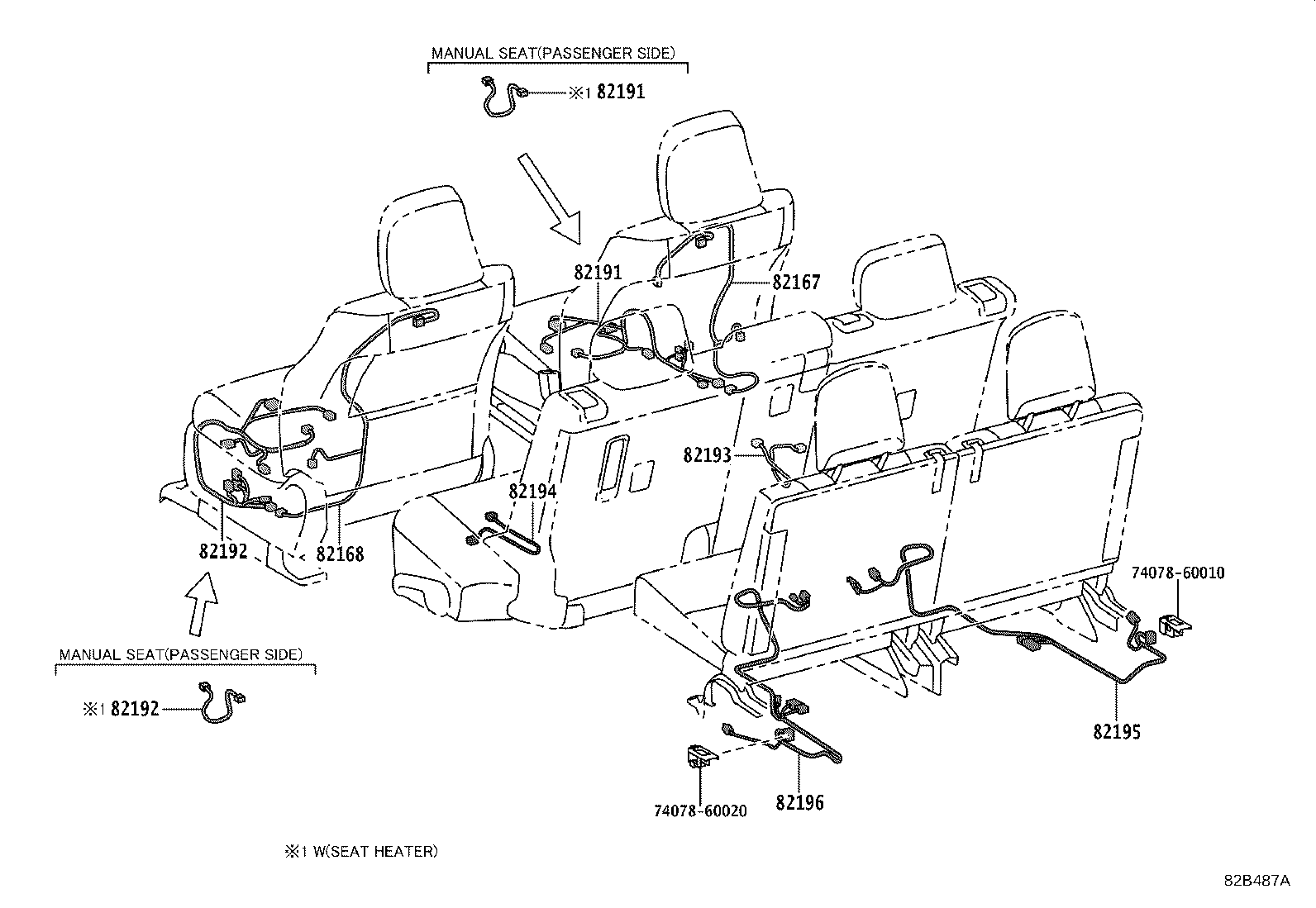

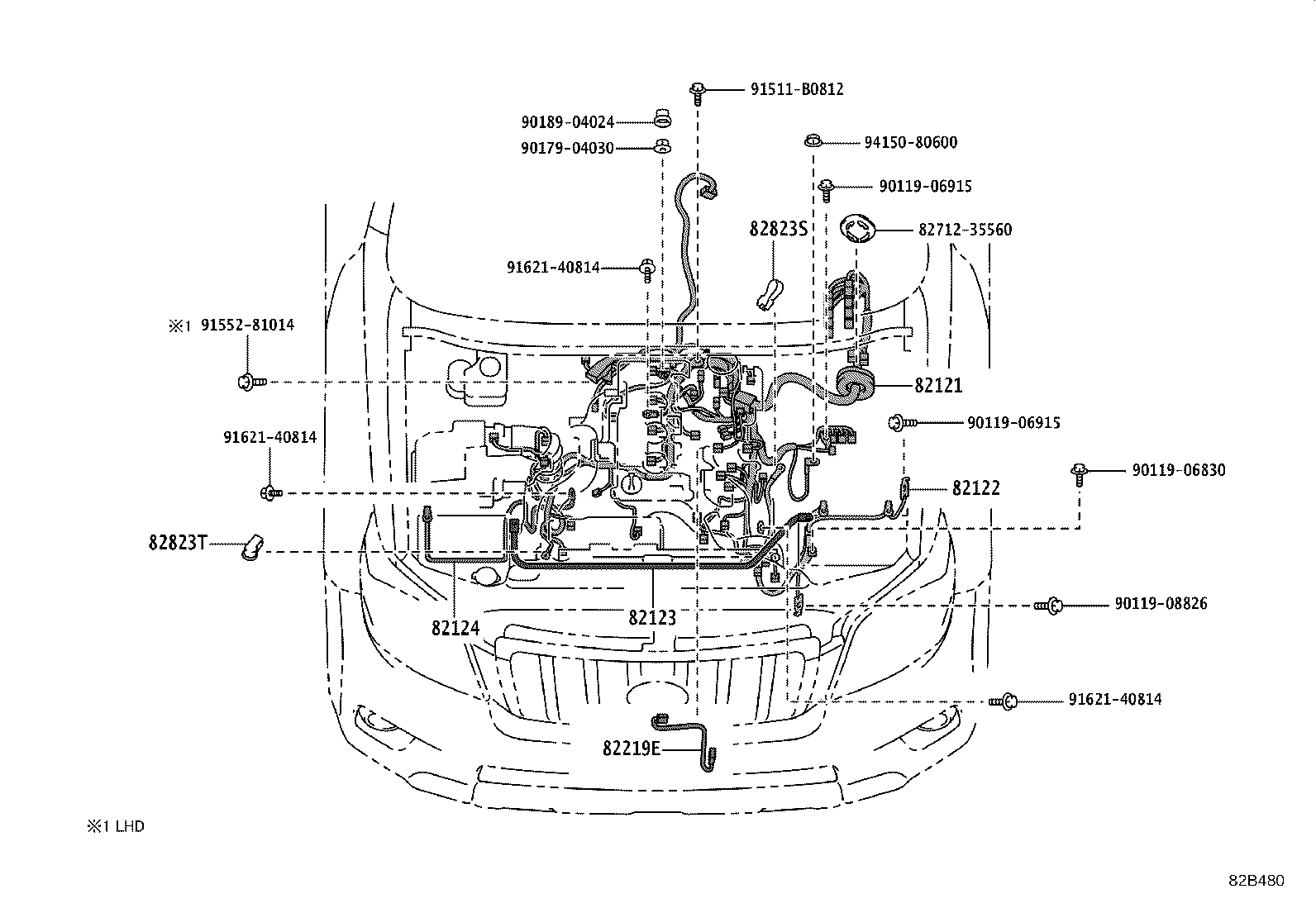

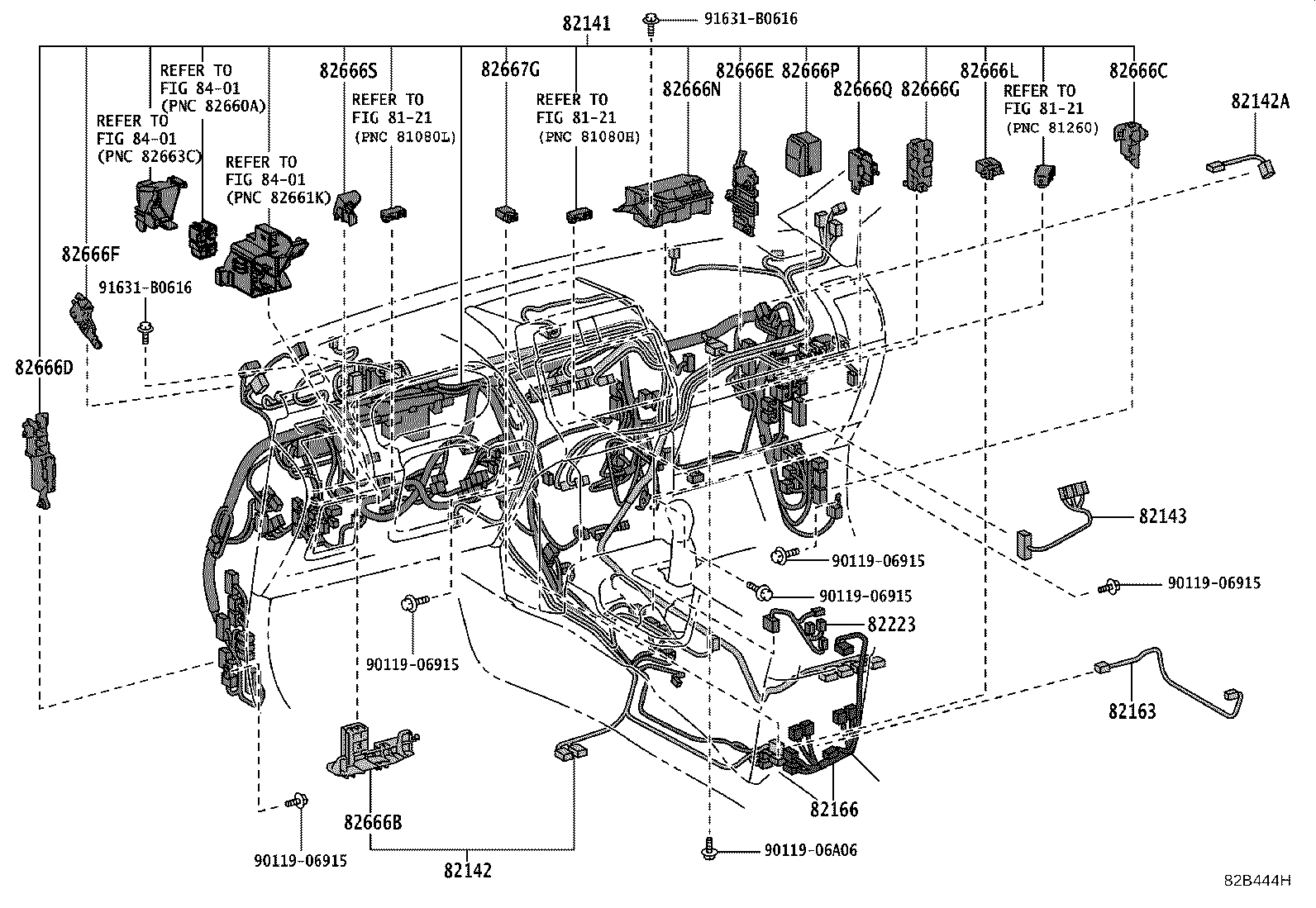

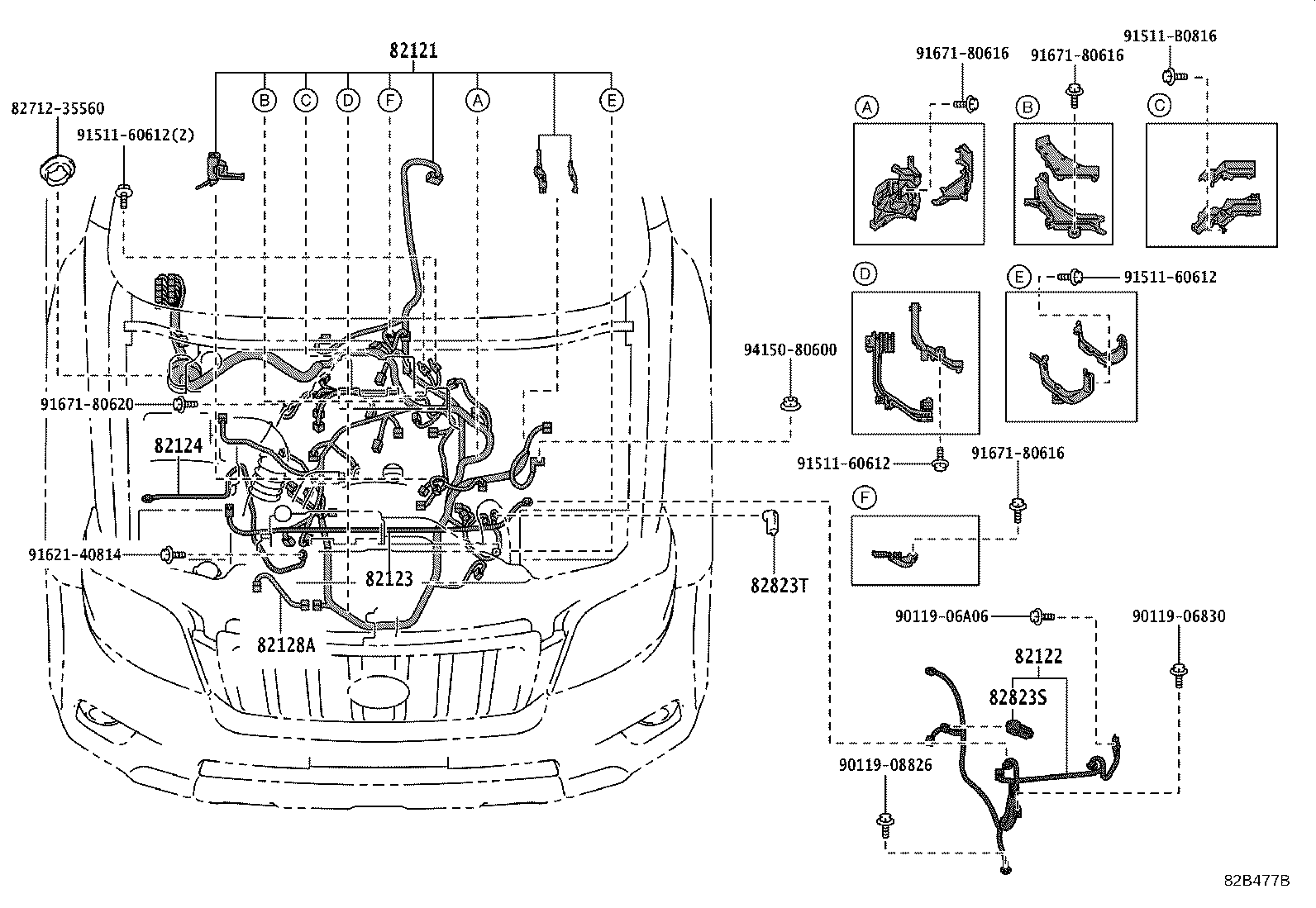

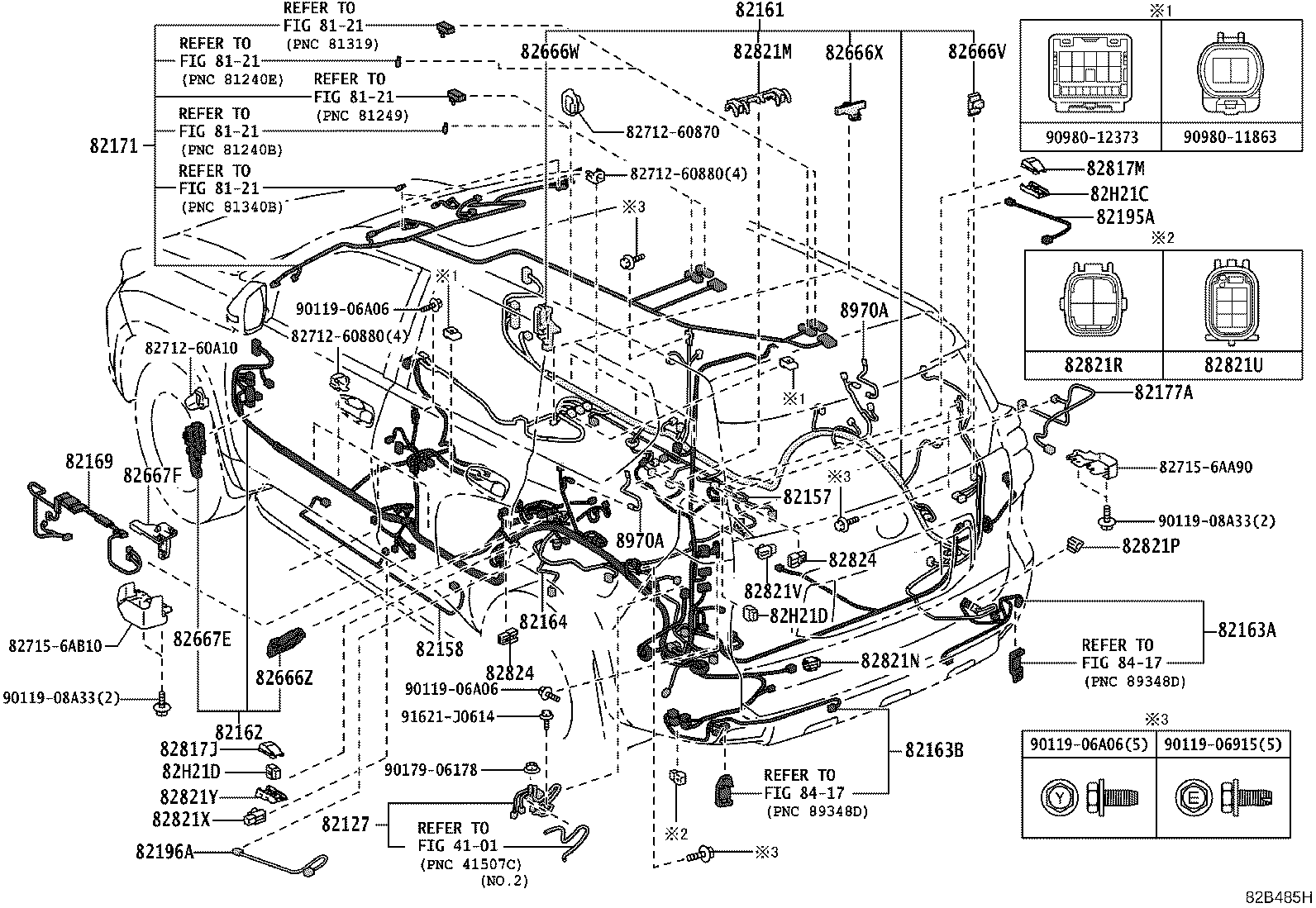

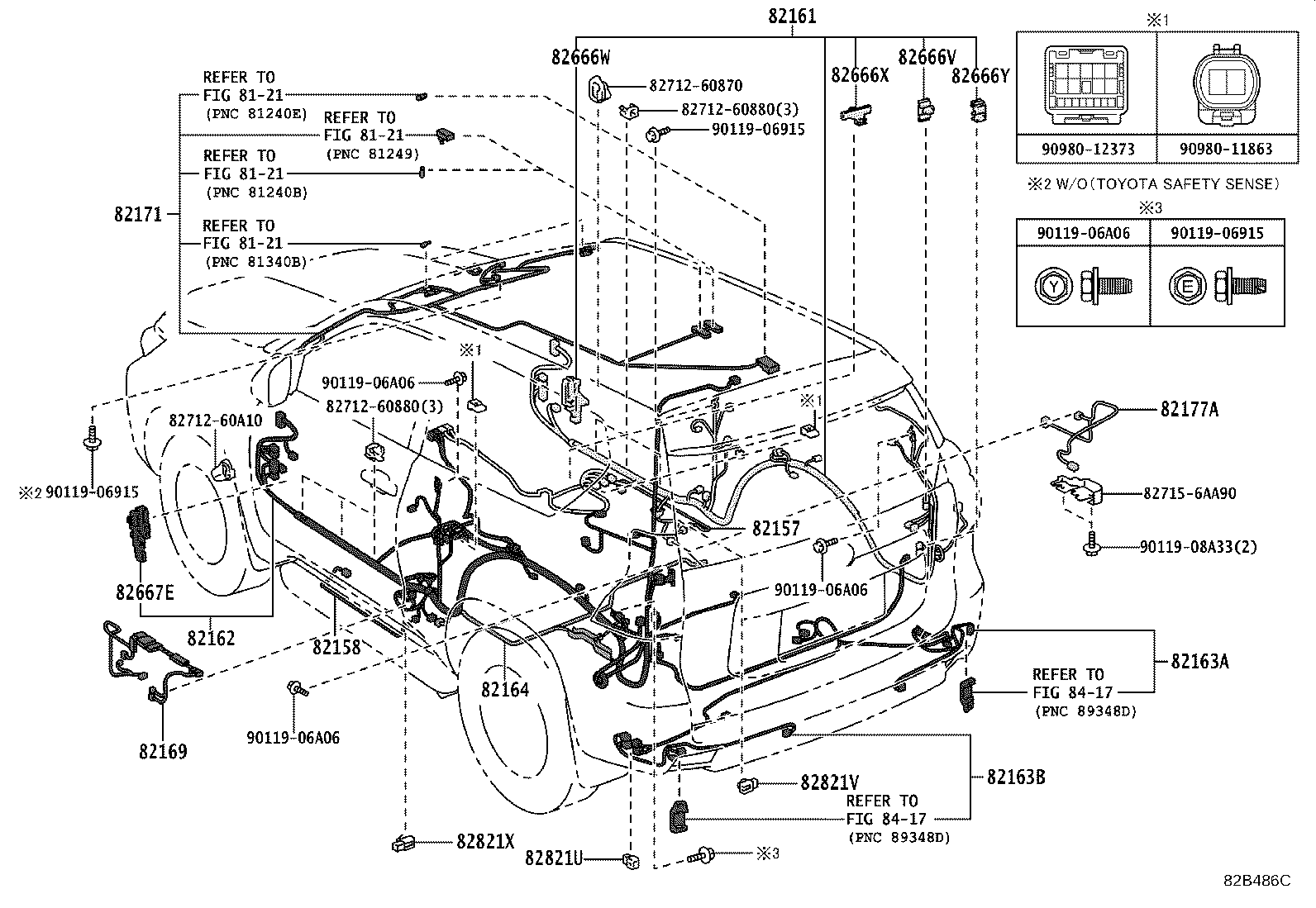

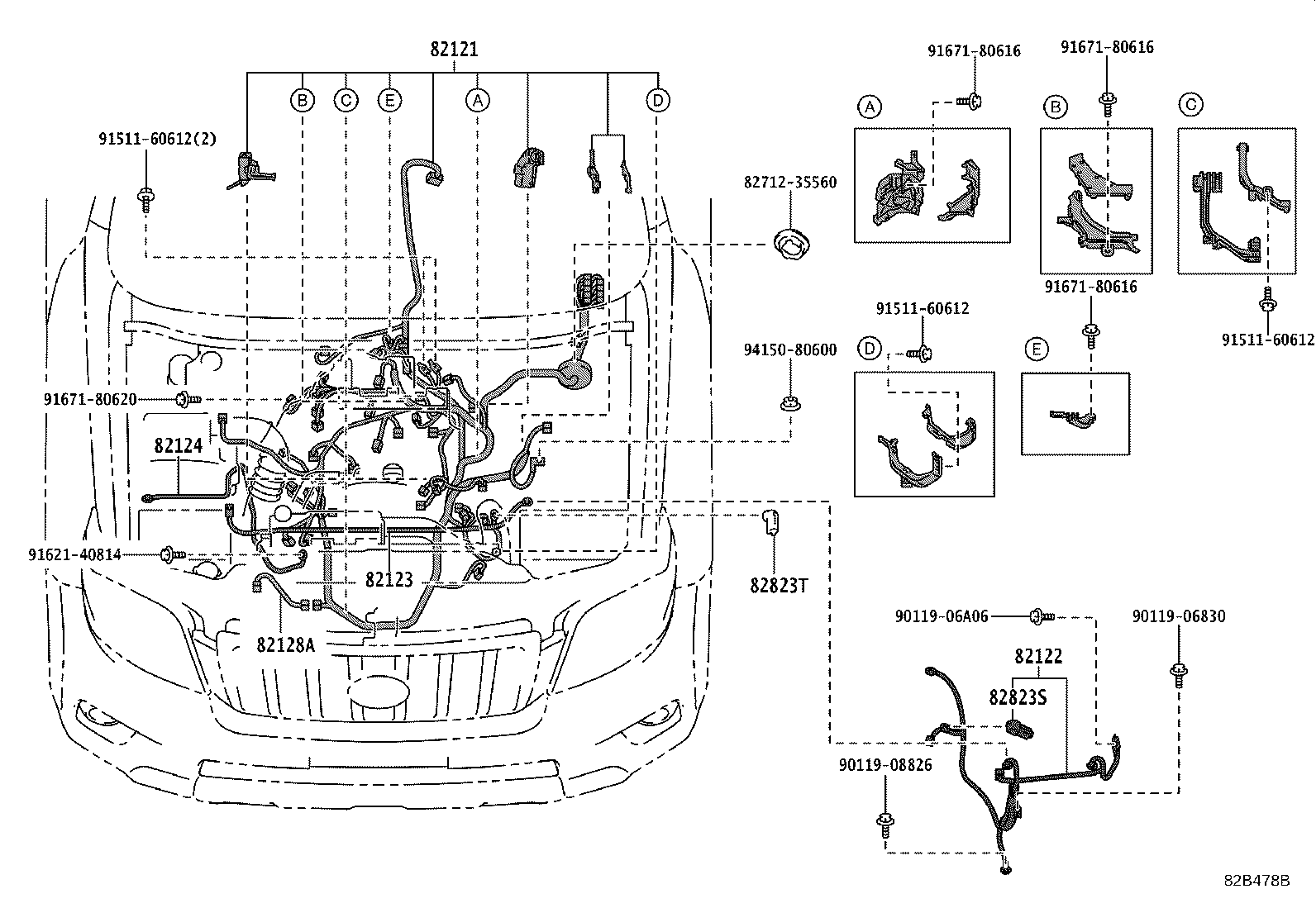

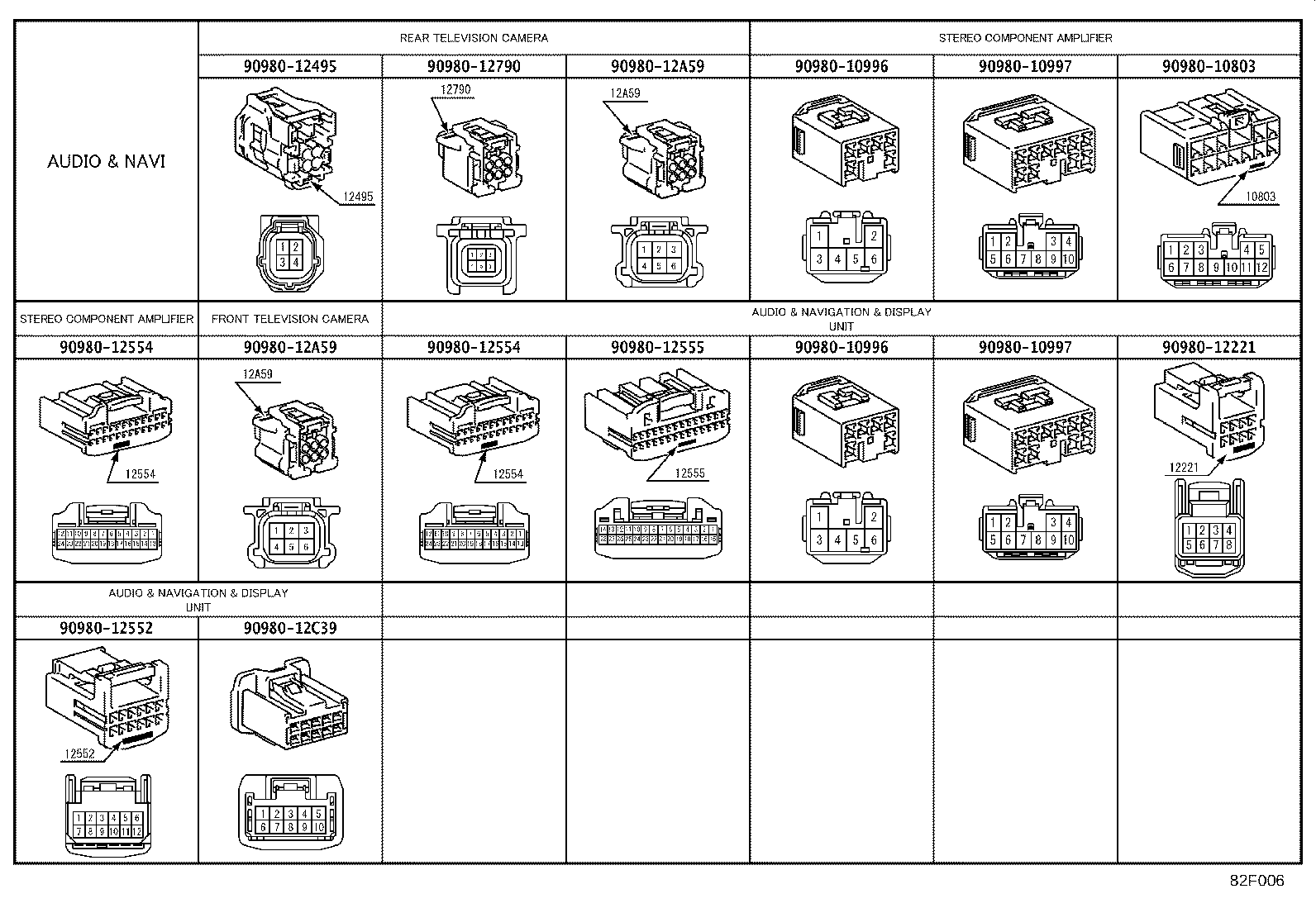

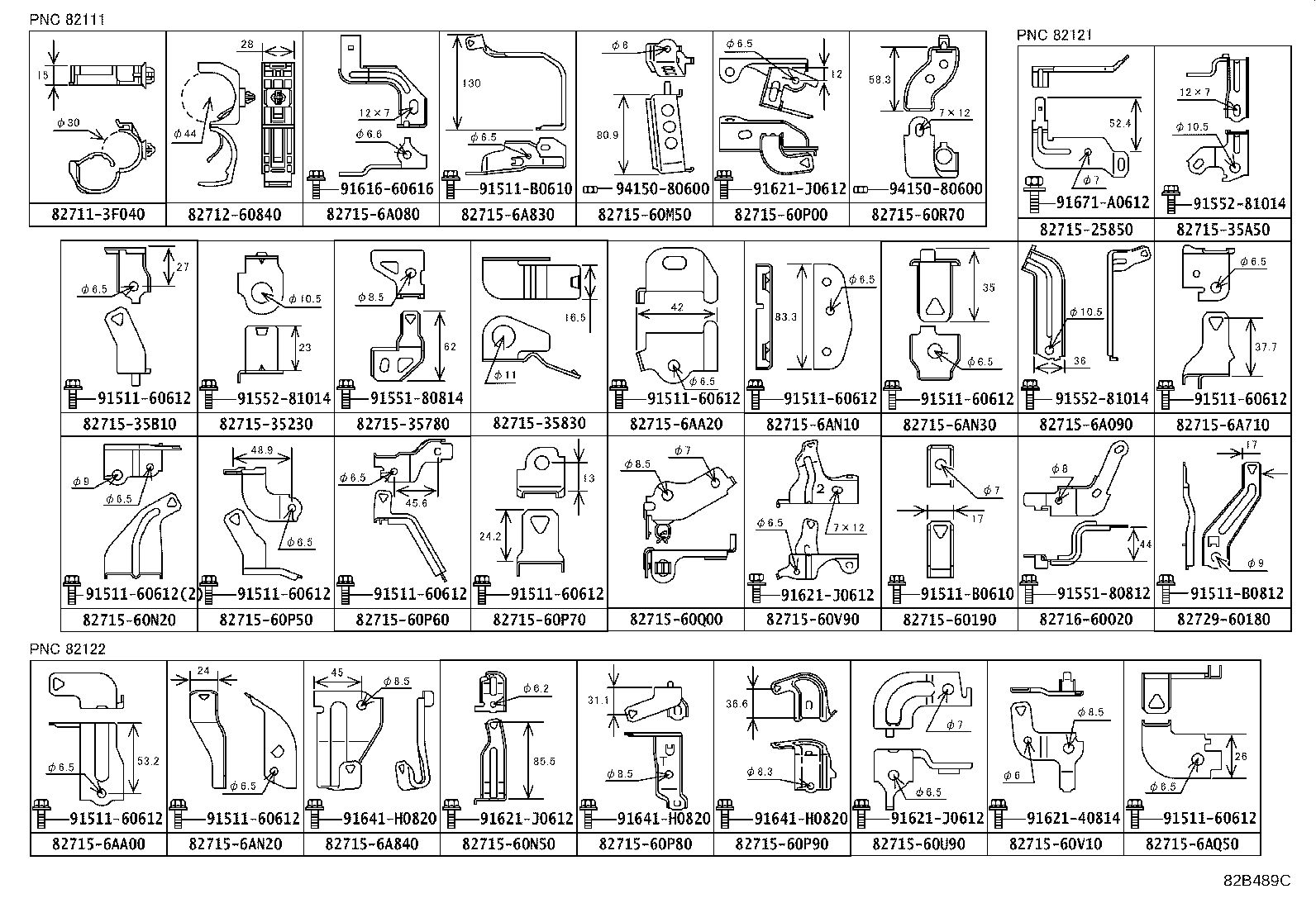

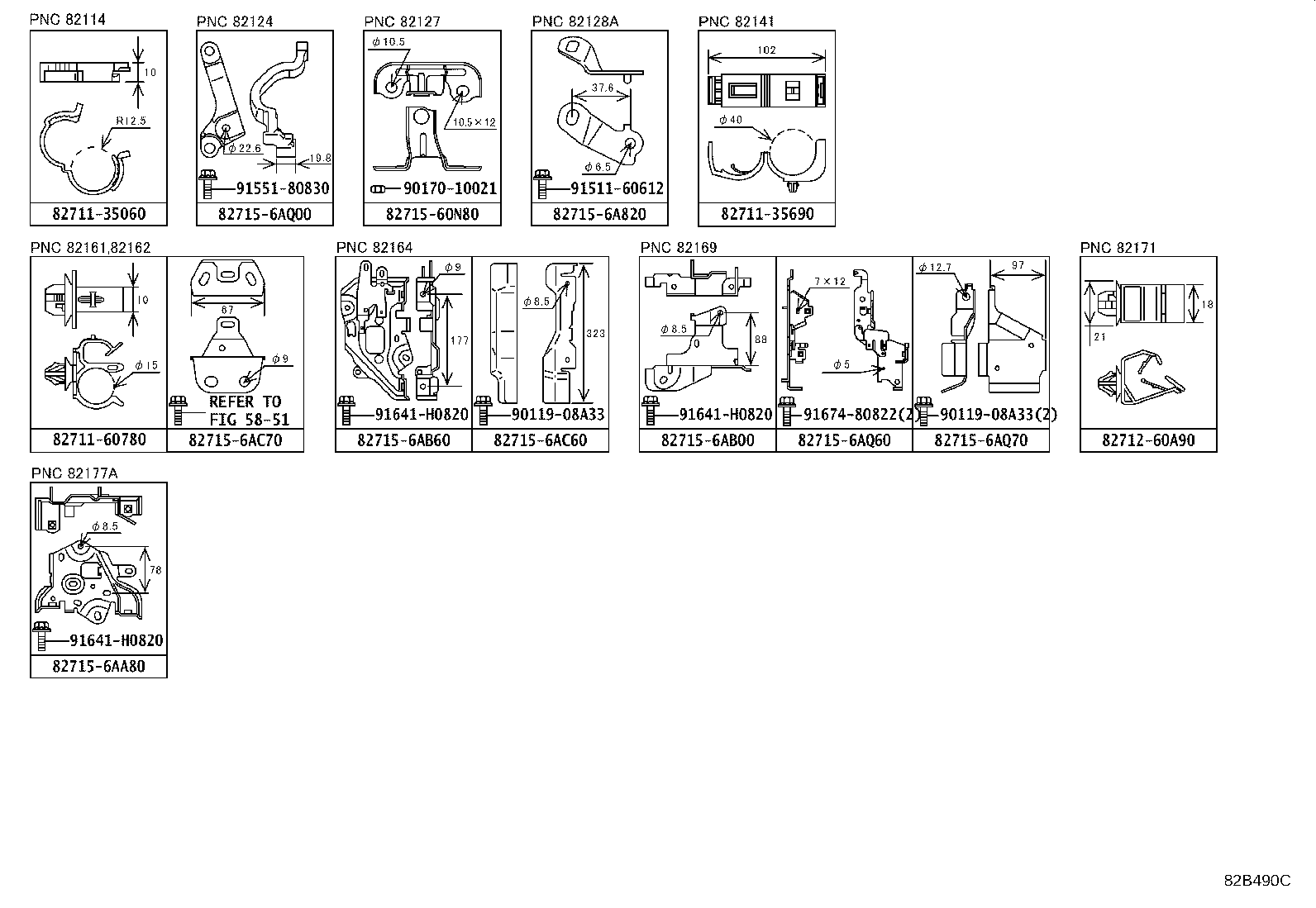

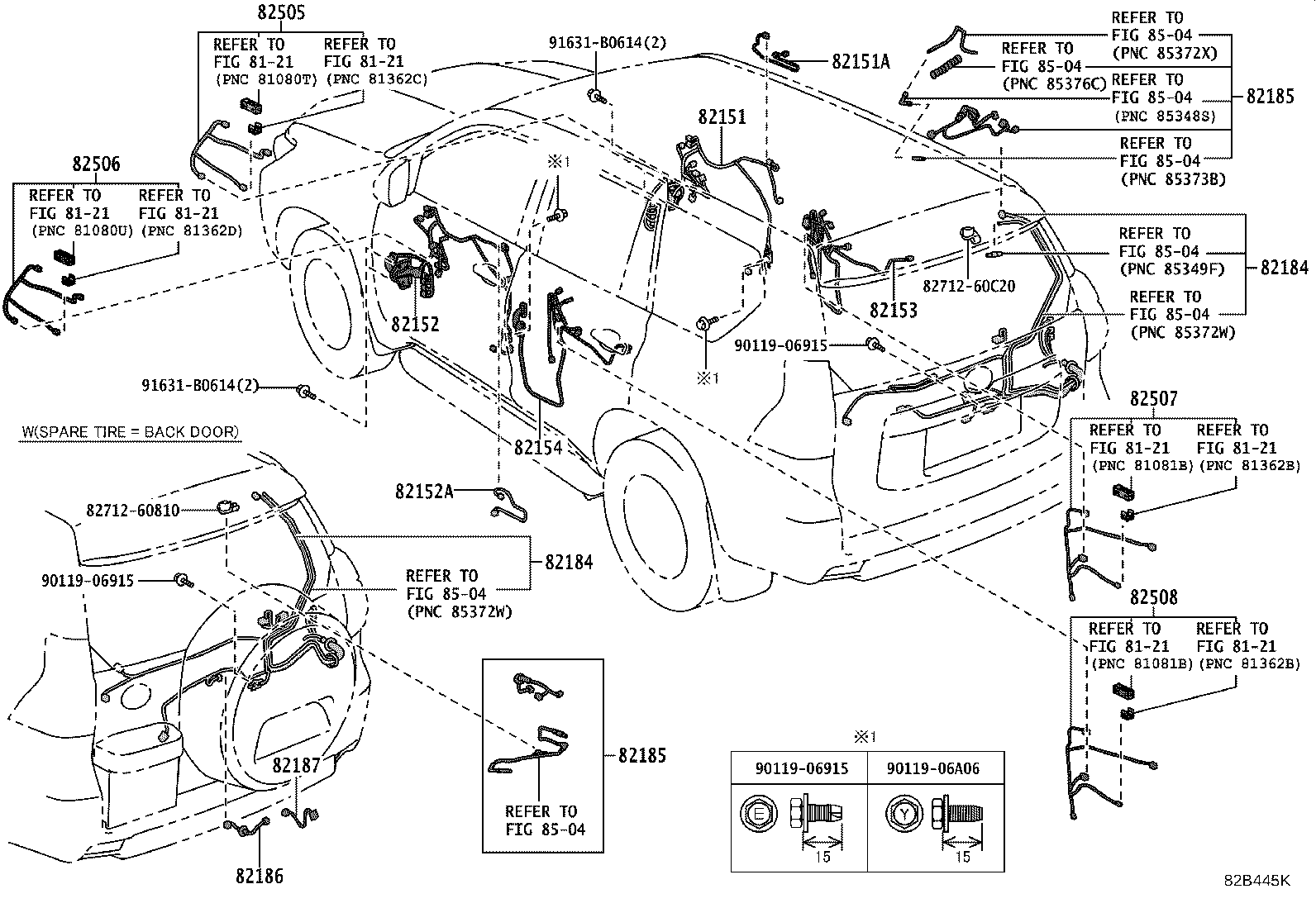

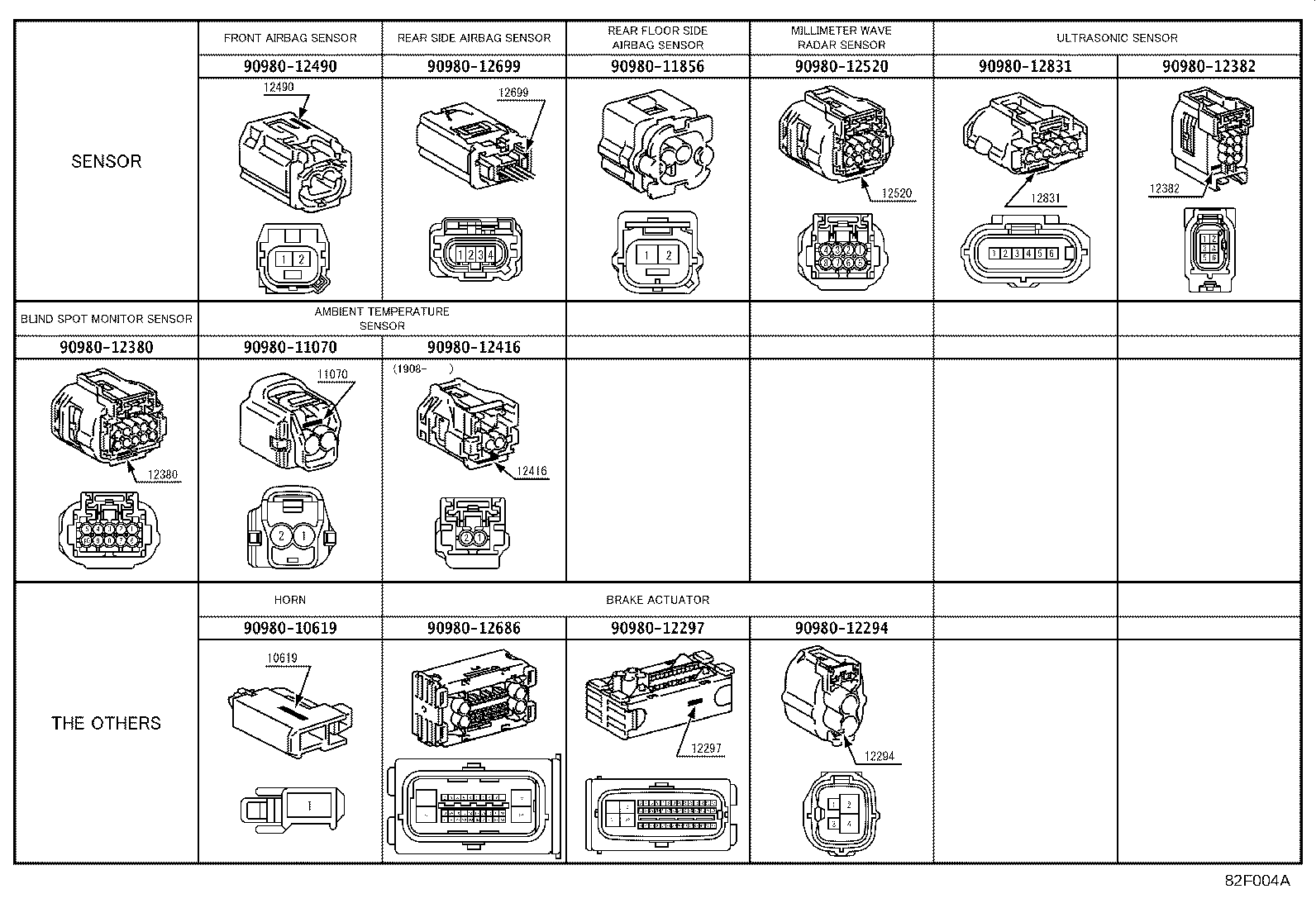

Figure 82B476G 82B476G 2017-08 → — Figure 82B477B 82B477B 2017-08 → — Figure 82B478B 82B478B 2017-08 → — Figure 82B479 82B479 2017-08 → — Figure 82B480 82B480 2017-08 → — Figure 82B455 82B455 2017-08 → — Figure 82B444H 82B444H 2017-08 → — Figure 82B504G 82B504G 2017-08 → — Figure 82B445K 82B445K 2017-08 → — Figure 82B485H 82B485H 2017-08 → — Figure 82B486C 82B486C 2017-08 → — Figure 82B487A 82B487A 2017-08 → — Figure 82B488C 82B488C 2017-08 → — Figure 82B489C 82B489C 2017-08 → — Figure 82B490C 82B490C 2017-08 → — Figure 82B449 82B449 2017-08 → — Figure 82F003A 82F003A 2017-08 → — Figure 82F004A 82F004A 2017-08 → — Figure 82F006 82F006 2017-08 → —

Part groups

PNCDescription
82046D Wire, Body Ground
82111 Wire, Engine Room Main
82111B Condenser
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82127 Wire, Differential
82128A Wire, Engine, NO.8
82136 Wire, Dash
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82157 Wire, Step Panel, RH
82158 Wire, Step Panel, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82163B Wire, Floor NO.5
82164 Wire, Frame
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82177A Wire, Frame, NO.4
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82195 Wire, Rear Seat, RH NO.2
82195A Wire, Rear Seat, RH NO.3
82196 Wire, Rear Seat, LH NO.2
82196A Wire, Rear Seat, LH NO.3
82219A Wire, Sensor
82219E Wire, Sensor
82223 Wire, Switch
82345 Diode
82345A Diode
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82507 Wiring Sub-assy, Rear Door, RH
82508 Wiring Sub-assy, Rear Door, LH
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82666Z Holder, Connector NO.19
82667E Holder, Connector, NO.20
82667F Holder, Connector, NO.21
82667G Holder, Connector, NO.22
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817M Protector, Wiring Harness, NO.12
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82H21C Cover, Connector
82H21D Cover, Connector
8970A Cord Sub-assy, Theft Warning Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
