Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

190 part groups · 22 illustrations

Illustrations

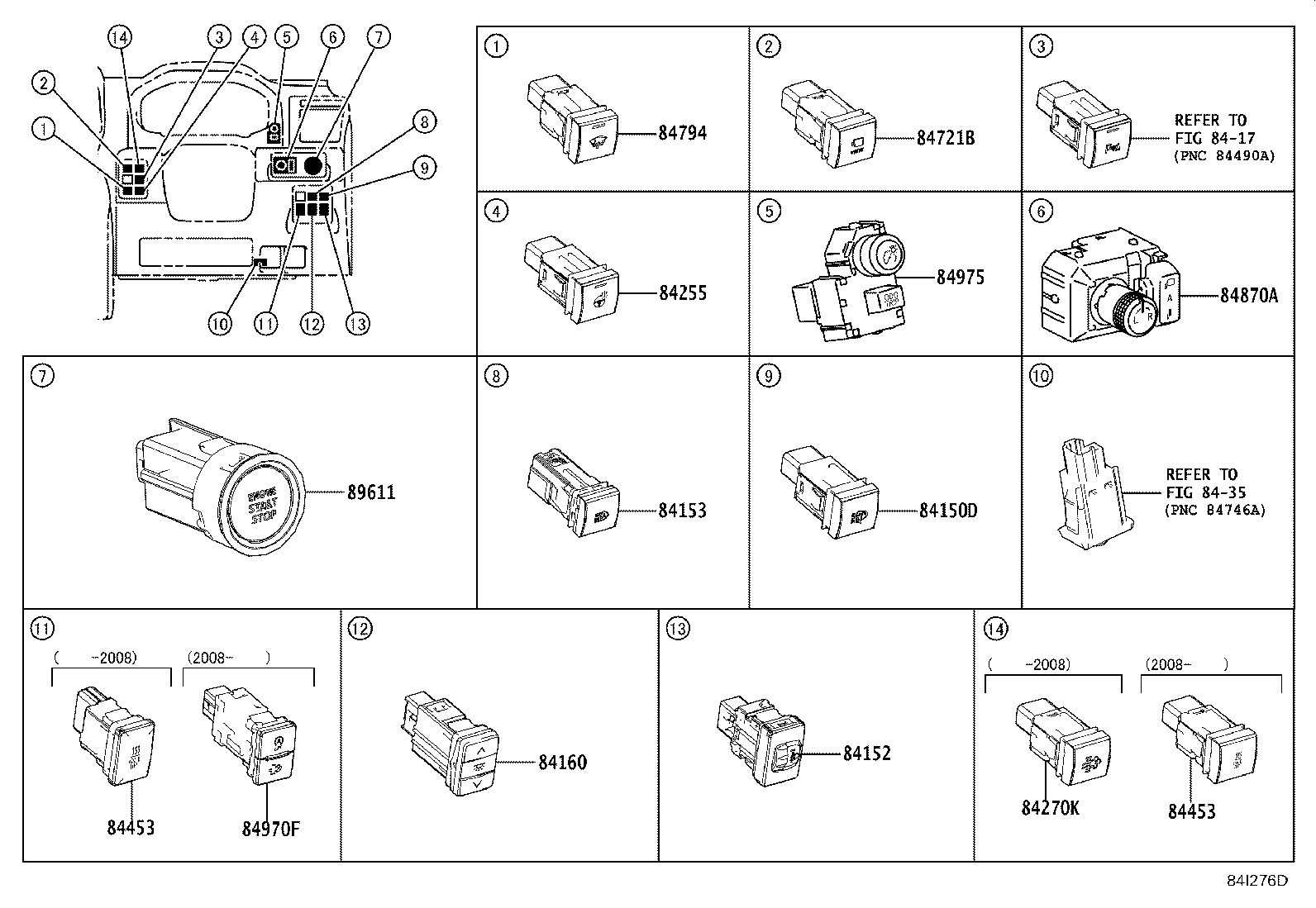

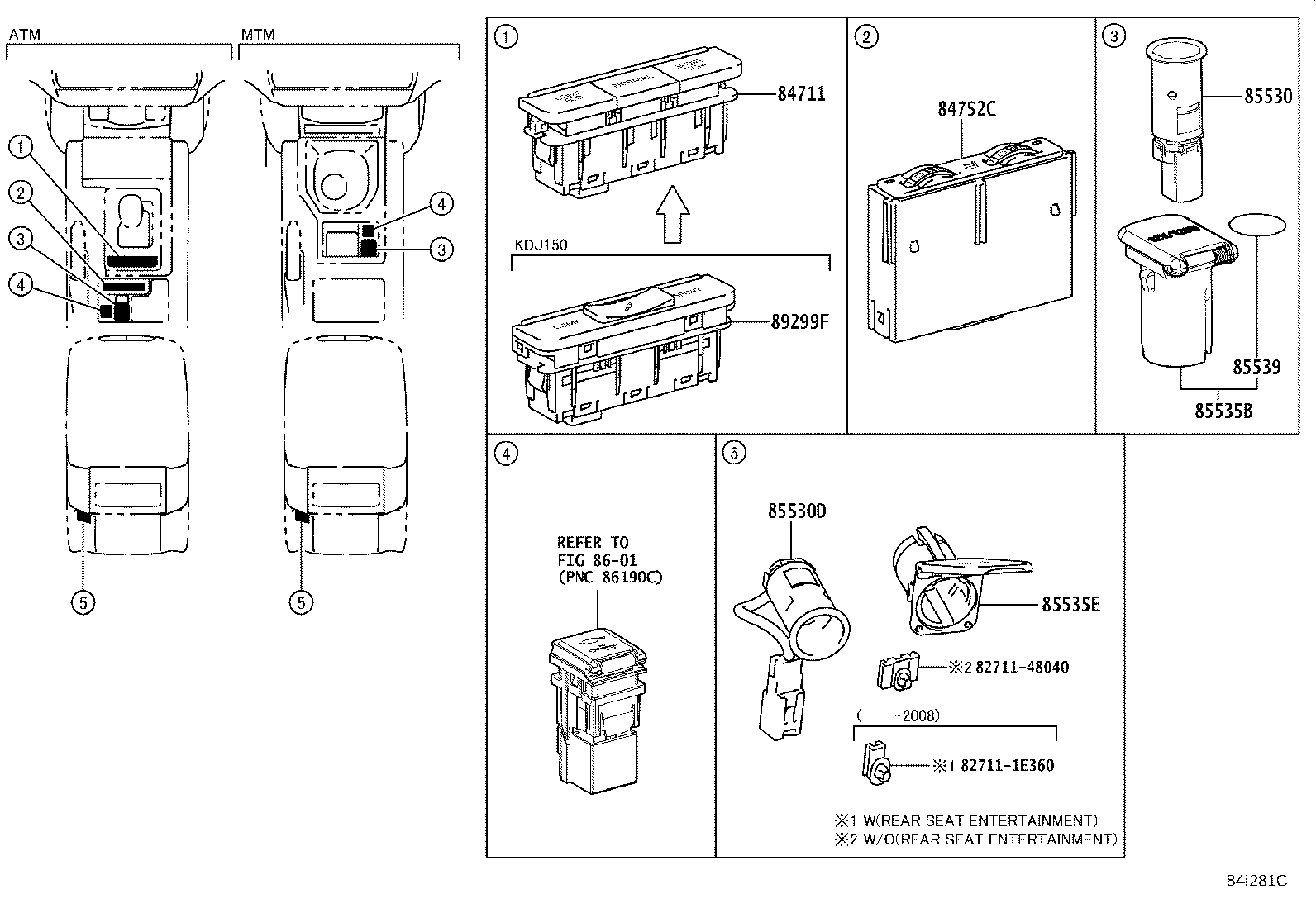

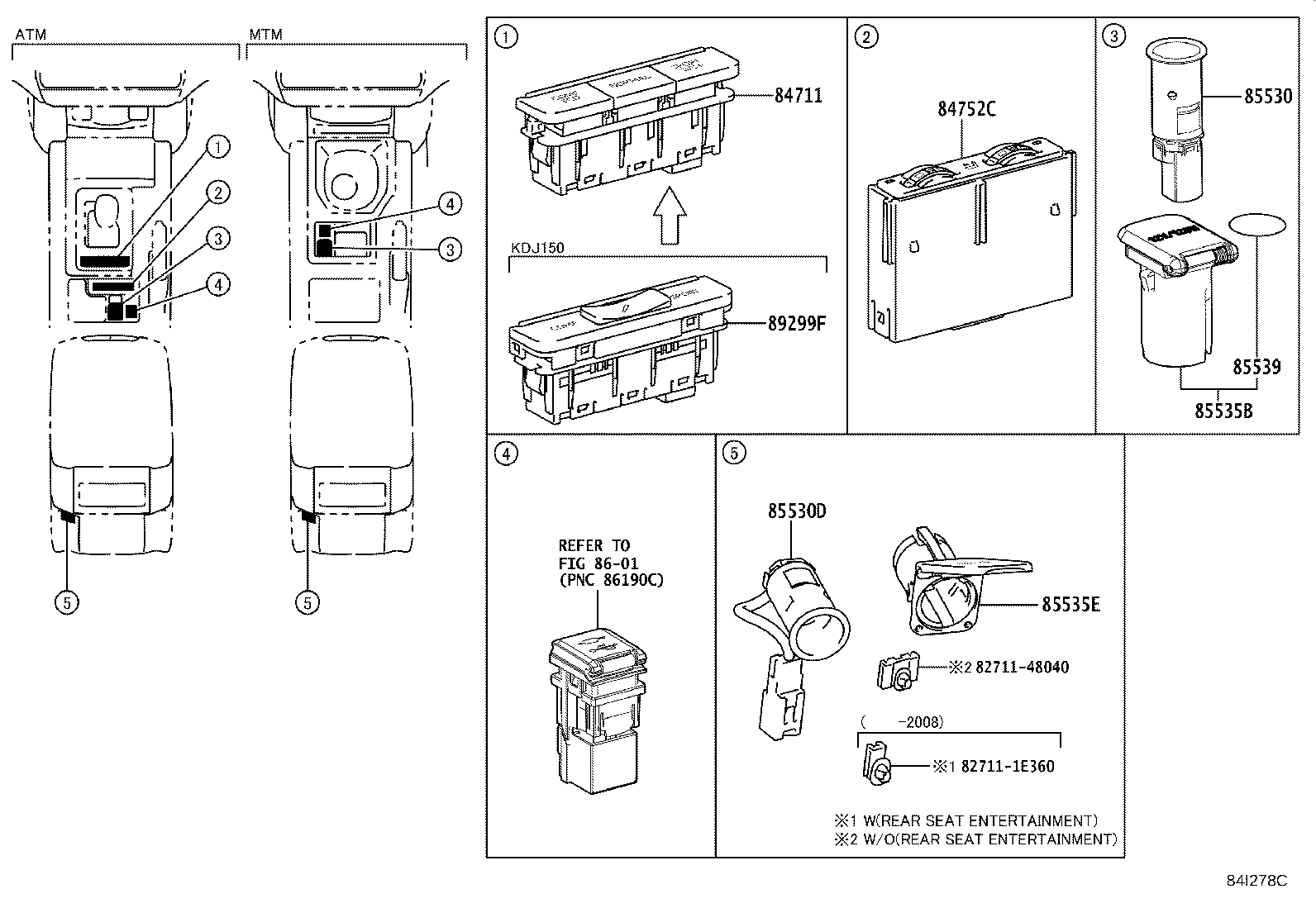

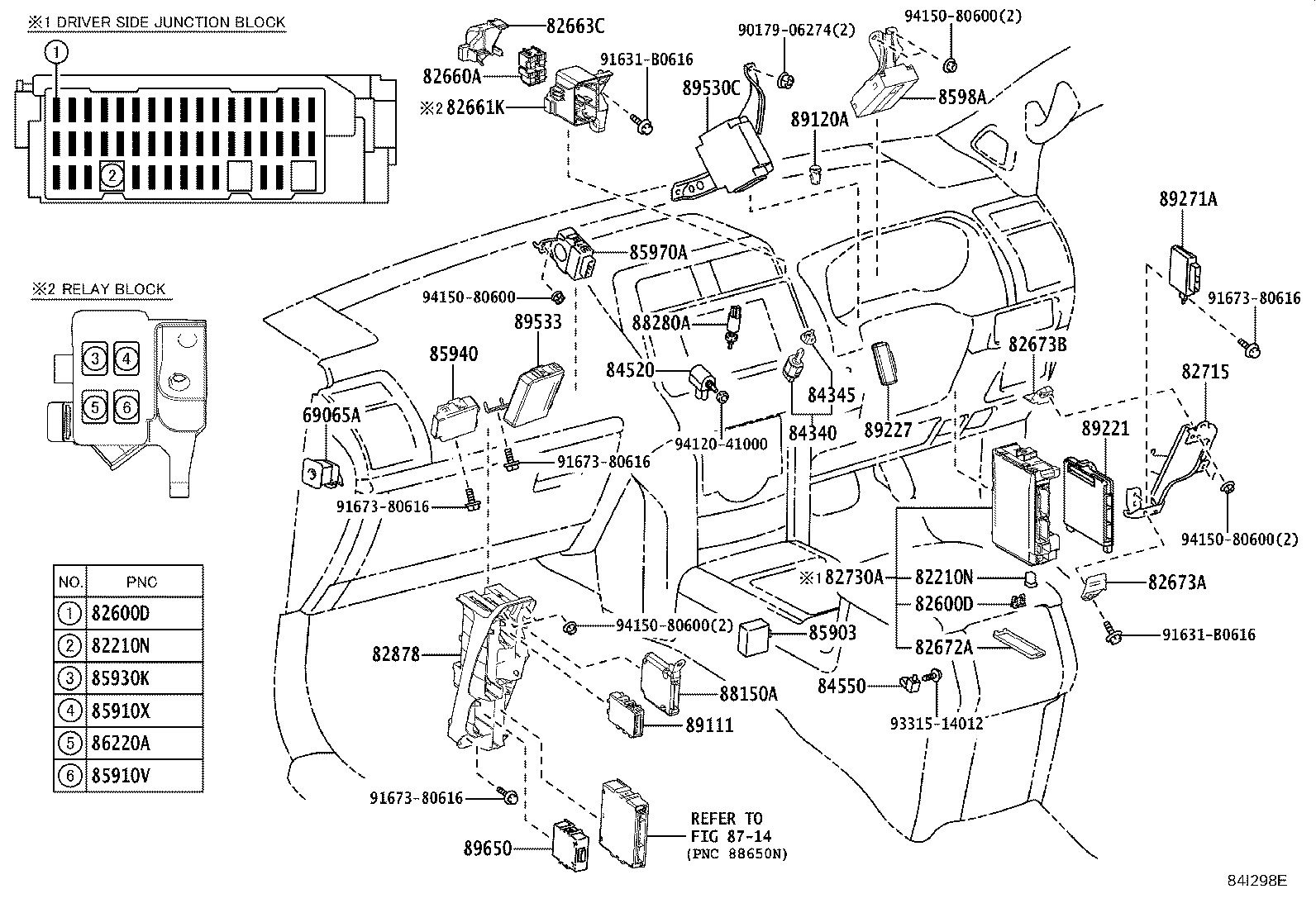

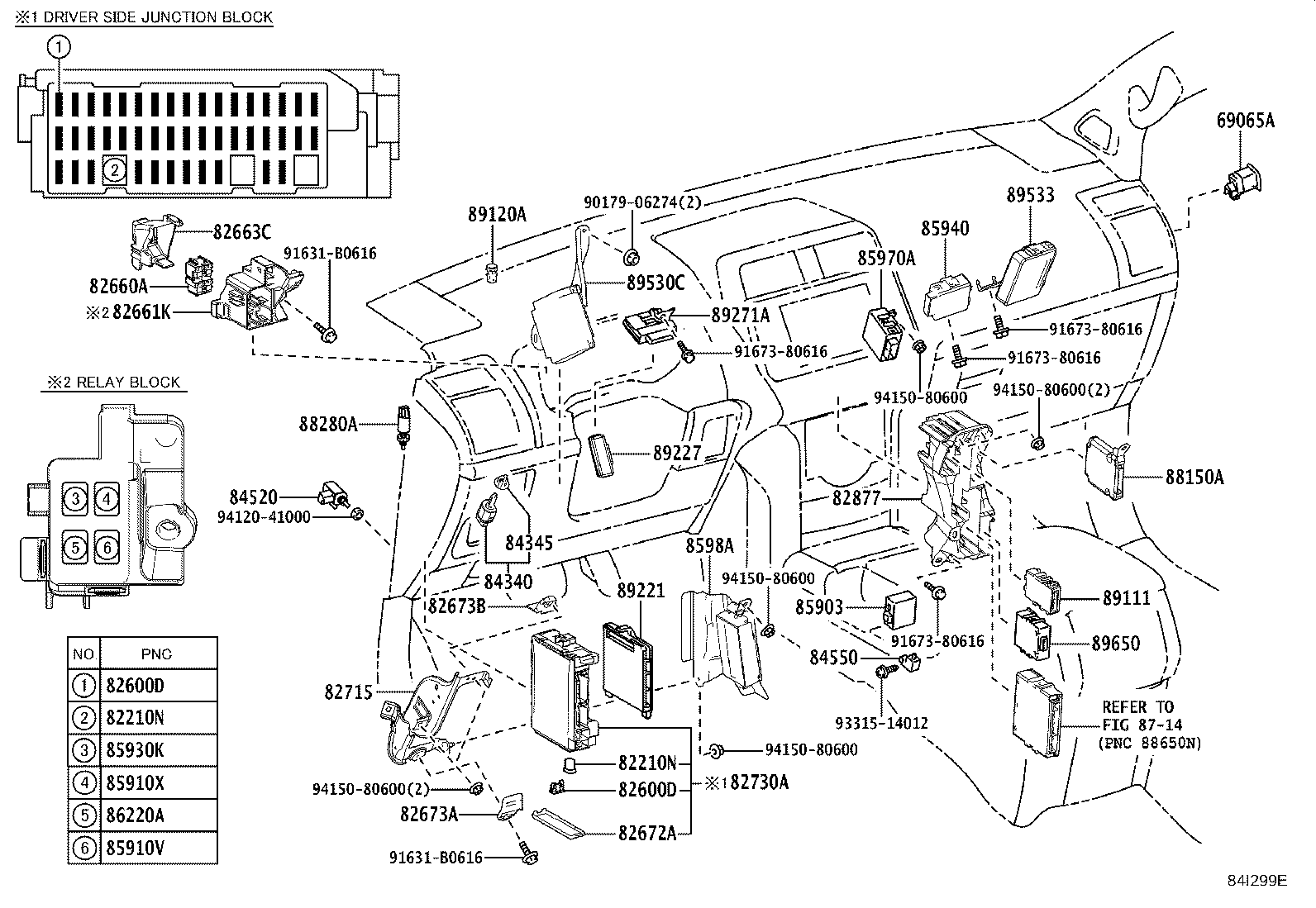

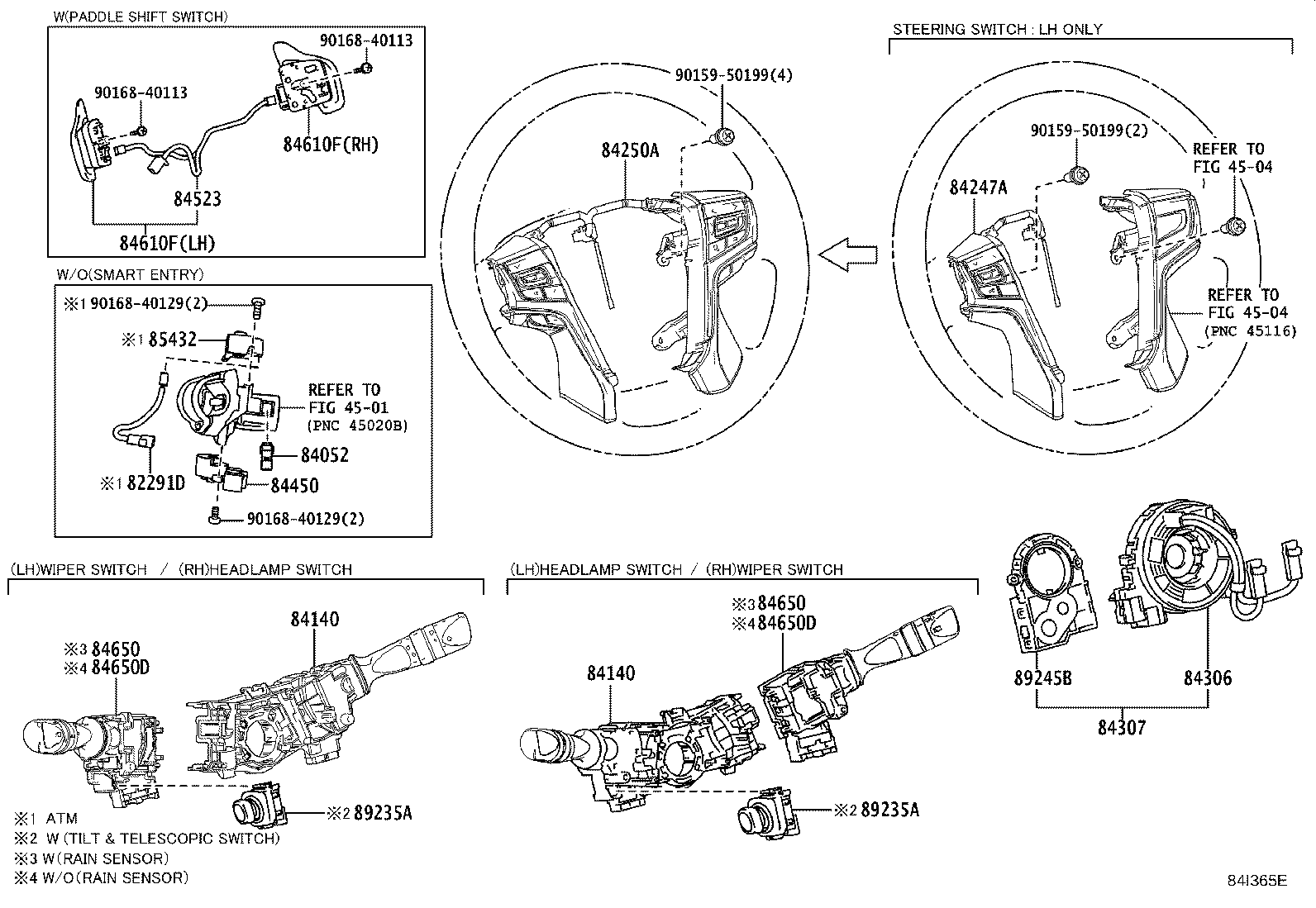

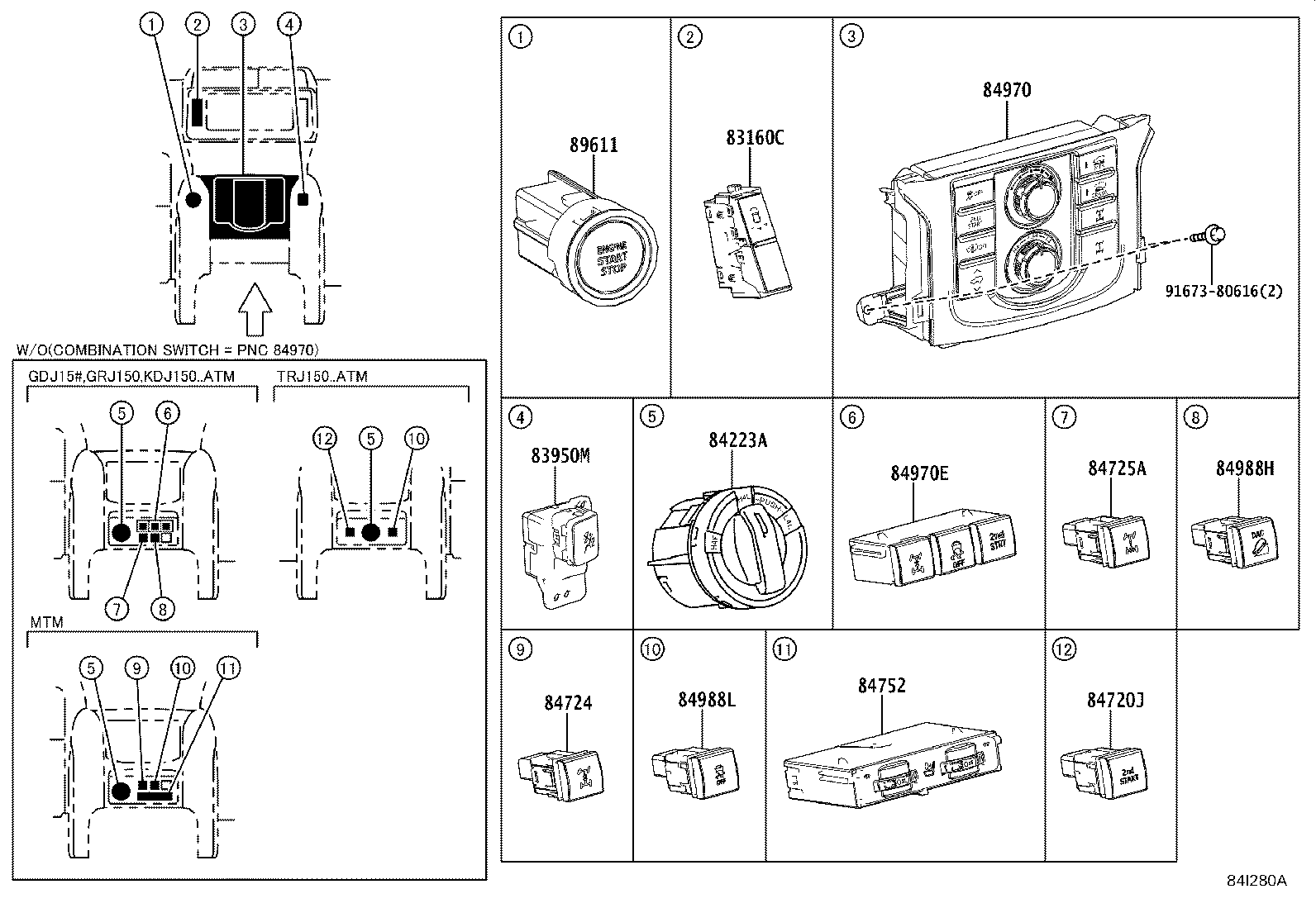

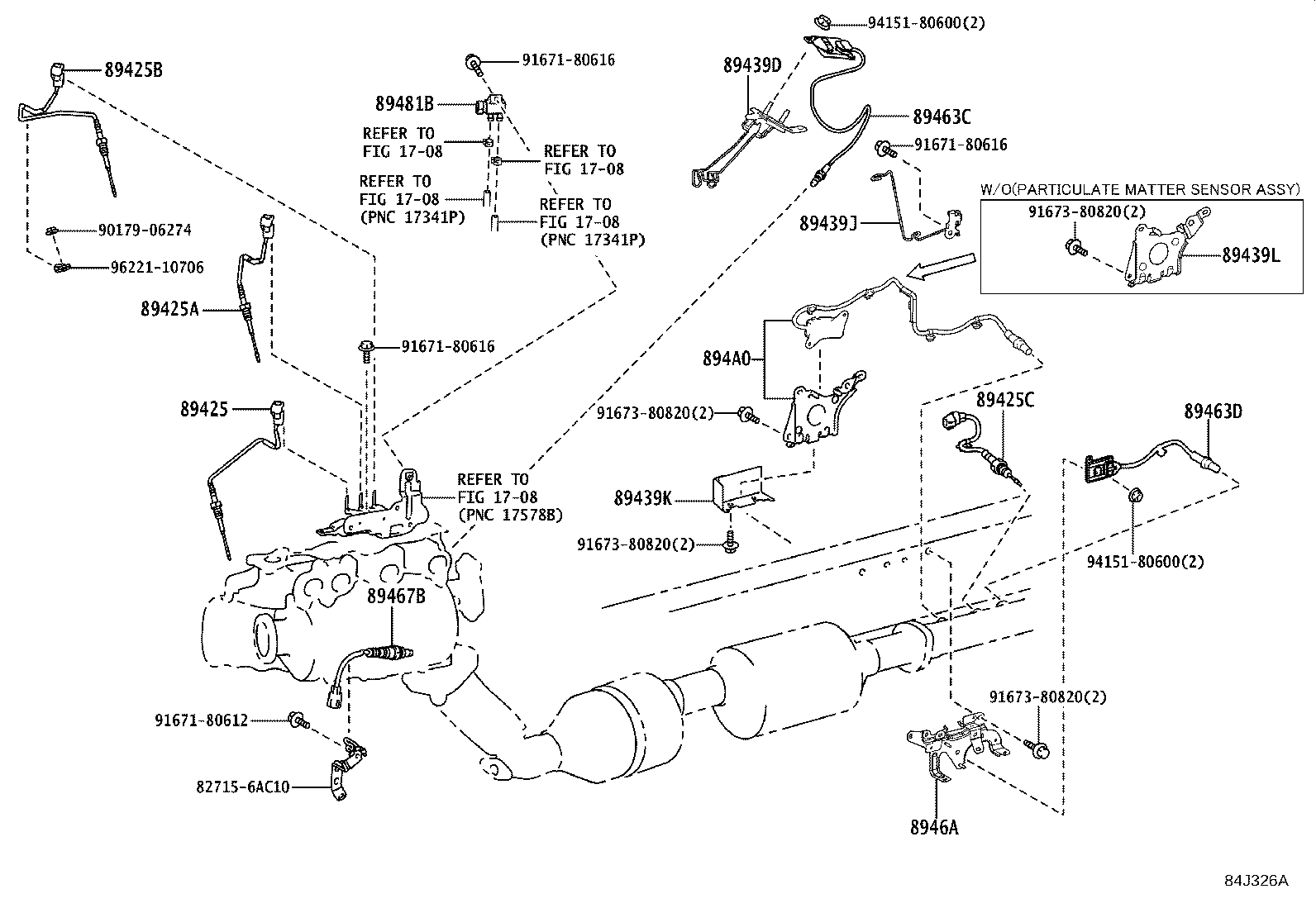

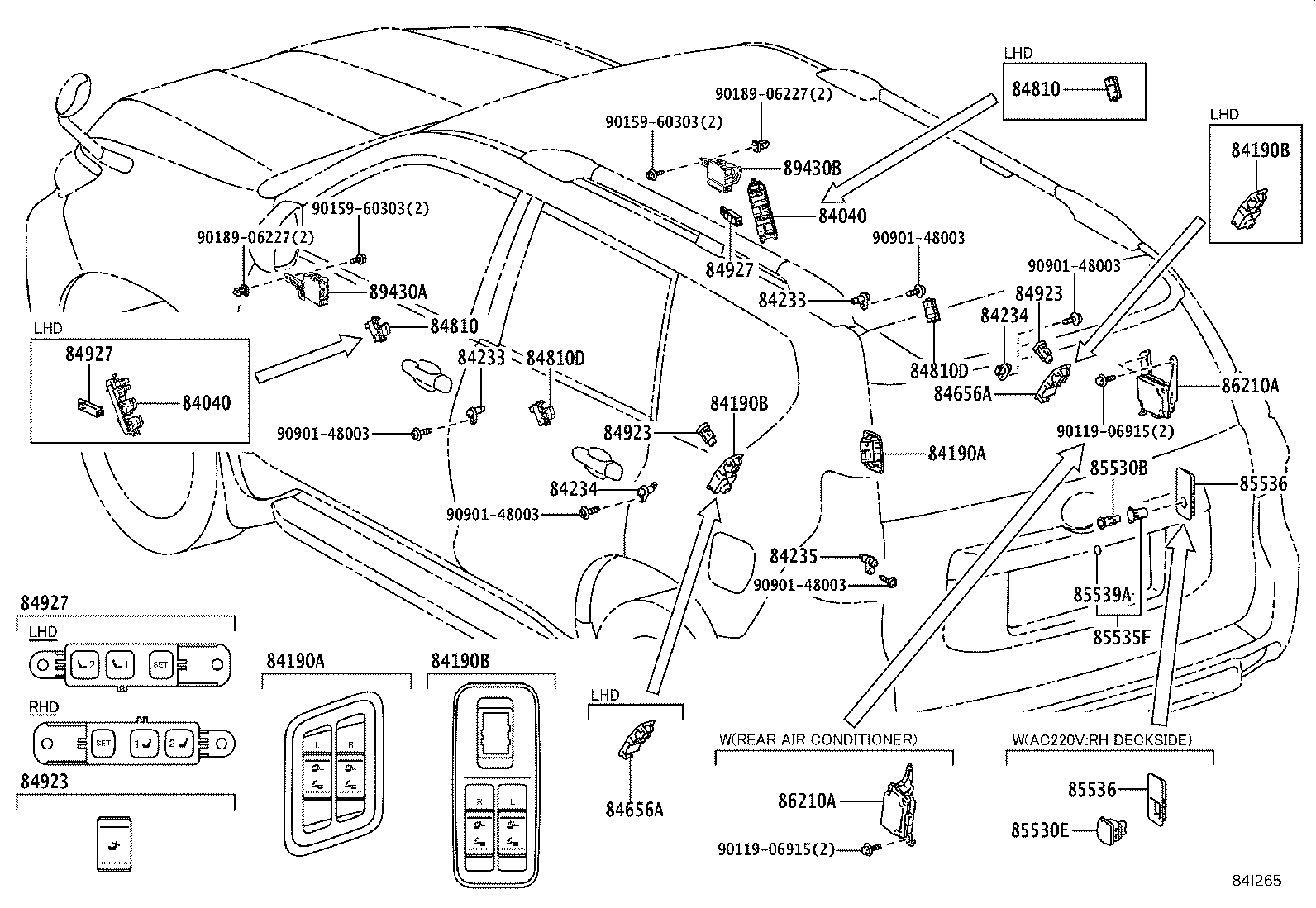

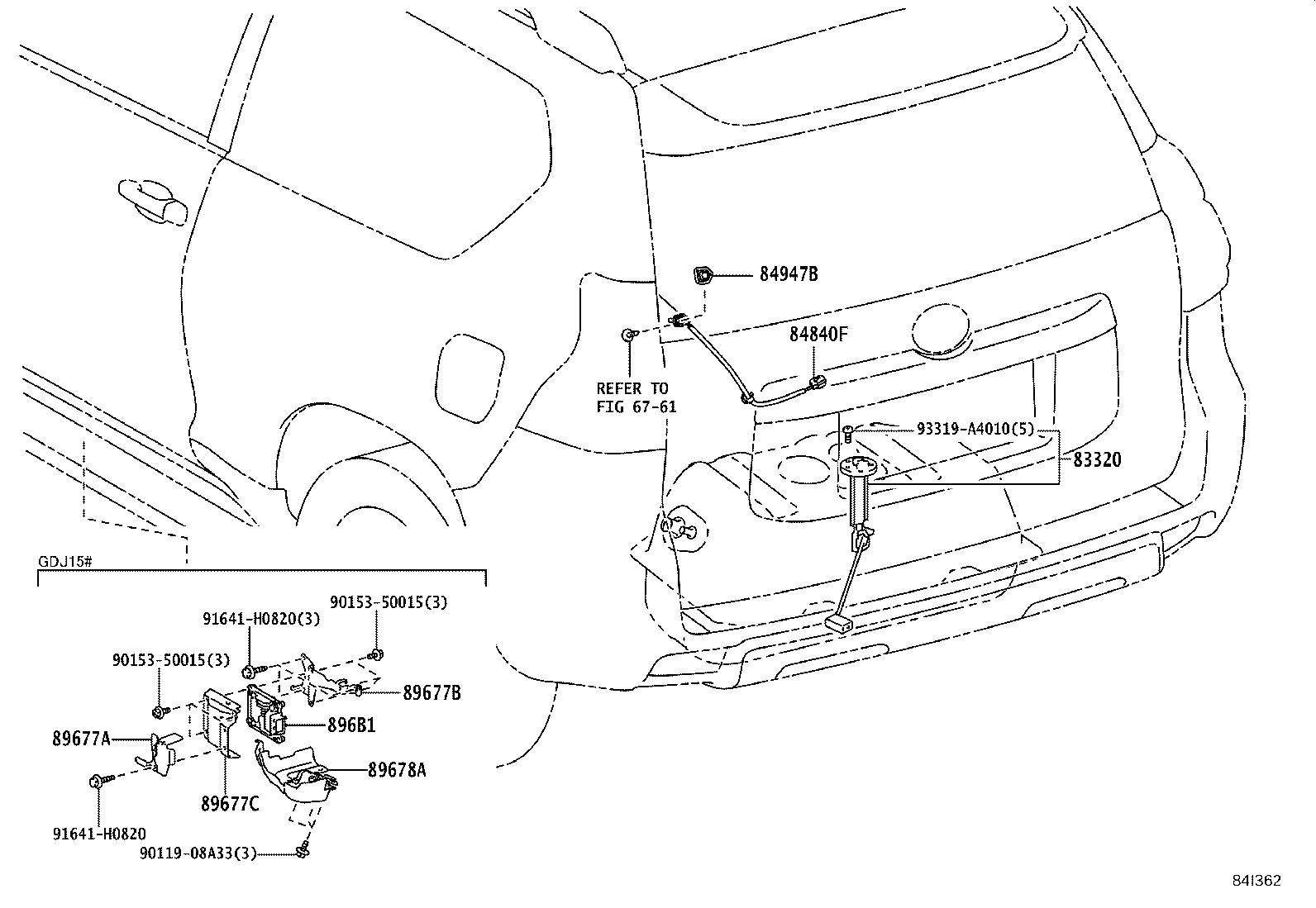

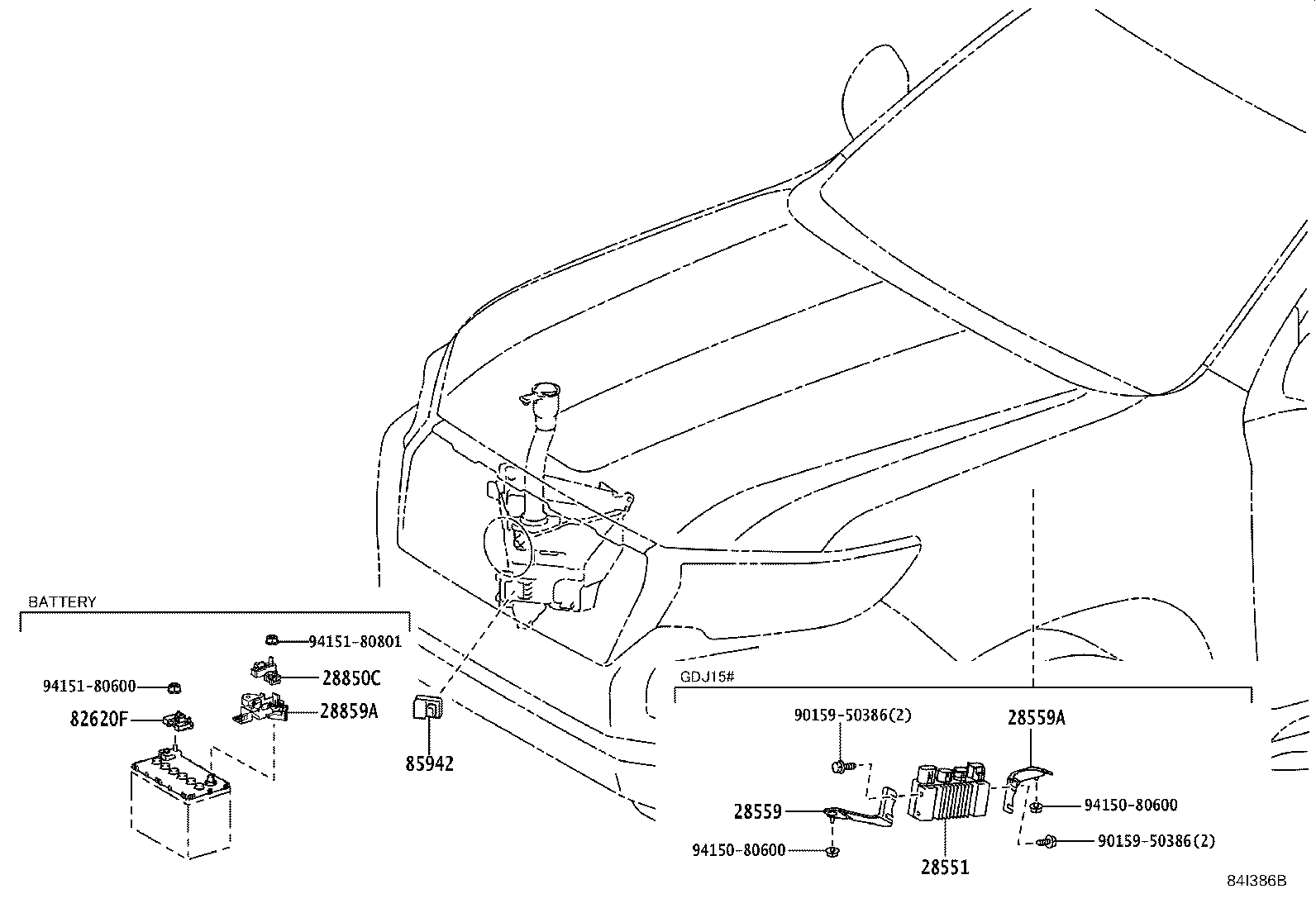

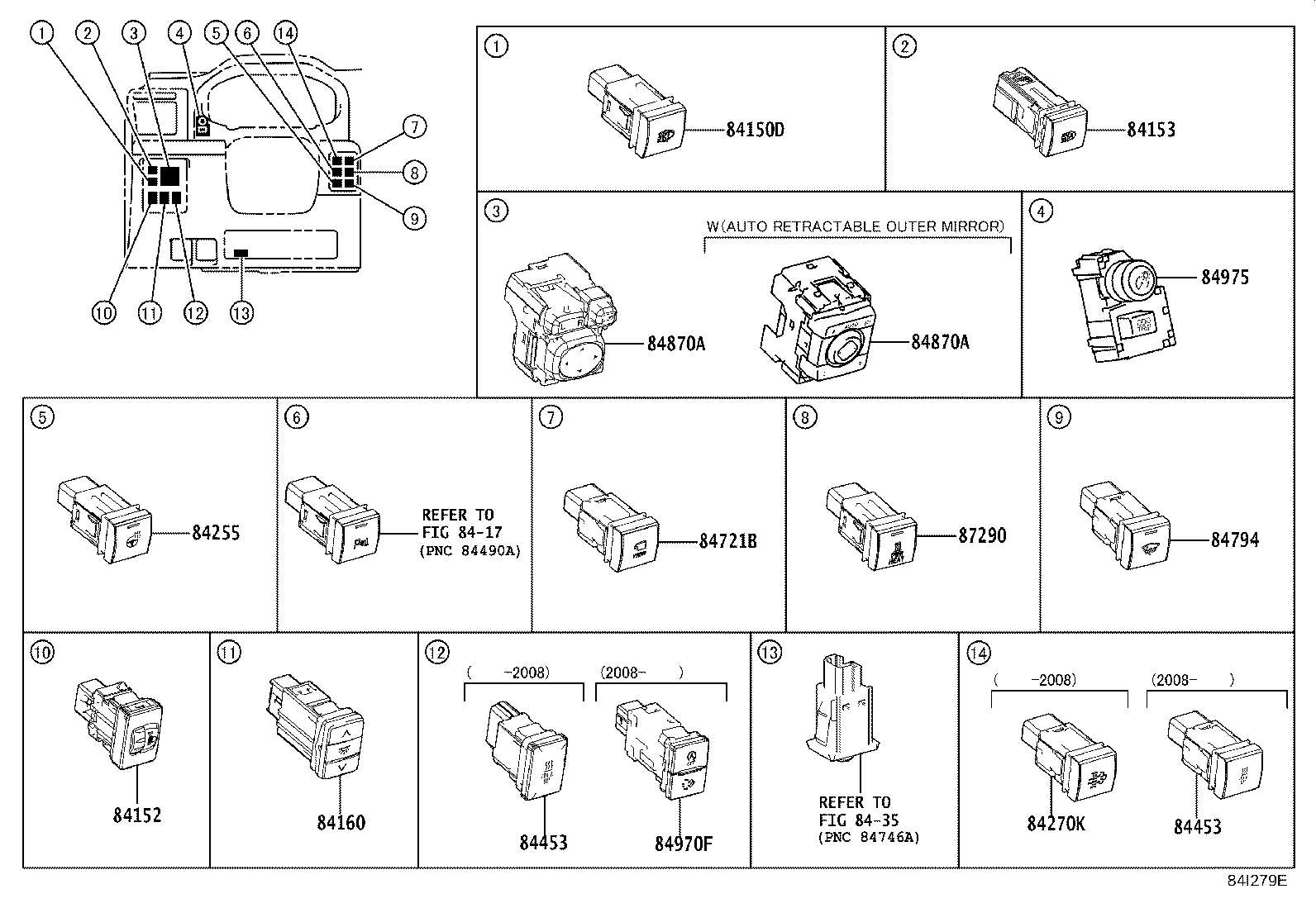

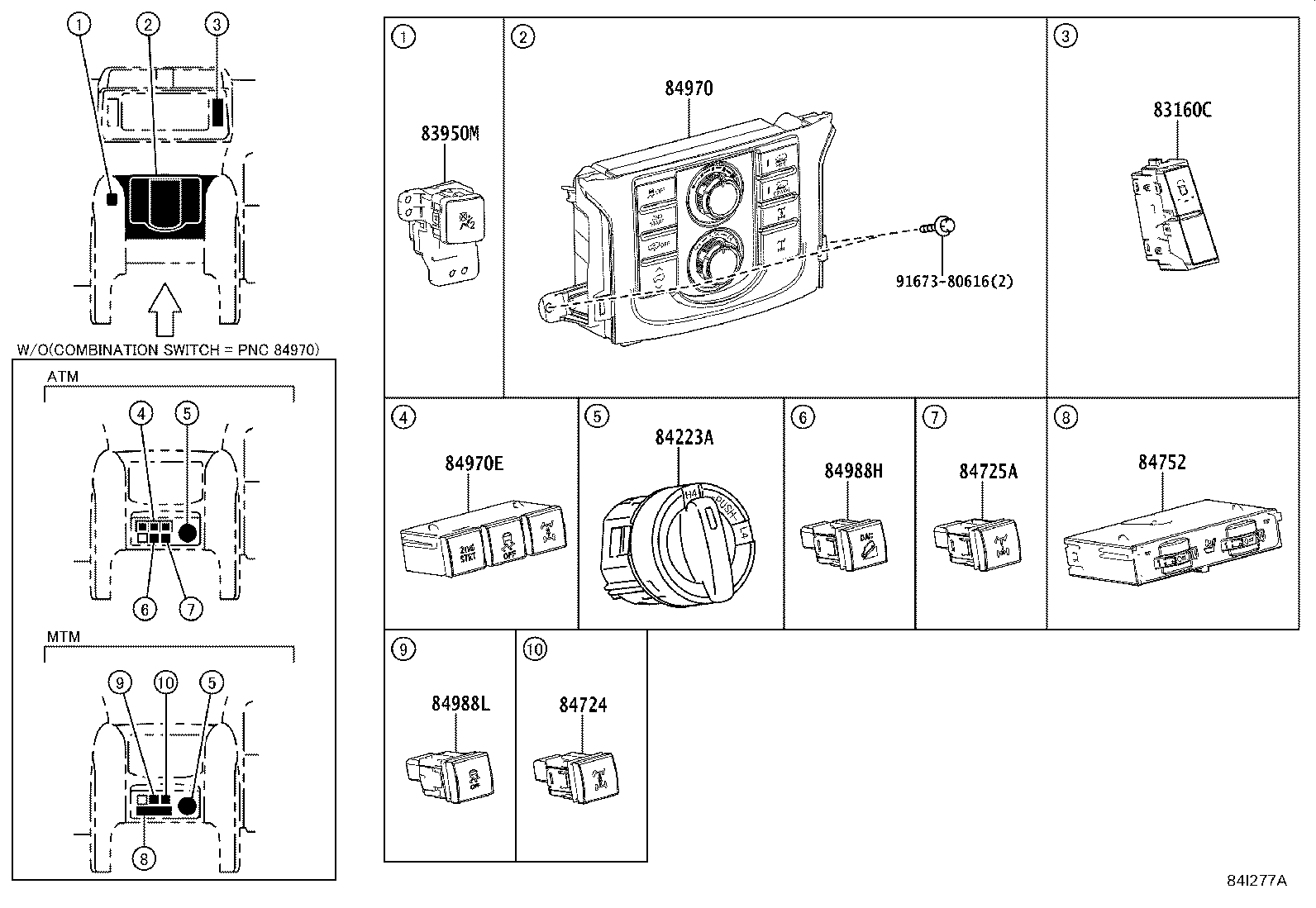

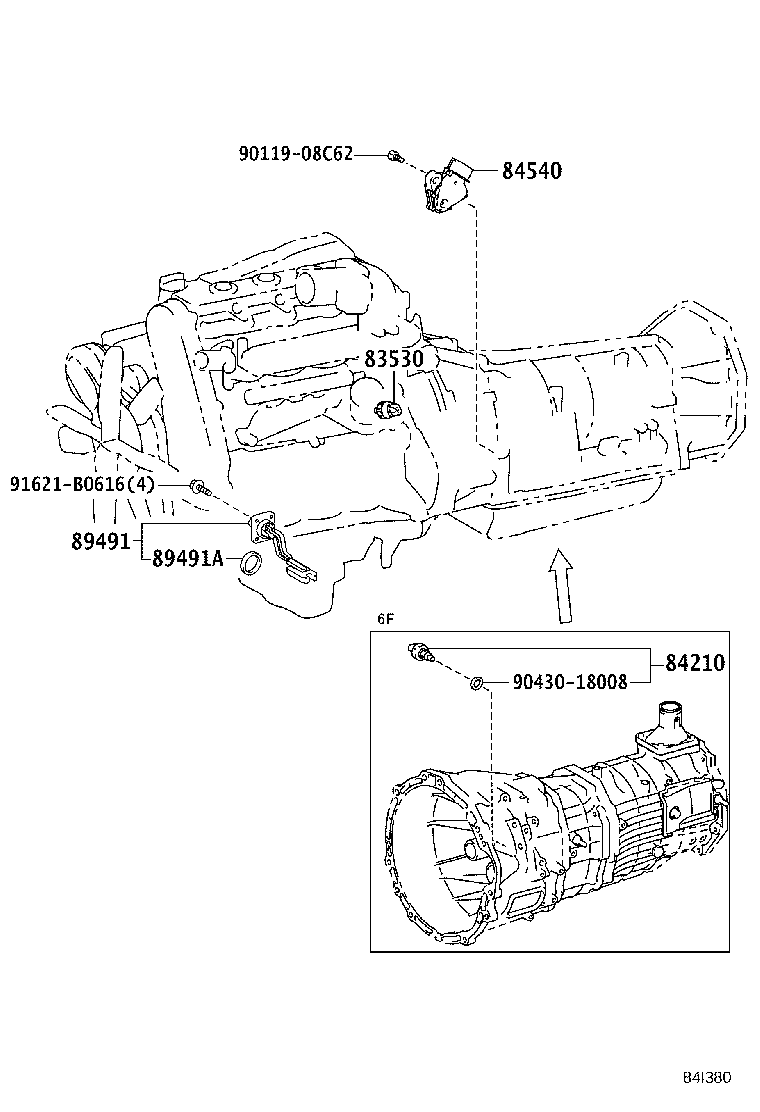

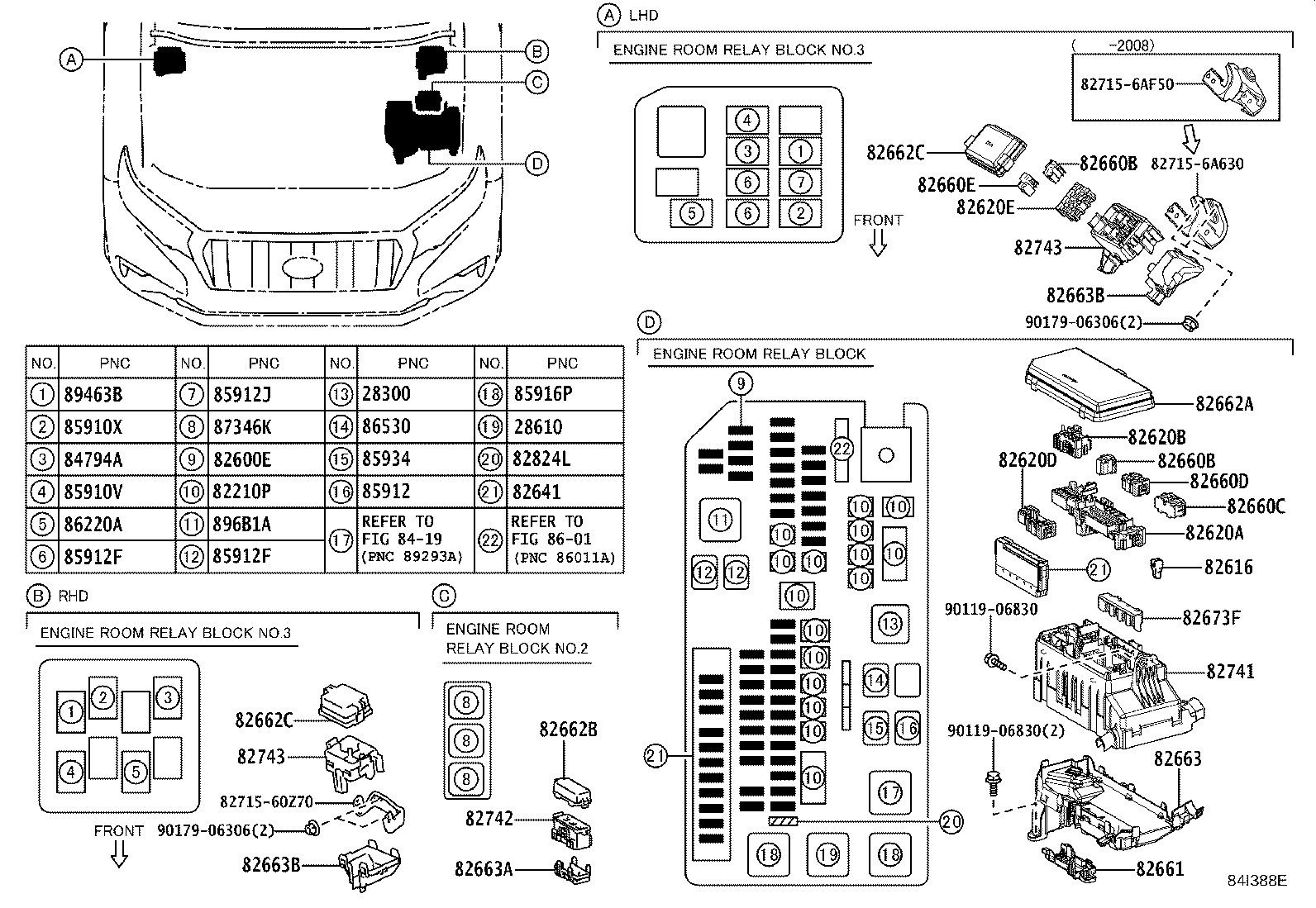

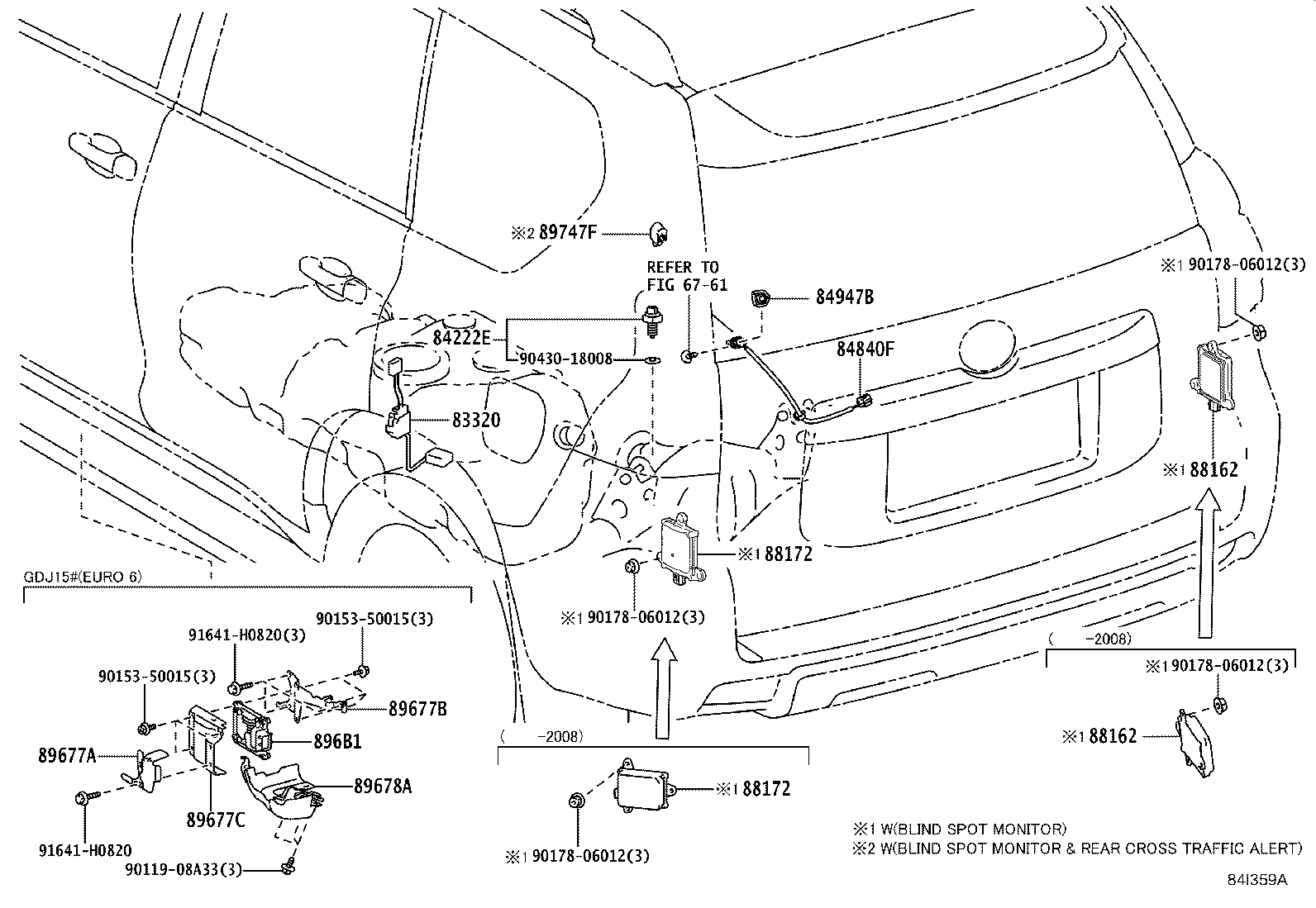

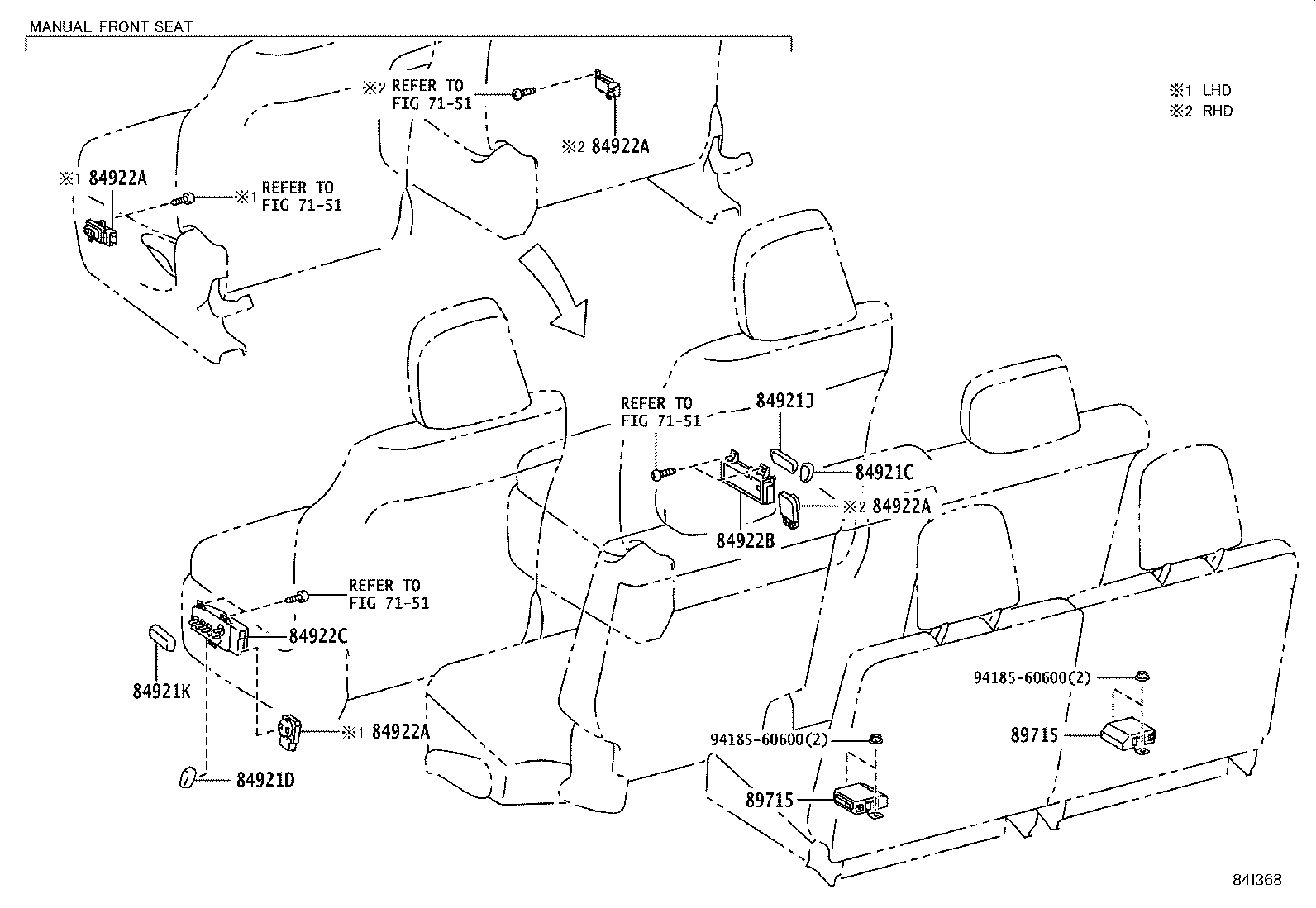

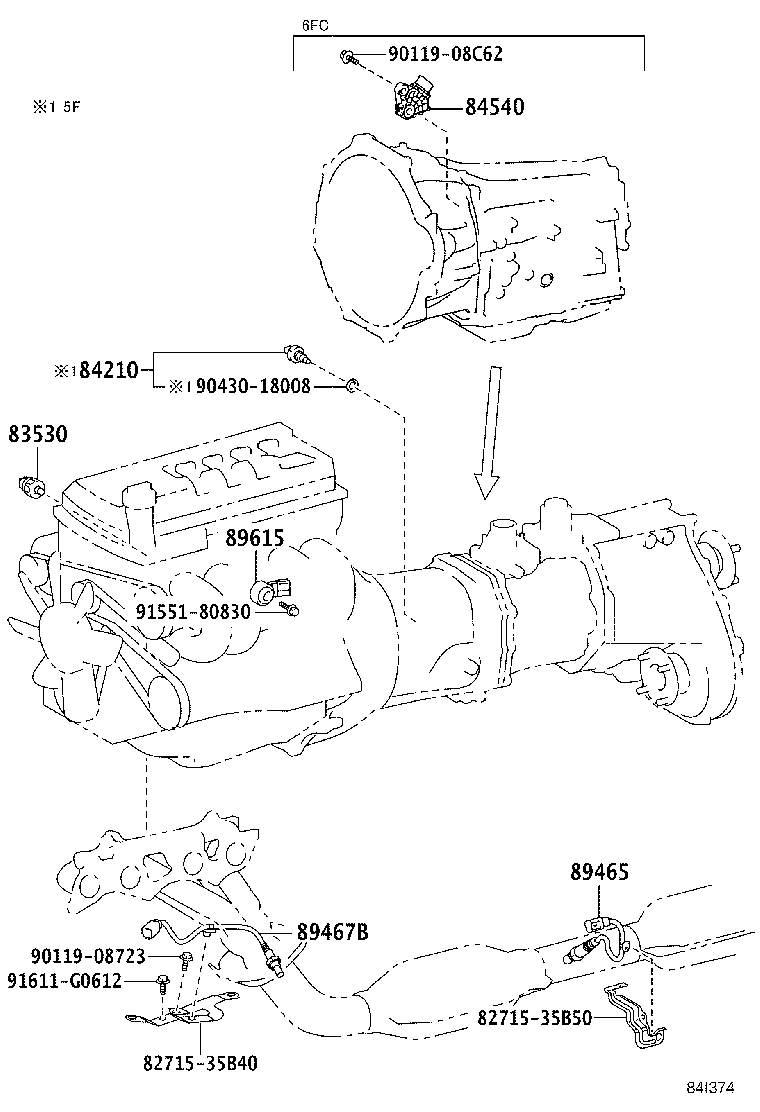

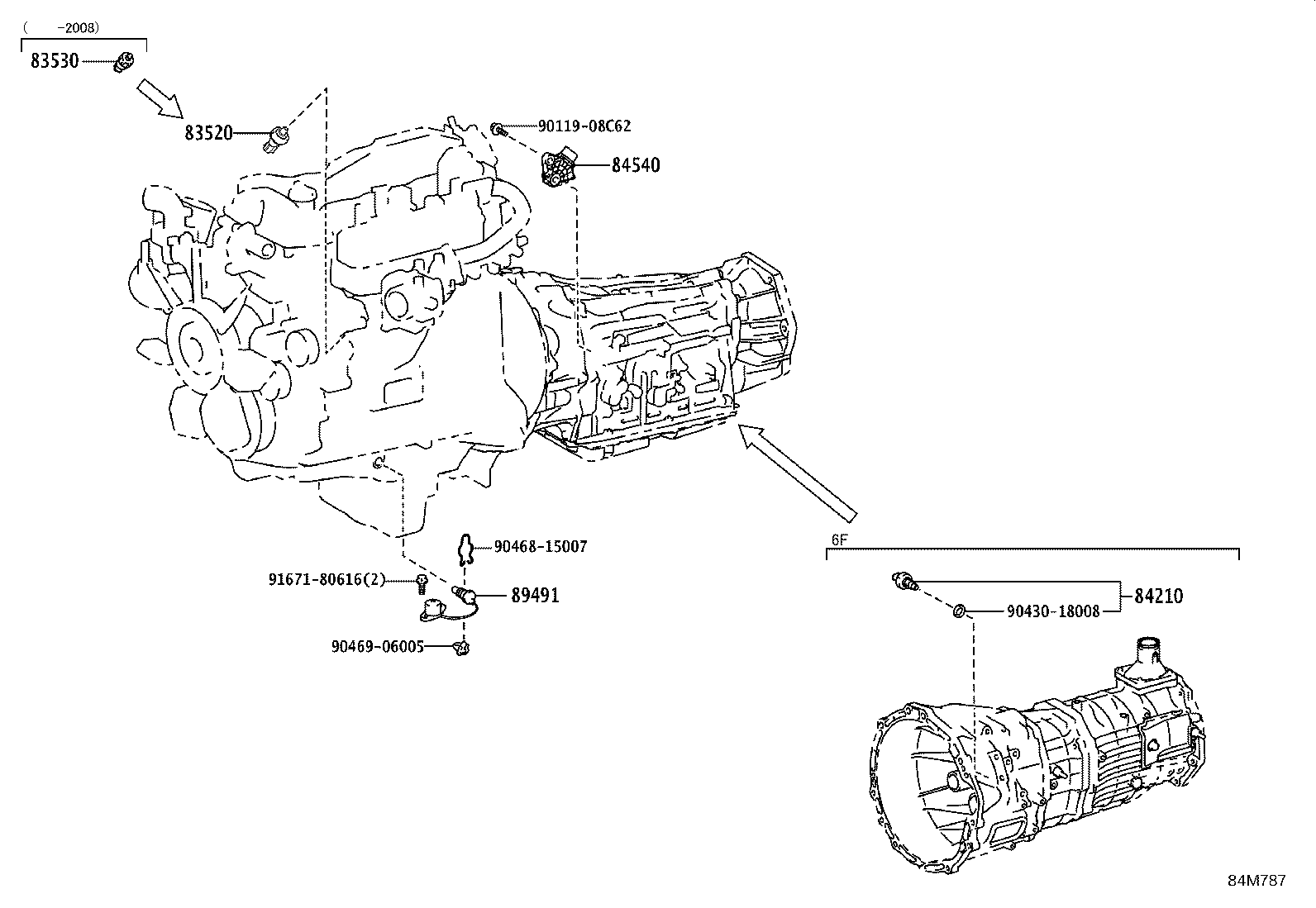

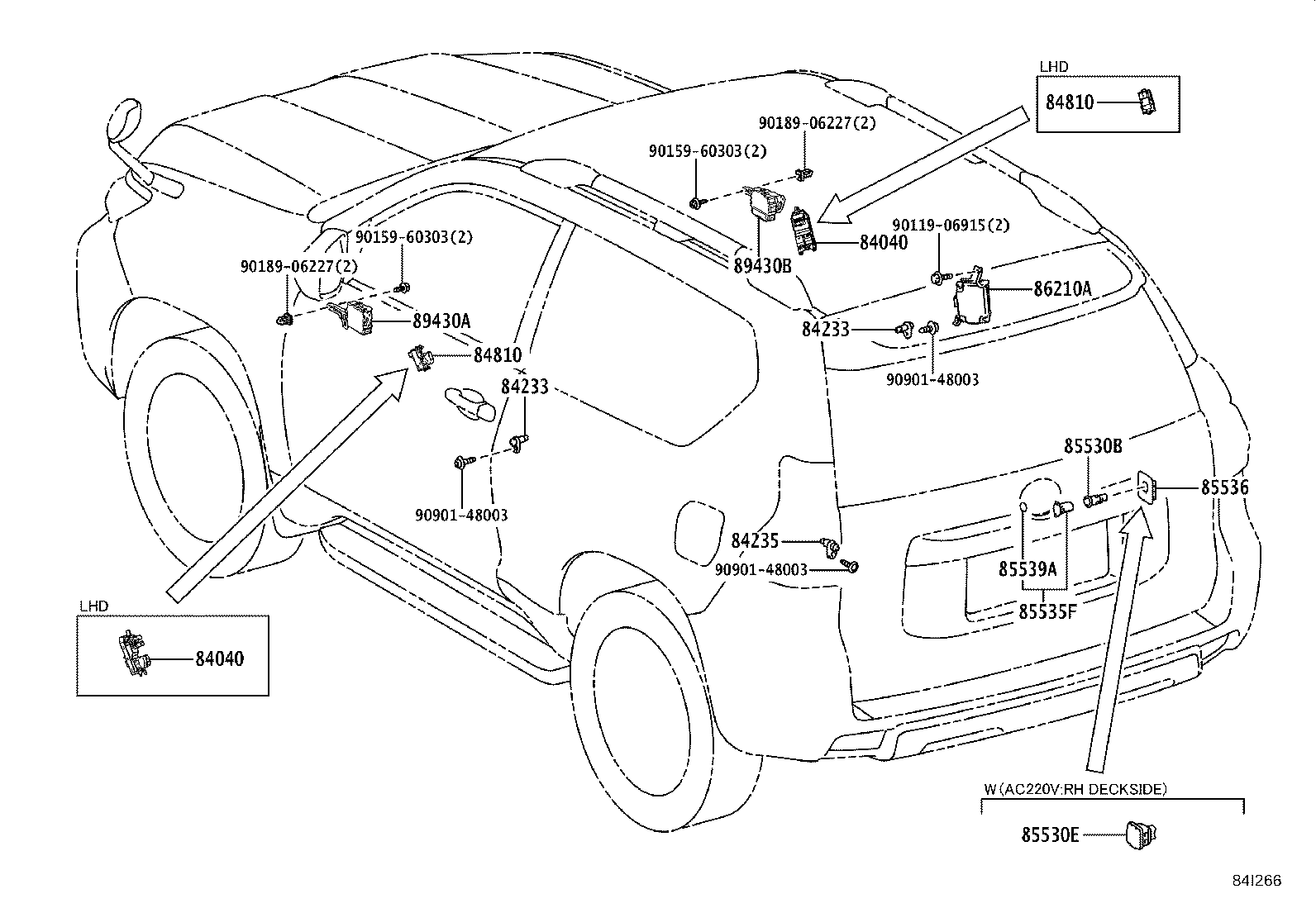

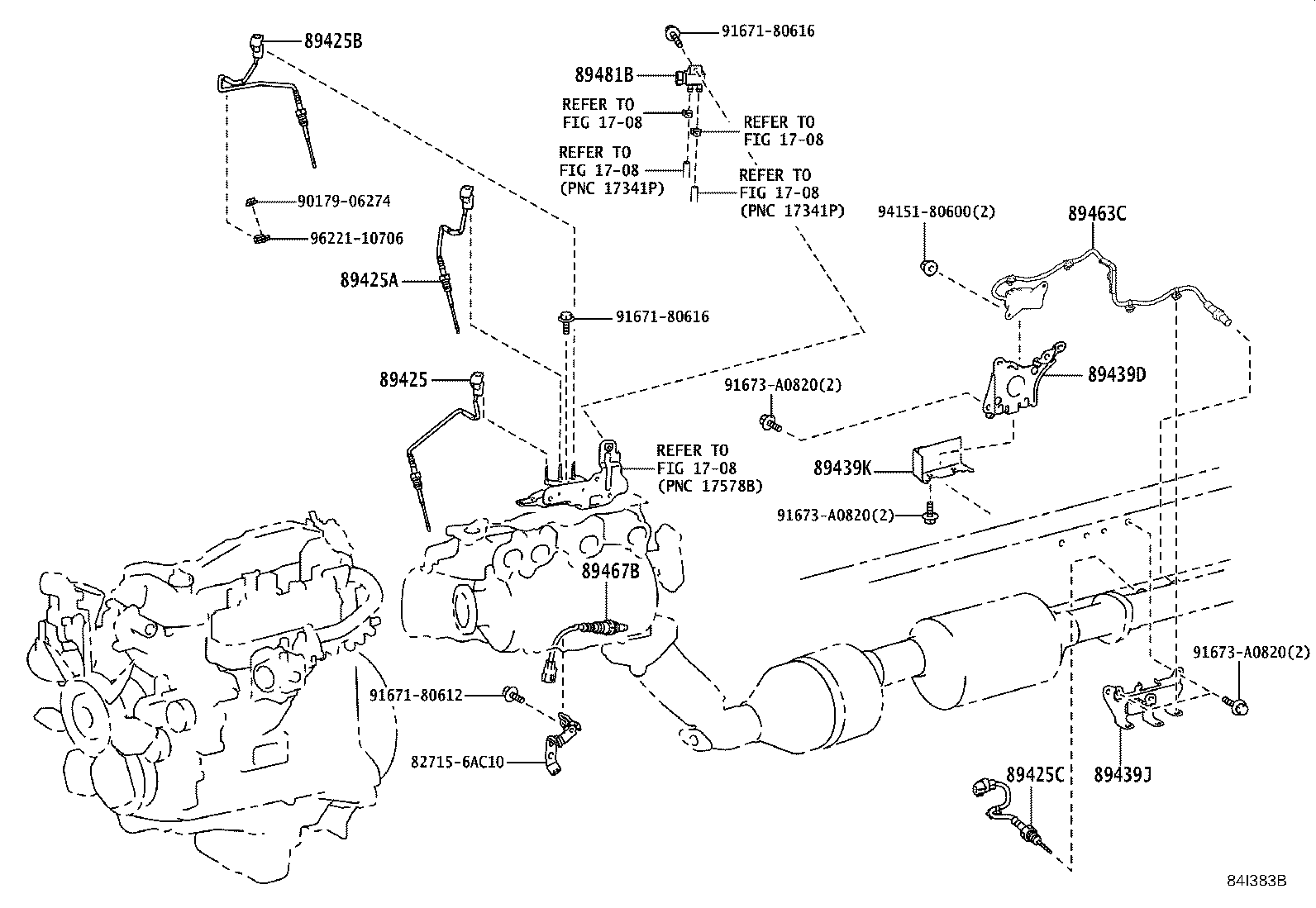

Figure 84I379 84I379 2017-08 → — Figure 84I380 84I380 2017-08 → — Figure 84I374 84I374 2017-08 → — Figure 84M787 84M787 2017-08 → — Figure 84I383B 84I383B 2017-08 → 2018-06 Figure 84J326A 84J326A 2018-06 → — Figure 84I386B 84I386B 2017-08 → — Figure 84I388E 84I388E 2017-08 → — Figure 84I299E 84I299E 2017-08 → — Figure 84I298E 84I298E 2017-08 → — Figure 84I279E 84I279E 2017-08 → — Figure 84I276D 84I276D 2017-08 → — Figure 84I280A 84I280A 2017-08 → — Figure 84I277A 84I277A 2017-08 → — Figure 84I281C 84I281C 2017-08 → — Figure 84I278C 84I278C 2017-08 → — Figure 84I365E 84I365E 2017-08 → — Figure 84I368 84I368 2017-08 → — Figure 84I265 84I265 2017-08 → — Figure 84I266 84I266 2017-08 → — Figure 84I359A 84I359A 2017-08 → — Figure 84I362 84I362 2017-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28559A Bracket, Glow Plug Controller, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82291D Wire, TO Solenoid
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82620F Block Assy, Fusible Link
82620G Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660A Block Assy, Relay, Cowl Side
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661J Cover, Relay Block, NO.4
82661K Cover, Relay Block, NO.5
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673F Bracket, Junction Block
82715 Bracket,Wiring Harness Clamp
82730A Block Assy, Driver Side Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82824L Pin, Short
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83160C Indicator Assy, Clearance Warning
83320 Gage Assy, Fuel Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84040 Master Switch Assy,Multiplex Network
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84160 Switch Assy, Room Lamp
84190A Switch Assy, Fold Seat, NO.1
84190B Switch Assy, Fold Seat, NO.2
84210 Switch Assy, Back-up Lamp
84222E Switch, Differential Lock Indicator
84223A Switch, Transfer Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84270K Switch Assy, Dpr
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84711 Switch, Eco Mode
84720J Switch Assy, Pattern Select
84721B Switch, Panoramic View Monitor
84724 Switch, 4 Wheel Drive Control
84725A Switch, Differential Lock
84752 Switch, Refreshing Seat
84752C Switch, Refreshing Seat, NO.2
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840F Switch Assy, Glass Hatch Opener
84870A Switch Assy, Outer Mirror
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84947B Cover, Switch
84970 Switch Assy, Combination
84970E Switch Assy, Combination NO.2
84970F Switch Assy, Combination, NO.3
84975 Switch, Trip
84988H Switch, Downhill Assist Control
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85535F Cover, Power Outlet Socket, Rear
85536 Bezel, Power Outlet Socket
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85903 Computer Sub-assy, Shift Lock Control
85910V Relay, Seat Heater
85910X Relay, Heater Mirror
85912 Relay, Defogger
85912F Relay, Hwd
85912J Relay, Hwd, NO.2
85916P Relay, Headlamp
85930K Relay, Acc, NO.2
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89271A Computer, Stabilizer Control
89299F Switch, Suspension Control
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89430A Computer Assy, Outer Mirror Control, LH
89430B Computer Assy, Outer Mirror Control, RH
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89439K Bracket, Sensor, NO.3
89439L Bracket, Sensor, NO.4
89463B Relay, Nitrogen Oxides
89463C Sensor, Nitrogen Oxides, NO.1
89463D Sensor, Nitrogen Oxides, NO.2
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
8946A Bracket, Exhaust Sensor Clamp
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
894A0 Sensor Assy, Particulate Matter
89530C Computer Assy, Transmission Control
89533 Computer, 4 Wheel Drive Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89677A Bracket, Urea Pump Control, NO.1
89677B Bracket, Urea Pump Control, NO.3
89677C Bracket, Urea Pump Control, NO.4
89678A Bracket, Urea Pump Control, NO.2
896B1 Computer, Urea Pump Control
896B1A Relay, Dcu Main
89715 Computer, Fold Seat Control
89747F Buzzer, Blind Spot Monitor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
