Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

10 part groups · 4 illustrations

Illustrations

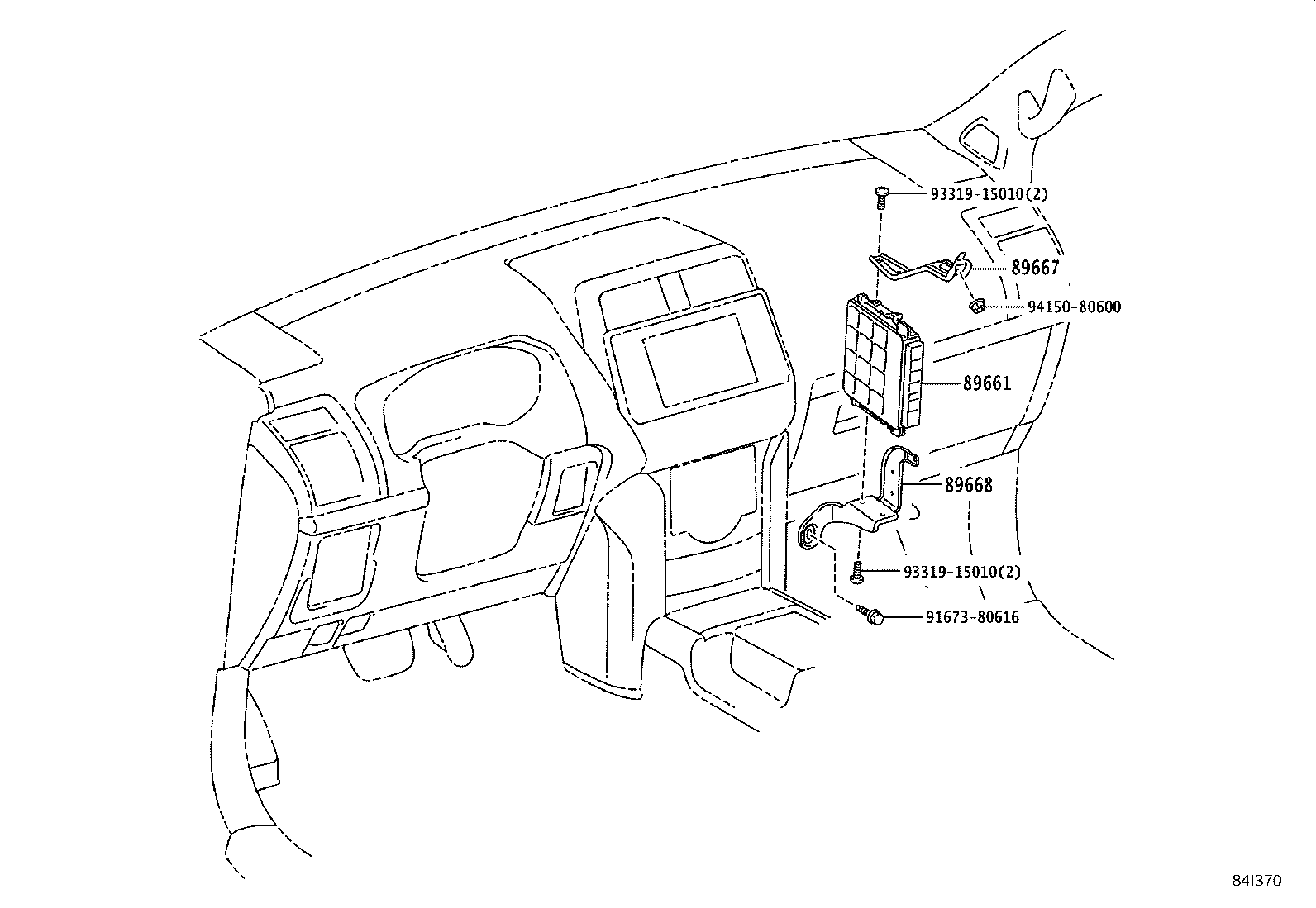

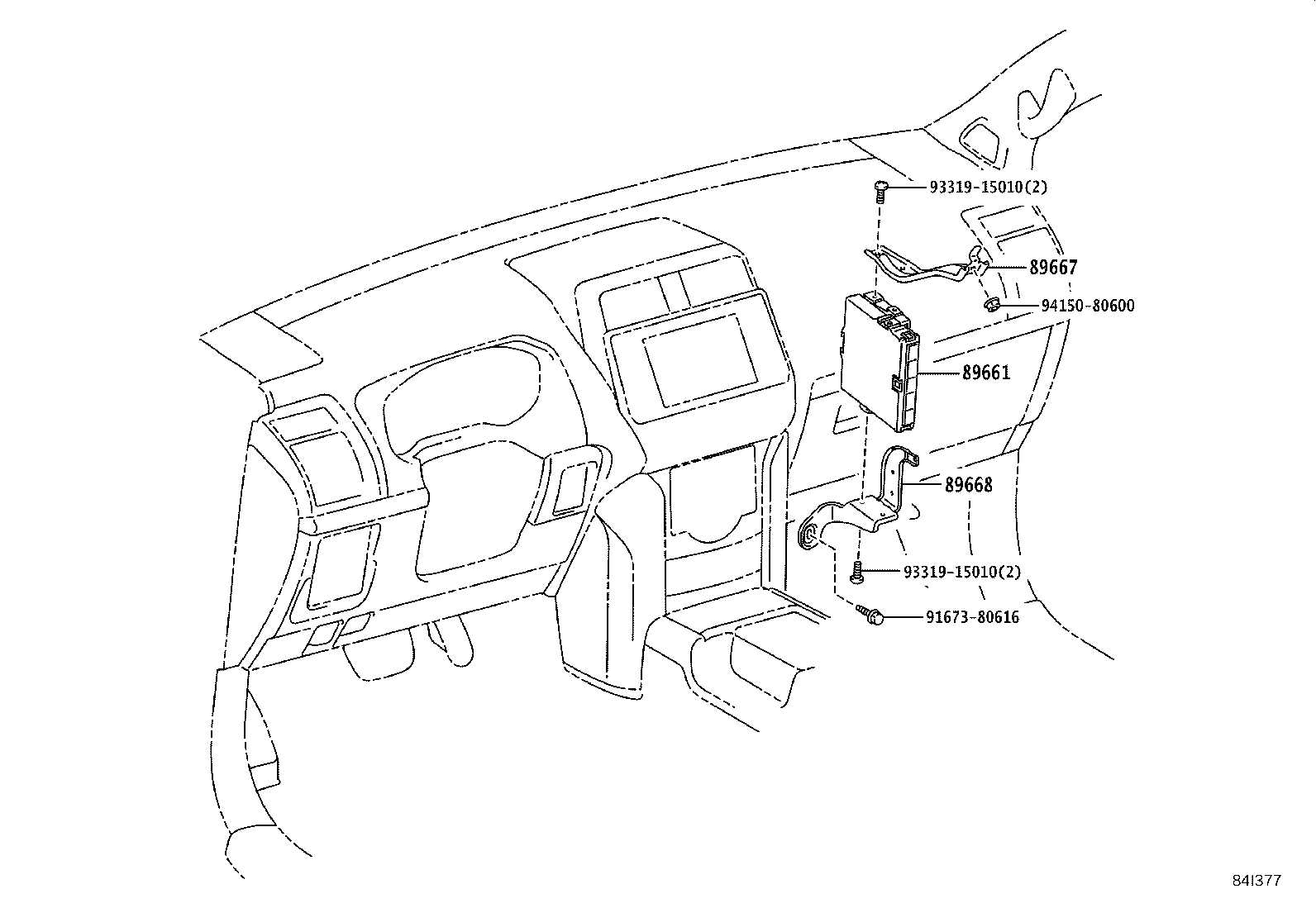

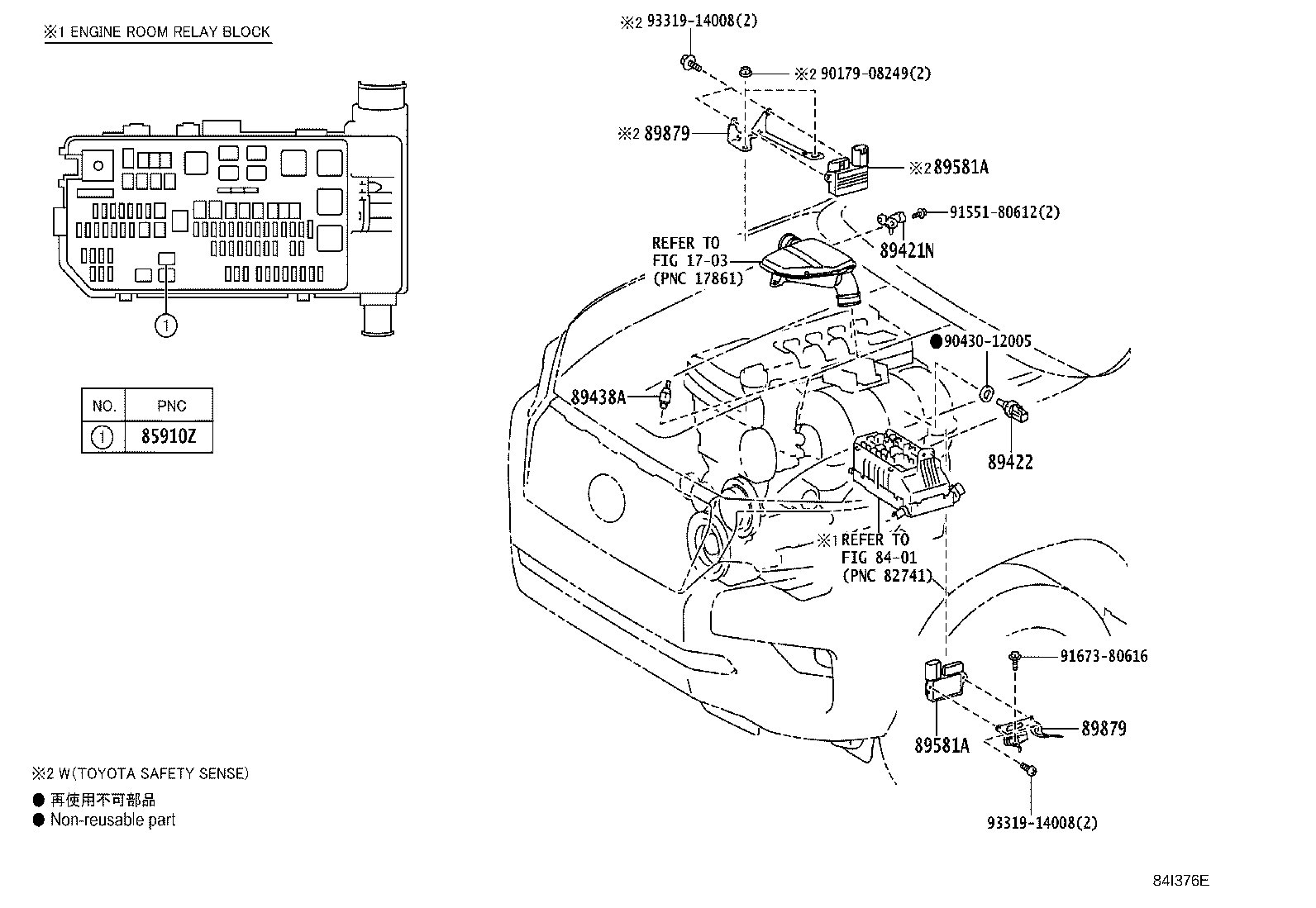

Figure 84I263B 84I263B 2017-08 → — Figure 84I376E 84I376E 2017-08 → — Figure 84I370 84I370 2017-08 → — Figure 84I377 84I377 2017-08 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
89421N Sensor, Air Pressure
89422 Sensor, Water Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89570A Computer Assy, Fuel Pump Control
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
