Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

8 part groups · 2 illustrations

Illustrations

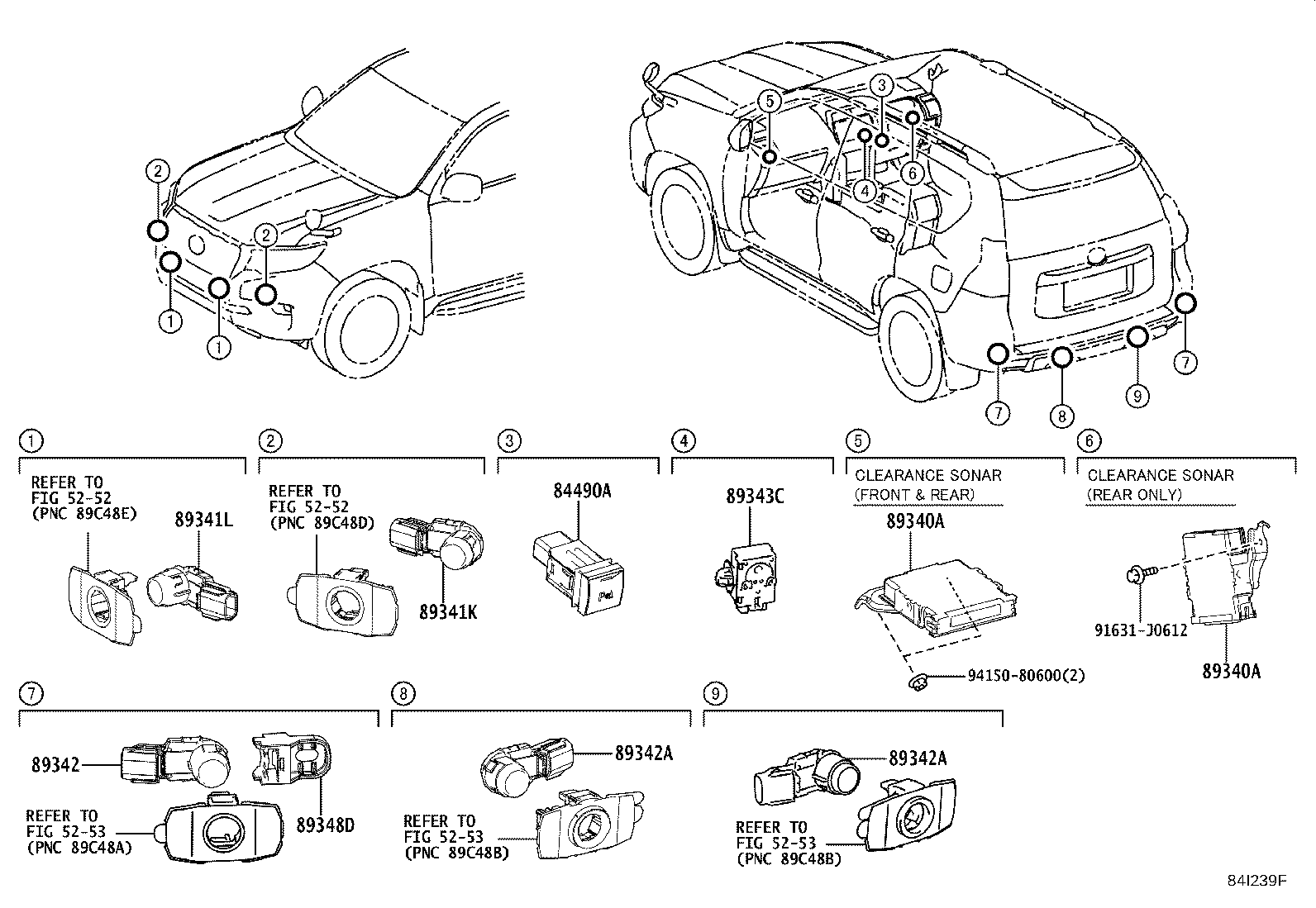

Figure 84I238F 84I238F 2017-08 → — Figure 84I239F 84I239F 2017-08 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89341L Sensor, Ultrasonic, Front Center
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
