Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

10 part groups · 3 illustrations

Illustrations

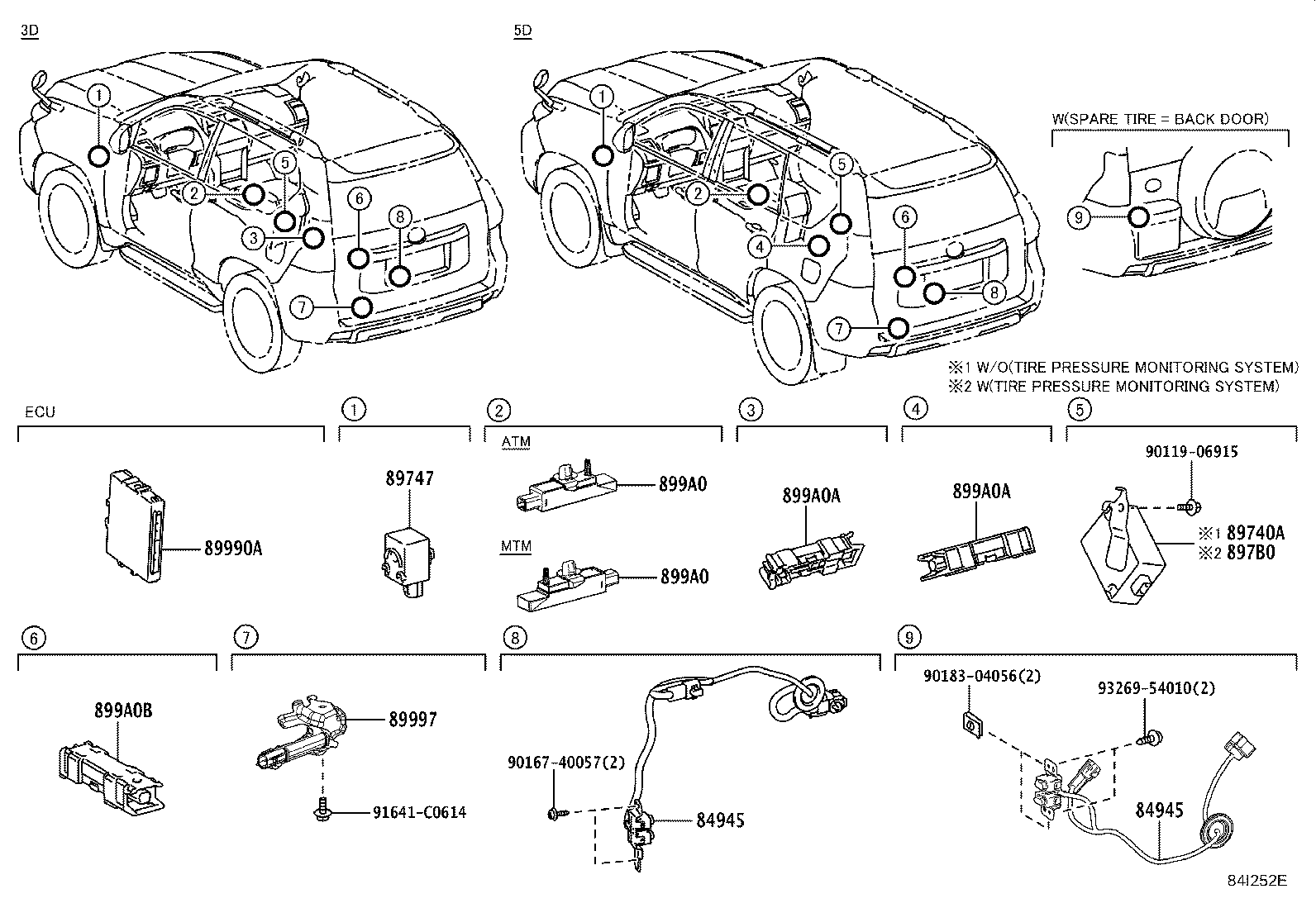

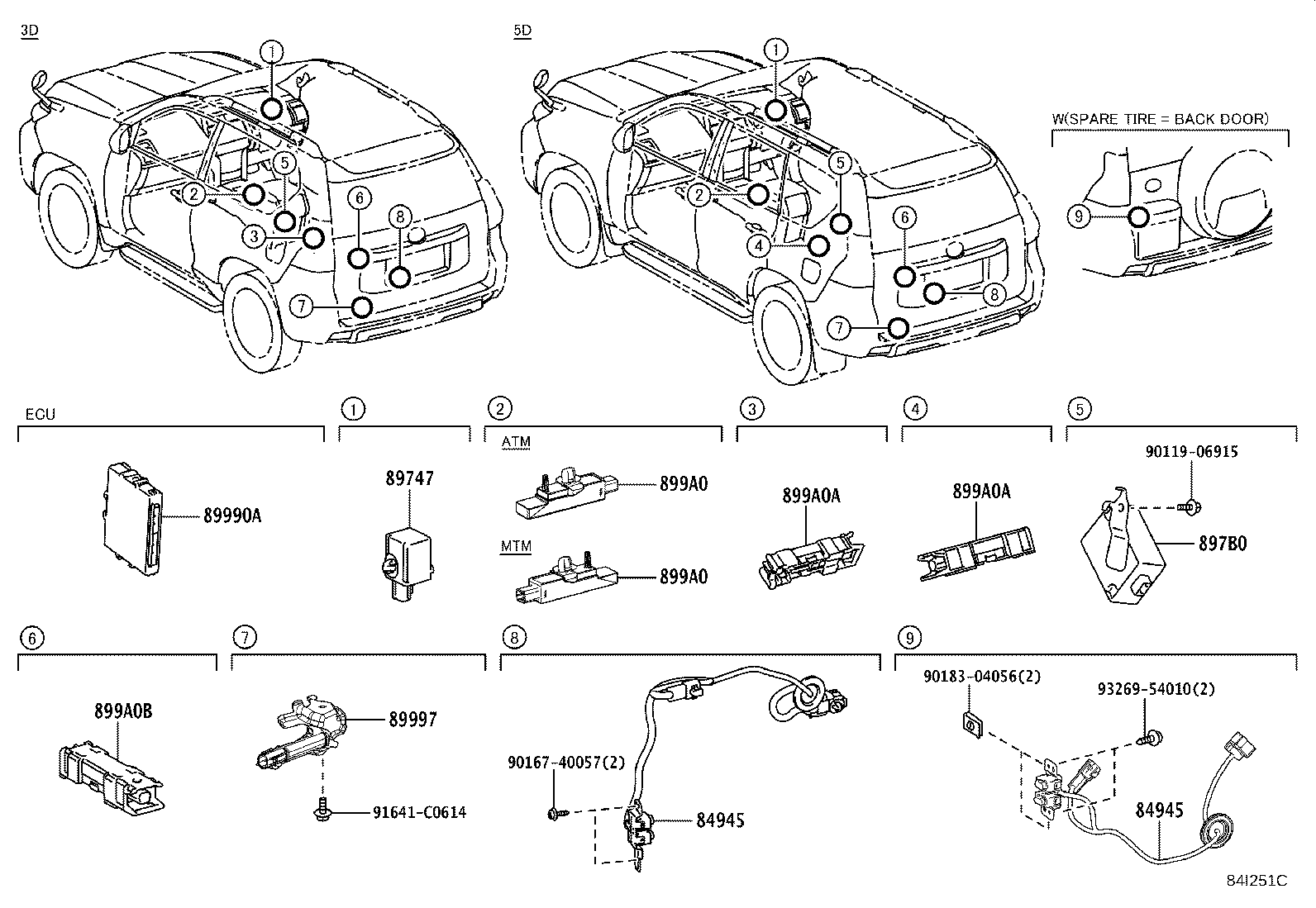

Figure 84I351 84I351 2017-08 → — Figure 84I252E 84I252E 2017-08 → — Figure 84I251C 84I251C 2017-08 → —

Part groups

PNCDescription
84945 Switch, Luggage Electrical Key
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
