Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

9 part groups · 2 illustrations

Illustrations

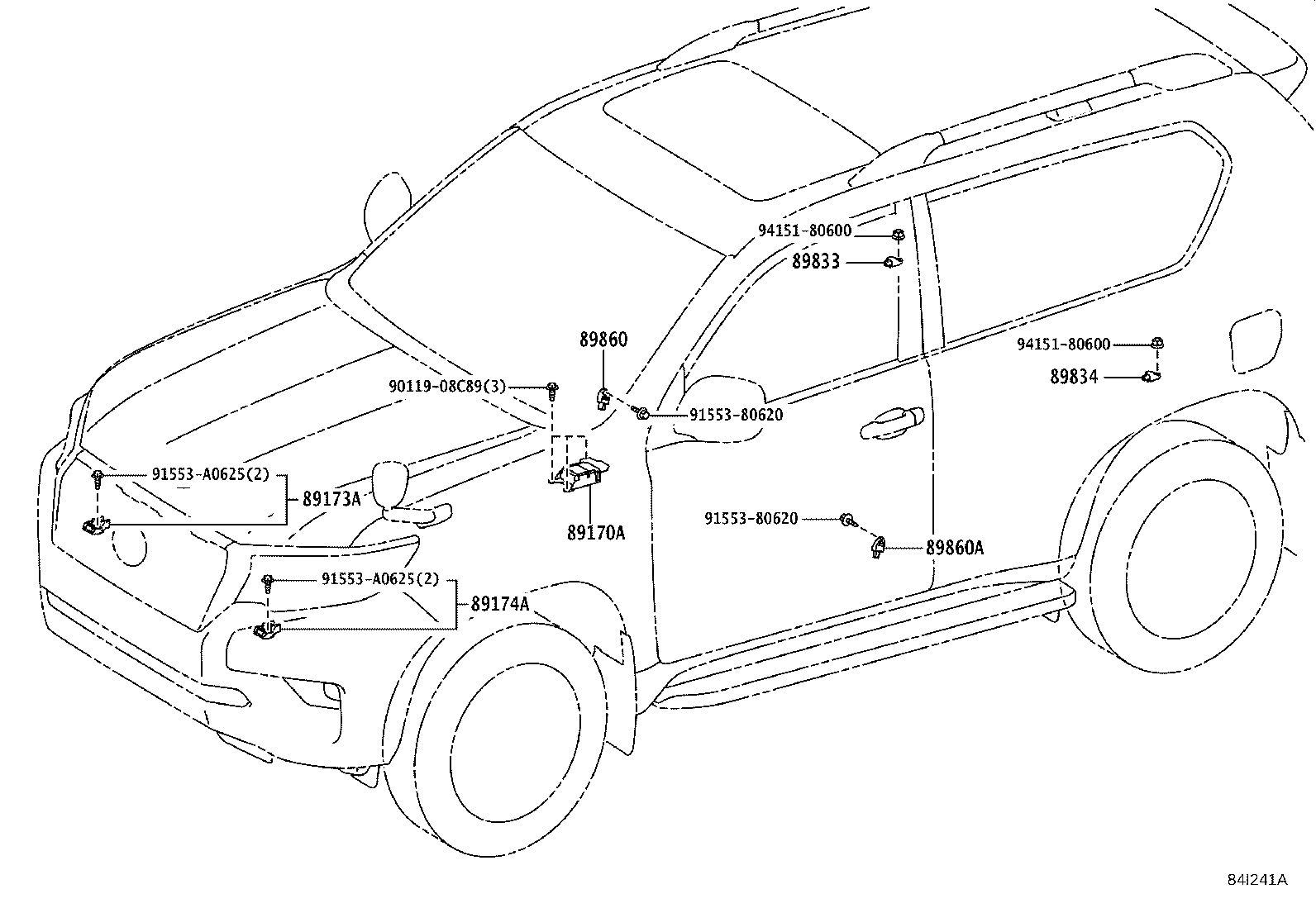

Figure 84I240A 84I240A 2017-08 → — Figure 84I241A 84I241A 2017-08 → —

Part groups

PNCDescription
89170A Computer Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89837A Sensor, Rear Floor Side Airbag
89839A Cover, Rear Floor Side Airbag Sensor
89860 Sensor Assy, Side Airbag, RH
89860A Sensor Assy, Side Airbag, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
