Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 2 illustrations

Illustrations

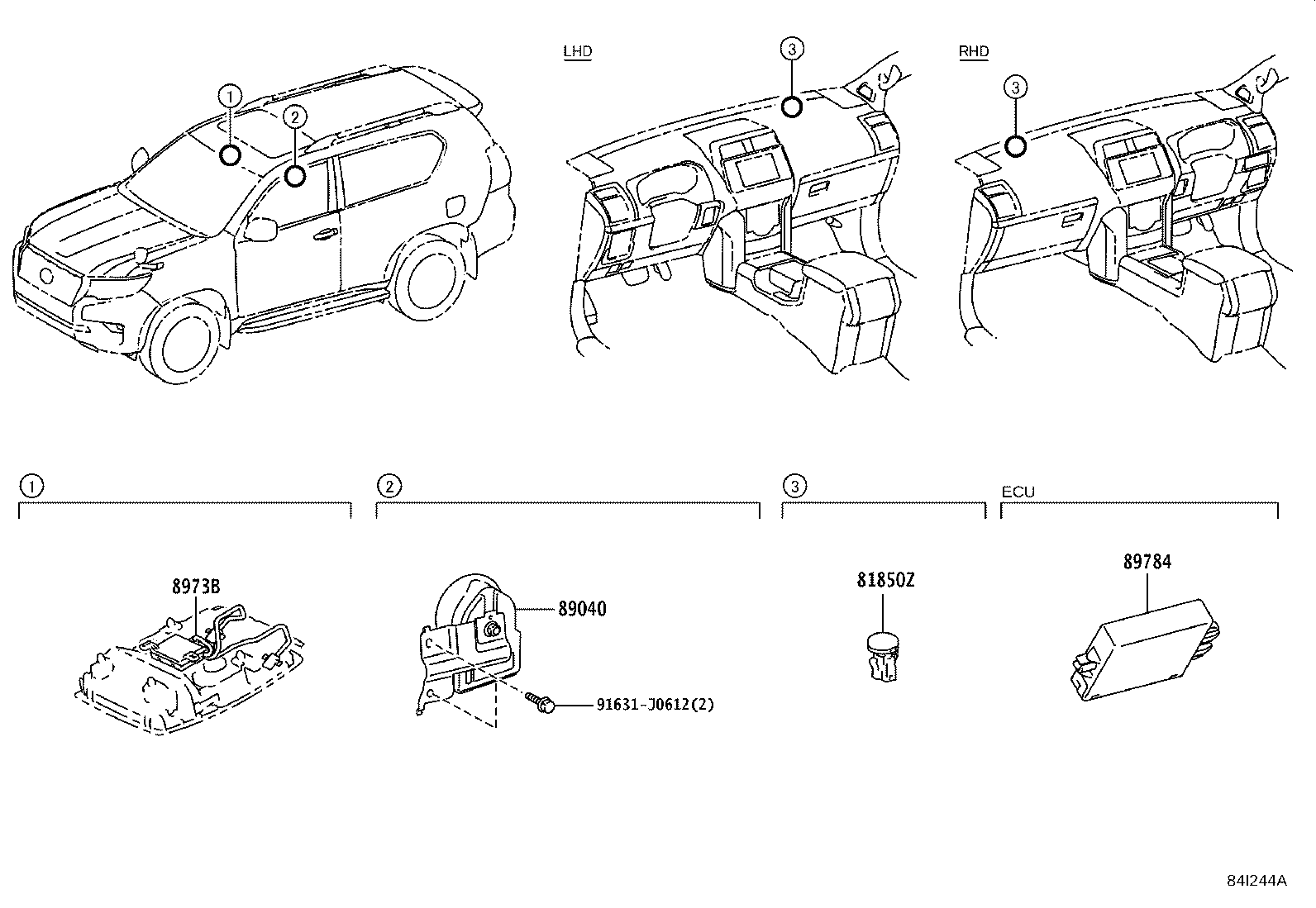

Figure 84I243A 84I243A 2017-08 → — Figure 84I244A 84I244A 2017-08 → —

Part groups

PNCDescription
81850Z Lamp Assy, Theft Warning Indicator
89040 Siren Assy, Theft Warning
8973B Sensor, Theft Warning Ultrasonic & Tilt
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89784 Computer, Immobilizer Code
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
