Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

14 part groups · 2 illustrations

Illustrations

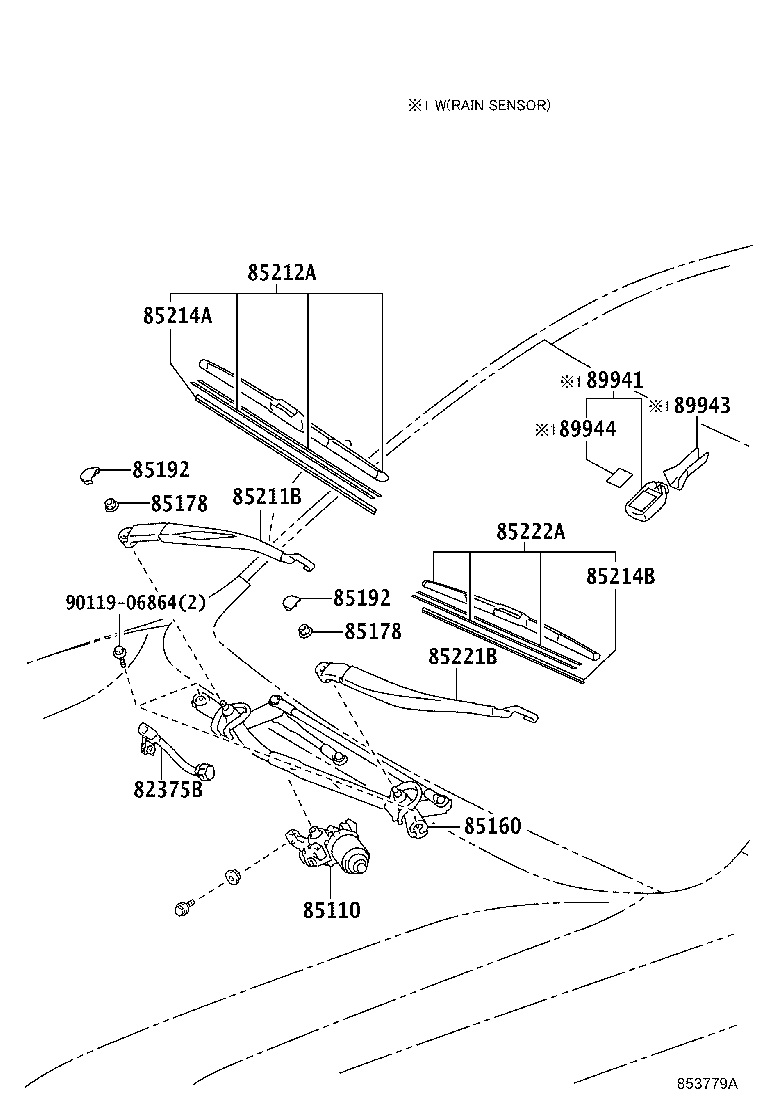

Figure 853777A 853777A 2017-08 → — Figure 853779A 853779A 2017-08 → —

Part groups

PNCDescription
82375B Wire, Wiper Motor
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85192 Cover, Windshield Wiper Arm
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
89941 Sensor, Rain
89943 Cover, Rain Sensor
89944 Tape, Rain Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
