Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06
Telephone & Mayday
7 part groups · 2 illustrations

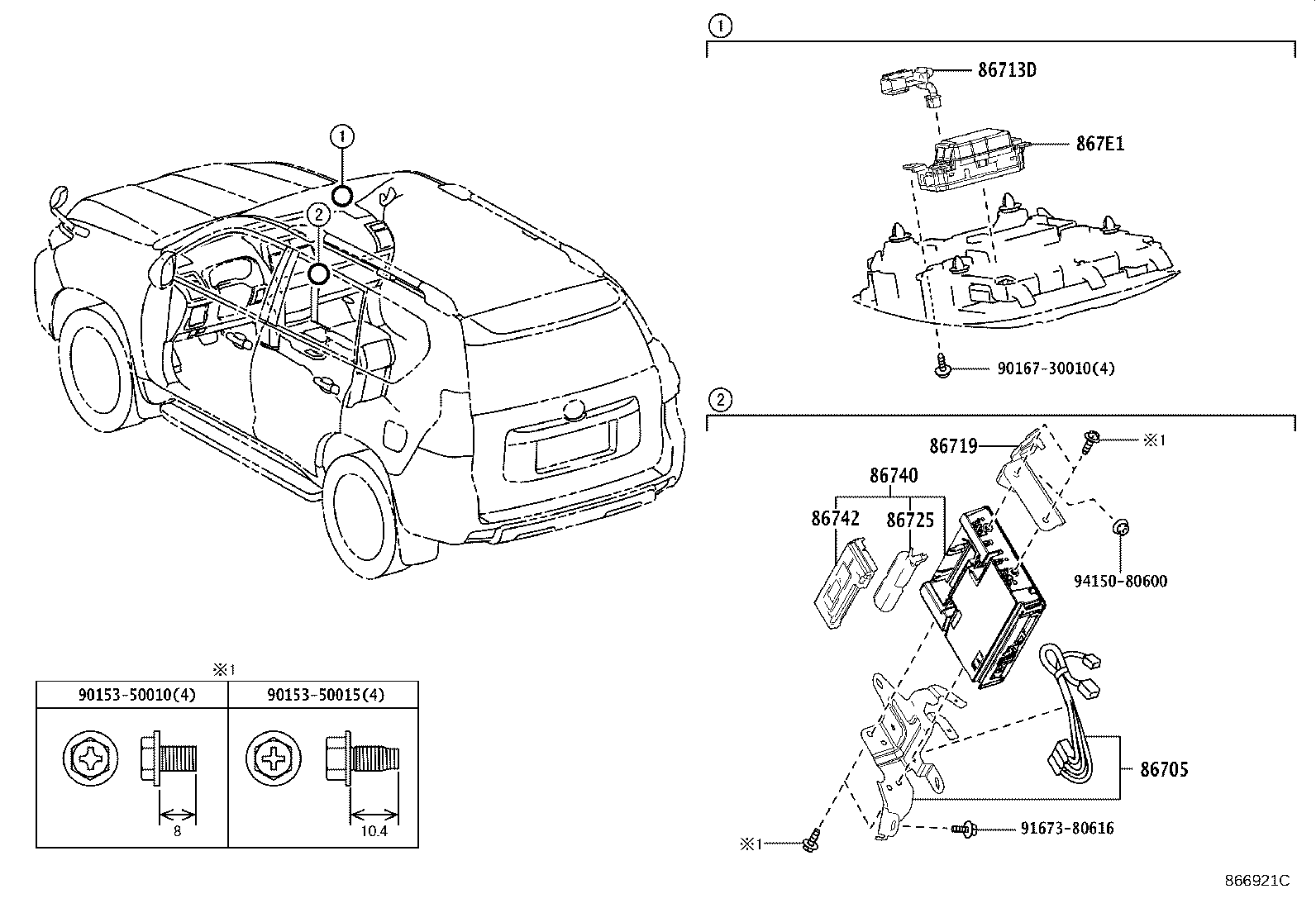

Part groups
| PNC | Description |
|---|---|
| 86705 | Cord Sub-assy, Telephone Antenna |
| 86713D | Wire, Mayday |
| 86719 | Bracket, Telephone |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86742 | Cover, Transceiver |
| 867E1 | Box, Communication Telematics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
