Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06
Heating & Air Conditioning - Control & Air Duct
40 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

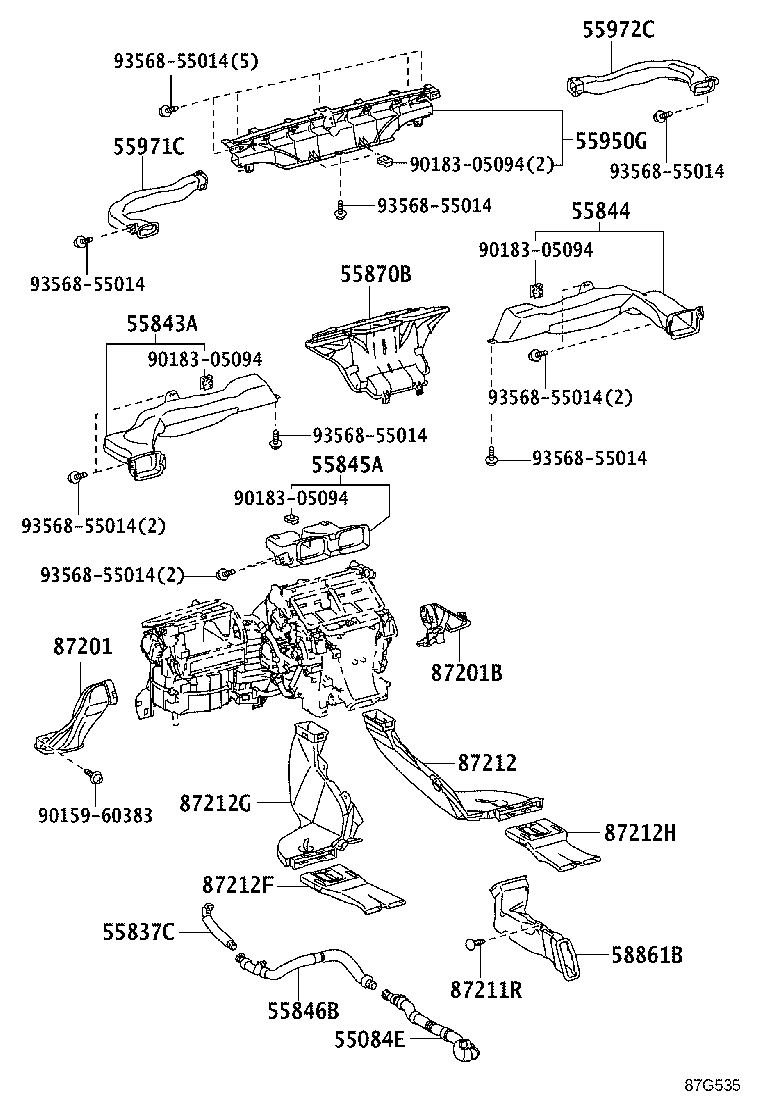

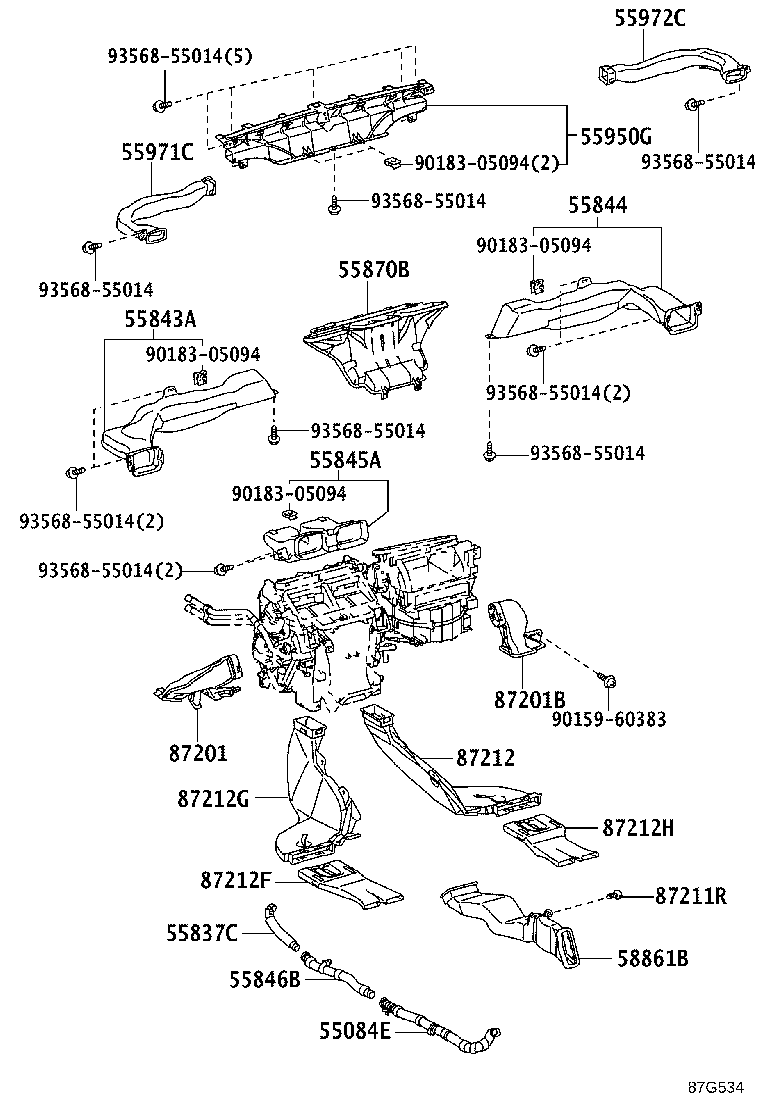

| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55837C | Duct, Heater TO Register Center Sub |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |
| 55846B | Duct, Heater TO Register, NO.4 |
| 55870B | Duct Assy, Heater TO Register |

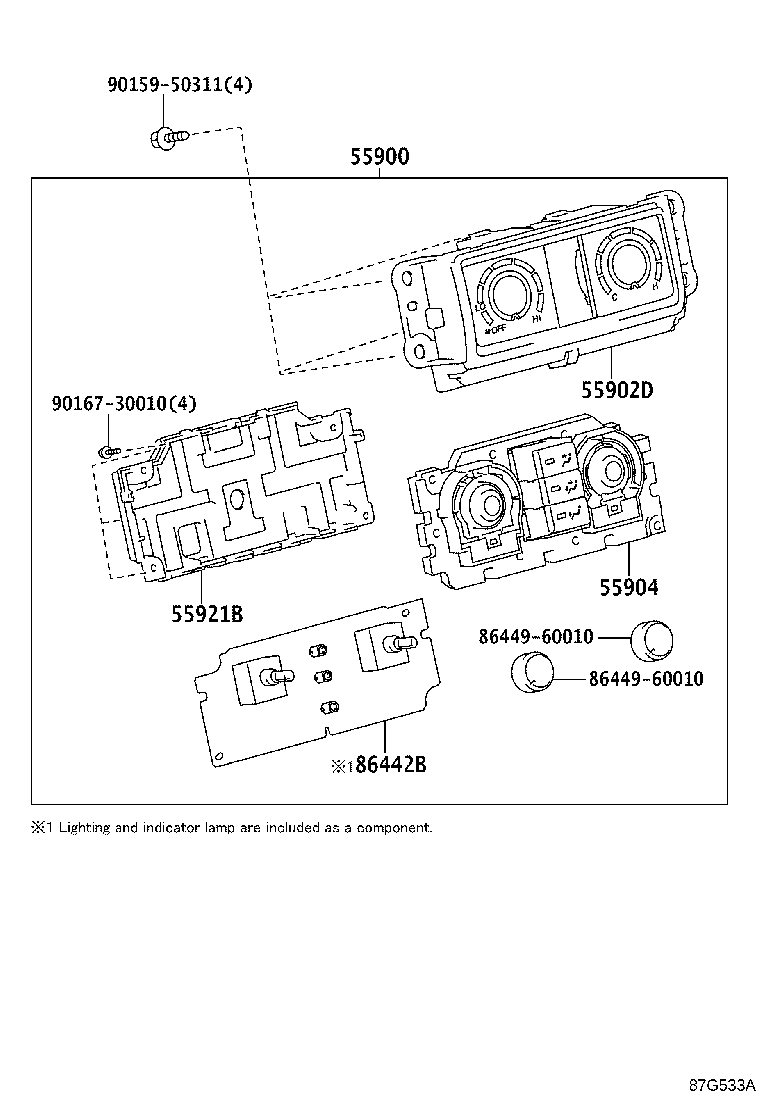

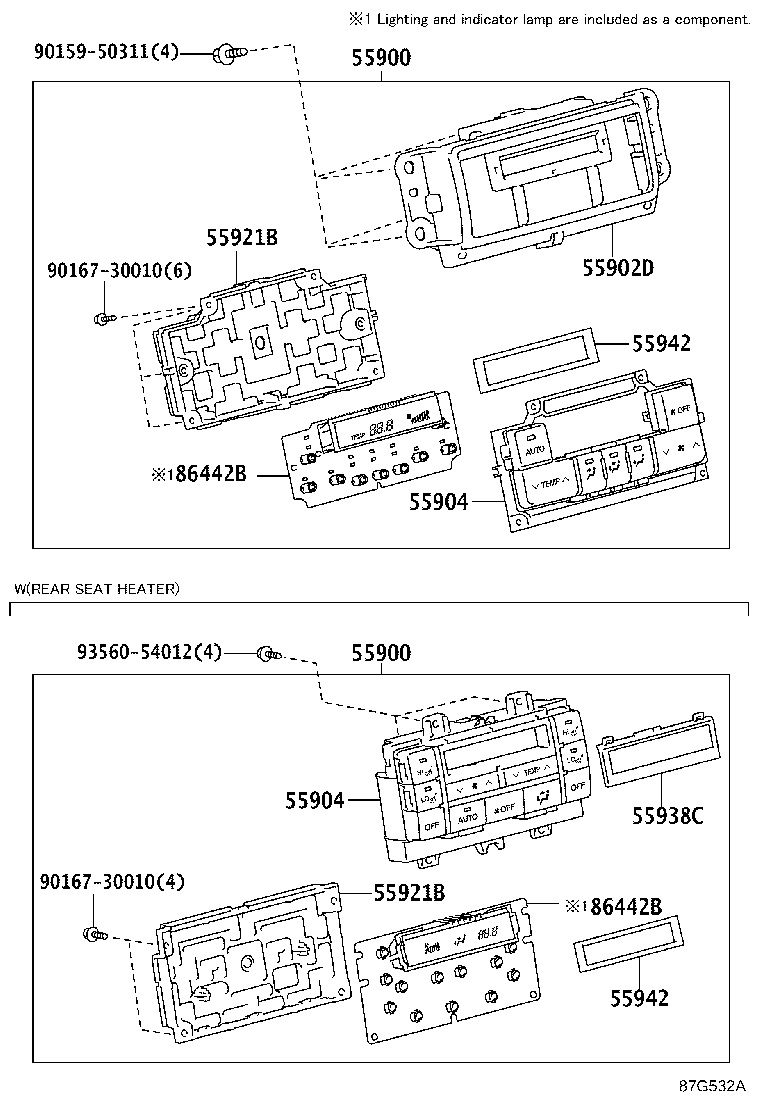

| 55900 | Control Assy, Air Conditioner |
| 55902D | Panel Sub-assy, Air Conditioner |
| 55904 | Lever Sub-assy, Air Inlet Butterfly Control |
| 55921B | Retainer, Heater Control |
| 55938C | Lens, Center Cluster Module |
| 55942 | Guard, Heater Control |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 58861B | Duct, Console Box, NO.1 |
| 84010A | Control & Panel Assy, Integration |
| 86442B | Board, Rear Heater Control Switch |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87215J | Clip (FOR AIR REAR DUCT) |
| 87217D | Duct, Air, Rear Side NO.1 |
| 87217E | Duct, Air, Rear Side NO.2 |
| 87217F | Duct, Air, Rear Side NO.3 |
| 87217G | Duct, Air, Rear Side NO.4 |

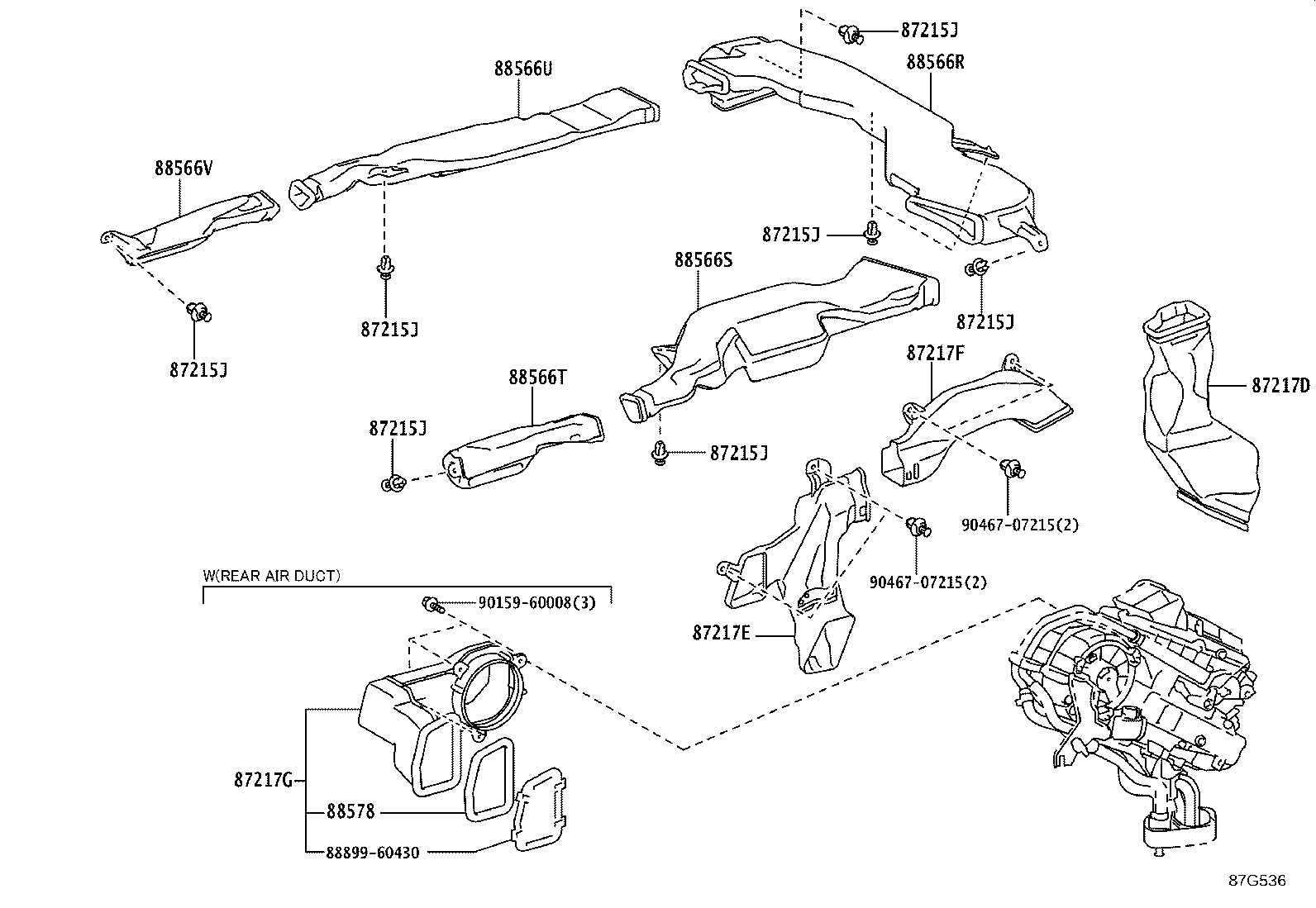

| 88566R | Duct, Air, Rear Roof NO.1 |
| 88566S | Duct, Air, Rear Roof NO.2 |
| 88566T | Duct, Air, Rear Roof NO.3 |
| 88566U | Duct, Air, Rear Roof NO.4 |
| 88566V | Duct, Air, Rear Roof NO.5 |
| 88578 | Paking, Cooler Air Duct |

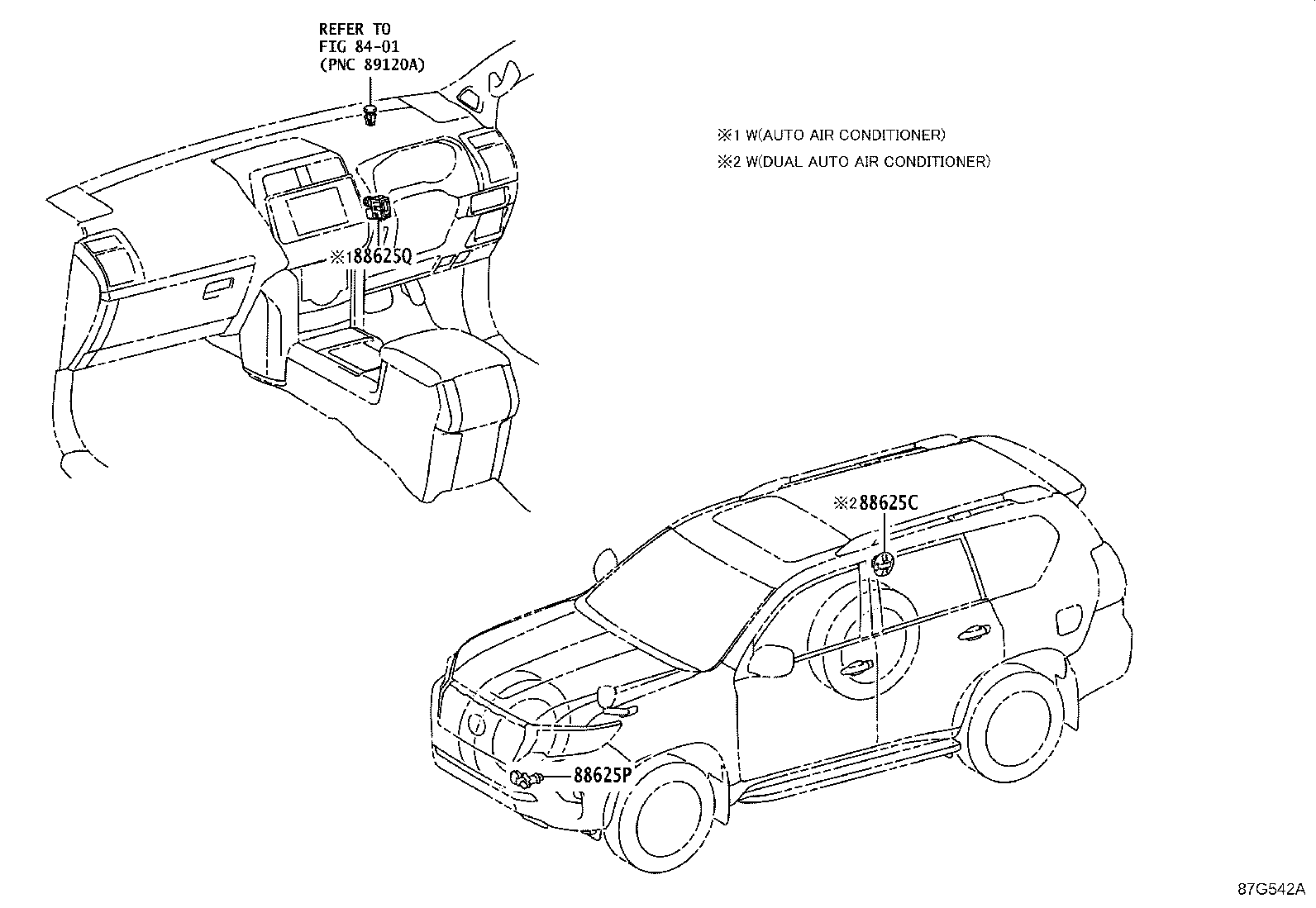

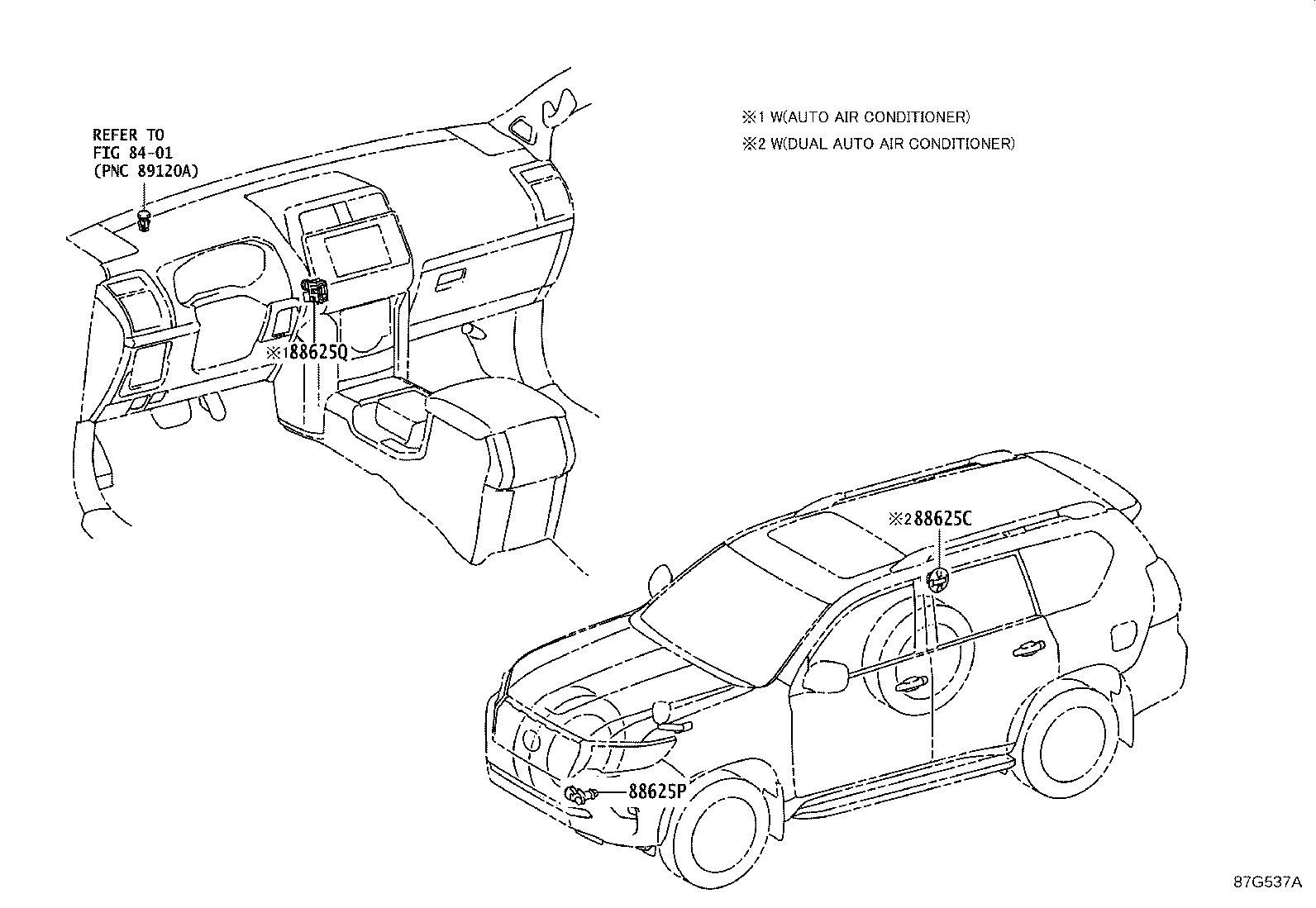

| 88625C | Thermistor, Cooler |
| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
