Toyota Land Cruiser

2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe

Supported model Data version 2018-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

53 part groups · 15 illustrations

Illustrations

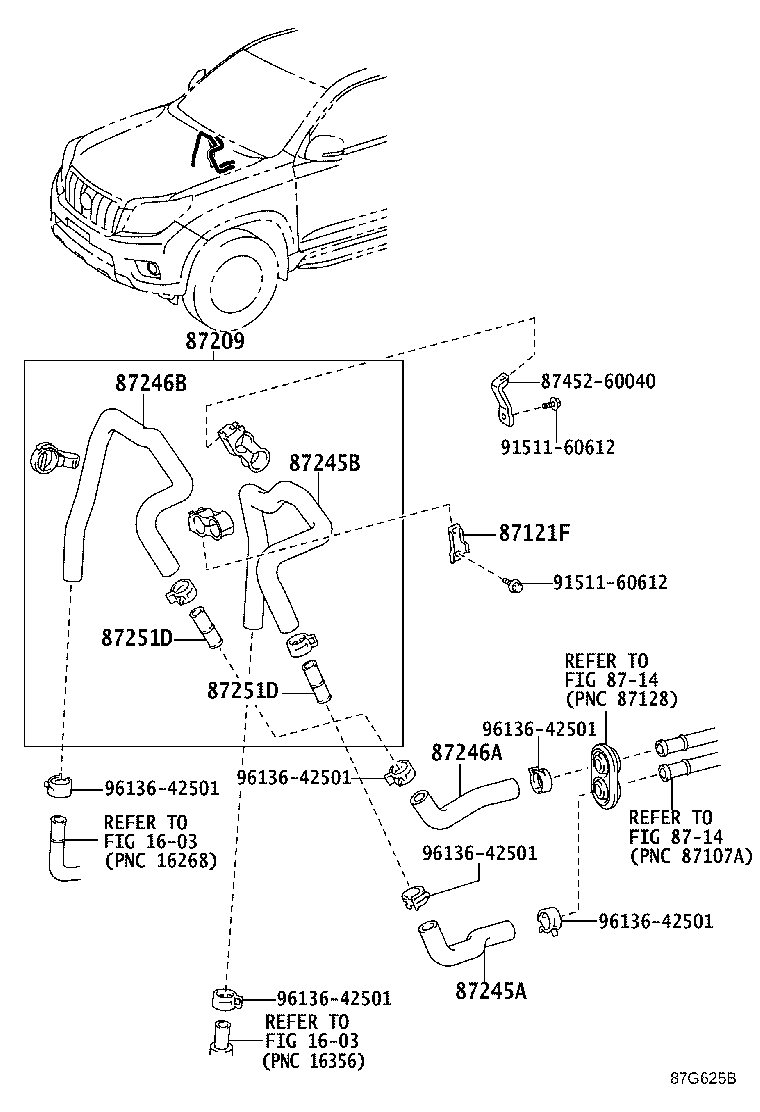

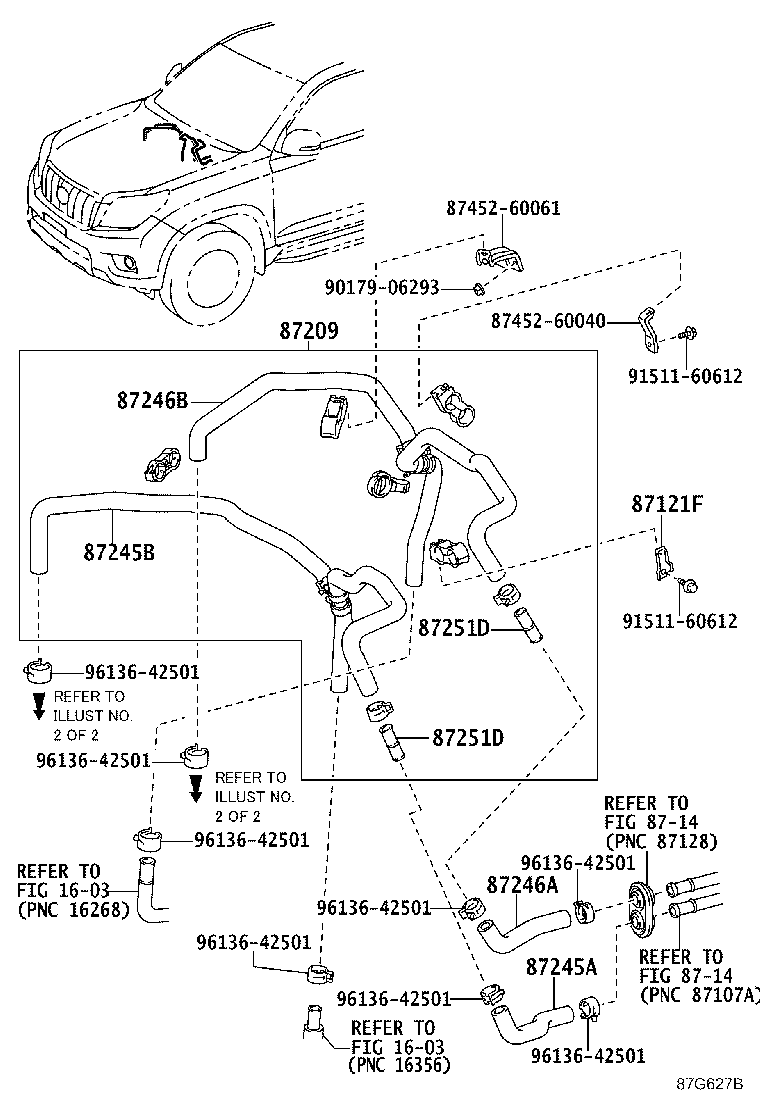

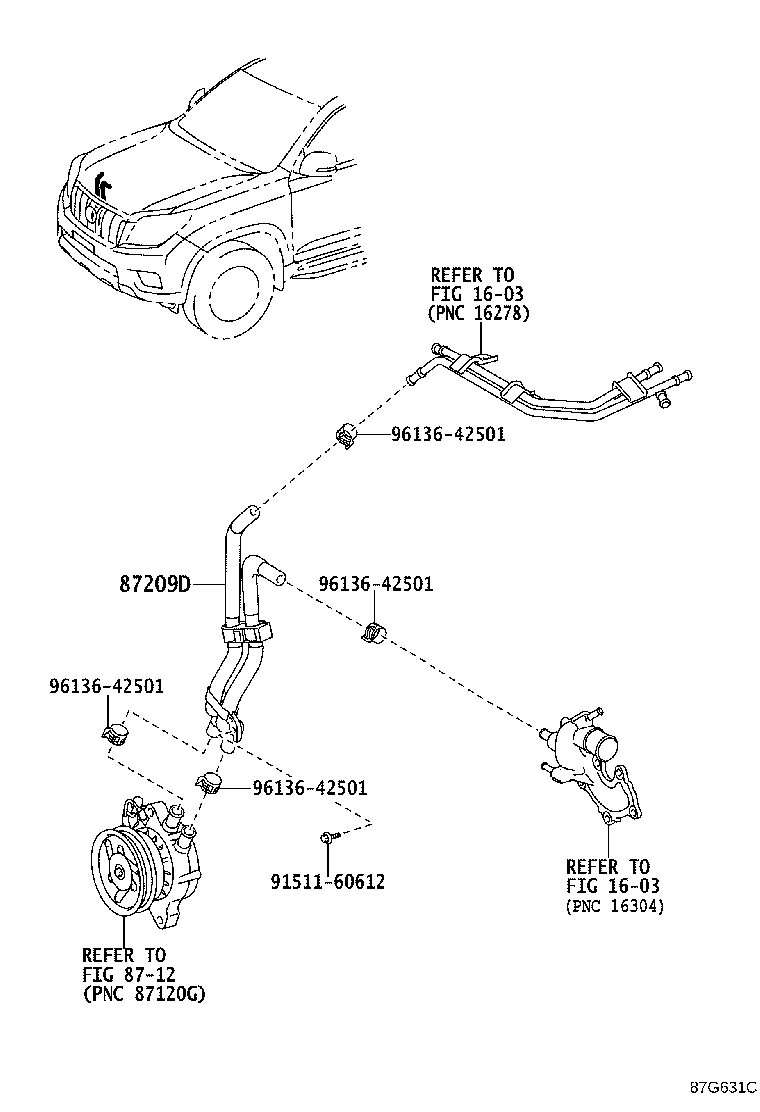

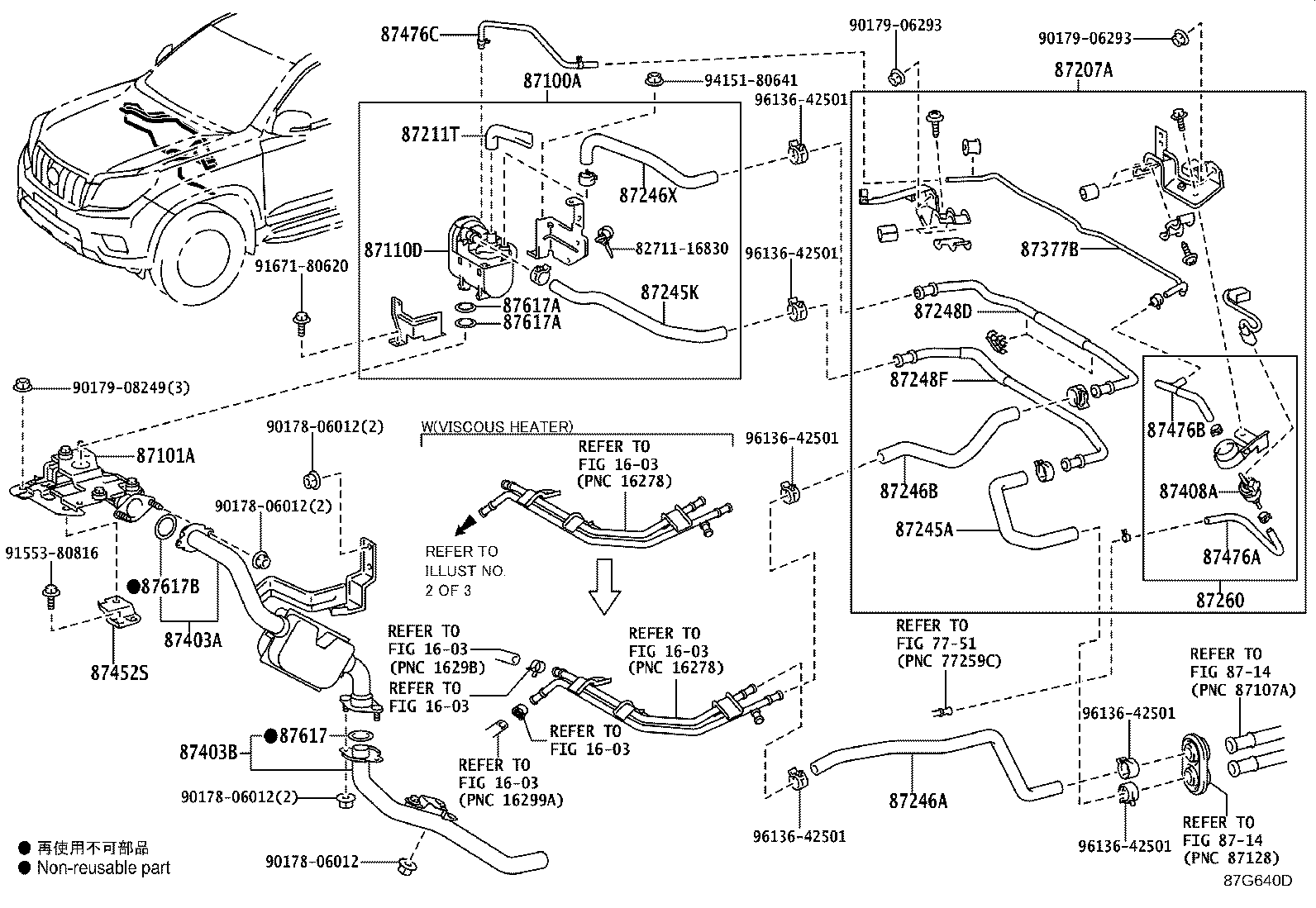

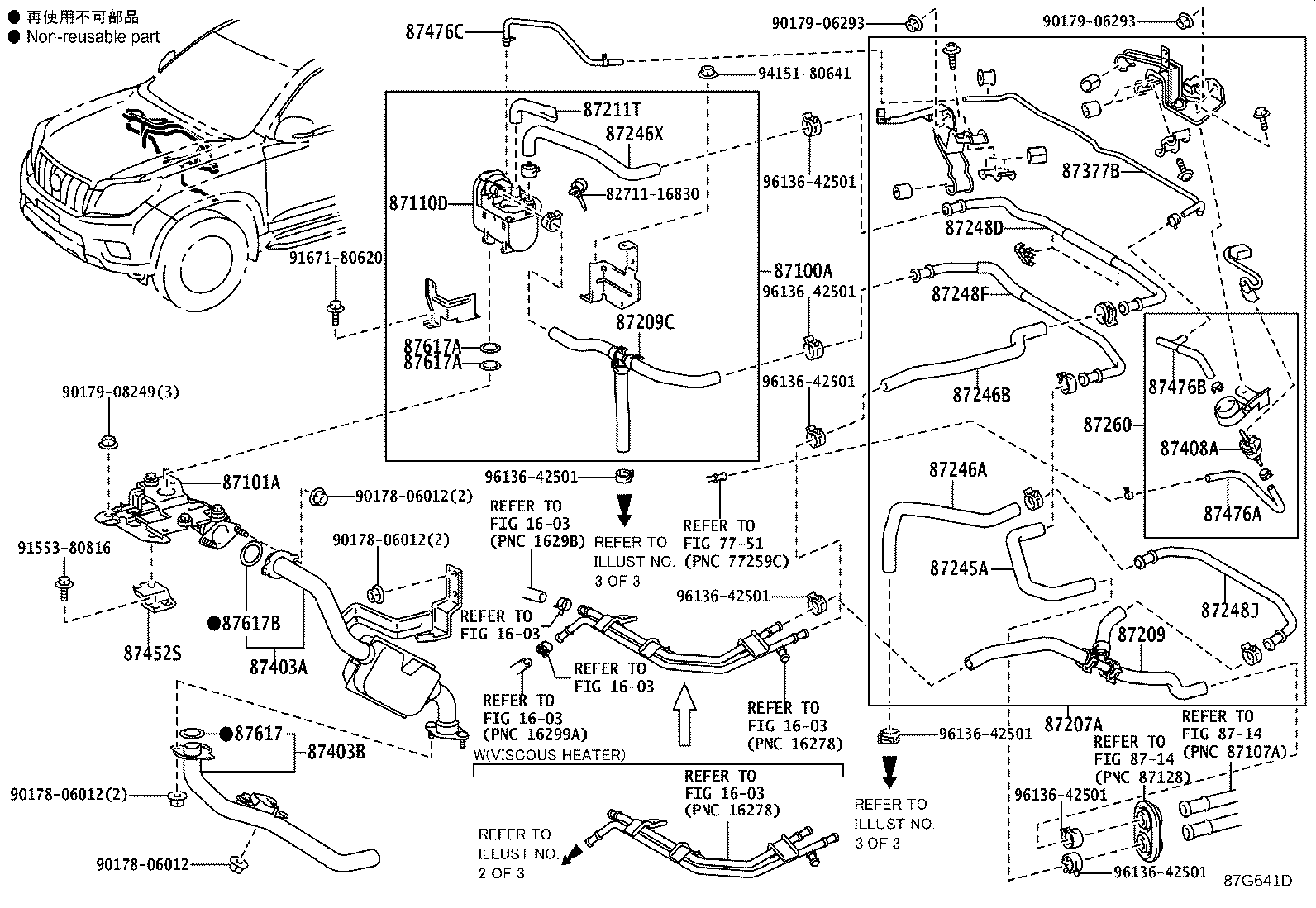

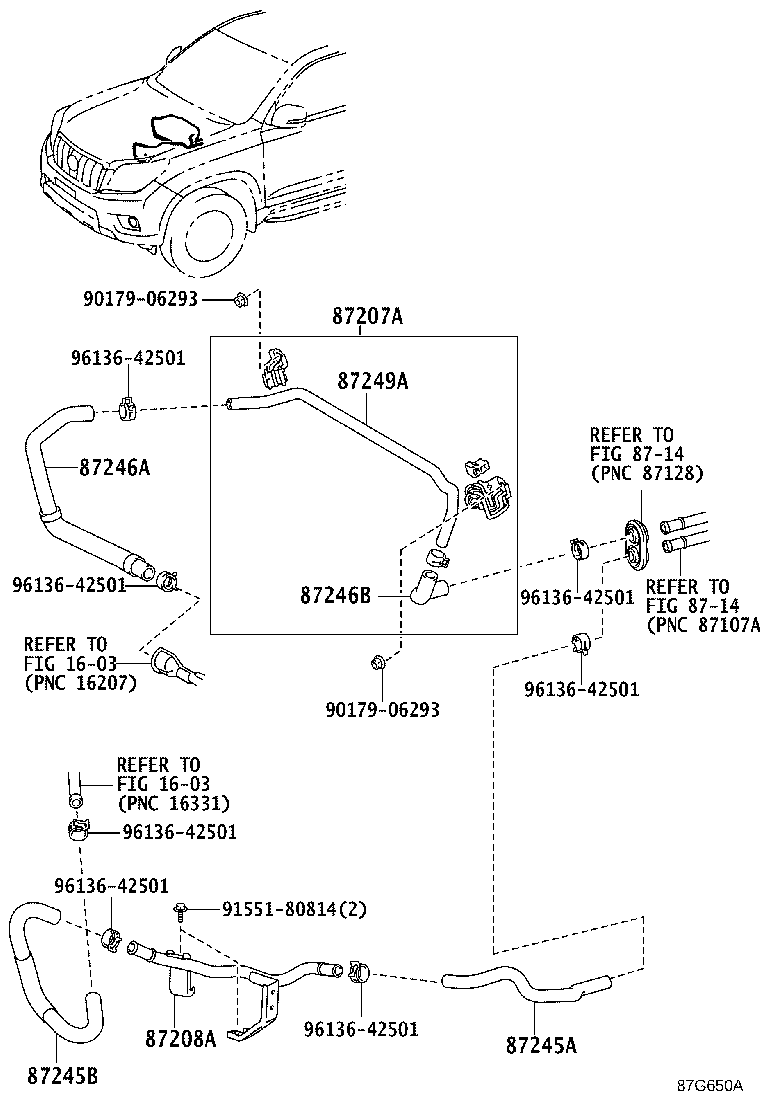

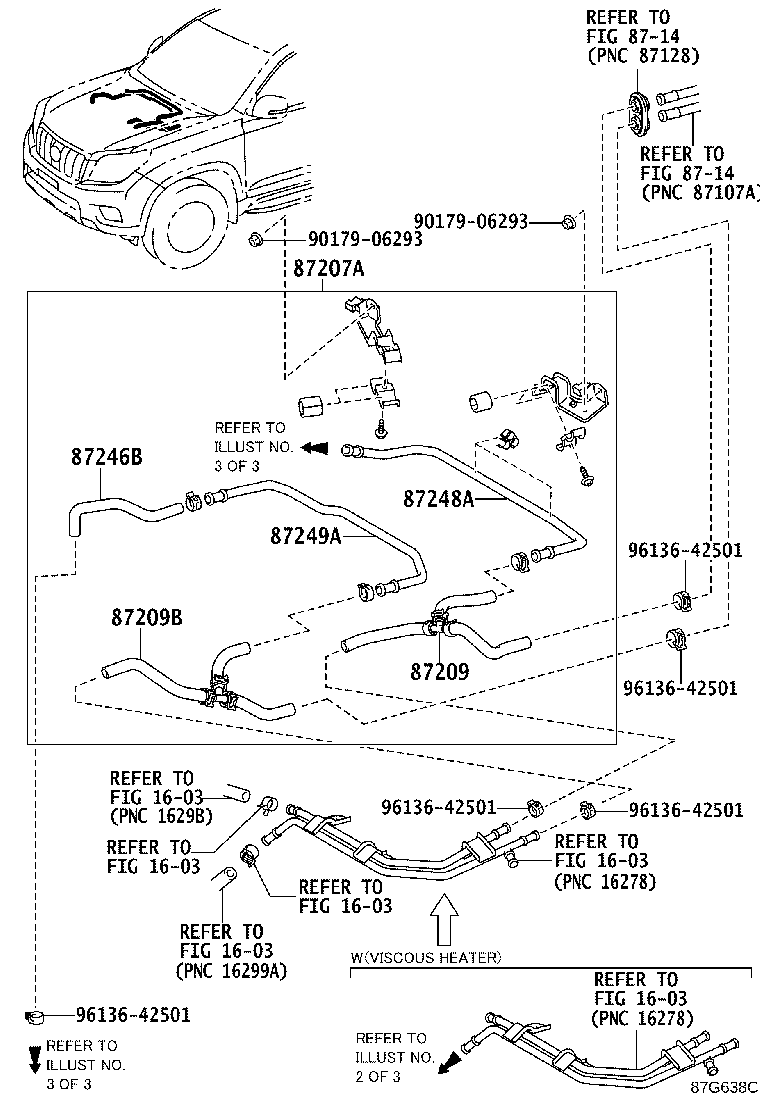

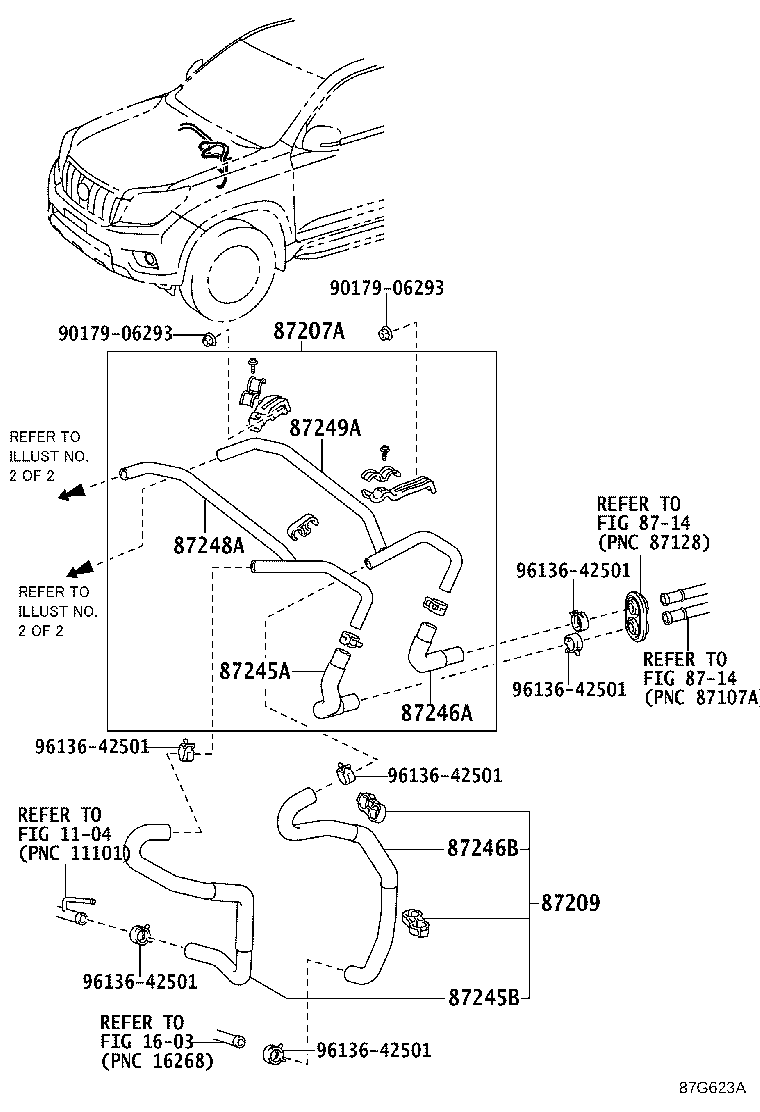

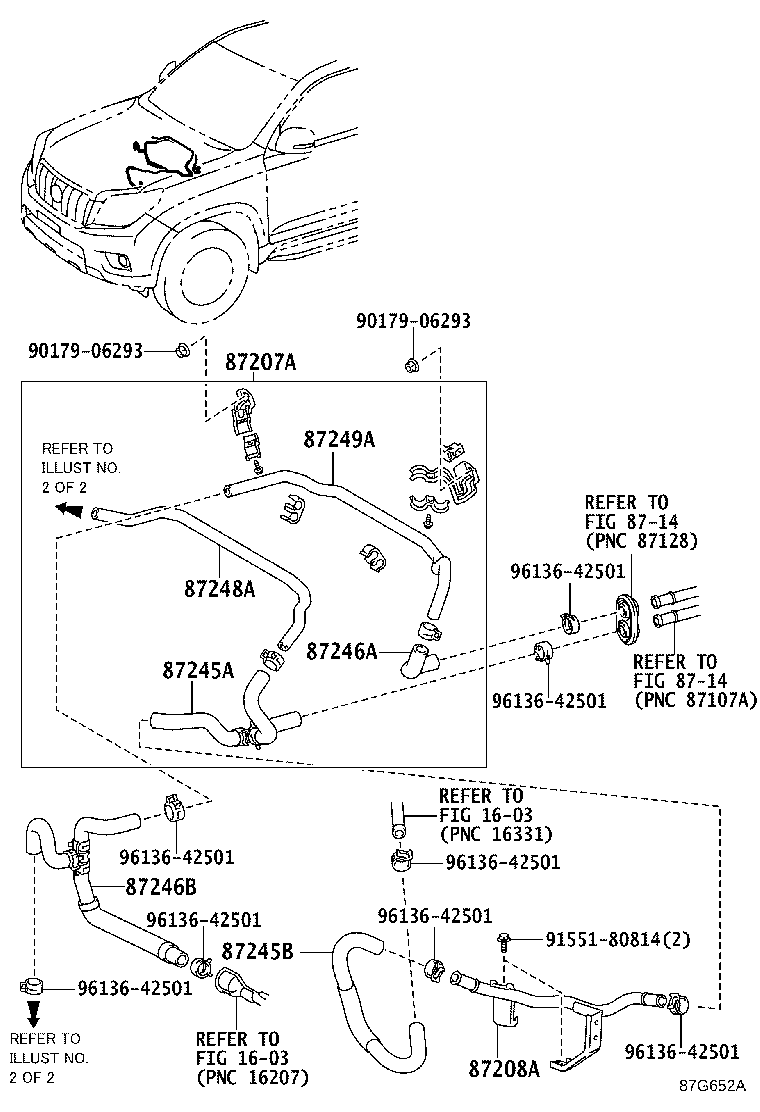

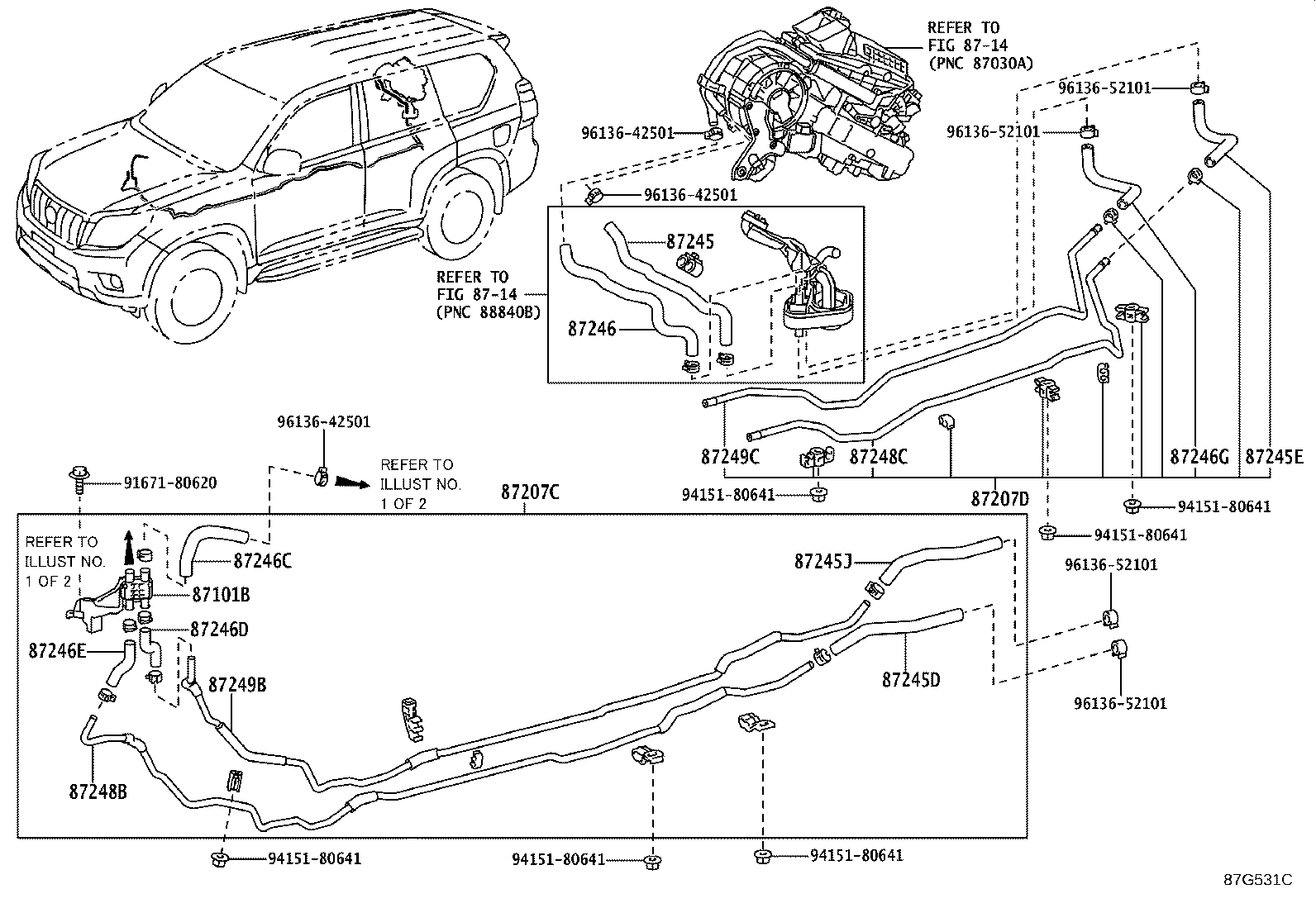

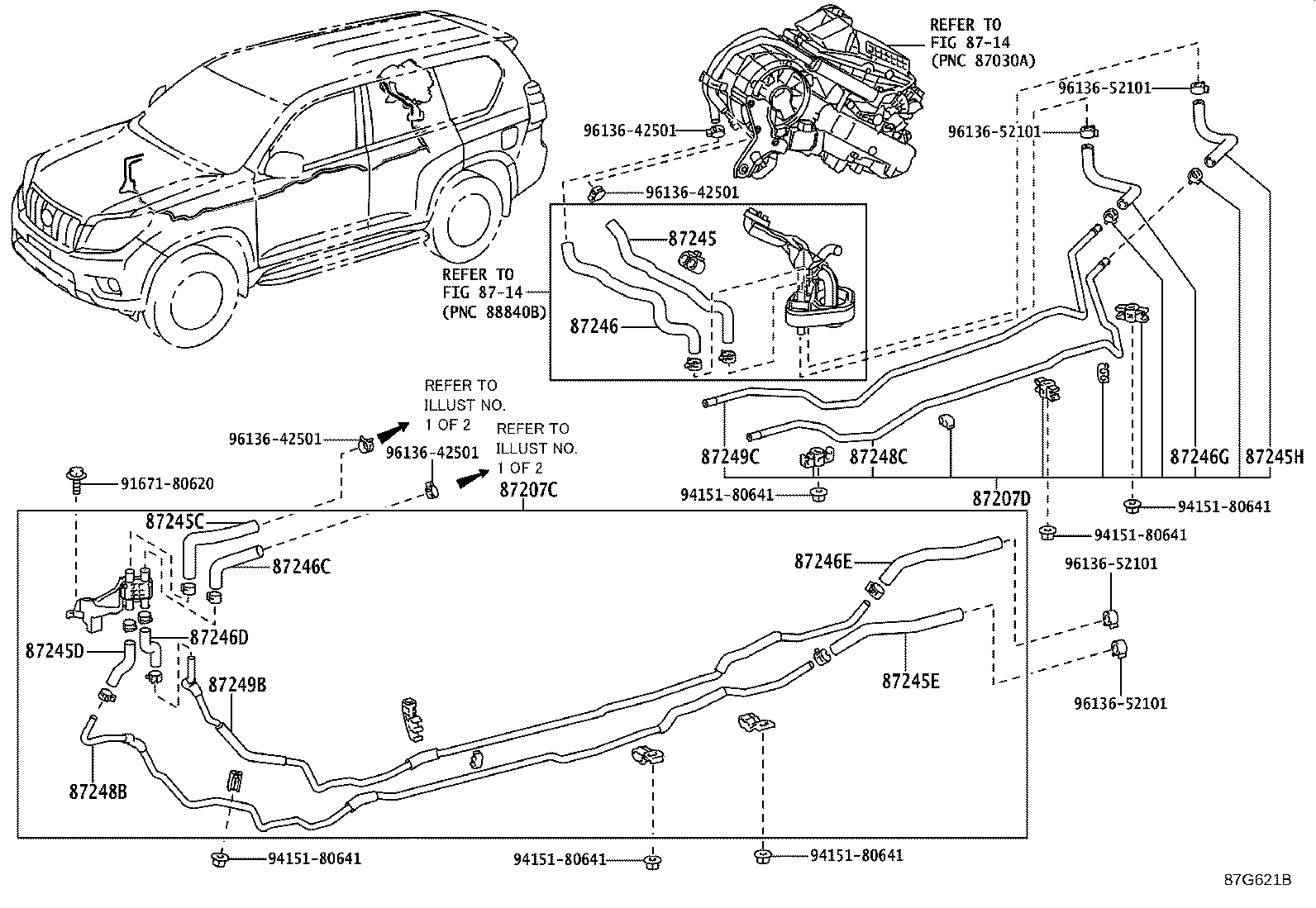

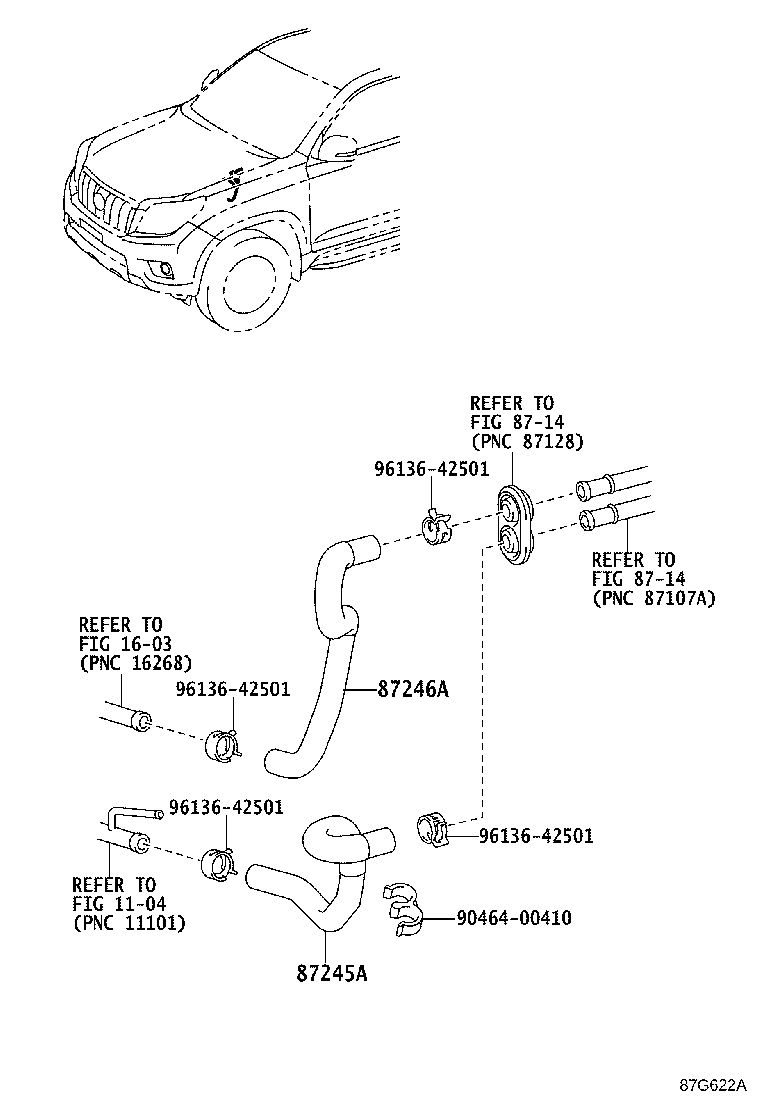

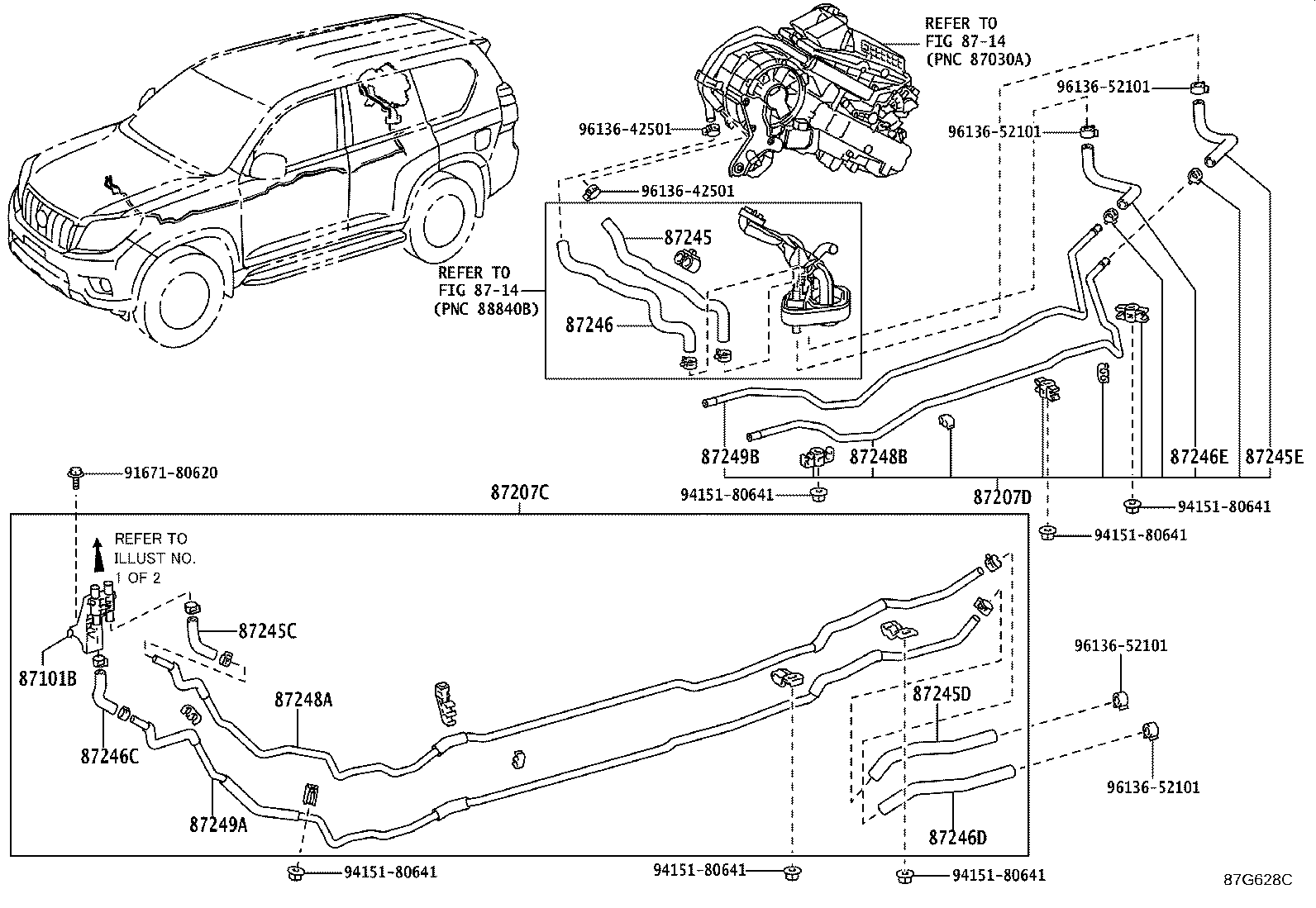

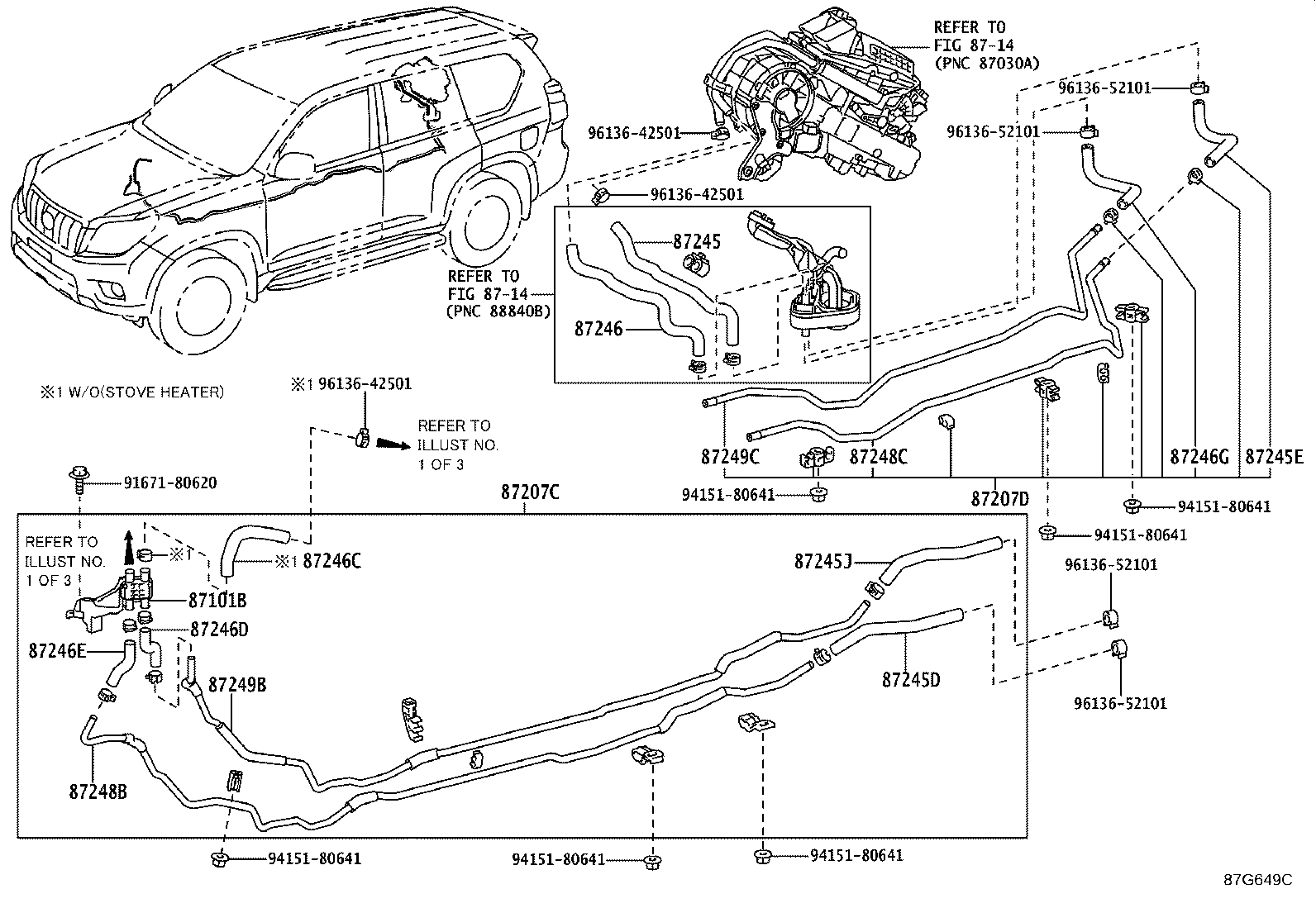

Figure 87G629C 87G629C 2017-08 → — Figure 87G638C 87G638C 2017-08 → — Figure 87G640D 87G640D 2017-08 → — Figure 87G641D 87G641D 2017-08 → — Figure 87G625B 87G625B 2017-08 → — Figure 87G627B 87G627B 2017-08 → — Figure 87G650A 87G650A 2017-08 → — Figure 87G652A 87G652A 2017-08 → — Figure 87G622A 87G622A 2017-08 → — Figure 87G623A 87G623A 2017-08 → — Figure 87G628C 87G628C 2017-08 → — Figure 87G531C 87G531C 2017-08 → — Figure 87G621B 87G621B 2017-08 → — Figure 87G631C 87G631C 2017-08 → — Figure 87G649C 87G649C 2017-08 → —

Part groups

PNCDescription
87100A Heater & Accessory Assy
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87110D Heater Assy
87121F Bracket, Heater
87207A Pipe & Hose Sub-assy, Water A
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87208A Pipe Sub-assy, Heater Water, A
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87209D Hose Sub-assy, Water, D
87211T Duct, Air
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245J Hose, Heater Water, Inlet J
87245K Hose, Heater Water, Inlet K
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87246X Hose, Heater Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87248J Pipe, Heater Water Inlet, J
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87251D Joint, Water, NO.1
87260 Pump Assy, Heater
87377B Pipe, Fuel
87403A Pipe Sub-assy, Exhaust
87403B Pipe Sub-assy, Exhaust
87408A Pump Sub-assy, Fuel
87452S Bracket, Heater, NO.2
87476A Hose, Heater Fuel, NO.1
87476B Hose, Heater Fuel, NO.2
87476C Hose, Heater Fuel, NO.3
87617 Gasket, Heat Exchanger Unit NO.1
87617A Gasket, Heat Exchanger Unit NO.2
87617B Gasket, Heat Exchanger Unit NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
