Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

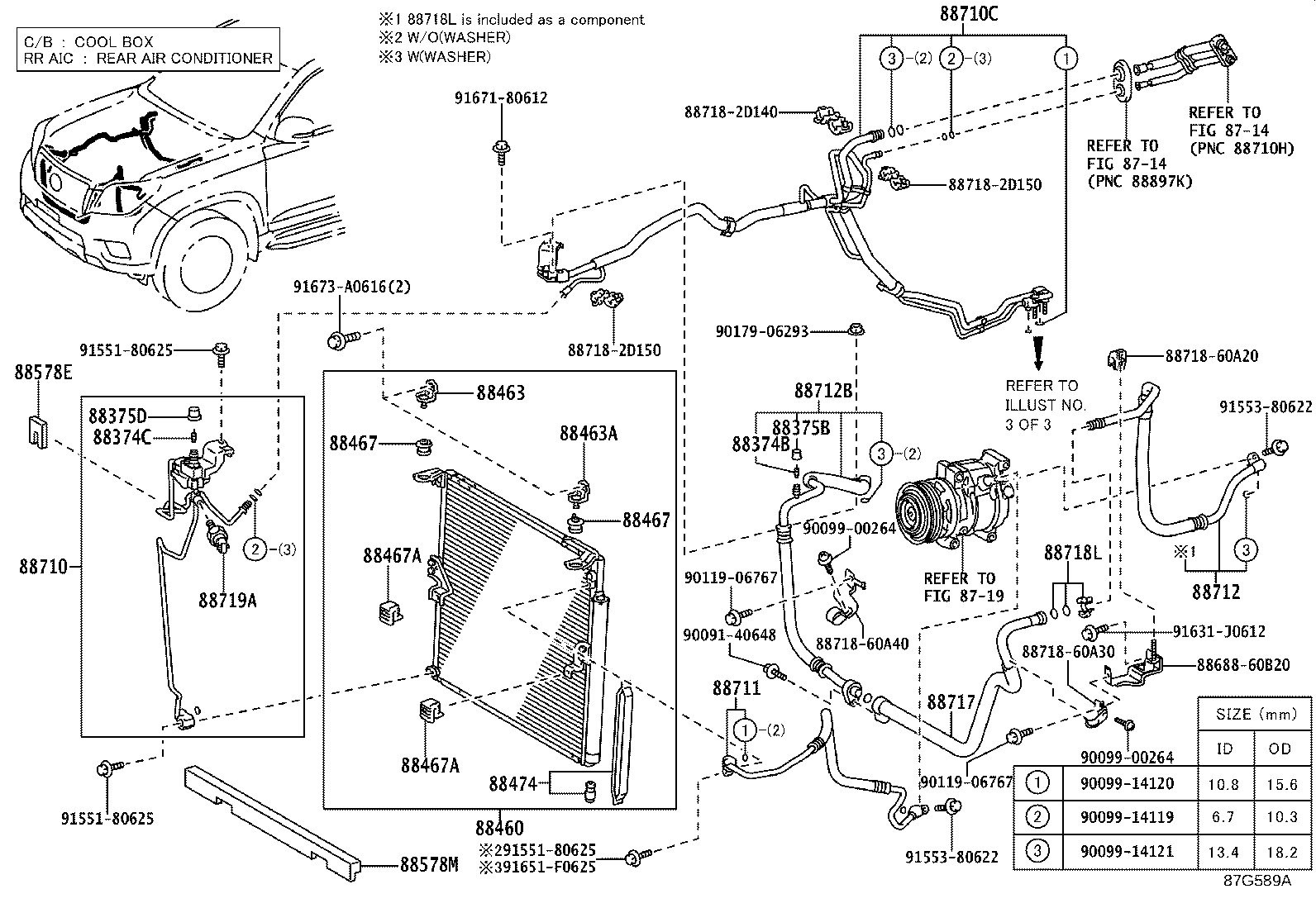

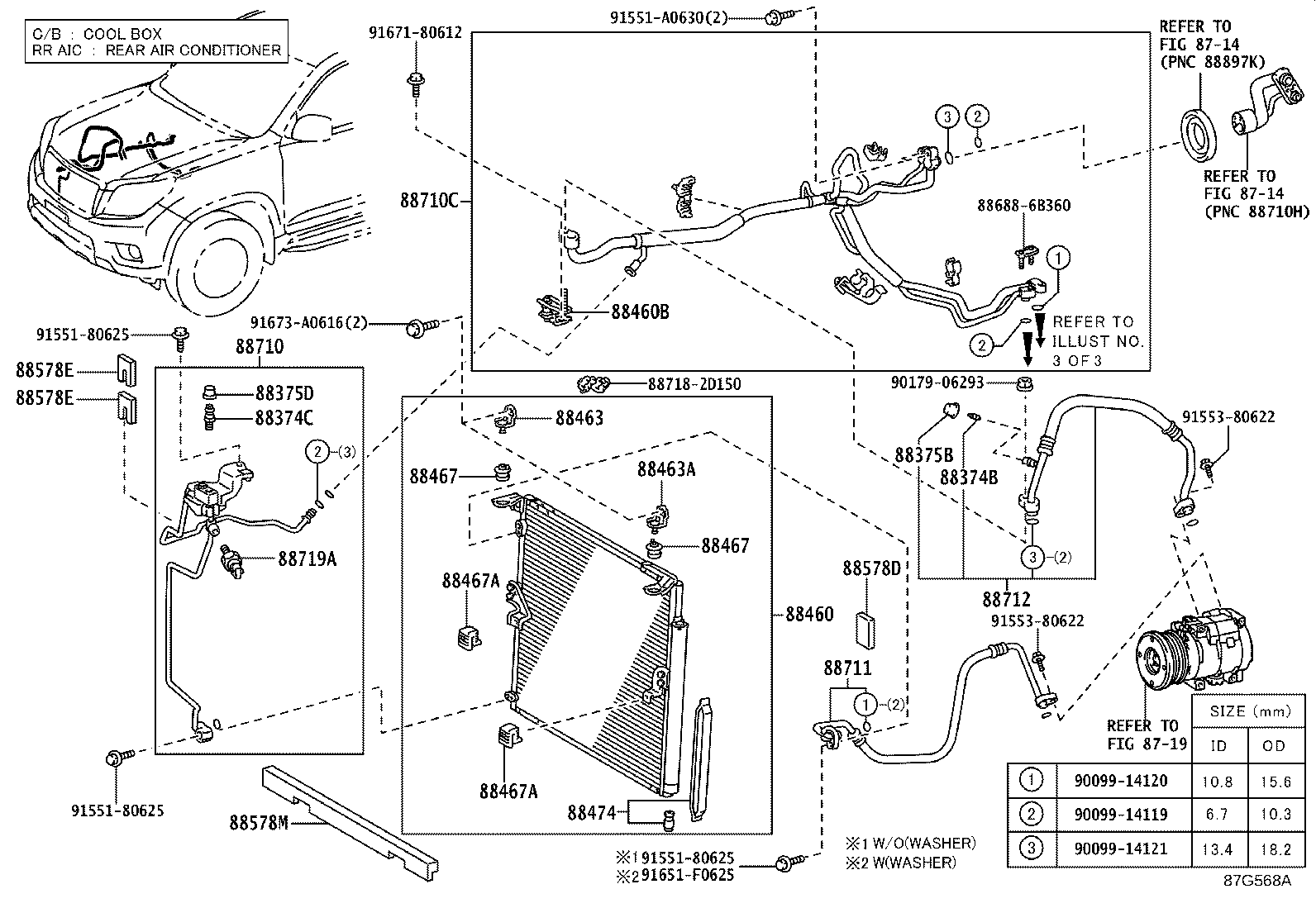

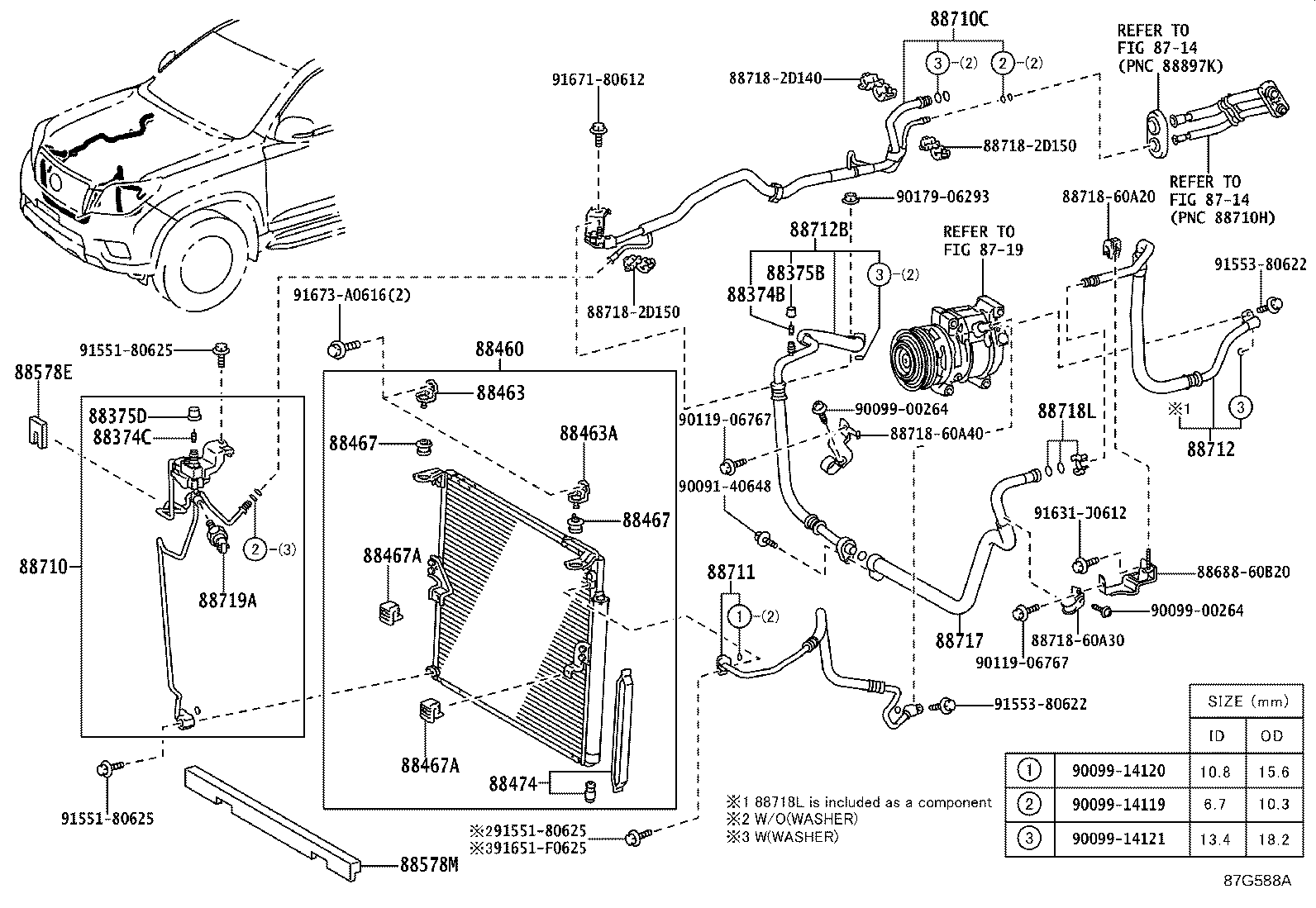

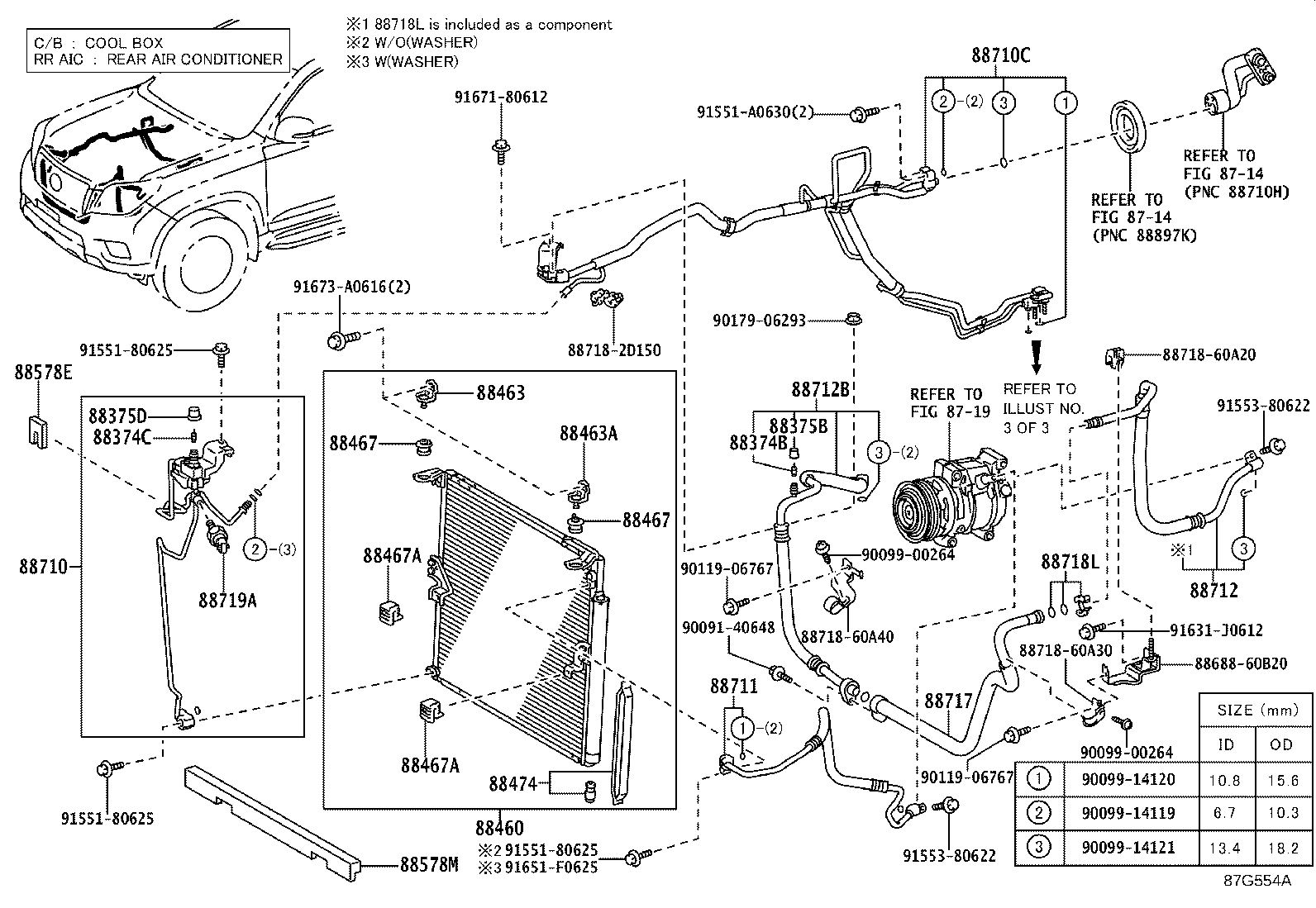

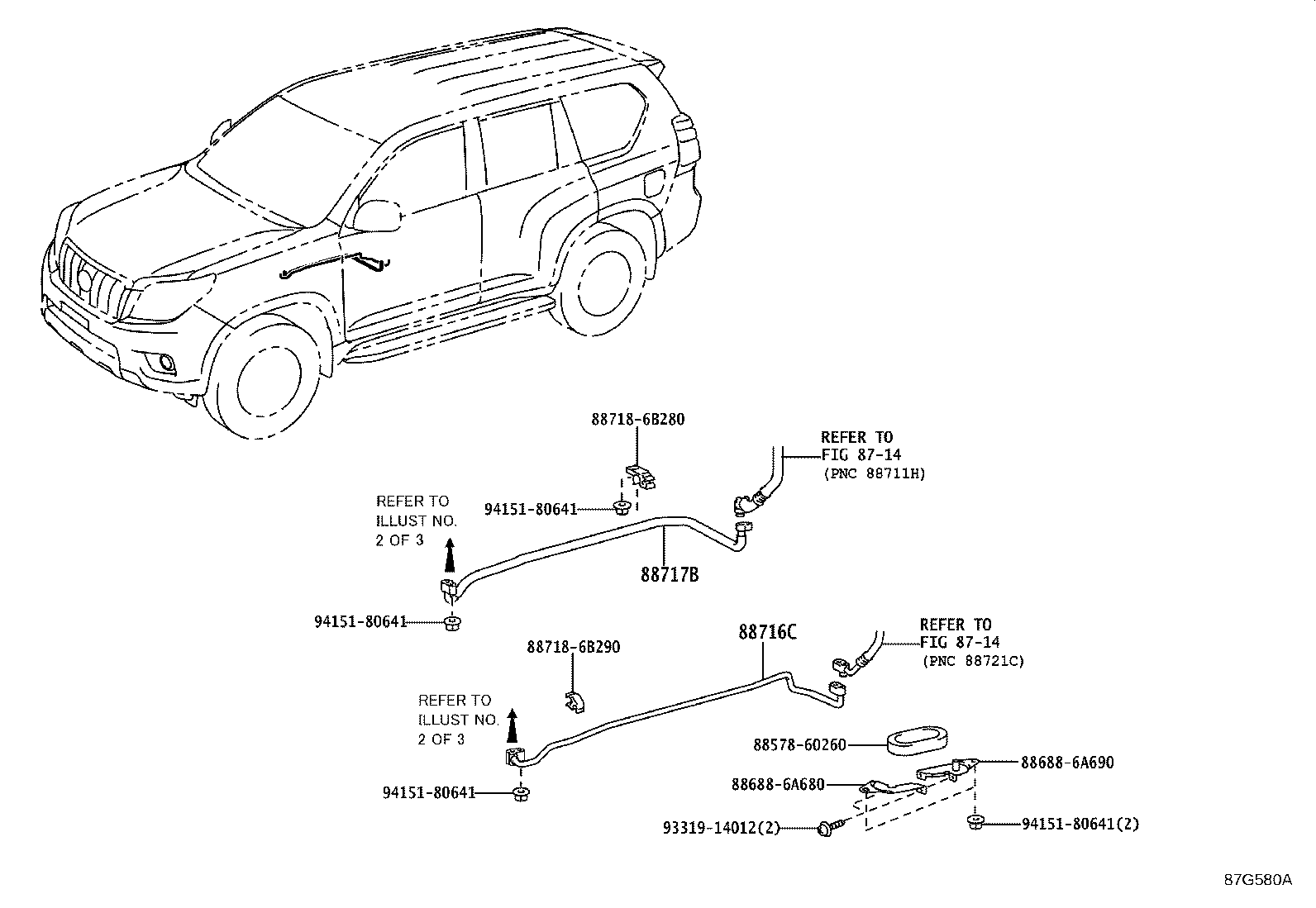

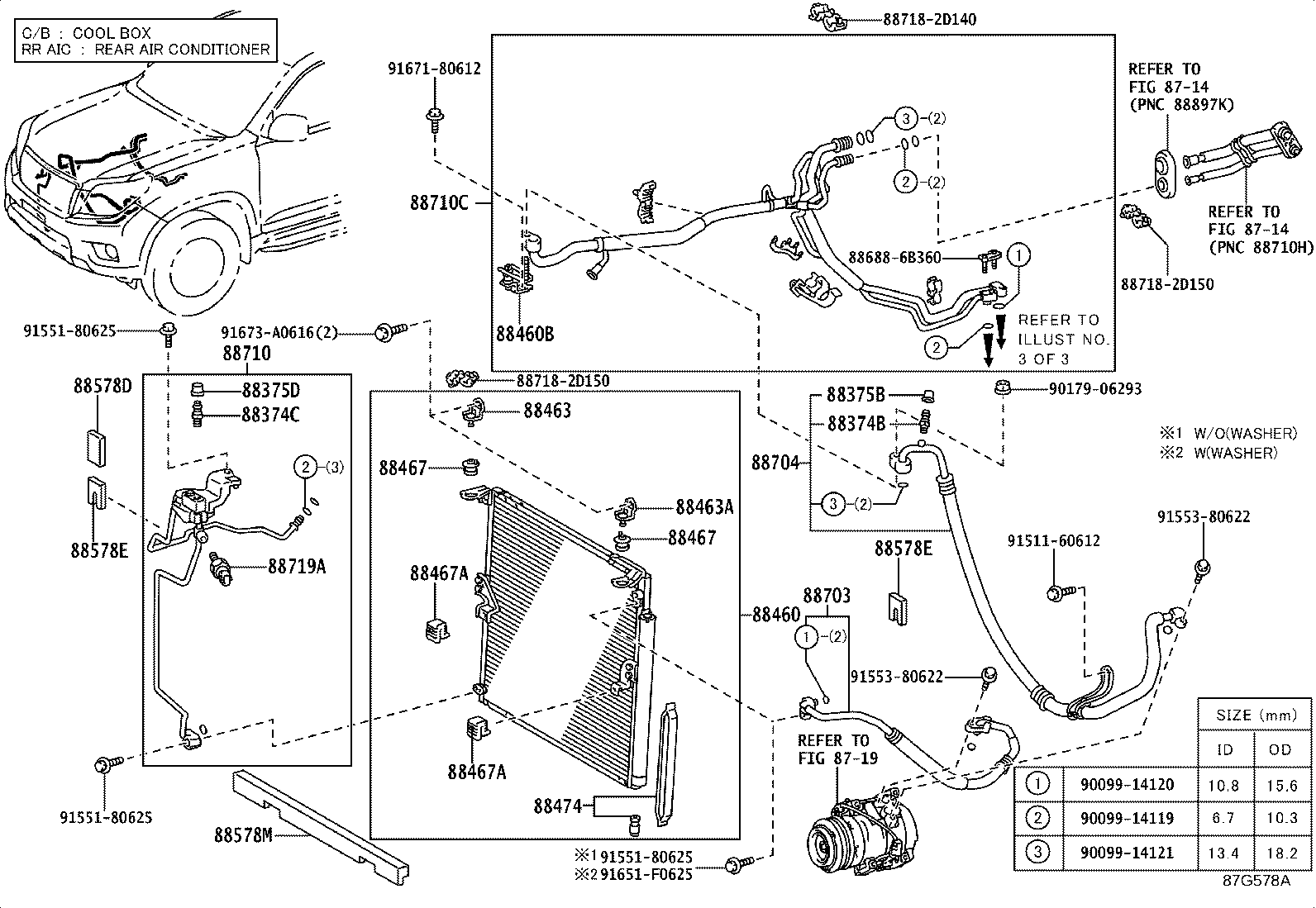

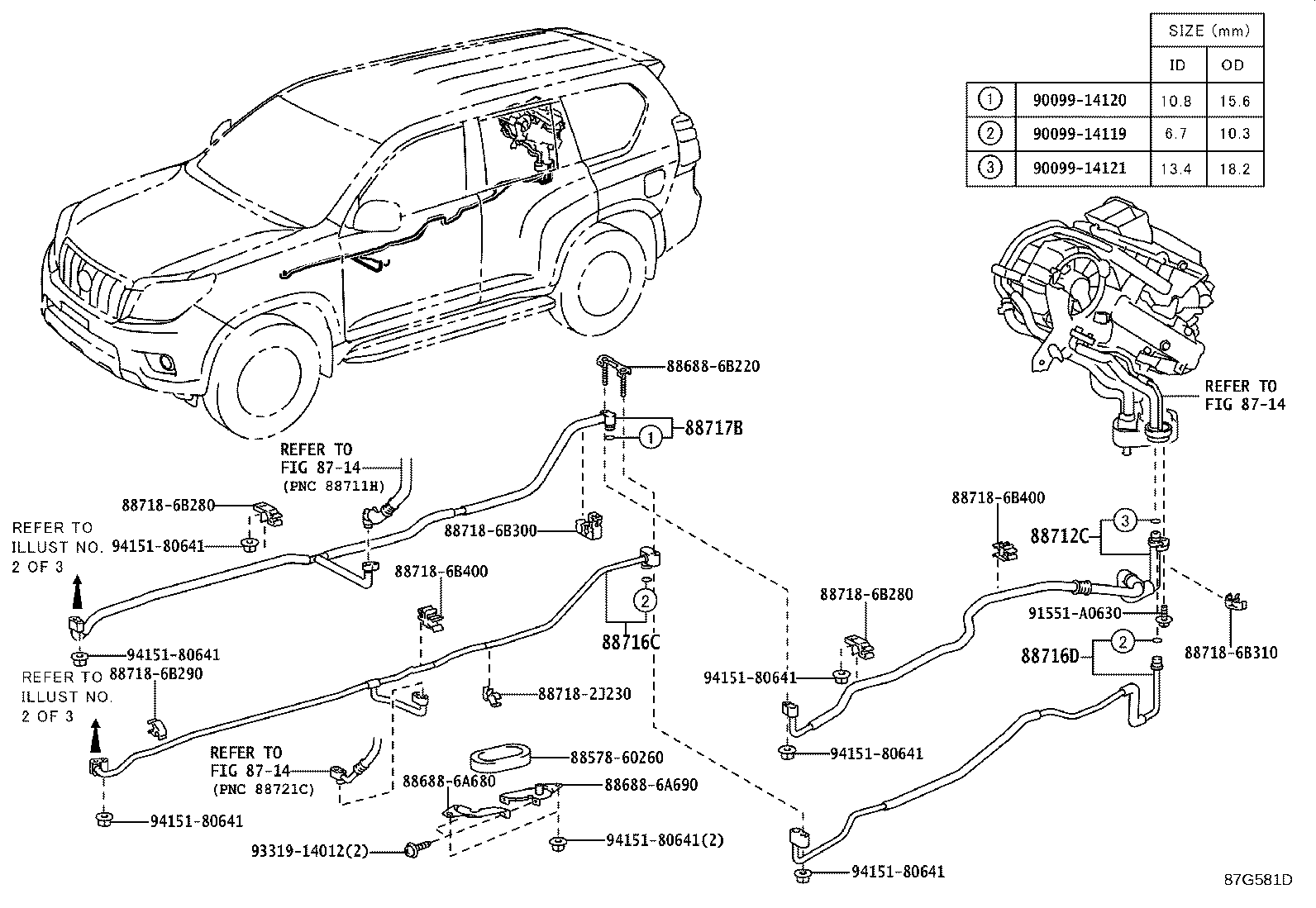

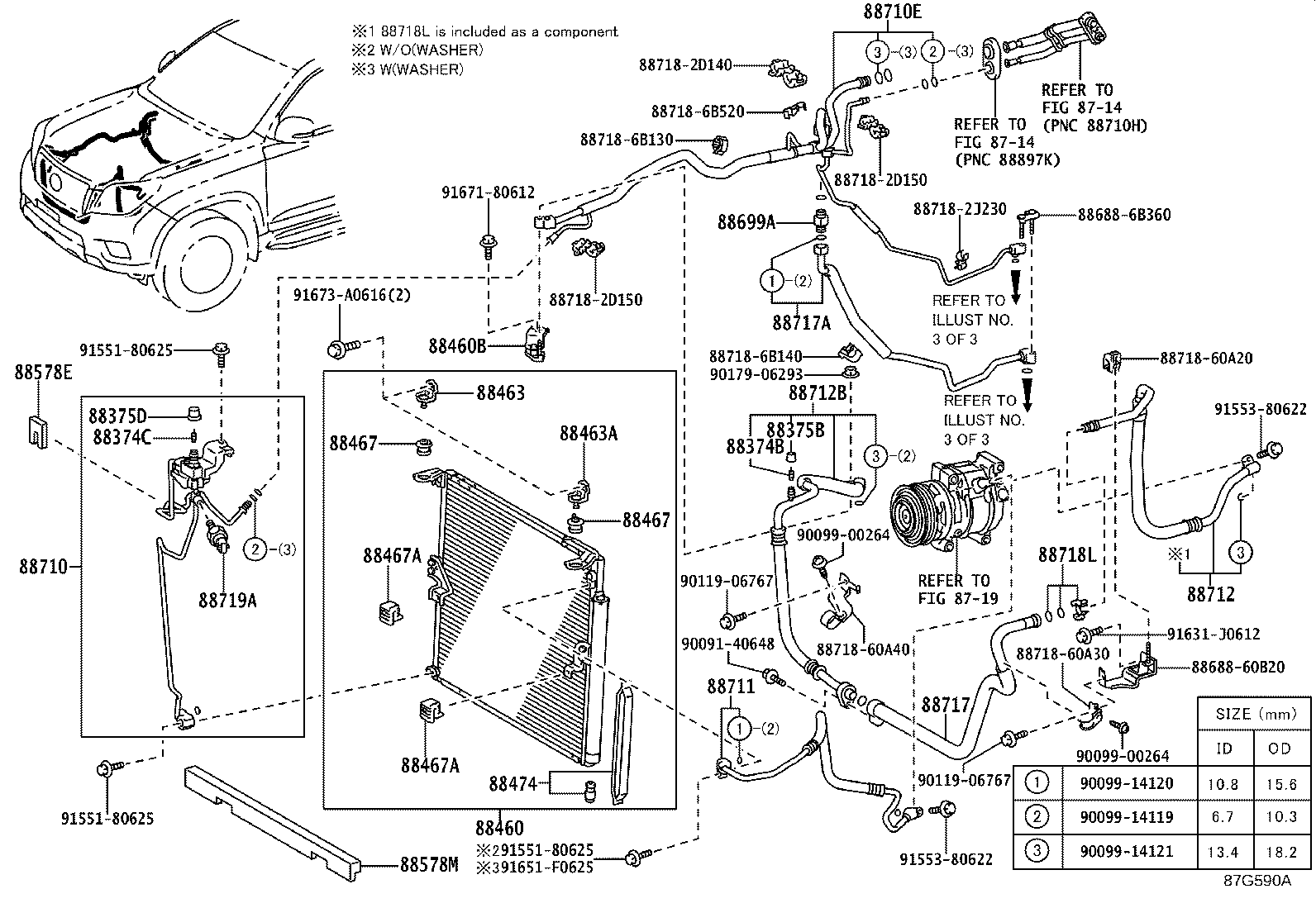

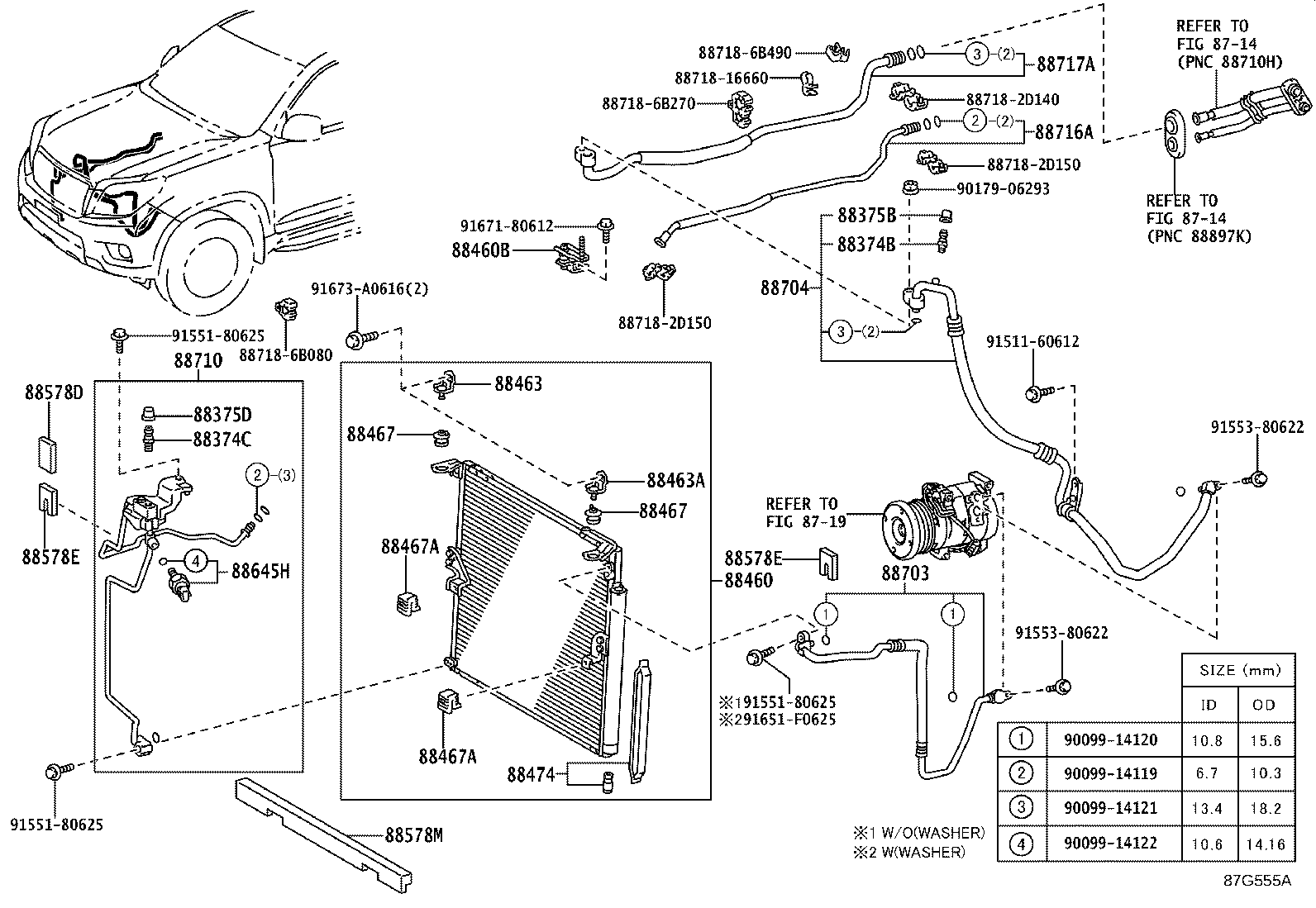

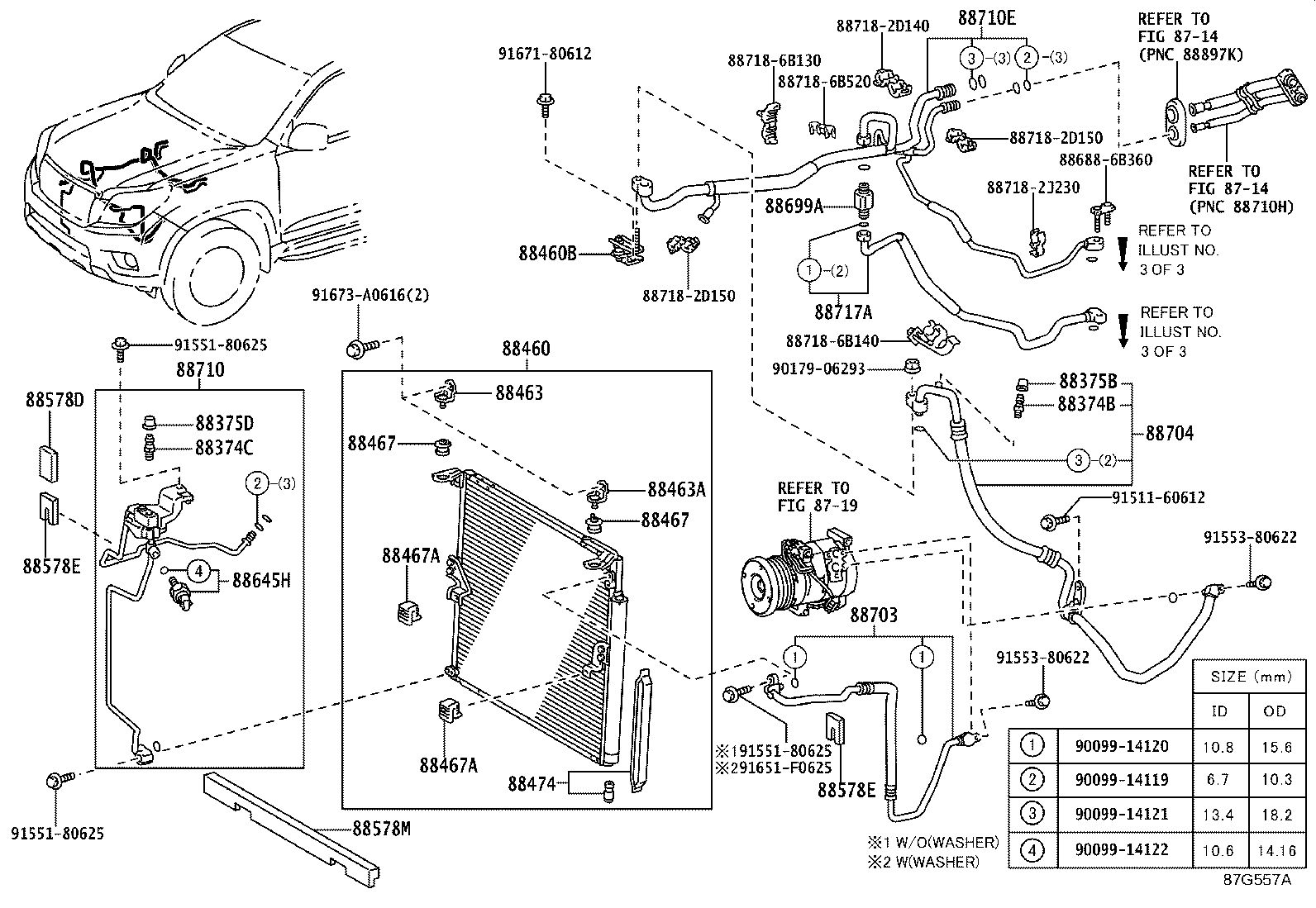

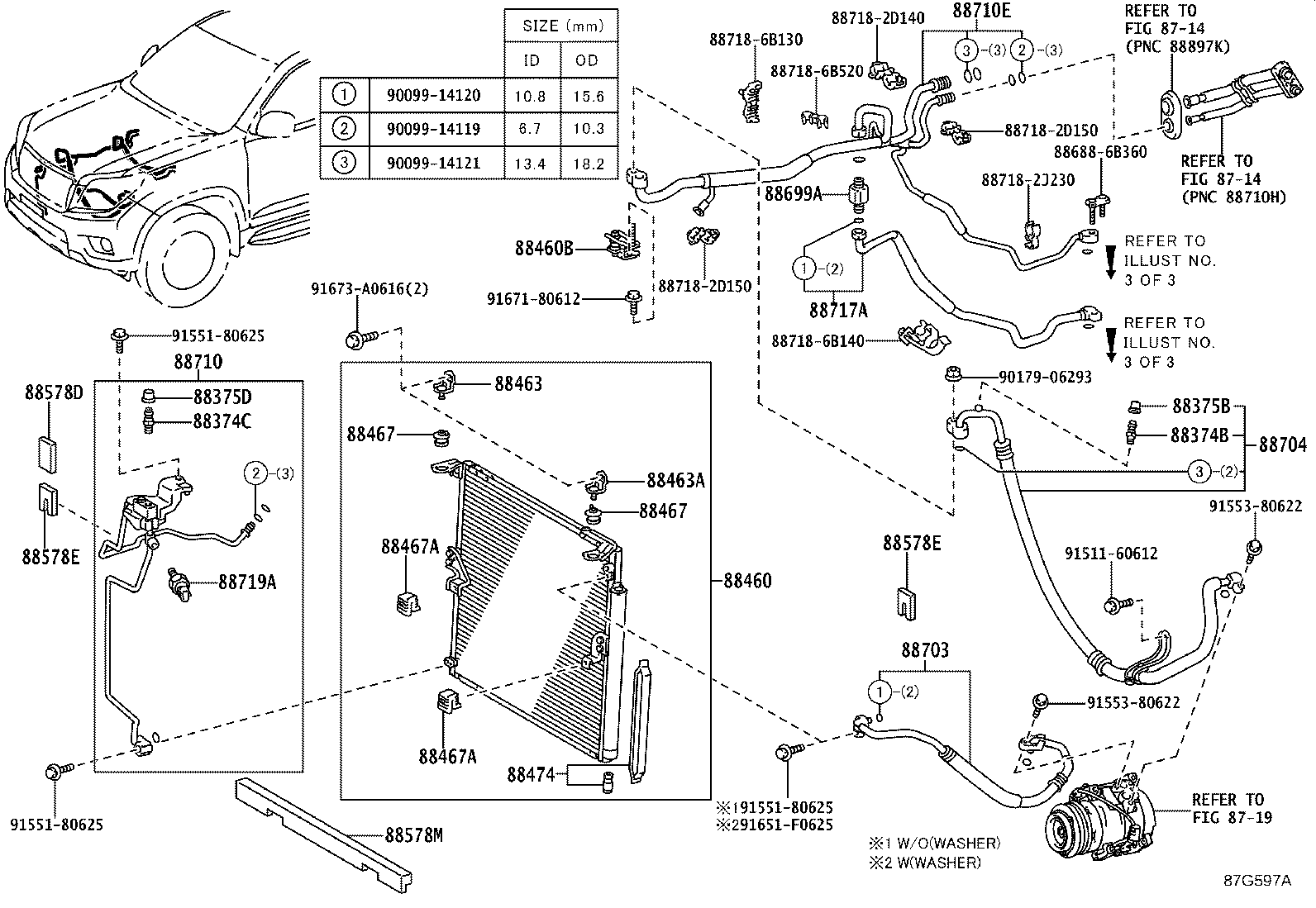

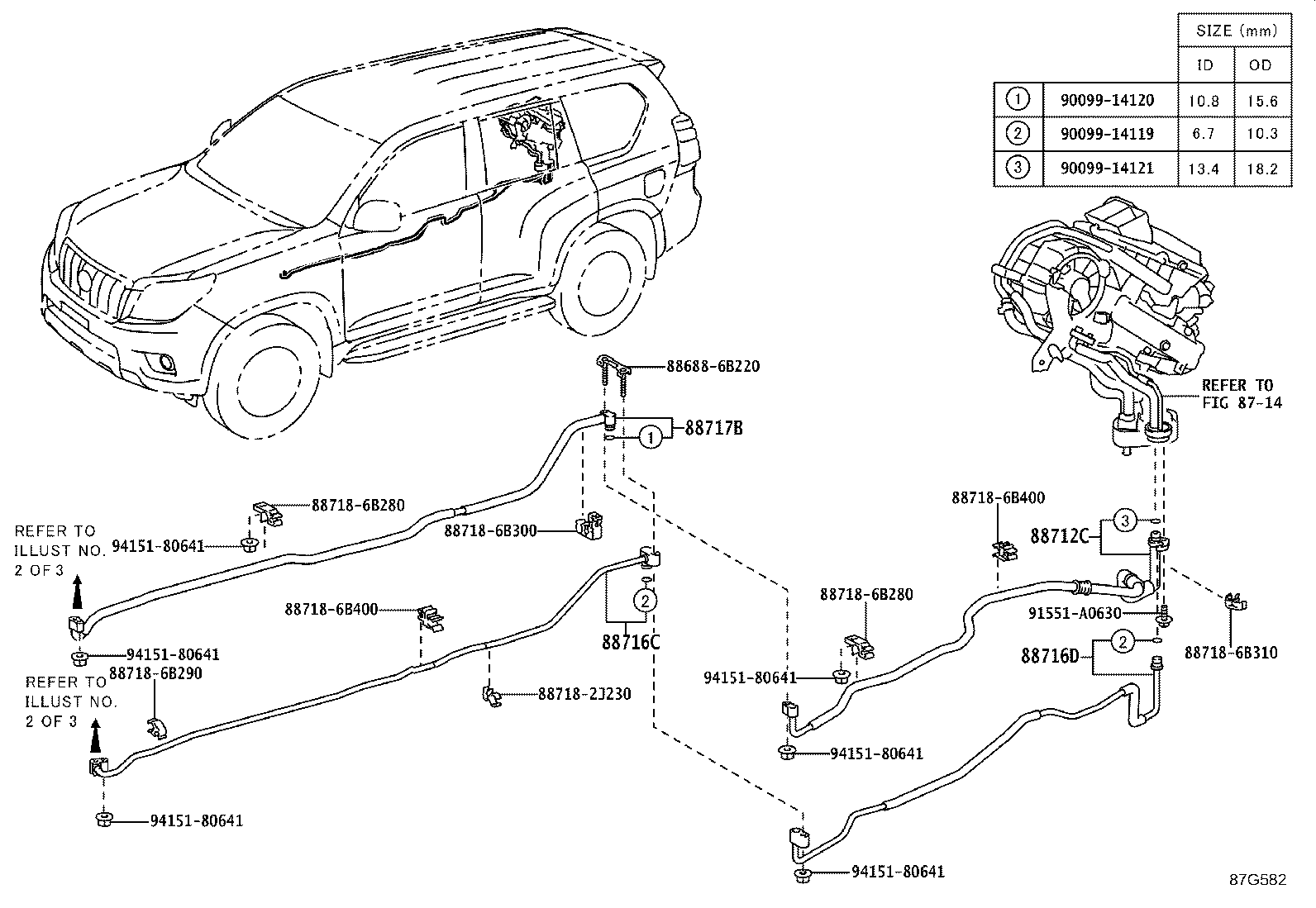

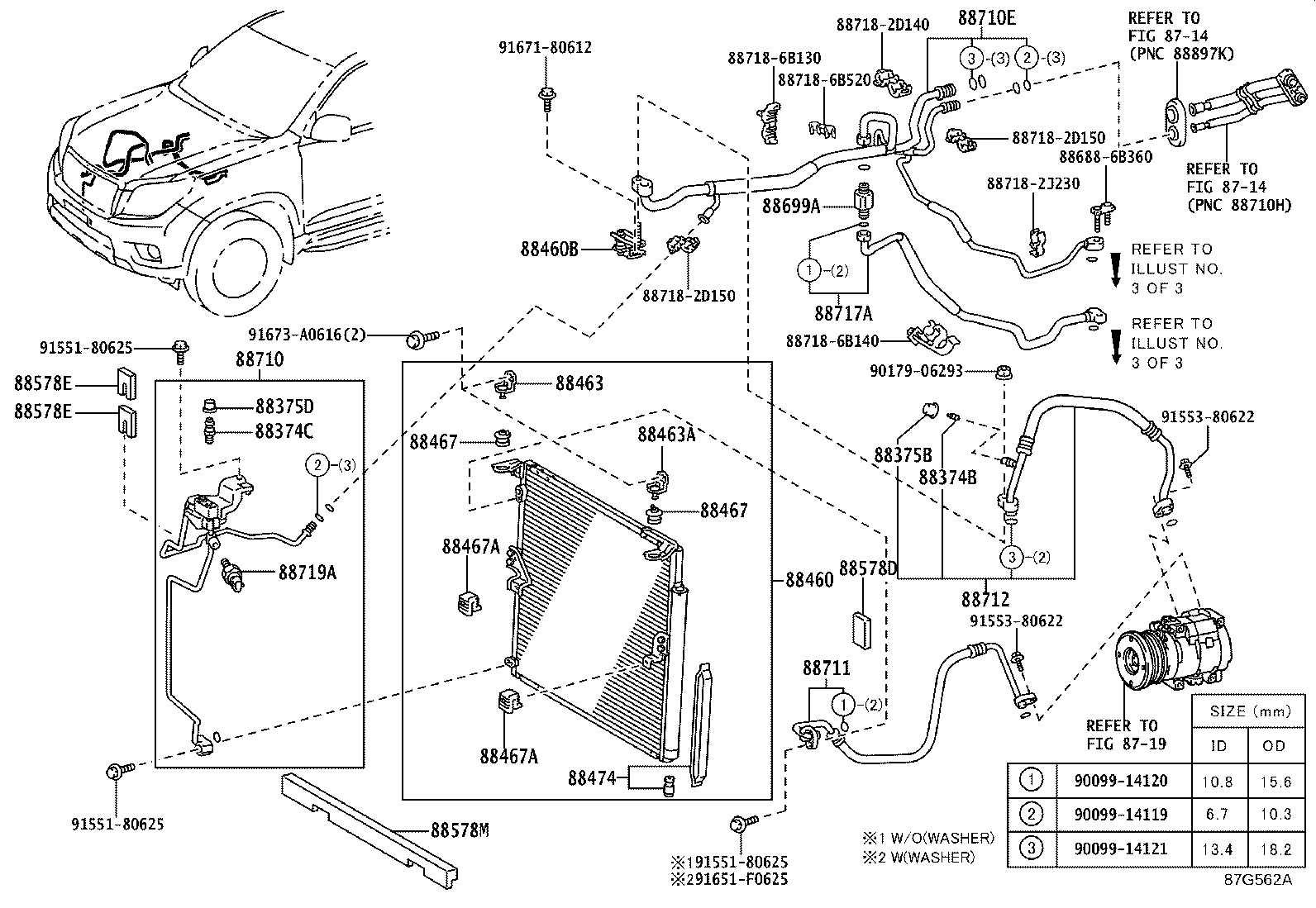

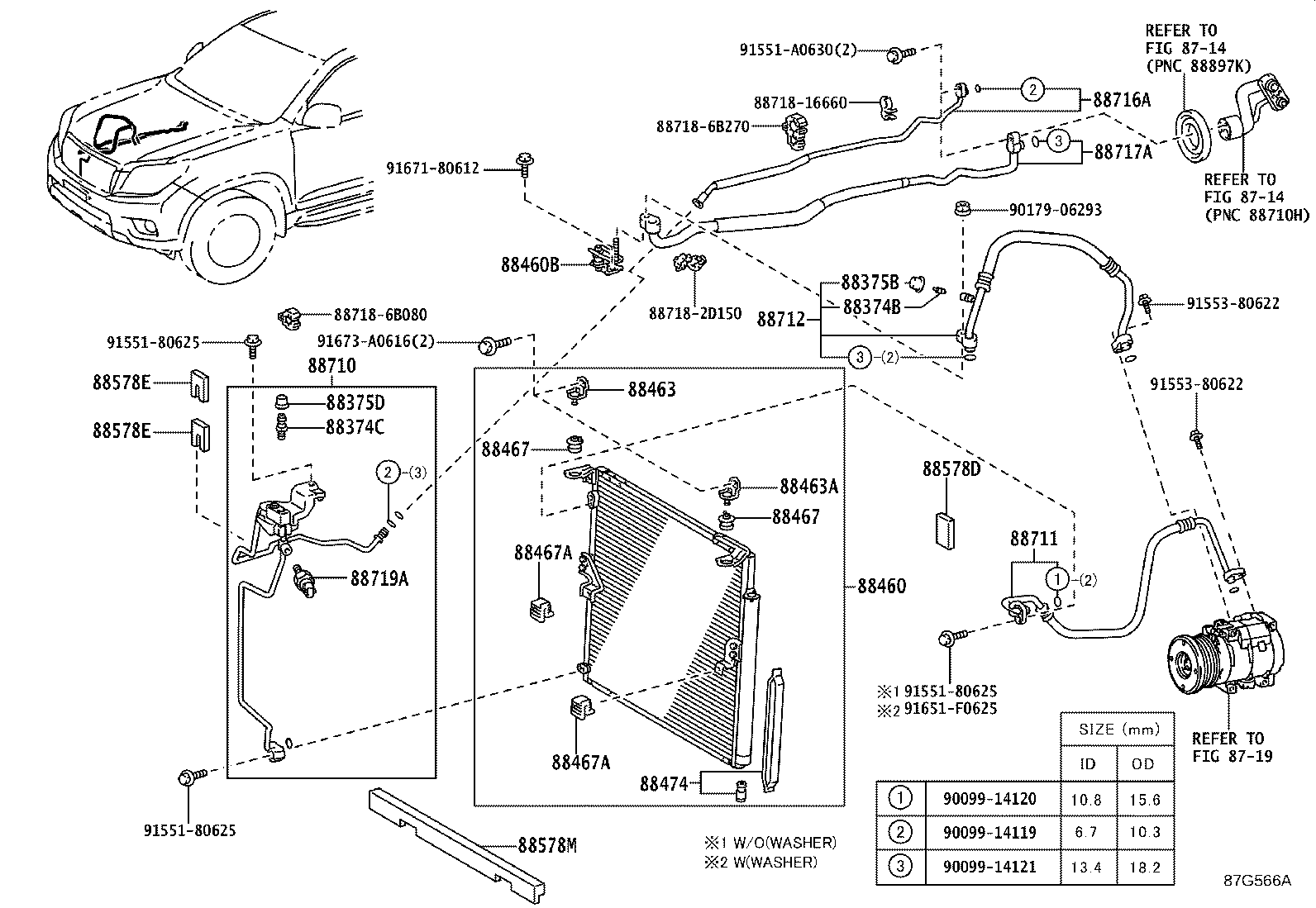

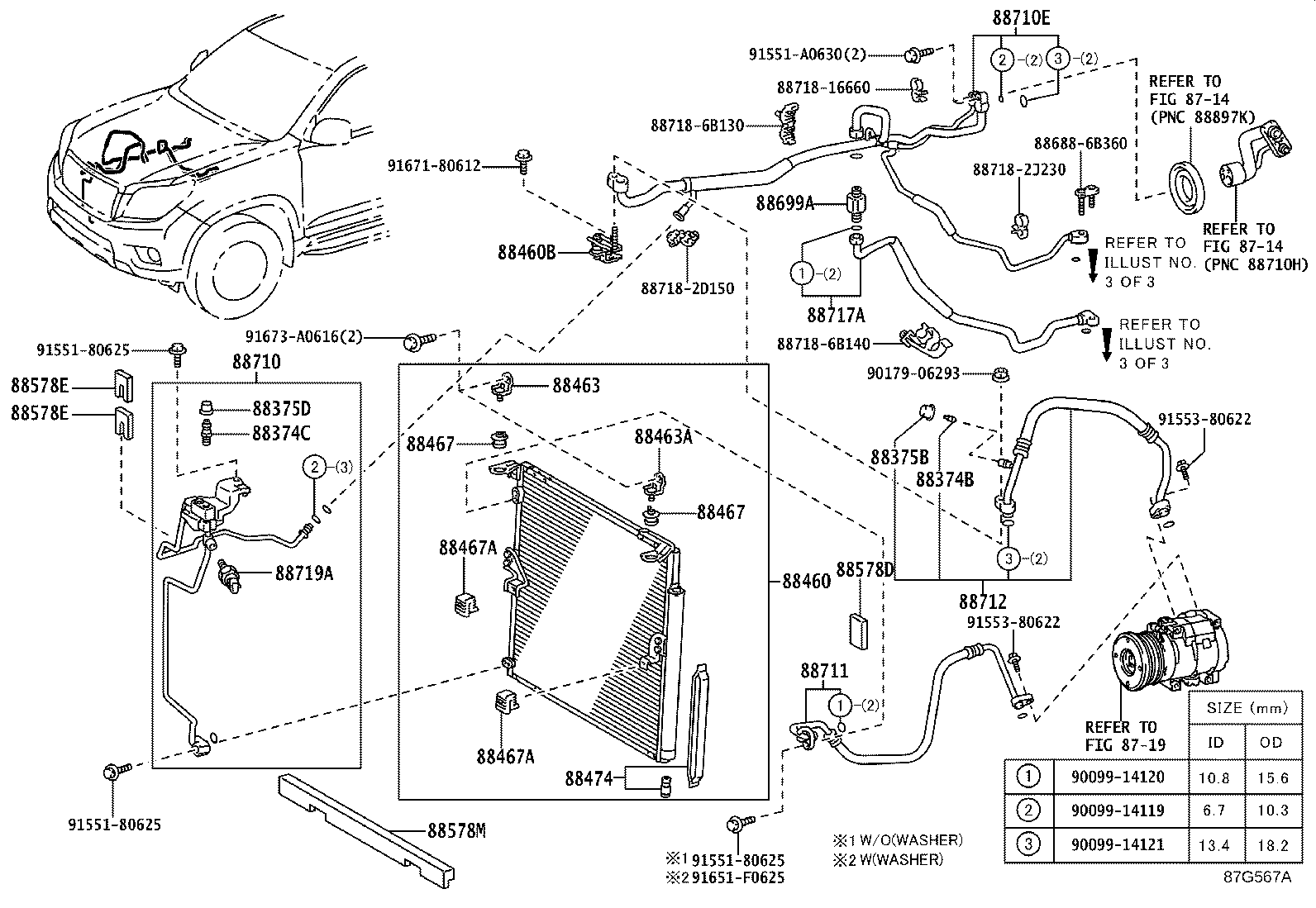

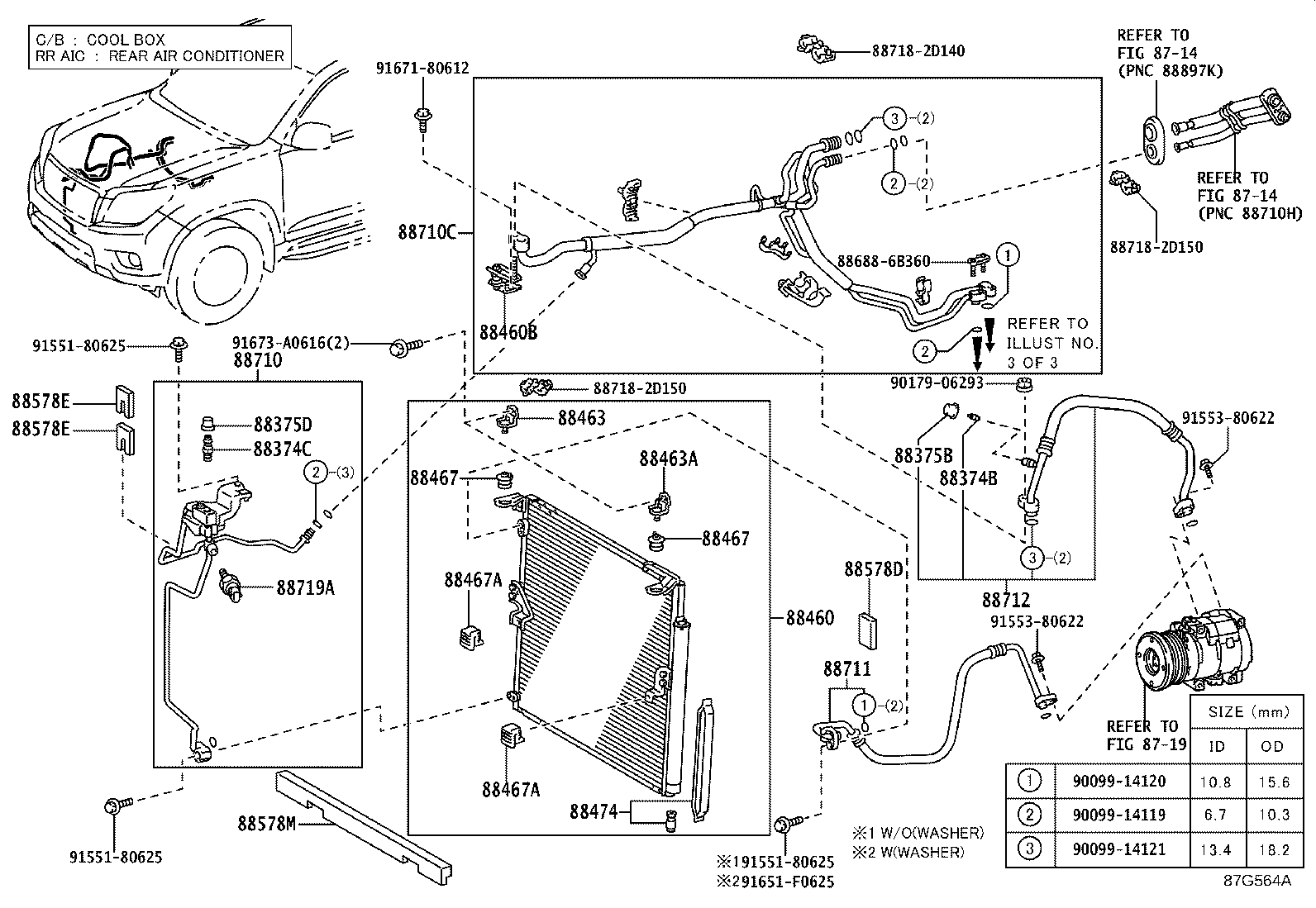

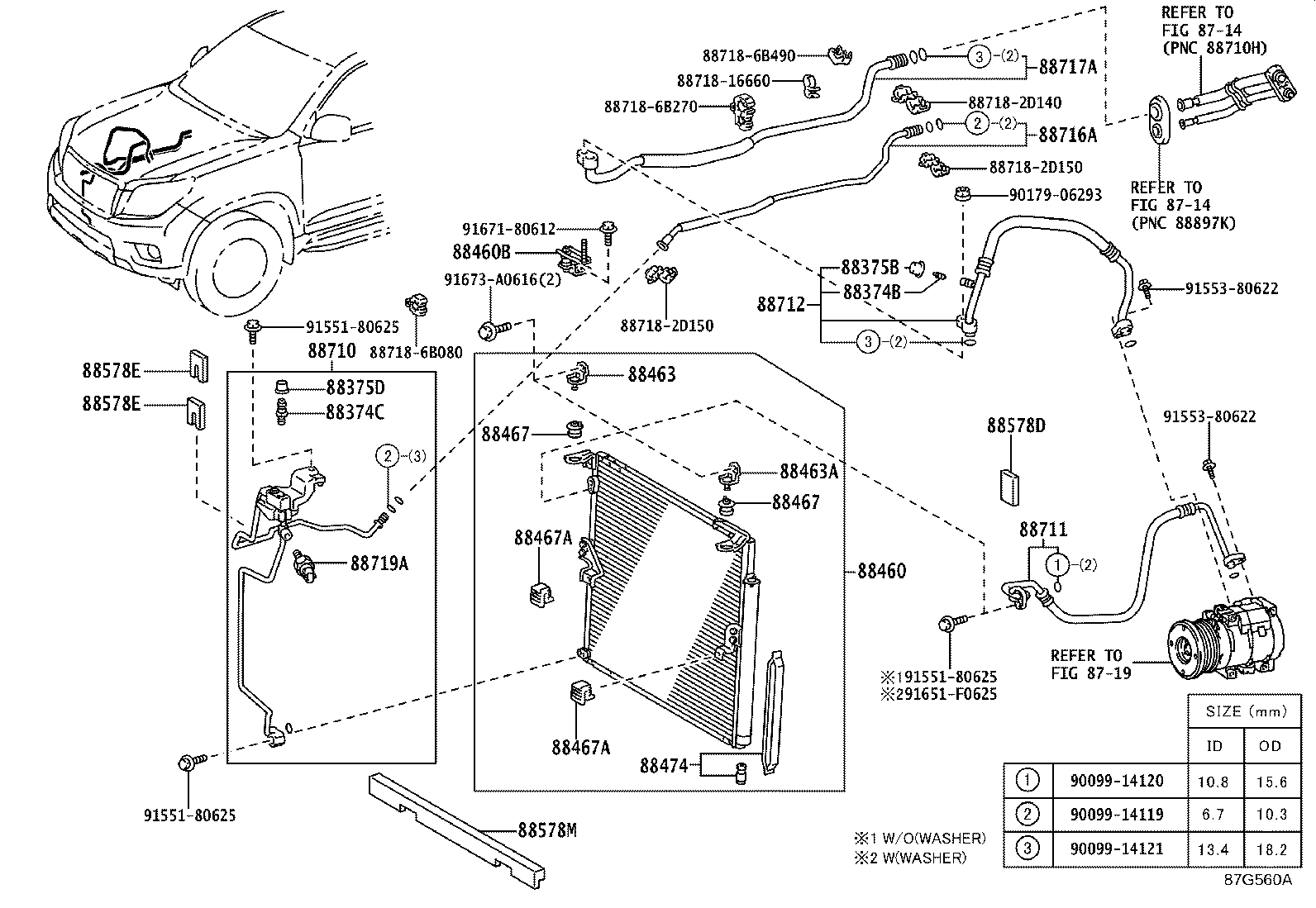

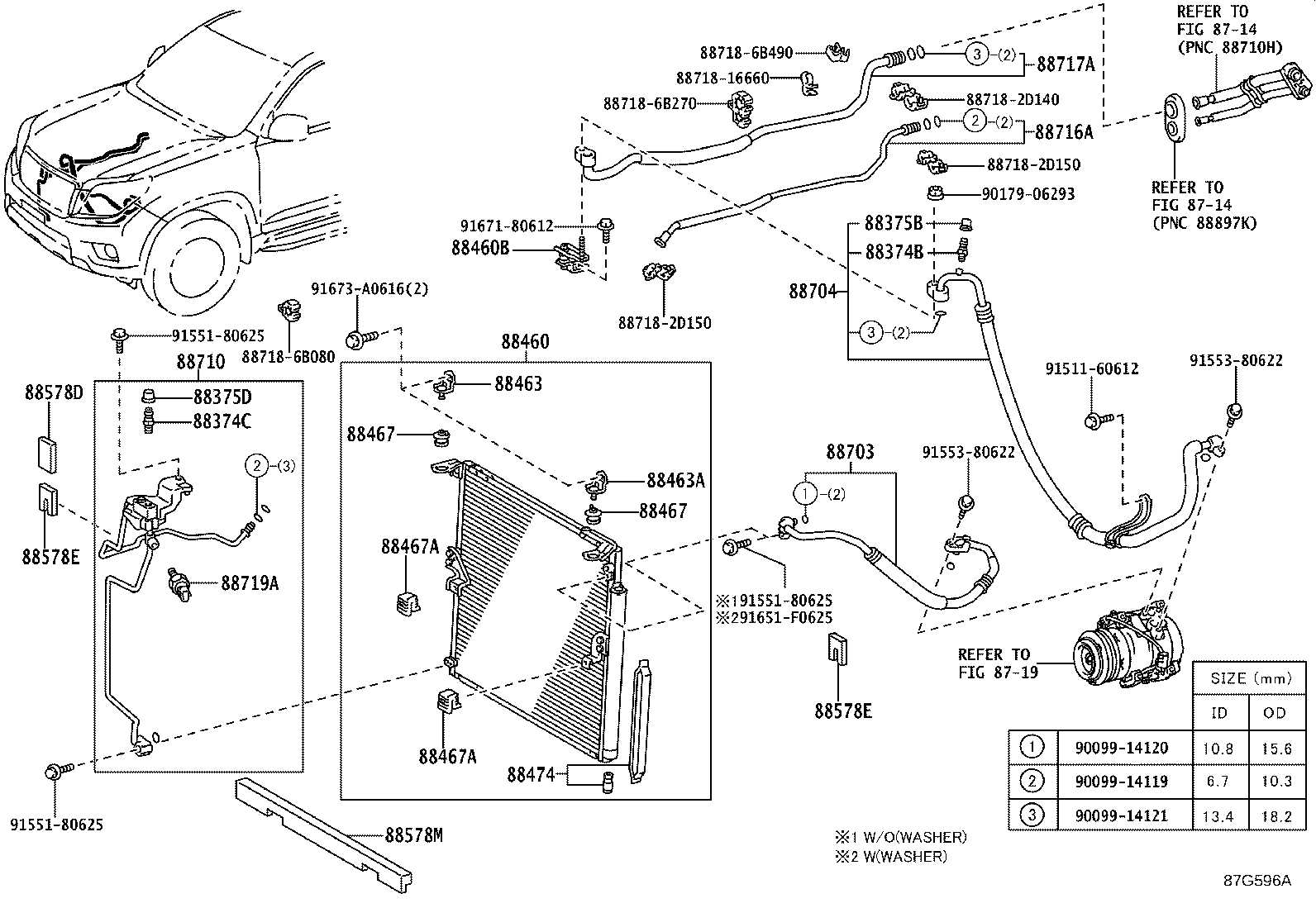

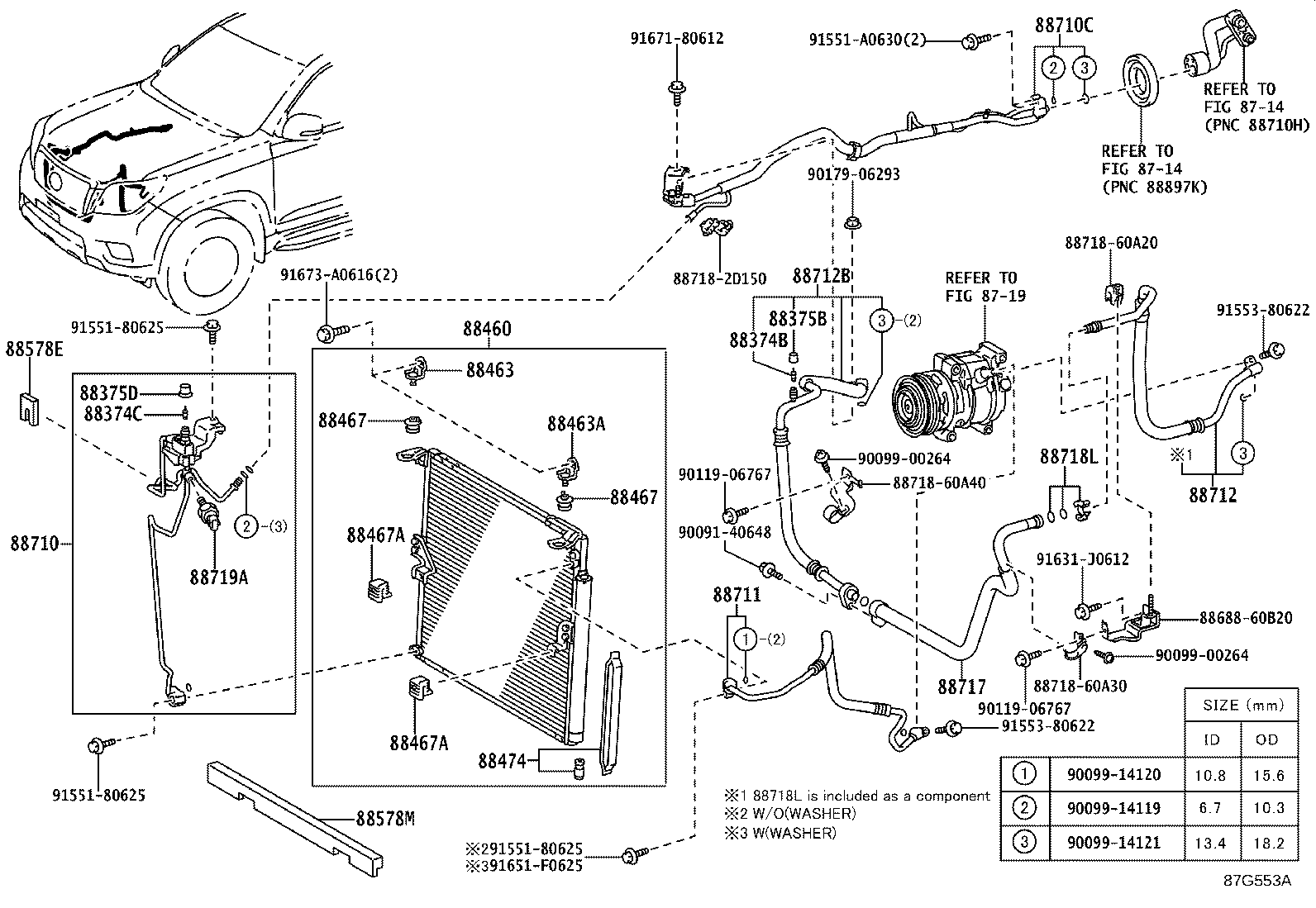

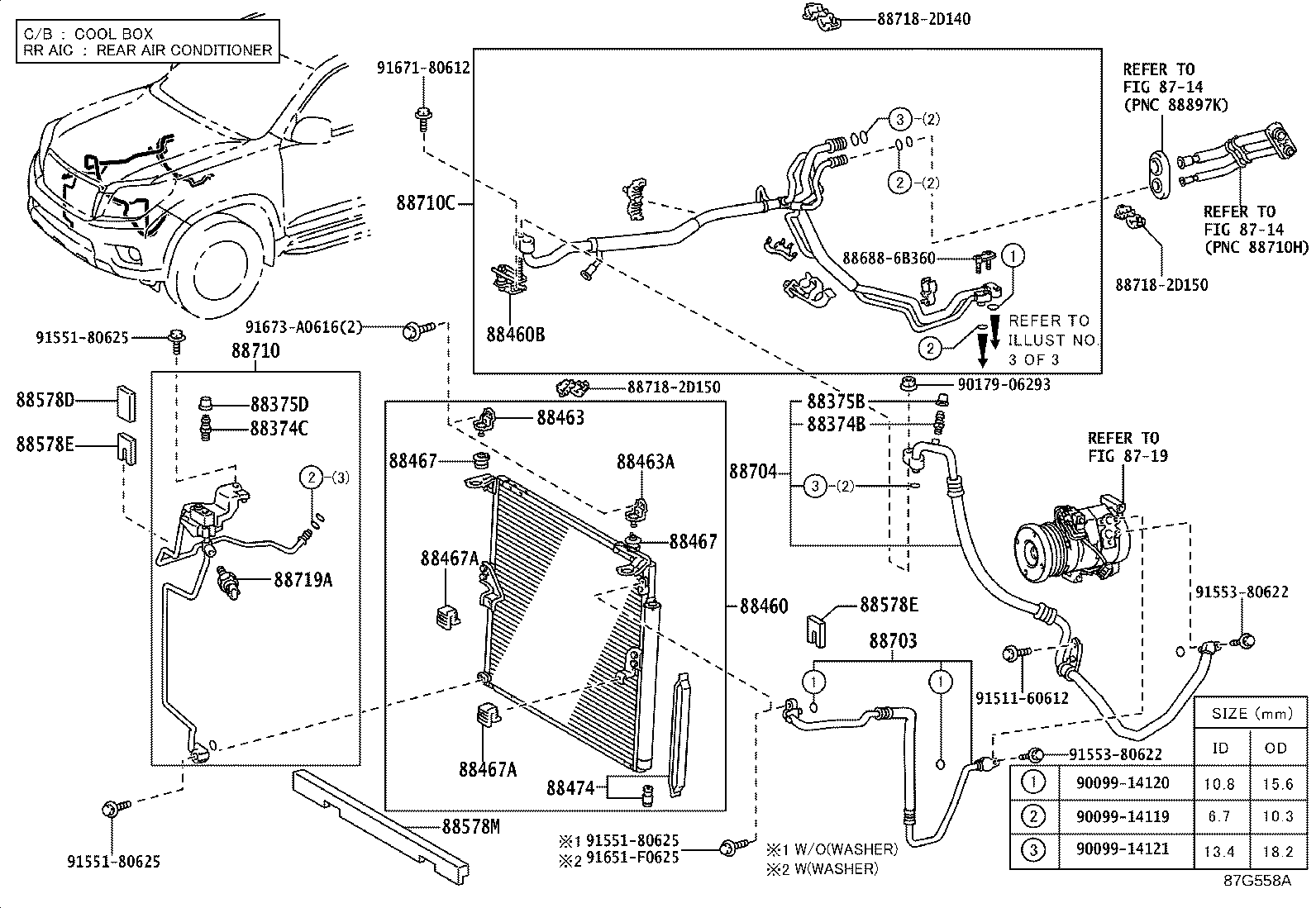

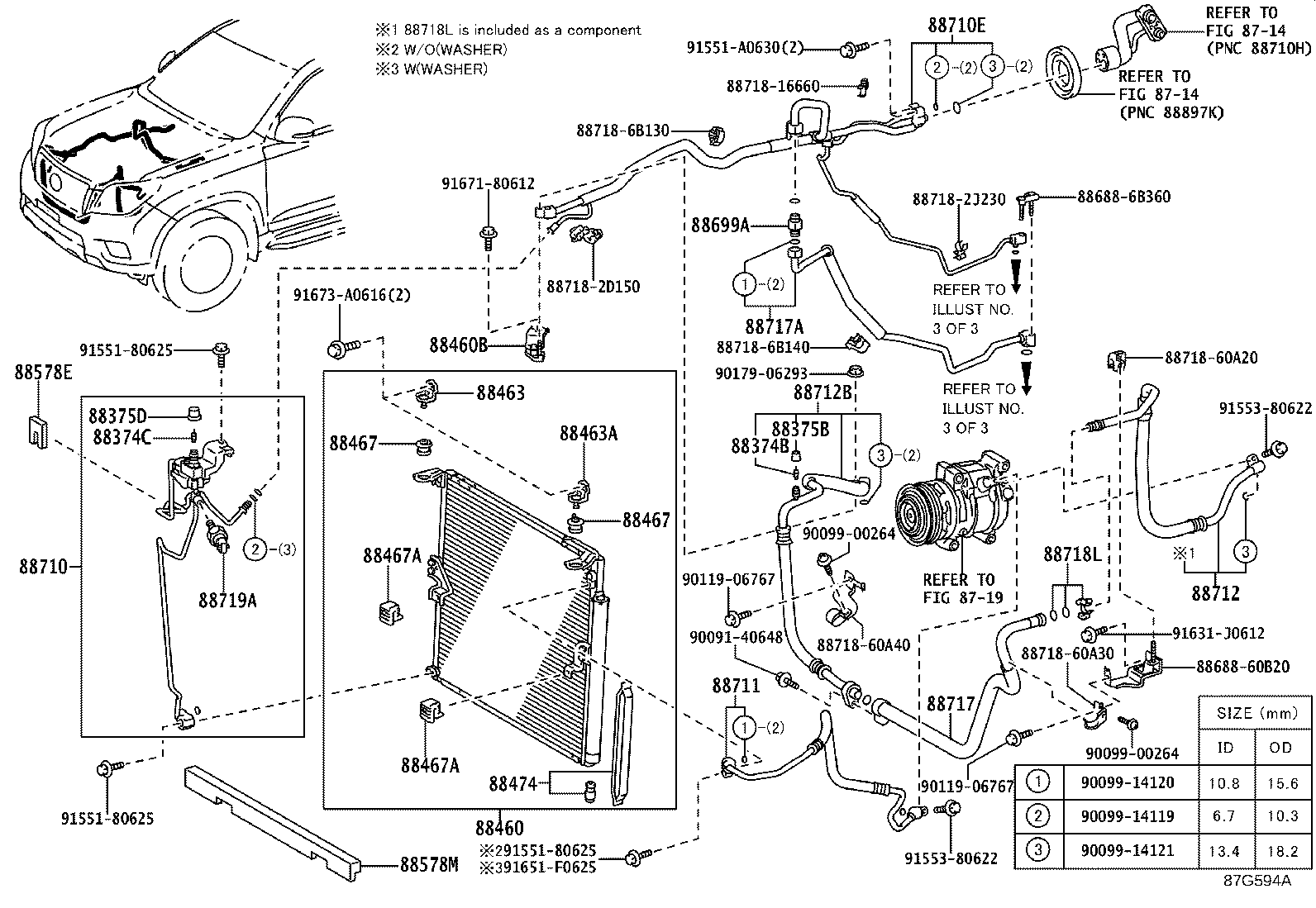

Heating & Air Conditioning - Cooler Piping
38 part groups · 22 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16793C | Label, Cooling Fan Caution |
| 88374B | Valve, Service, NO.1 |
| 88374C | Valve, Service, NO.2 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |
| 88460 | Condenser Assy, Cooler |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88463 | Bracket, Cooler Condenser, NO.1 |
| 88463A | Bracket, Cooler Condenser, NO.2 |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467A | Cushion, Cooler Condenser, NO.2 |
| 88474 | Dryer, Cooler |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88578D | Packing, Cooler Pipe, NO.1 |
| 88578E | Packing, Cooler Pipe, NO.2 |
| 88578M | Packing, Cooling Pipe, NO.3 |
| 88590 | Blower Assy, W/Shroud |
| 88645H | Switch, Pressure NO.1 |
| 88699A | Valve, Air |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88710 | Tube Assy, Air Conditioner |
| 88710C | Tube Assy, Air Conditioner |
| 88710E | Tube & Accessory Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88712B | Hose, Cooler Refrigerant Suction |
| 88712C | Hose, Suction |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88717 | Pipe, Cooler Refrigerant Suction, NO.1 |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88718L | Clamp, Piping |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
