Toyota Land Cruiser
2017-08 → present · chassis GDJ15#,GRJ150,KDJ150,TRJ150 · catalogue 781580 · Europe
Supported model
Data version 2018-06

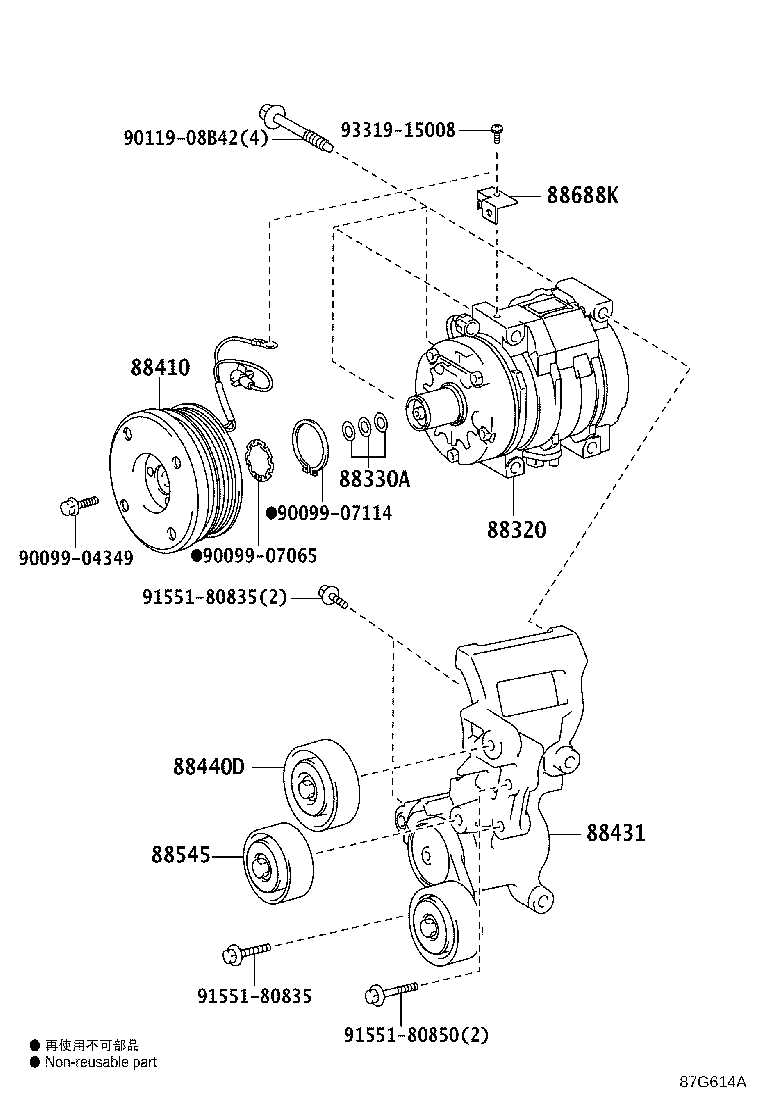

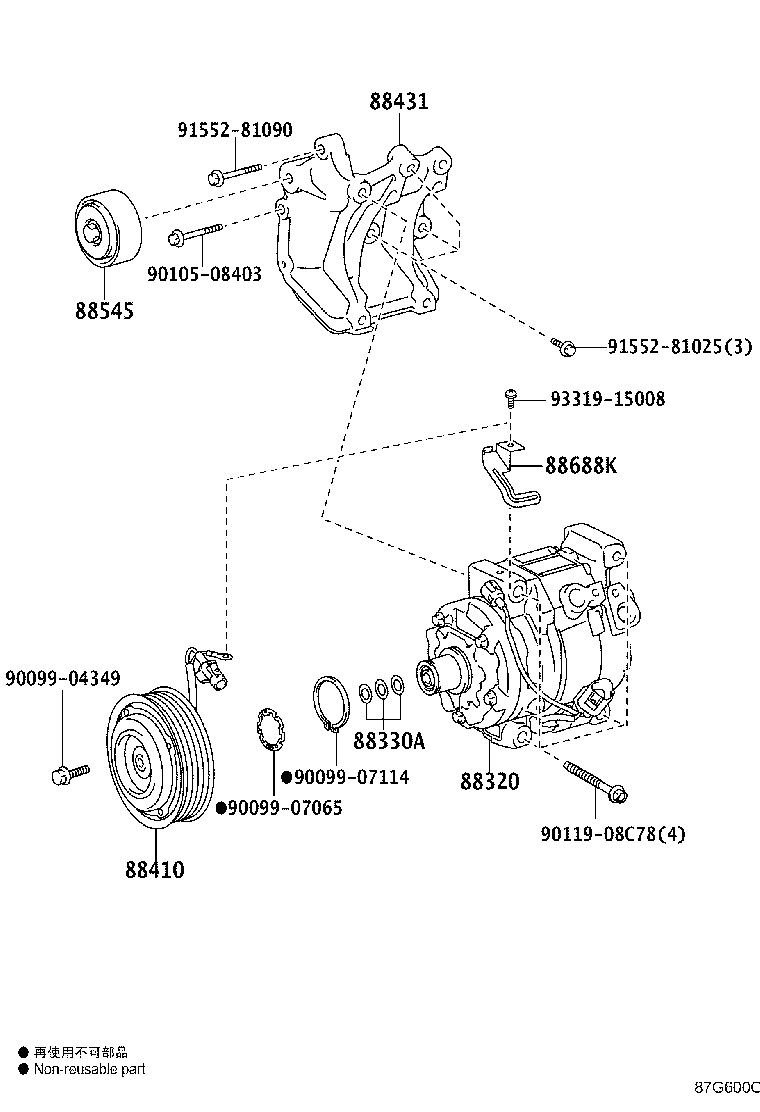

Heating & Air Conditioning - Compressor
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440D | Pulley Assy, Idle NO.2 |
| 88545 | Pulley Assy, Idle |
| 88688K | Bracket, Cooler Compressor |
| 88849 | Bracket, Cooler Compressor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
