Exploded illustration 617953A 65638A — LINER, REAR WHEEL HOUSE, LH (1 parts) 65638C — CLIP, REAR WHEEL HOUSE LINER (1 parts) 9015960625 — not listed in this catalogue 9018906145 — not listed in this catalogue 9018906145 — not listed in this catalogue 55706C — PANEL SUB-ASSY, COWL TOP SIDE, LH (1 parts) 61028A — PILLAR SUB-ASSY, FRONT BODY, OUTER LH (2 parts) 61036A — REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH (1 parts) 61106C — PANEL SUB-ASSY, SIDE, NO.3 LH (1 parts) 61109C — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH (1 parts) 61146B — GUSSET, FRONT BODY PILLAR, LOWER LH (1 parts) 61202 — RAIL SUB-ASSY, ROOF SIDE, LH (1 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (2 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (1 parts) 61238E — BRACKET, ASSIST GRIP, NO.2 (1 parts) 61302C — PILLAR SUB-ASSY, CENTER BODY, OUTER LH (2 parts) 61308 — PILLAR SUB-ASSY, CENTER BODY, INNER LH (1 parts) 61324A — REINFORCEMENT, CENTER BODY PILLAR, LOWER LH (1 parts) 61402H — REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH (2 parts) 61606D — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, OUTER LH (1 parts) 61608H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH (9 parts) 61624D — EXTENSION, QUARTER PANEL, FRONT LH (1 parts) 61629A — REINFORCEMENT, QUARTER PANEL, LH (1 parts) 61646B — GUSSET, QUARTER WHEEL HOUSE, REAR LH (1 parts) 61652C — GUSSET, PILLAR SHEAR, NO.2 LH (1 parts) 61704F — PANEL SUB-ASSY, QUARTER, INNER FRONT LH (8 parts) 61708F — PLATE SUB-ASSY, QUARTER WINDOW LOCK GUSSET, LH (1 parts) 61712 — PANEL, ROOF SIDE, OUTER LH (1 parts) 61714A — EXTENSION, ROOF SIDE, OUTER LH (1 parts) 61729A — BRACKET, ROOF SIDE RAIL, LH (1 parts) 61732B — PANEL, ROOF SIDE, INNER LH (1 parts) 61738G — REINFORCEMENT, ROOF SIDE, INNER LH (1 parts) 61748E — BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH (3 parts) 61752C — RETAINER, QUARTER TRIM, UPPER LH (1 parts) 61759A — BRACKET, ROOF SIDE REINFORCEMENT (1 parts) 61762A — REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH (1 parts) 61776D — FRAME, BACK DOOR OPENING SIDE, LH (1 parts) 61777C — REINFORCE, BACK DOOR SIDE STOPPER FEMALE, LH (1 parts) 9167380616 — not listed in this catalogue 9011906952 — not listed in this catalogue 9011906897 — not listed in this catalogue 5752 — not listed in this catalogue

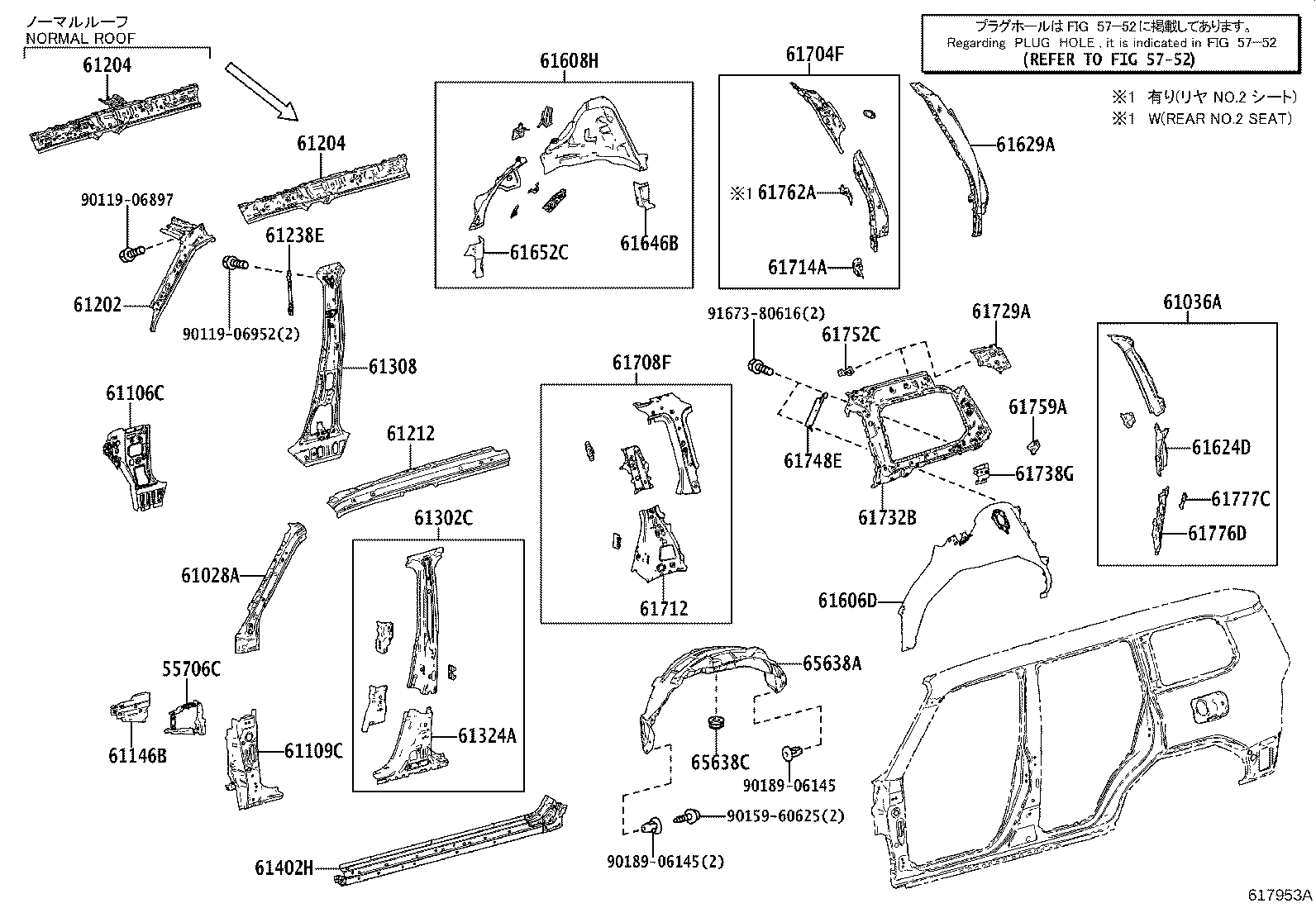

617953A · 36 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
55706C — Panel Sub-assy, Cowl Top Side, LH
55706-60080 Panel Sub-assy, Cowl Top Side, LH
2024-02 → —
TJH252,VJA252 —
61028A — Pillar Sub-assy, Front Body, Outer LH
61028-60900 Pillar Sub-assy, Front Body, Outer LH
2024-03 → —
TJH252 —
61136-60090 Pillar Sub-assy, Front Body, Outer LH
2024-02 → —
VJA252 —
61036A — Reinforcement Sub-assy, Back Door Opening, LH
61036-60240 Reinforcement Sub-assy, Back Door Opening, LH
2024-02 → —
TJH252,VJA252 —
61106C — Panel Sub-assy, Side, NO.3 LH
61106-60100 Panel Sub-assy, Side, NO.3 LH
2024-02 → —
TJH252,VJA252 —
61109C — Reinforcement Sub-assy, Front Pillar, Lower LH
61109-60130 Reinforcement Sub-assy, Front Pillar, Lower LH
2024-02 → —
TJH252,VJA252 —
61146B — Gusset, Front Body Pillar, Lower LH
61146-60020 Gusset, Front Body Pillar, Lower LH
2024-02 → —
TJH252,VJA252 —
61202 — Rail Sub-assy, Roof Side, LH
61202-60050 Rail Sub-assy, Roof Side, LH
2024-02 → —
TJH252,VJA252 —
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-60060 note Rail Sub-assy, Roof Side, Inner LH
2024-02 → —
TJH252,VJA252 ARL,CHI,GEN —
61204-60070 Rail Sub-assy, Roof Side, Inner LH
2024-02 → —
TJH252,VJA252 —
61212 — Rail, Roof Side, Outer LH
61212-60110 Rail, Roof Side, Outer LH
2024-02 → —
TJH252,VJA252 —
61238E — Bracket, Assist Grip, NO.2
61238-60070 Bracket, Assist Grip, NO.2
2024-02 → —
TJH252,VJA252 —
61302C — Pillar Sub-assy, Center Body, Outer LH
61302-60220 Pillar Sub-assy, Center Body, Outer LH
2024-03 → —
TJH252 —
61302-60230 Pillar Sub-assy, Center Body, Outer LH
2024-02 → —
VJA252 —
61308 — Pillar Sub-assy, Center Body, Inner LH
61308-60390 Pillar Sub-assy, Center Body, Inner LH
2024-02 → —
TJH252,VJA252 —
61324A — Reinforcement, Center Body Pillar, Lower LH
61324-60070 Reinforcement, Center Body Pillar, Lower LH
2024-02 → —
TJH252,VJA252 —
61402H — Reinforcement Sub-assy, Rocker Panel, LH
61402-60902 Reinforcement Sub-assy, Rocker Panel, LH
2024-03 → —
TJH252 —
61402-60903 Reinforcement Sub-assy, Rocker Panel, LH
2024-02 → —
VJA252 —
61606D — Panel Sub-assy, Quarter Wheel House, Outer LH
61606-60902 Panel Sub-assy, Quarter Wheel House, Outer LH
2024-02 → —
TJH252,VJA252 —
61608H — Panel Sub-assy, Quarter Wheel House, Inner LH
61608-60470 Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 RUS —
61608-60470 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 ARL —
61608-60470 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 GEN —
61608-60530 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 RUS —
61608-60540 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 GEN —
61608-60540 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 ARL,GEN —
61608-60560 Panel Sub-assy, Quarter Wheel House, Inner LH
2024-03 → —
TJH252 —
61608-60570 note Panel Sub-assy, Quarter Wheel House, Inner LH
2024-03 → —
TJH252 —
61608-60580 Panel Sub-assy, Quarter Wheel House, Inner LH
2024-02 → —
VJA252 ARL,GEN —
61624D — Extension, Quarter Panel, Front LH
61624-60120 Extension, Quarter Panel, Front LH
2024-02 → —
TJH252,VJA252 —
61629A — Reinforcement, Quarter Panel, LH
61629-60140 Reinforcement, Quarter Panel, LH
2024-02 → —
TJH252,VJA252 —
61646B — Gusset, Quarter Wheel House, Rear LH
61646-60110 Gusset, Quarter Wheel House, Rear LH
2024-02 → —
TJH252,VJA252 —
61652C — Gusset, Pillar Shear, NO.2 LH
61652-60030 Gusset, Pillar Shear, NO.2 LH
2024-02 → —
TJH252,VJA252 —
61704F — Panel Sub-assy, Quarter, Inner Front LH
61704-60380 Panel Sub-assy, Quarter, Inner Front LH
2024-02 → —
VJA252 RUS —
61704-60380 note Panel Sub-assy, Quarter, Inner Front LH
2024-02 → —
VJA252 ARL —
61704-60380 note Panel Sub-assy, Quarter, Inner Front LH
2024-02 → —
VJA252 GEN —
61704-60410 Panel Sub-assy, Quarter, Inner Front LH
2024-02 → —
VJA252 ARL,GEN —
61704-60420 note Panel Sub-assy, Quarter, Inner Front LH
2024-03 → —
TJH252 —
61704-60420 note Panel Sub-assy, Quarter, Inner Front LH
2024-03 → —
TJH252 —
61704-60420 note Panel Sub-assy, Quarter, Inner Front LH
2024-03 → —
TJH252 —
61704-60430 Panel Sub-assy, Quarter, Inner Front LH
2024-03 → —
TJH252 —
61708F — Plate Sub-assy, Quarter Window Lock Gusset, LH
61708-60903 Plate Sub-assy, Quarter Window Lock Gusset, LH
2024-02 → —
TJH252,VJA252 —
61712 — Panel, Roof Side, Outer LH
61712-60100 Panel, Roof Side, Outer LH
2024-02 → —
TJH252,VJA252 —
61714A — Extension, Roof Side, Outer LH
61714-60060 Extension, Roof Side, Outer LH
2024-02 → —
TJH252,VJA252 —
61729A — Bracket, Roof Side Rail, LH
61729-60110 Bracket, Roof Side Rail, LH
2024-02 → —
TJH252,VJA252 —
61732B — Panel, Roof Side, Inner LH
61732-60440 Panel, Roof Side, Inner LH
2024-02 → —
TJH252,VJA252 —
61738G — Reinforcement, Roof Side, Inner LH
61738-60080 Reinforcement, Roof Side, Inner LH
2024-02 → —
TJH252,VJA252 —
61748E — Brace, Roof Side Inner TO Wheel House, LH
61748-60100 Brace, Roof Side Inner TO Wheel House, LH
2024-02 → —
TJH252,VJA252 —
61748-60100 note Brace, Roof Side Inner TO Wheel House, LH
2024-02 → —
VJA252 ARL,GEN —
61748-60100 note Brace, Roof Side Inner TO Wheel House, LH
2024-02 → —
TJH252,VJA252 CHI,RUS —
61752C — Retainer, Quarter Trim, Upper LH
61751-60060 Retainer, Quarter Trim, Upper LH
2024-02 → —
TJH252,VJA252 —
61759A — Bracket, Roof Side Reinforcement
61759-60030 Bracket, Roof Side Reinforcement
2024-02 → —
TJH252,VJA252 —
61762A — Reinforce, Seat Belt Anchor, NO.1 Upper LH
61762-60030 Reinforce, Seat Belt Anchor, NO.1 Upper LH
2024-02 → —
TJH252,VJA252 ARL,CHI,GEN —
61776D — Frame, Back Door Opening Side, LH
61776-60050 Frame, Back Door Opening Side, LH
2024-02 → —
TJH252,VJA252 —
61777C — Reinforce, Back Door Side Stopper Female, LH
61777-60040 Reinforce, Back Door Side Stopper Female, LH
2024-02 → —
TJH252,VJA252 —
65638A — Liner, Rear Wheel House, LH
65638-60030 Liner, Rear Wheel House, LH
2024-02 → —
TJH252,VJA252 —
65638C — Clip, Rear Wheel House Liner
90467-06121 Clip, Rear Wheel House Liner
2024-02 → —
TJH252,VJA252 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
