Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

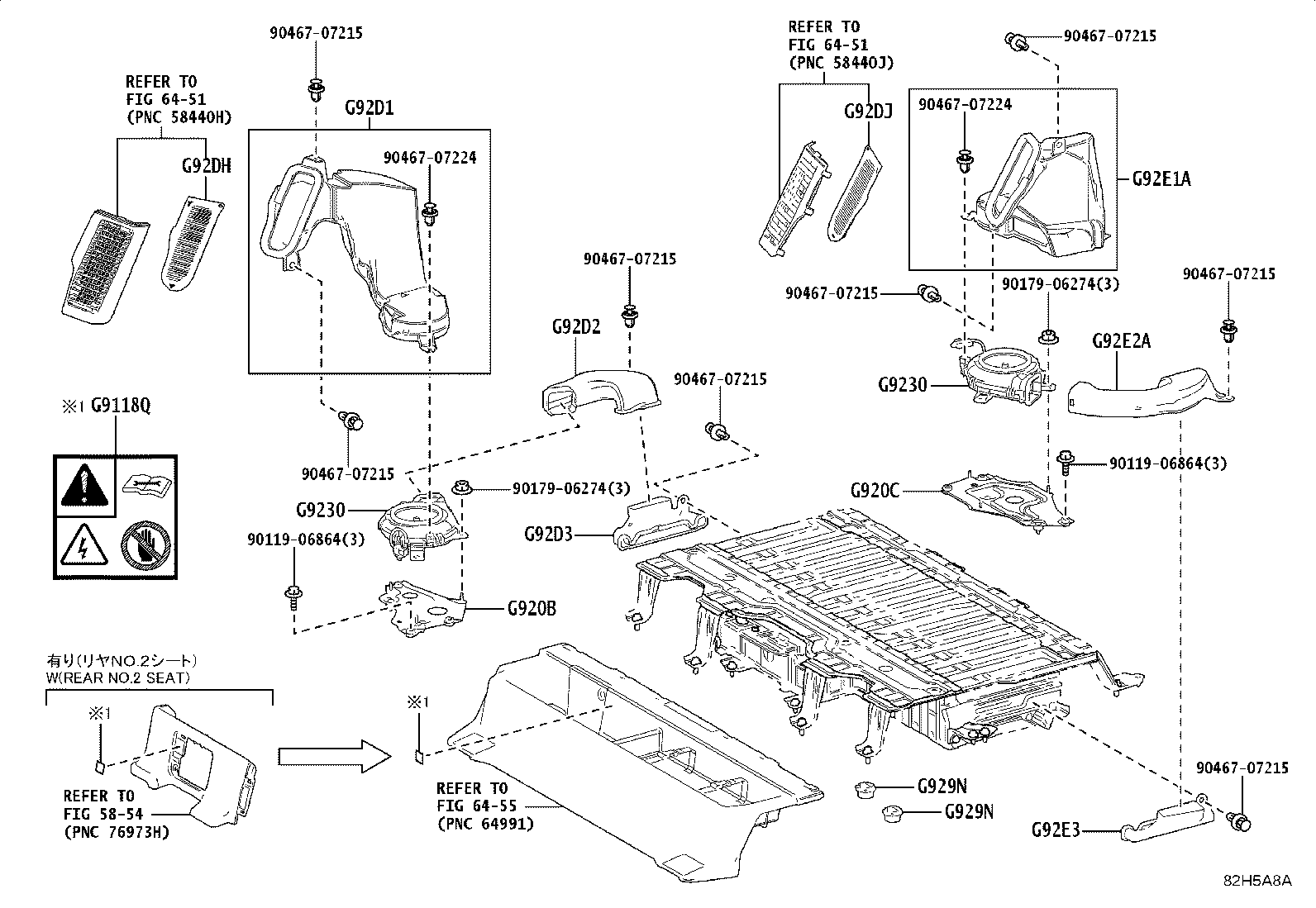

Exploded illustration 82H5A8A 9011906864 — not listed in this catalogue 9017906274 — not listed in this catalogue G9230 — BLOWER ASSY, BATTERY COOLING (1 parts) G92D2 — DUCT, HYBRID BATTERY INTAKE, NO.2 (1 parts) G92E2A — DUCT, HV BATTERY INTAKE, NO.2 LH (1 parts) G92E3 — DUCT, HV BATTERY INTAKE, NO.3 LH (1 parts) G92D3 — DUCT, HYBRID BATTERY INTAKE, NO.3 (1 parts) G920B — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1 (1 parts) 9011906864 — not listed in this catalogue 9017906274 — not listed in this catalogue 9046707224 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707224 — not listed in this catalogue G920C — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.2 (1 parts) G929N — PLUG, BATTERY DRAIN (1 parts) G929N — PLUG, BATTERY DRAIN (1 parts) G9230 — BLOWER ASSY, BATTERY COOLING (1 parts) G92DH — FILTER, HV BATTERY INTAKE, NO.1 (1 parts) 6451 — not listed in this catalogue G92DJ — FILTER, HV BATTERY INTAKE, NO.2 (1 parts) 6451 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue G92D1 — DUCT, HYBRID BATTERY INTAKE, NO.1 (1 parts) G92E1A — DUCT, HV BATTERY INTAKE, NO.1 LH (1 parts) G9118Q — LABEL, HV UNIT CONTROLLER CAUTION, NO.1 (1 parts) 6455 — not listed in this catalogue 5854 — not listed in this catalogue
82H5A8A · 15 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
G9118Q — Label, HV Unit Controller Caution, NO.1
G9118-62011 Label, HV Unit Controller Caution, NO.1
2024-03 → —
TJH252 —
G920B — Bracket Sub-assy, HV Battery Carrier, NO.1
G920B-60010 Bracket Sub-assy, HV Battery Carrier, NO.1
2024-03 → —
TJH252 —
G920C — Bracket Sub-assy, HV Battery Carrier, NO.2
G920C-60010 Bracket Sub-assy, HV Battery Carrier, NO.2
2024-03 → —
TJH252 —
G9230 — Blower Assy, Battery Cooling
G9230-11010 Blower Assy, Battery Cooling
2024-03 → —
TJH252 —
G929N — Plug, Battery Drain
G929N-52010 Plug, Battery Drain
2024-03 → —
TJH252 —
G92D1 — Duct, Hybrid Battery Intake, NO.1
G92D1-60010 Duct, Hybrid Battery Intake, NO.1
2024-03 → —
TJH252 —
G92D2 — Duct, Hybrid Battery Intake, NO.2
G92D2-60010 Duct, Hybrid Battery Intake, NO.2
2024-03 → —
TJH252 —
G92D3 — Duct, Hybrid Battery Intake, NO.3
G92D3-60010 Duct, Hybrid Battery Intake, NO.3
2024-03 → —
TJH252 —
G92DH — Filter, HV Battery Intake, NO.1
G92DH-34010 Filter, HV Battery Intake, NO.1
2024-03 → —
TJH252 —
G92DJ — Filter, HV Battery Intake, NO.2
G92DJ-34010 Filter, HV Battery Intake, NO.2
2024-03 → —
TJH252 —
G92E1A — Duct, HV Battery Intake, NO.1 LH
G92E1-60010 Duct, HV Battery Intake, NO.1 LH
2024-03 → —
TJH252 —
G92E2A — Duct, HV Battery Intake, NO.2 LH
G92E2-60010 Duct, HV Battery Intake, NO.2 LH
2024-03 → —
TJH252 —
G92E3 — Duct, HV Battery Intake, NO.3 LH
G92E3-60010 Duct, HV Battery Intake, NO.3 LH
2024-03 → —
TJH252 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
