Toyota Lexus GX550/550H
2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe
Supported model
Data version 2024-02

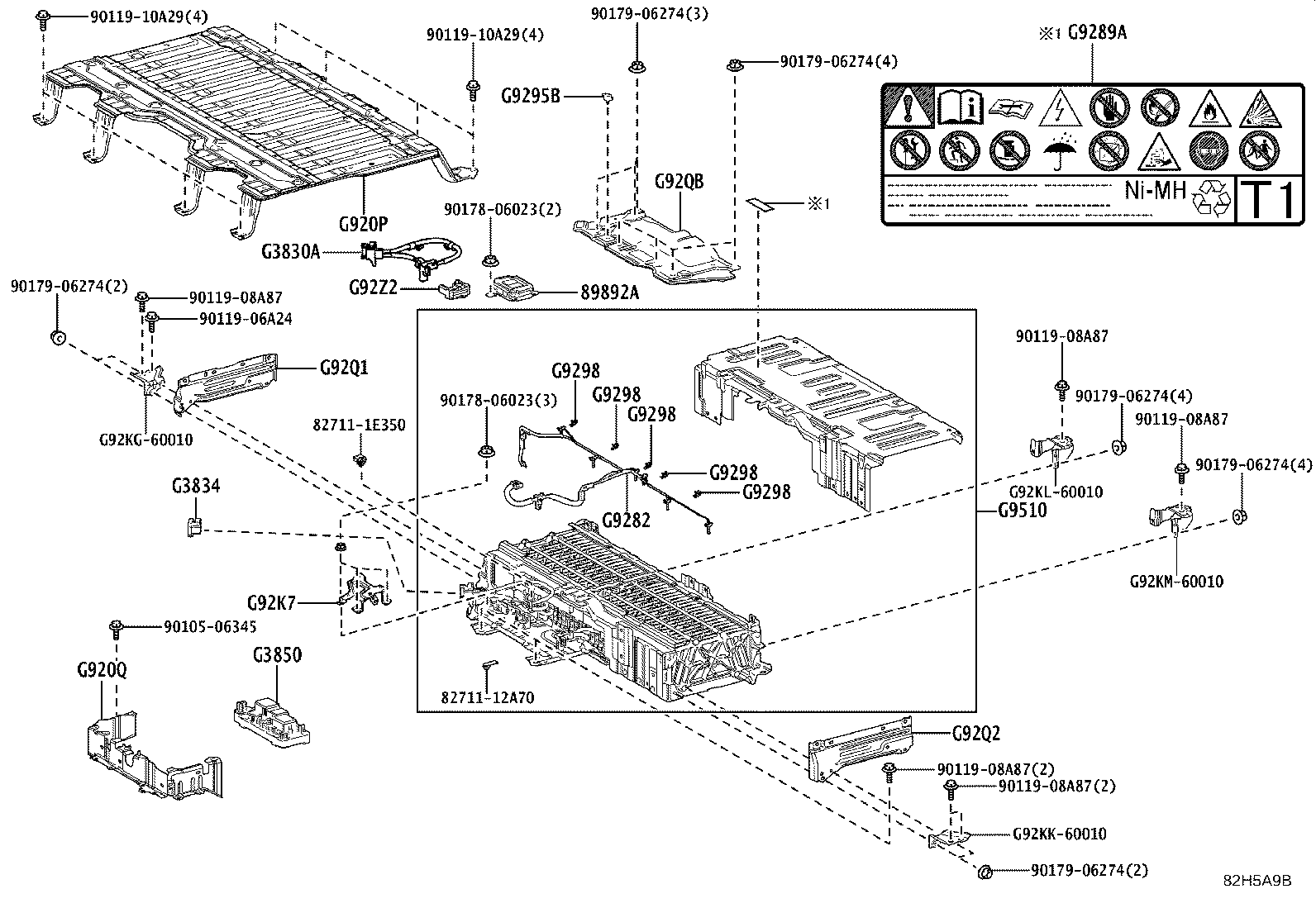

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89892A — Sensor, Battery Voltage | ||||
| 89892-48060 |
Sensor, Battery Voltage
2024-03 → —
|
TJH252 | — | |
| G3830A — Plug Assy, Electric Vehicle Battery | ||||
| G3830-34010 |
Plug Assy, Electric Vehicle Battery
2024-03 → —
|
TJH252 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-47050 |
Grip, Service Plug
2024-03 → —
|
TJH252 | — | |
| G3850 — Box Assy, Traction Battery Device, NO.1 | ||||
| G3850-48010 |
Box Assy, Traction Battery Device, NO.1
2024-03 → —
|
TJH252 | — | |
| G920P — Panel Sub-assy, EV Battery | ||||
| G920P-60010 note |
Panel Sub-assy, EV Battery
2024-03 → —
|
TJH252 | — | |
| G920P-60010 note |
Panel Sub-assy, EV Battery
2024-03 → —
|
TJH252 | — | |
| G920Q — Shield Sub-assy, Hybrid Battery, NO.1 | ||||
| G920Q-34010 |
Shield Sub-assy, Hybrid Battery, NO.1
2024-03 → —
|
TJH252 | — | |
| G9282 — Thermistor, Hybrid Battery | ||||
| G9282-34010 |
Thermistor, Hybrid Battery
2024-03 → —
|
TJH252 | — | |
| G9289A — Label, Battery Caution | ||||
| G9288-48080 |
Label, Battery Caution
2024-03 → —
|
TJH252 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2024-03 → —
|
TJH252 | — | |
| G9298 — Clamp, HV Battery | ||||
| G928E-47010 |
Clamp, HV Battery
2024-03 → —
|
TJH252 | — | |
| G92K7 — Bracket, HV Battery Carrier, NO.5 | ||||
| G92K7-34010 |
Bracket, HV Battery Carrier, NO.5
2024-03 → —
|
TJH252 | — | |
| G92Q1 — Panel, HV Battery Shield, NO.1 | ||||
| G92Q1-34010 |
Panel, HV Battery Shield, NO.1
2024-03 → —
|
TJH252 | — | |
| G92Q2 — Panel, HV Battery Shield, NO.2 | ||||
| G92Q2-34010 |
Panel, HV Battery Shield, NO.2
2024-03 → —
|
TJH252 | — | |
| G92QB — Panel, HV Battery Shield, NO.9 | ||||
| G92QB-60010 |
Panel, HV Battery Shield, NO.9
2024-03 → —
|
TJH252 | — | |
| G92Z2 — Block, Hybrid Battery Terminal | ||||
| G92Z2-47070 |
Block, Hybrid Battery Terminal
2024-03 → —
|
TJH252 | — | |
| G9510 — Battery Assy, HV Supply | ||||
| G9510-34010 |
Battery Assy, HV Supply
2024-03 → —
|
TJH252 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
