Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

20 part groups · 2 illustrations

Illustrations

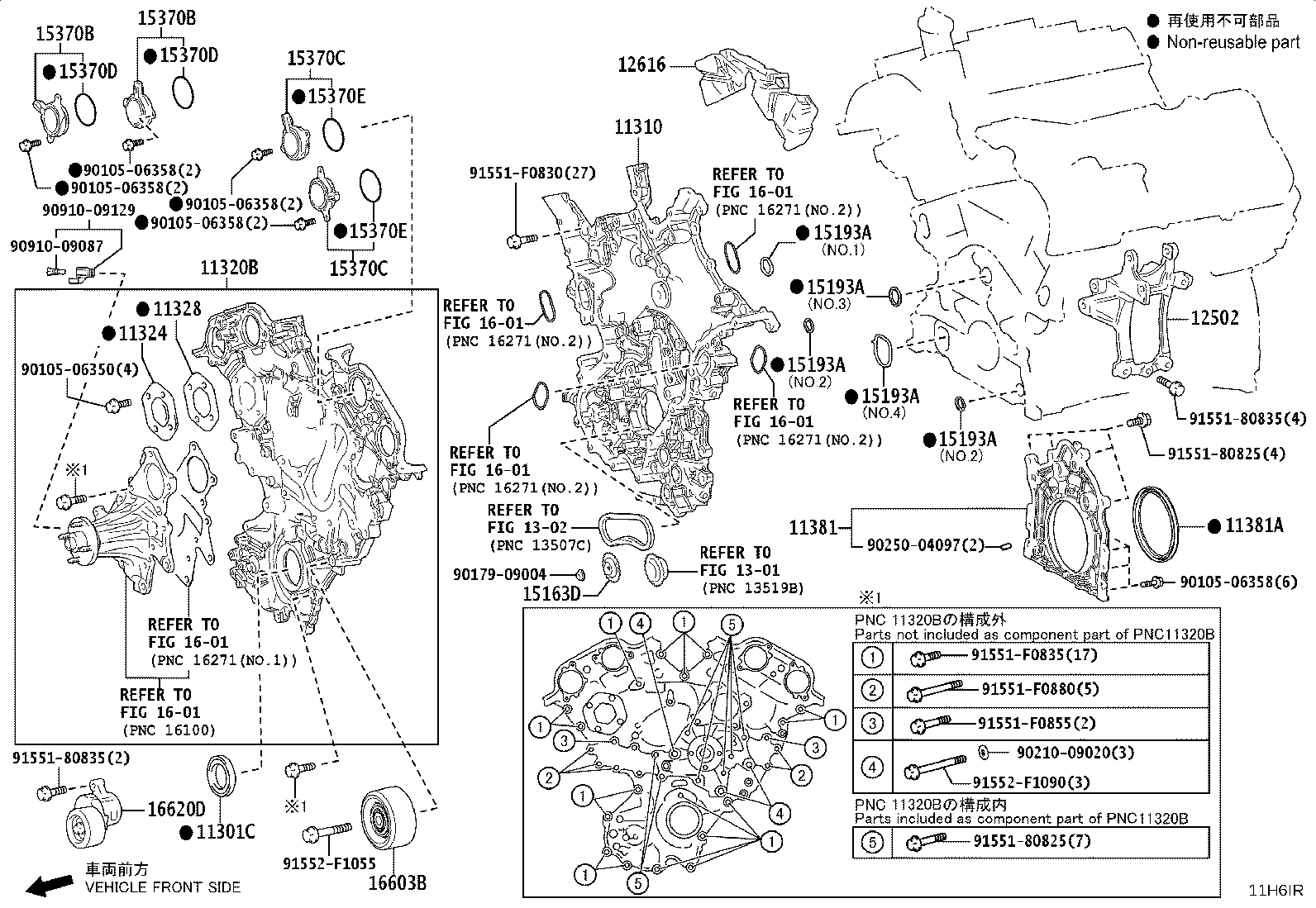

Figure 11H65BB 11H65BB 2024-03 → — Figure 11H6IR 11H6IR 2024-02 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12502 Bracket Sub-assy, Chain Cover & Compressor
12616 Cover, Engine, NO.6
15163D Sprocket, Oil Pump Drive Shaft
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
