Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

13 part groups · 2 illustrations

Illustrations

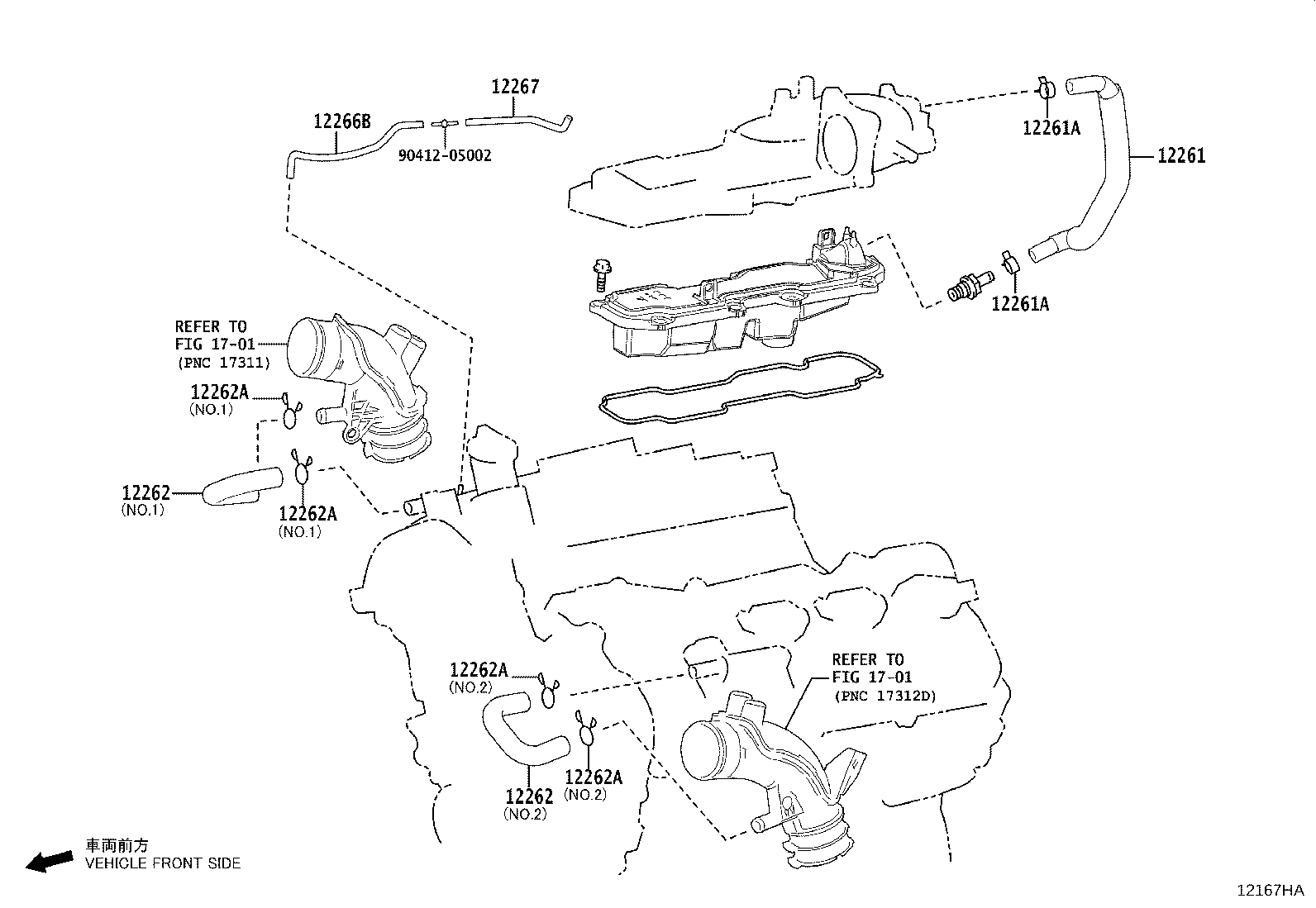

Figure 12167OA 12167OA 2024-03 → — Figure 12167HA 12167HA 2024-02 → —

Part groups

PNCDescription
11241 Chamber, Pcv Pressure Sensor
12204 Valve Sub-assy, Ventilation
12226 Bracket, Ventilation Hose
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12264 Hose, Ventilation, NO.4
12266B Hose, Ventilation Pressure Sensor, NO.1
12267 Hose, Ventilation Pressure Sensor, NO.2
16E81G Clamp, Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
