Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

9 part groups · 2 illustrations

Illustrations

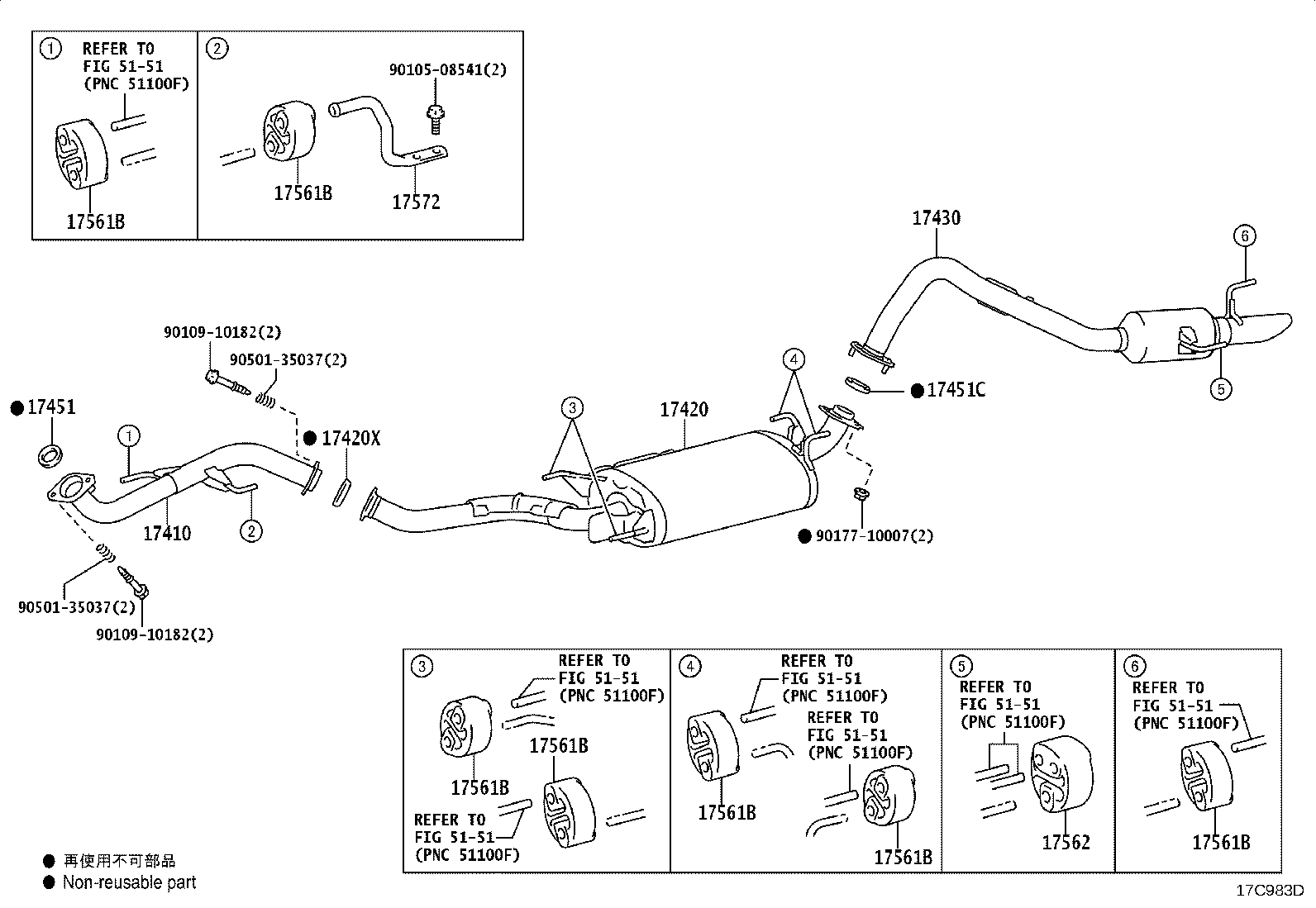

Figure 17C984C 17C984C 2024-02 → — Figure 17C983D 17C983D 2024-03 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451C Gasket, Exhaust Pipe, NO.3
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17572 Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
