Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

6 part groups · 2 illustrations

Illustrations

Figure 19651DB

19651DB 2024-02 → —

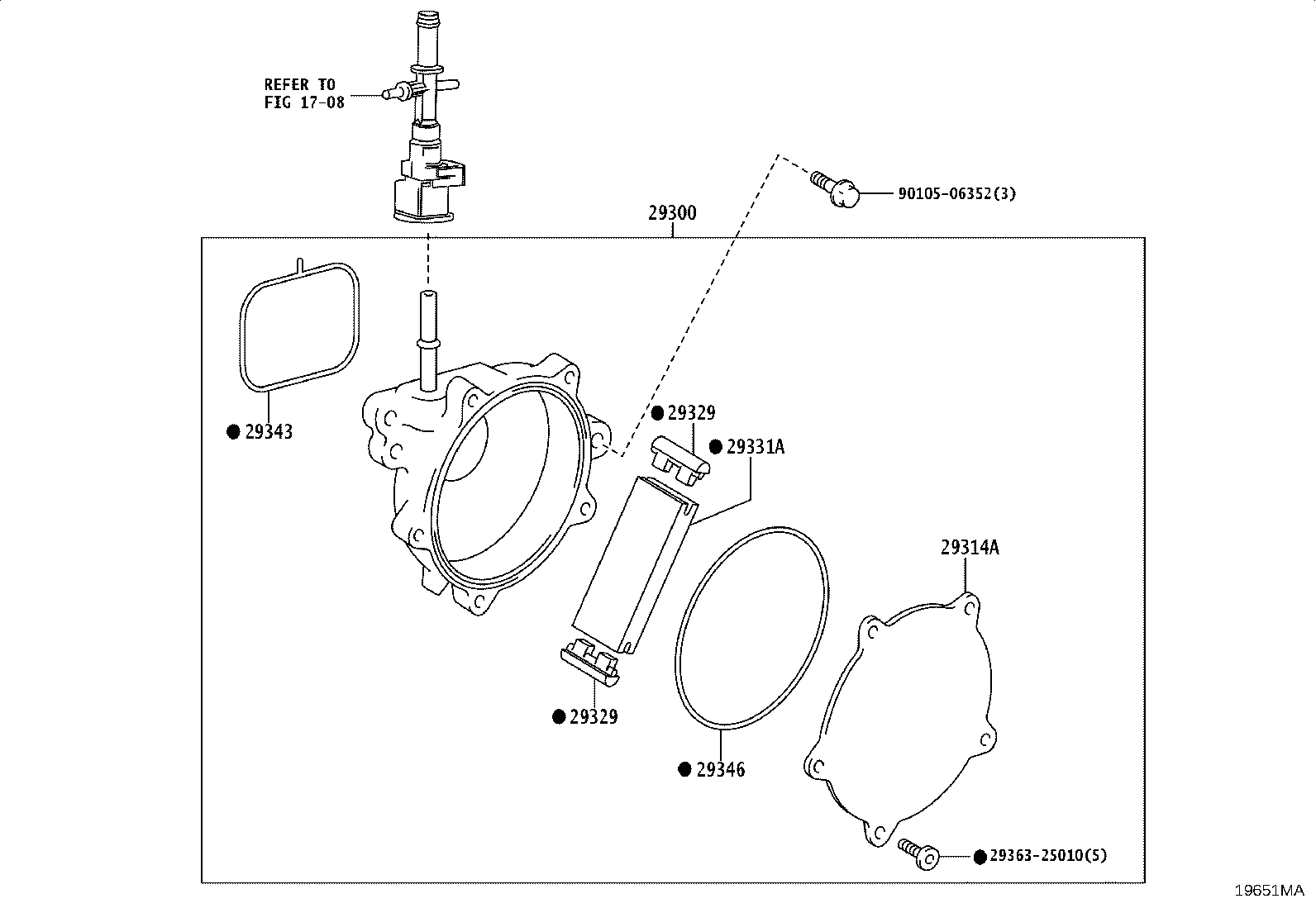

Figure 19651MA

19651MA 2024-02 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump
29343	Ring, O Vacuum Pump, NO.1
29346	Ring, O Vacuum Pump Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
