Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

42 part groups · 2 illustrations

Illustrations

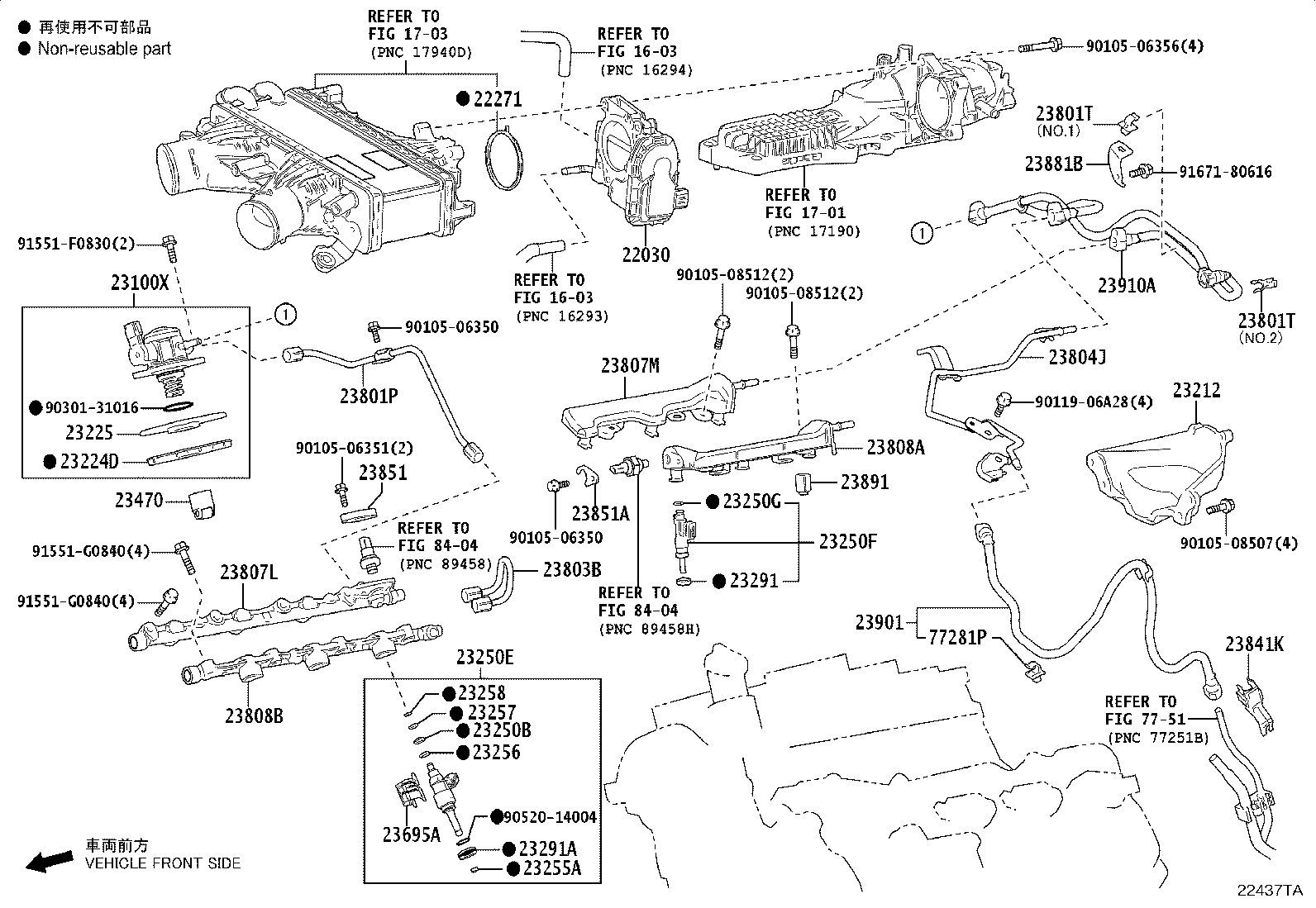

Figure 22438GC 22438GC 2024-03 → — Figure 22437TA 22437TA 2024-02 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23211N Bracket, Fuel Pump Protector
23212 Bracket, Fuel Pipe Protector
23214A Protector, Fuel Pump
23224D Gasket, Fuel Pump Spacer
23225 Spacer, Fuel Pump
23250B Ring, O(FOR FUEL INJECTOR)
23250E Injector Assy, Fuel(FOR DIRECT)
23250F Injector Assy, Fuel(FOR PORT)
23250G Ring, O, NO.2(FOR FUEL INJECTOR)
23255A Seal, Fuel Injector
23256 Ring, Fuel Injector Back-up, NO.1
23257 Ring, Fuel Injector Back-up, NO.2
23258 Ring, Fuel Injector Back-up, NO.3
23291 Insulator, Injector Vibration
23291A Insulator, Injector Vibration
23292B Protector, Fuel Hose
23470 Lifter Assy, Fuel Pump
23477 Guide, Fuel Pump Lifter
23695A Clamp, Nozzle Holder
23801P Pipe Sub-assy, Fuel, NO.1
23801T Clamp OR Clip, Fuel Hose(FOR EFI)
23803B Pipe Sub-assy, Fuel, NO.3
23804J Pipe Sub-assy, Fuel Inlet
23807 Pipe Sub-assy, Fuel Delivery
23807L Pipe Sub-assy, Fuel Delivery, RH NO.1
23807M Pipe Sub-assy, Fuel Delivery, RH NO.2
23808A Pipe Sub-assy, Fuel Delivery, LH NO.1
23808B Pipe Sub-assy, Fuel Delivery, LH NO.2
23814B Pipe, Fuel Delivery
23825 Guard, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23841K Clamp, Fuel Pipe
23851 Holder, Fuel Pressure Sensor, NO.1
23851A Holder, Fuel Pressure Sensor, NO.2
23881B Bracket, Fuel Hose
23891 Spacer, Fuel Delivery
23901 Tube Sub-assy, Fuel
23910A Tube Sub-assy, Fuel
77281P Clamp, Fuel Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
