Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 3 illustrations

Illustrations

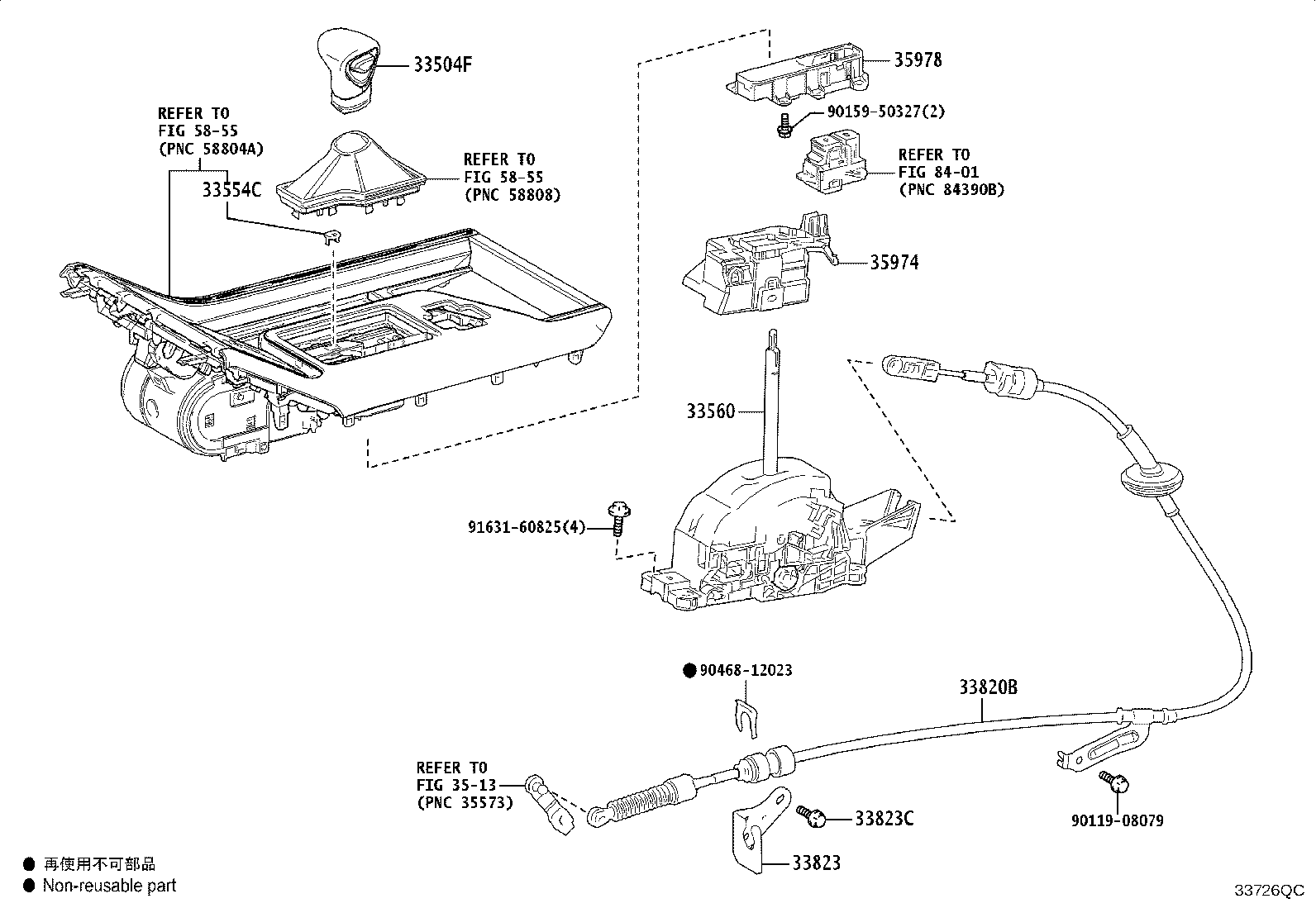

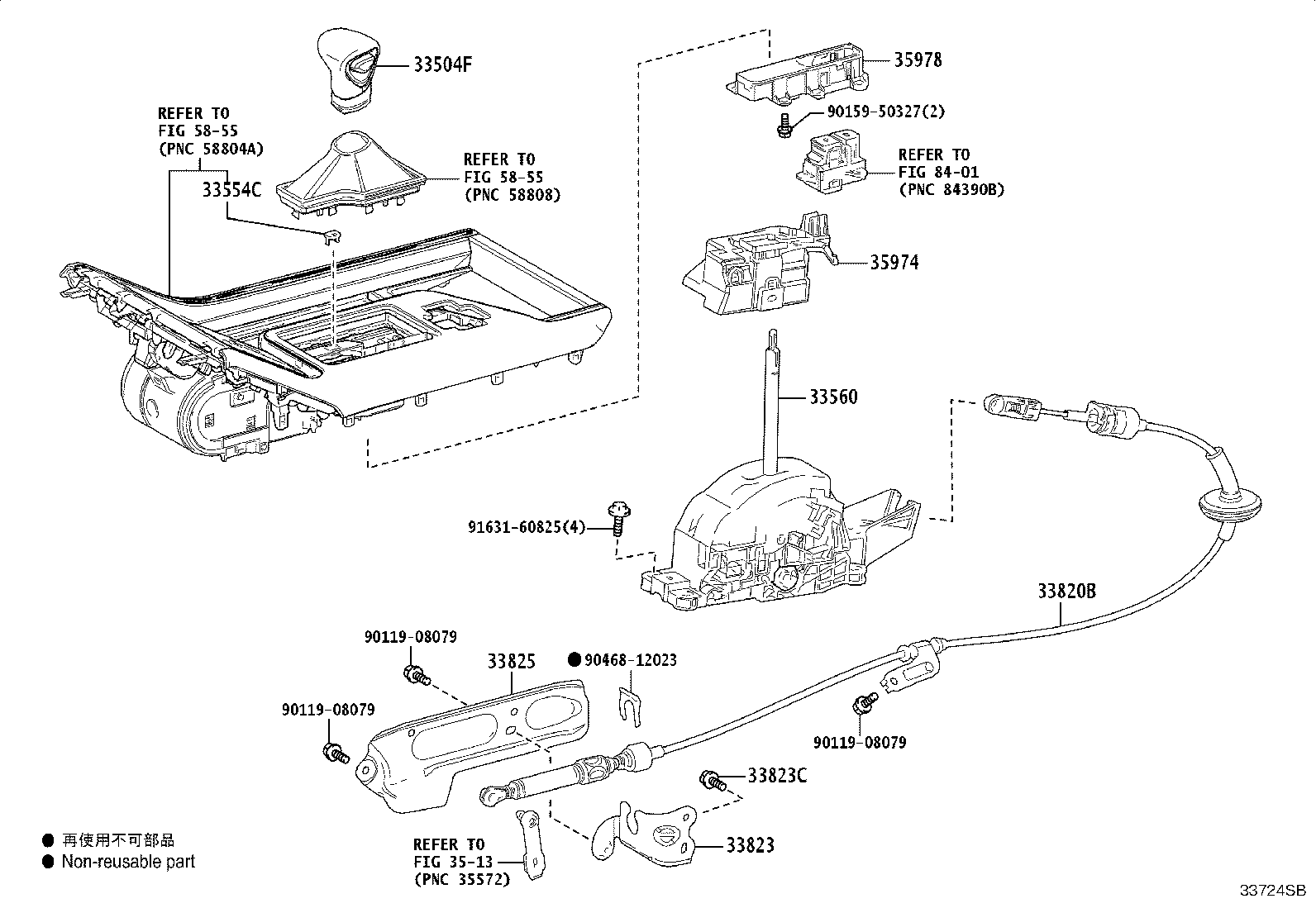

Figure 33724RB 33724RB 2023-12 → — Figure 33724SB 33724SB 2023-12 → — Figure 33726QC 33726QC 2024-03 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33554C Cover, Shift Lock Release Button
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33825 Insulator, Transmission Control Cable
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
