Brake Band & Multiple Disc Clutch (ATM)

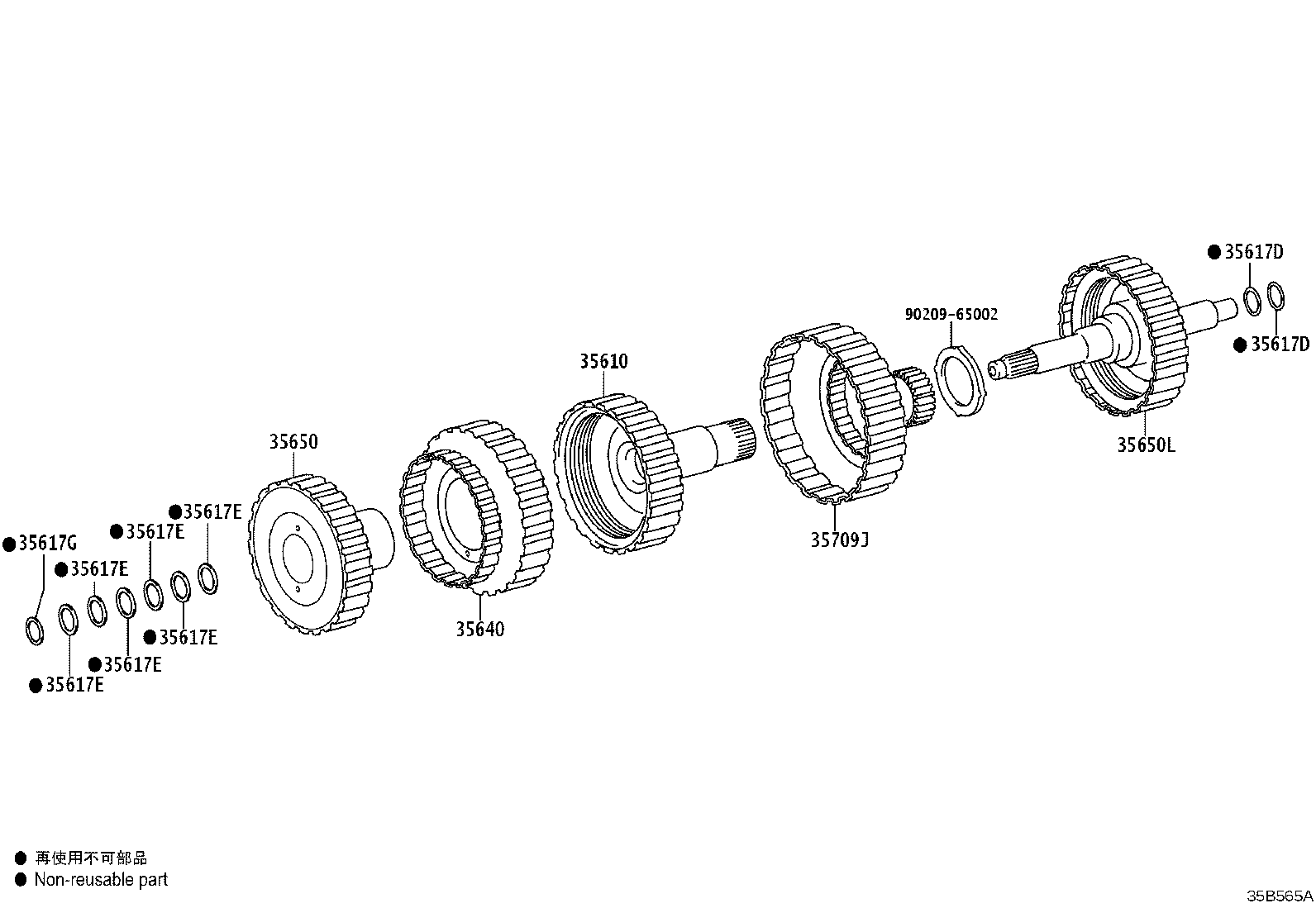

25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 34638 | Piston, C-4 Clutch |
| 35603A | Spring Sub-assy, Forward Clutch Return |
| 35605C | Bearing, Needle Roller |
| 3560B | Drum Sub-assy, C-2 |
| 3560BB | Ring, Hole Snap(FOR C-2 DRUM) |
| 35610 | Clutch Assy, Front Multiple Disc |
| 35617D | Ring, Clutch Drum Oil Seal |
| 35617E | Ring, Clutch Drum Oil Seal, NO.2 |
| 35617G | Ring, Clutch Drum Oil Seal |
| 35617L | Ring, Clutch Drum Oil Seal, NO.3 |
| 35635 | Flange, Forward Clutch |
| 35640 | Clutch Assy, C-3 |
| 35650 | Clutch Assy, Rear Multiple Disc |
| 35650L | Clutch Assy, C-2 |
| 35666G | Balancer, C-4 Clutch |
| 35666H | Ring, O(FOR C-4 CLUTCH BALANCER) |
| 35668B | Ring, O(FOR CLUTCH BALANCER) |
| 35709J | Drum Sub-assy, Sun Gear Input |
| 35770K | Shaft Assy, Output |
| 35775L | Race, Thrust Bearing, NO.5 |
| 35785D | Race, Thrust Bearing, NO.4 |
| 35787D | Bearing, Thrust Needle Roller |
| 35787E | Bearing, Thrust Needle Roller |
| 35883C | Disc, Clutch, NO.4 |
| 35884C | Plate, Clutch, NO.4 |
