Toyota Lexus GX550/550H
2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe
Supported model
Data version 2024-02

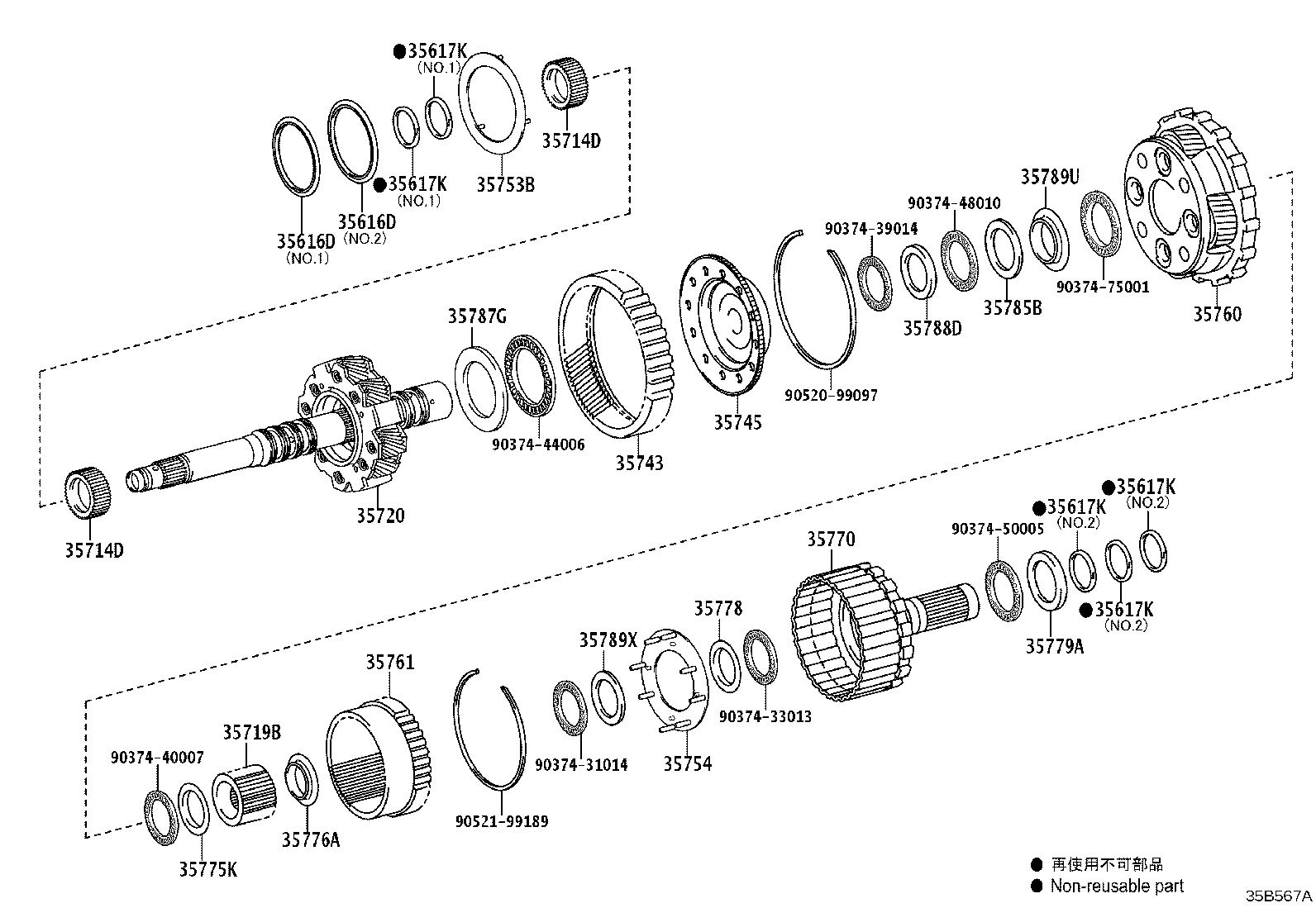

Planetary Gear, Reverse Piston & Counter Gear(ATM)
39 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35073B | Ring, O (FOR OUTPUT SHAFT) |
| 35073J | Ring, Hole Snap (FOR OUTPUT SHAFT) |
| 35616D | Washer, Clutch Drum Thrust |
| 35617K | Ring, Clutch Drum Oil Seal |
| 35623S | Piston,1ST & Reverse Brake |
| 35623T | Ring, O(FOR 1ST & REVERSE BRAKE PISTON) |
| 35712E | Ring, Input Shaft Oil Seal |
| 35714D | Gear, FR Planetary Sun |
| 35719B | Gear, Planetary Sun |
| 35720 | Gear Assy, Front Planetary |
| 35720B | Ring, Shaft Snap (FOR FRONT PLANETARY GEAR) |
| 35743 | Gear, Front Planetary Ring |
| 35745 | Flange, Front Planetary Ring Gear |
| 35750 | Gear Assy, Center Planetary |
| 35753B | Receiver, Front Planetary Oil |
| 35754 | Retainer, Sleeve Guide |
| 35760 | Gear Assy, Rear Planetary |
| 35761 | Gear, Rear Planetary Ring |
| 35761A | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR) |
| 35762 | Flange, Rear Planetary Ring Gear |
| 35763 | Gear, Center Planetary Ring |
| 35763A | Ring, Snap(FOR CENTER PLANETARY RING GEAR) |
| 35769 | Flange, Planetary Ring Gear, Ctr |
| 35770 | Shaft Assy, Output |
| 35775K | Race, Thrust Bearing, NO.5 |
| 35776A | Race, Thrust Bearing, NO.6 |
| 35777 | Race, Thrust Bearing, NO.7 |
| 35778 | Race, Thrust Bearing, NO.8 |
| 35778A | Bearing, Thrust Needle Roller |
| 35779A | Race, Thrust Bearing, NO.9 |
| 35782J | Ring, Snap |
| 35785B | Race, Thrust Bearing, NO.4 |
| 35785C | Bearing, Thrust Needle Roller |
| 35787G | Race, Thrust Bearing, NO.2 |
| 35788D | Race, Thrust Bearing, NO.3 |
| 35788E | Bearing, Thrust Needle Roller |
| 35789M | Bearing, Thrust Needle Roller |
| 35789U | Race, Thrust Bearing |
| 35789X | Race, Thrust Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
