Toyota Lexus GX550/550H
2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe
Supported model
Data version 2024-02

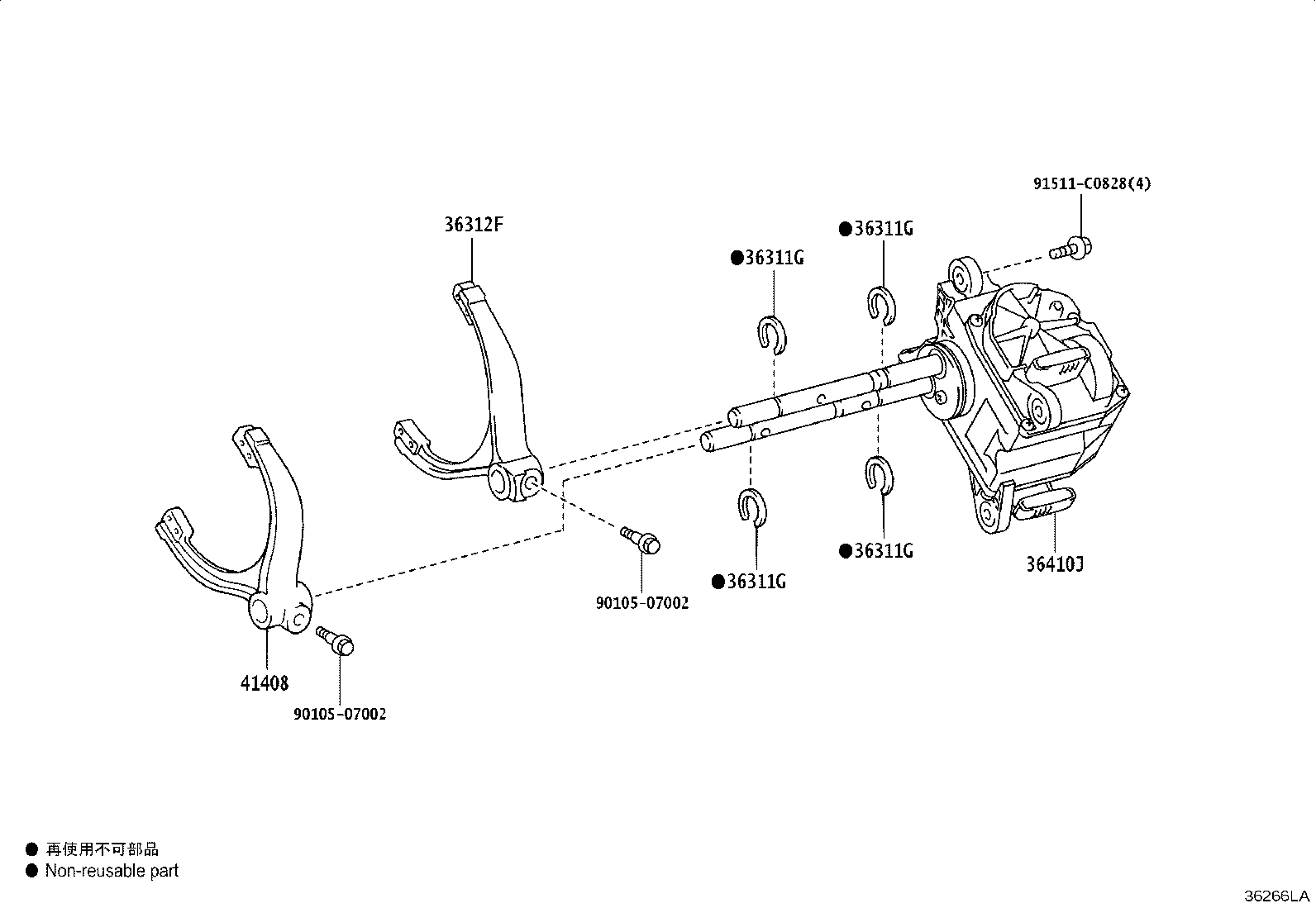

Transfer Lever & Shift Rod
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 36311F | Fork, Transfer Gear Shift, NO.1 |
| 36311G | Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK) |
| 36312F | Fork, Transfer Gear Shift, NO.2 |
| 36317C | Stopper, Transfer Shift Shaft |
| 36317D | Stopper, NO.2, Transfer Shift Shaft |
| 36410J | Actuator Assy, Transfer Shift |
| 36410N | Ring, O (FOR TRANSFER SHIFT ACTUATOR) |
| 41408 | Fork Sub-assy, Center Differential Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
